Fife CDP-01 Additional Instruction Manual
For moving sensor center guide
Hide thumbs
Also See for CDP-01:
- Additional instruction manual (24 pages) ,
- Additional instruction manual (19 pages) ,
- Additional instruction manual (22 pages)
Related Manuals for Fife CDP-01
Summary of Contents for Fife CDP-01
- Page 1 CDP-01 Additional Instruction Manual For Moving Sensor Center Guide CDP-01 DATE 02-28-97 Fig. Sheet 1-749...
- Page 2 CDP-01 DATE 02-28-97 Fig. Sheet 1-749...
- Page 3 These additional instructions explain the special features of the system delivered to the customer. They are intended for being used in conjunction with the CDP-01 Reference Manual. The CDP-01 Reference Manual applies except as noted to the contrary in these instructions.
- Page 4 CDP-01 DATE 02-28-97 Fig. Sheet 1-749...
-
Page 5: Table Of Contents
OVERVIEW OF FUNCTION OPERATOR CONTROL OPTIONS ..................2-1 SPECIAL FEATURES OF EXTERNAL CONTROL..............2-1 INPUT MATRIX - EXTERNAL CONTROL ................2-2 EXPLANATORY NOTES ON THE MODES................2-3 SENSOR SELECTION - SENSOR INDICATOR..............2-8 TROUBLESHOOTING FAULT DIAGNOSIS - FAULT RECTIFICATION..............3-1 CDP-01 DATE 02-28-97 Fig. Sheet 1-749... - Page 6 CDP-01 DATE 02-28-97 Fig. Sheet 1-749...
-
Page 7: General
The specific functions of this application are pre-set by Matrix Setup and State Machine. The software part numbers are indicated on a label on the side of the CDP-01 housing. They include the Matrix Setup No. ( MS ), the State Machine No. ( SM ) and the firmware version ( Dx ). -
Page 8: Connecting The System Components
The web is adjusted to the position of the sensor via the guide. The material web can be shifted in edge and center guiding configurations. Scope of application: edge and center guiding configuration systems with moving sensors, fixed web center point and internal or external control. CDP-01 DATE 02-28-97 Fig. Sheet 1-749... -
Page 9: Overview Of Function

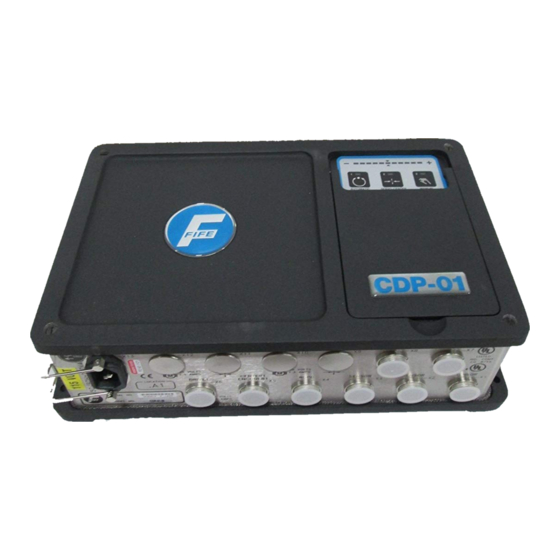

OVERVIEW OF FUNCTION Operator control options The CDP-01 signal amplifier can be operated from the control panel (internal control panel) or via the parallel port with a remote control panel or a programmable logic controller (PLC, external operation). The following symbols are used for the various operator controls in the remainder of this description:... -
Page 10: Input Matrix - External Control
SUPPLEMENTARY OPERATING MANUAL Input Matrix - external control CDP-01 inputs Modes Lockout Manual - Guide Manual - Sensor positioner Automatic Servo-center Jog Left - Guide Jog Right - Guide Jog Left - Sensor positioner Jog Right - Sensor positioner Automatic - Left web displacement... -
Page 11: Explanatory Notes On The Modes
With the - or + keys, or the ‘Left’ or ‘Right’ keys, the position of the guide can be changed. Note: with external control, ‘Jog Left-Guide’ or ‘Right’ ‘Jog Right-Guide’ mode must be set. CDP-01 DATE 02-28-97 Fig. Sheet 1-749... - Page 12 Select the sensor mode. Note: only possible in the ‘Manual - Guide’ or ‘Manual - Sensor Positioner’ or ‘Servo-center’ modes. Left edge guiding configuration Right edge guiding configuration Center guiding configuration AUTOMATIC edge guiding CDP-01 DATE 02-28-97 Fig. Sheet 1-749...
- Page 13 The sensor guide point and the system gain (control sensitivity) of the guide can be changed. AUTOMATIC center guiding configuration Press key 1, or select ‘Automatic’ via external control. ’Automatic’ The sensors search for the edge of the web. CDP-01 DATE 02-28-97 Fig. Sheet 1-749...
- Page 14 - or + keys or the ‘Left’ or ‘Right’ keys. ‘Right’ Note: with external control, ‘Automatic - Left web displacement’ ‘Automatic Right displacement’ must be set. The sensor guide point and the system gain (control sensitivity) of the guide can be changed. CDP-01 DATE 02-28-97 Fig. Sheet 1-749...
- Page 15 Press key 2, or select ‘Servo-center’ via external control. The sensors Retract. The guide moves to the center position. Check: LED 2 lit The sensor mode can be changed in this mode of operation. CDP-01 DATE 02-28-97 Fig. Sheet 1-749...
-
Page 16: Sensor Selection - Sensor Indicator
Press the sensor key until the required sensor mode is indicated. The following sensor modes are allowed: Left edge guiding configuration Right edge guiding configuration Center guiding configuration CDP-01 DATE 02-28-97 Fig. Sheet 1-749... - Page 17 CDP-01 DATE 02-28-97 Fig. Sheet 1-749...
-
Page 18: Troubleshooting
SUPPLEMENTARY OPERATING MANUAL TROUBLESHOOTING The reason for incorrect or undesired guidance is often an incorrect setting on the CDP-01. The chapter entitled “Frequent Setting Errors” in the CDP-01 Reference Manual describes faults and procedures for rectifying them in more detail. Application-specific faults are outlined below.
