Proxim MeshMAX 3500W Specifications

MeshMAX™ Series
Product 3500WM, 3500W, 5054WM, 5054W
Description Industry's fi rst convergence of
WiMAX, Wi-Fi ® Mesh and Wi-Fi
Applications • Network operator can deliver
bundle of IPTV, VoIP and Internet
access to subscribers
• Secure and reliable backhaul of
Wi-Fi Mesh traffi c
• Security and surveillance
Environments • Municipal, rural and service
provider broadband networks
• Enterprise campus networks
Key Features • Tri-radio design provides WiMAX
backhaul, Wi-Fi Mesh link and
Wi-Fi access in one device
• Simplifi es network architecture,
deployment and management
• Signifi cantly reduces TCO with
lowest deployment cost per
square mile
SPECIFICATIONS
Frequency Band • 3.5 GHz or 5.15-5.85 GHz (WiMAX link)
• 5.15-5.85 GHz (Mesh link)
• 2.4 GHz or 5.15-5.85 GHz (Wi-Fi access)
Wireless Protocol • 802.16-2004 or WORP (WiMAX)
• 802.11a (Wi-Fi and Mesh)
• 802.11b/g (Wi-Fi)
Data Rate • 25.4 Mbps (3.5 GHz)
• 54 Mbps (5.15-5.85 GHz and 2.4 GHz)
QoS 802.16d QoS (WiMAX); Draft 802.11e,
802.1p, 802.1q (Wi-Fi Mesh)
Security • AES (WiMAX)
• 802.11i, AES, TKIP (Wi-Fi Mesh)
Form Factors ODU tri-radio device, 3 x
Type-N connectors
For detailed technical specifi cations, please visit http://www.proxim.com/products/landing_wimax.html
© 2007 Proxim Wireless Corporation. All rights reserved. Proxim and the Proxim logo are registered trademarks and MeshMAX and Tsunami are trademarks of Proxim Wireless Corporation. Any other trademarks mentioned
herein are property of their respective owners. Specifi cations are subject to change without notice. Availability subject to local regulations. Performance results may vary due to environment and implementation.
ATAG_0407_WIMAX_US
Tsunami™ MP.16 Series
MP.16 3500 MP.11 4954-R
WiMAX Forum Certifi ed™ products Capabilities of fi xed and mobile
for 3.5 GHz frequency band WiMAX for public safety
• Broadband last-mile access for • Transmission of critical data
metropolitan and rural areas and video from emergency fi rst
• Voice, video and data transmission responder vehicles
with optimal economics • Real-time delivery of IP-surveillance
• Security and surveillance video from security cameras
• Service provider and municipal • Public safety broadband networks
broadband networks • Broadband access for emergency
• Security and surveillance fi rst responders
• Security and surveillance
• Product complies with IEEE 802.16 • WiMAX capabilities for 4.9 GHz
- 2004 standard frequency band for public safety
• WiMAX QoS for voice, voice, data • WiMAX QoS for voice, data and
• All-in-one, outdoor base station video
delivers scalable solution by allowing • Fast handoffs for mobility up to
single sector deployments to grow 200 km/hr
into multi-sector deployments
3.40 - 3.60 GHz 4.94-4.99 GHz
802.16-2004 Wireless Outdoor Routing Protocol
(WORP; proprietary)
25.4 Mbps 54 Mbps
802.16d QoS (WiMAX) 802.16d QoS (WiMAX)
• AES • AES
• Radius base authentication of • Proprietary nature of RF protocol
subscribers based on MAC address • Packet fi ltering, Intracell blocking
• Base: ODU, N-connector • Base: ODU, N-connector
• Subscriber station: ODU, • Subscriber station: ODU,
N-connector or Integrated 21 dBi N-connector or Integrated 21 dBi
Antenna Antenna

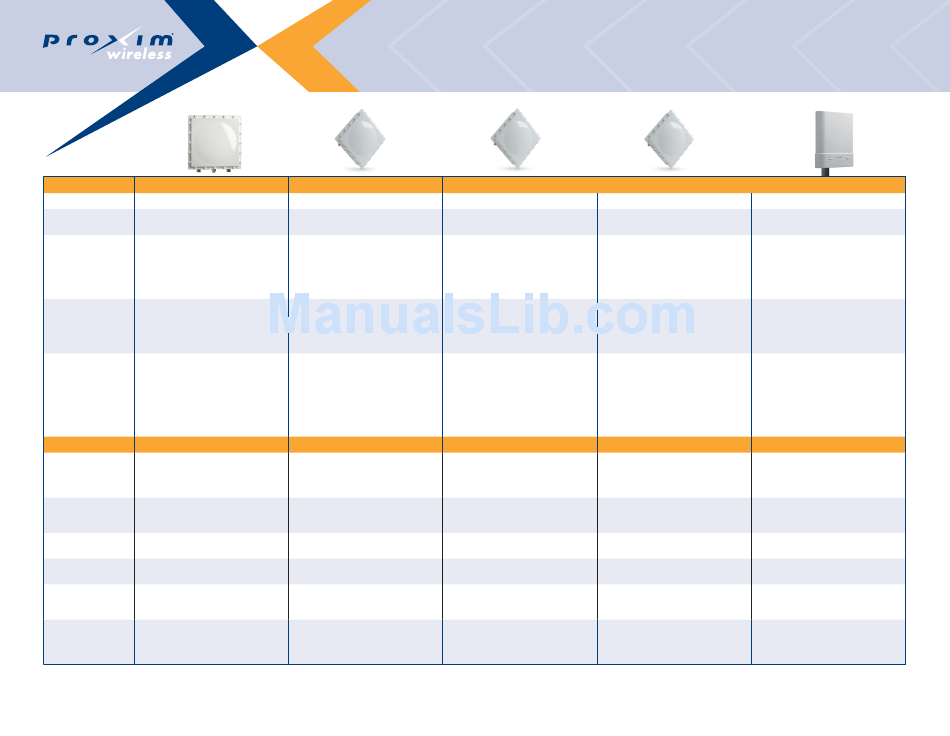

Proxim Wireless At-a-Glance
WiMAX Product Portfolio
Tsunami™ MP.11 Series
MP.11 2454-R/5054-R
Capabilities of fi xed and mobile
WiMAX for license-free frequencies
• Broadband last-mile access for
metropolitan and rural areas
• Voice, video and data transmission
with optimal economics
• Security and surveillance
• Service provider and municipal
broadband networks
• Broadband access for ground and
water transportation
• Security and surveillance
• WiMAX capabilities for license-
free frequency bands
• WiMAX QoS for voice, data
and video
• Fast handoffs for mobility up to
200 km/hr
• 2.4 GHz (2454-R)
• 5.25-5.35 GHz (5054-R)
• 5.4-5.7 GHz (5054-R)
• 5.725-5.850 GHz (5054-R)
Wireless Outdoor Routing Protocol
(WORP; proprietary)
54 Mbps
802.16d QoS (WiMAX)
• AES
• Proprietary nature of RF protocol
• Packet fi ltering, Intracell blocking
• Base: ODU, N-connector
• Subscriber station: ODU, N-connector
or Integrated 18 or 23 dBi Antenna
• Indoor Subscriber
MP.11 5012
Economical subscribers ideal for
large scale deployments
• Broadband last-mile access for
metropolitan and rural areas
• Voice, video and data transmission
with optimal economics
• Service provider and municipal
broadband networks
• Broadband access for residential
market
• Aggressive ROI and fast payback
for network providers
• Compatible with existing MP.11
5054 products
• Throughput comparable to or
better than cable/DSL
• 5.15-5.35 GHz,
• 5.47-5.725 GHz and
• 5.725-5.850 GHz
Wireless Outdoor Routing Protocol
(WORP; proprietary)
12 Mbps
802.16d QoS (WiMAX)
• AES
• Proprietary nature of RF protocol
• Packet fi ltering, Intracell blocking
• Indoor Subscriber: Bundled with
15 dBi Window Antenna
• Outdoor Subscriber: Integrated
18 dBi Antenna
