Proxim Tsunami MP.11 2454-R Installation And Management Manual

Hide thumbs Also See for Tsunami MP.11 2454-R:
Table of Contents

Advertisement

Quick Links

Download this manual

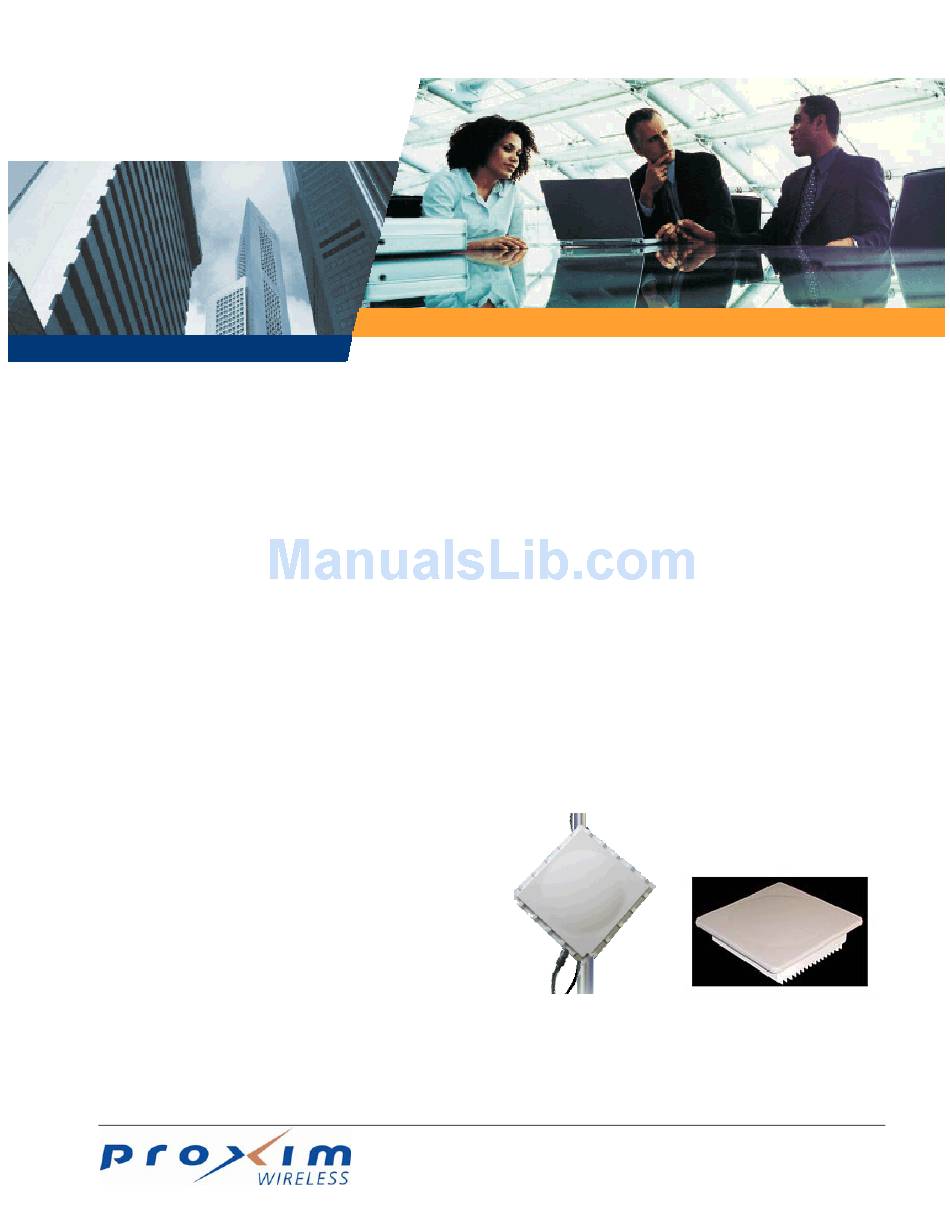

Part Number 72235r1
Tsunami MP.11
Models 2454-R, 5054-R, and 5054-R-LR
Installation and Management
Version 2.4
