Summary of Contents for Fuji Xerox C60

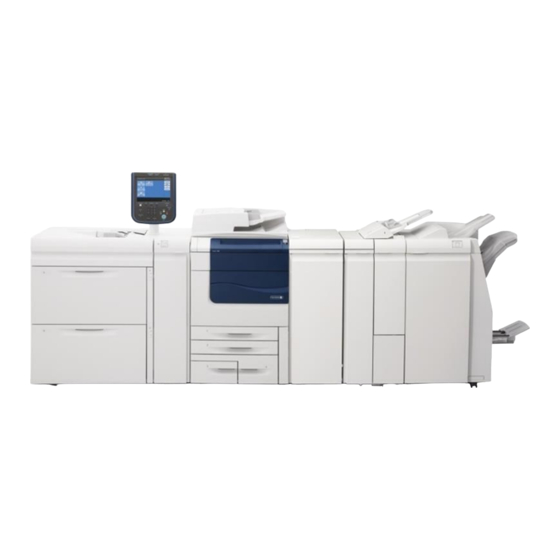

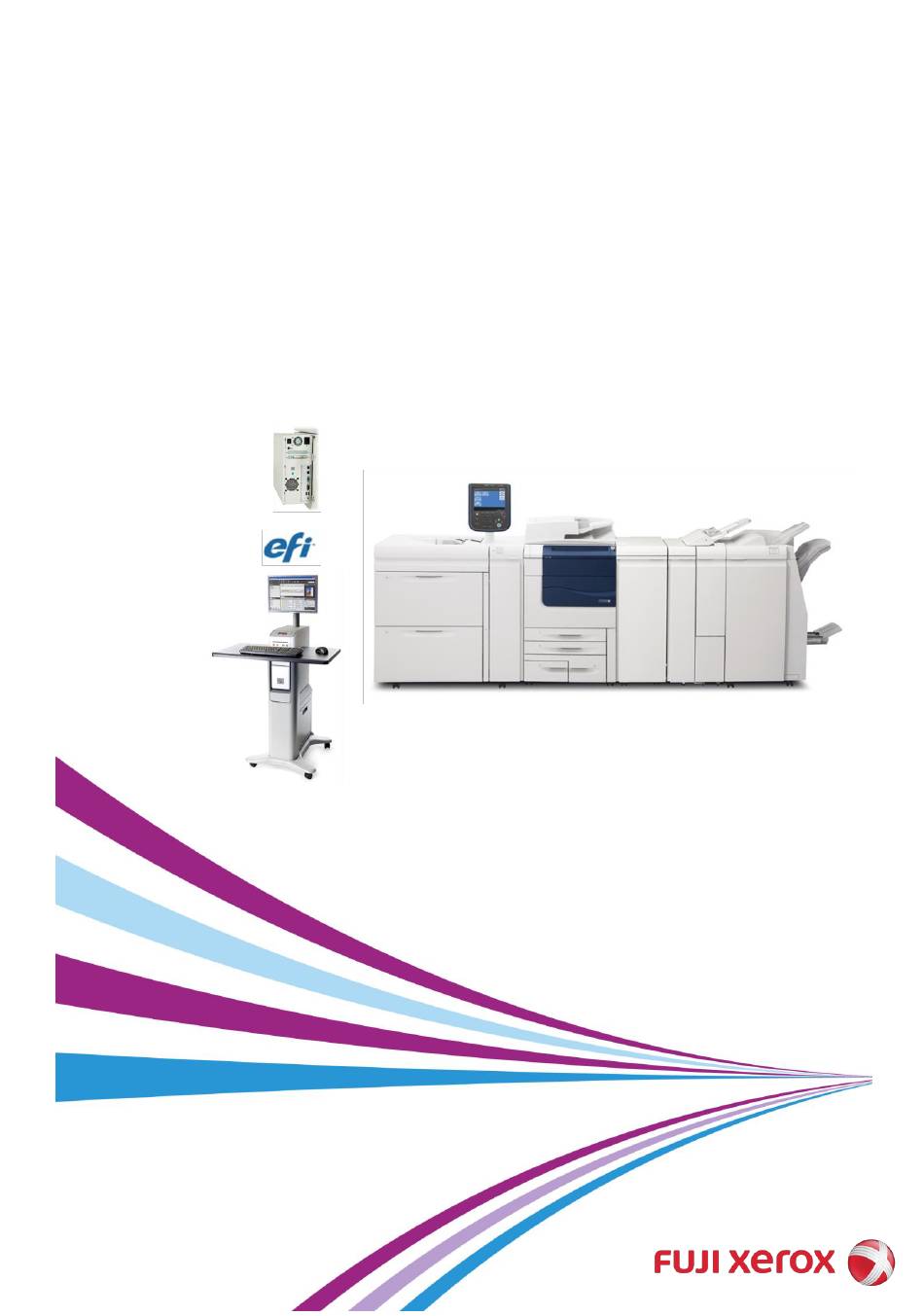

- Page 1 Choosing the product that best fulfils your needs Fuji Xerox Color C60/C70 Printer with Integrated Fiery Ex-i and Fiery EX Print Server Customer Expectation Document June 2018 – Version 1.21 CSO-FN-CED-254...
- Page 2 This page is intentionally blank...
-
Page 3: Table Of Contents
Contents What Does This Document Mean to Me? ....................3 Product Overview ............................... 3 Monthly Print Volume Range ........................3 Product Configuration............................4 Space Requirements (Minimum Service Clearance) ................4 Installation Requirements ..........................6 General Installation Requirements ....................................6 Responsibility Matrix ............................8 Product Specifications ............................. -
Page 4: What Does This Document Mean To Me
With this information, you will be able to ensure the Fuji Xerox Color C60/C70 Printer is the right product for your business. In this document you may see the product referred to as Fuji Xerox Color C60/C70 or PCC60/C70. -
Page 5: Product Configuration
Colour Server Ex-i, EX Print Server and Integrated Digital Front End (DFE), RIP FreeFlow Print Server. The Color C60 / C70 is not sold as a Copier only model If an OHCF is purchased, the Bypass tray is relocated to Bypass Tray ✓... - Page 6 Refer to the tables below for actual site space requirements for each available configuration Rear service clearance is measured from the wall to the back of the IOT (not the Integrated Fiery Server if fitted). . Installation of an Oversize High Capacity Feeder; Finisher D3 w/booklet & folder or Finisher D4 results in a Non-Moveable installation.
-
Page 7: Installation Requirements
Space required for access ways is dependent on circumstance, and it is recommended that the local statutory body be contacted for advice. Installation Requirements This section contains information on preparing for the delivery and installation of the Color C60 / C70 Printer General Installation Requirements •... - Page 8 For optimal operation of the printing system the temperature should be maintained between 20-25C and humidity between 45-55% RH Electrical Requirements A dedicated 10Amp, 240Volt 50Hz supply is required for each Color C60 /C70 Printer IOT installation*. In addition, the Color C60/C70 will require individual additional power outlets depending on options purchased: Device or Option...
-
Page 9: Responsibility Matrix
Fuji Xerox will not be held responsible for any damage that may occur. Fuji Xerox will not be held responsible for any damage that may occur as a result of lightning strikes, power surges, etc. Fuji Xerox recommends protecting the Fiery Print Server from surges or spikes in electrical power that can damage the server and result in extended downtime. -
Page 10: Product Specifications
Other paper brands or weights may alter the print engine’s capability. Every effort has been made to ensure that the Color C60 / C70 Printer supports a broad range of media. Please keep in mind, however, that using only Fuji Xerox-recommended media maximises reliability and paper-handling performance. -
Page 11: Dmp Features
These additional capabilities, called Document Messaging Platform (DMP), are available with an additional network drop or via the Cisco SD2005 5-port 10/100/1000 switch. This enables the Color C60/C70 Printer configuration to network both the device controller and the integrated Fiery EX-i or Fiery EX Print Server. -
Page 12: Image Quality
Prints may exhibit random white spots caused by paper dust, stray developer beads, or other miscellaneous particles. You can reduce the occurrence of white spots by using Fuji Xerox approved paper. If you are cutting your own paper, ensure that cut edges are dust free, and keep the machine in a clean and dust/dirt reduced environment. Failure to do this will result in increased frequency of white spots. - Page 13 • The appearance of the document displayed on the monitor screen may not match the output print because the monitor uses RGB colour space parameters. • The customer is responsible for calibrating the Color C60/C70. • For imported RGB images, optimal colour is achieved in the EPS format. Other imported file formats may produce unexpected results.
- Page 14 Maximum Image Sizes The Color C60/C70 will reproduce A3 full bleed when printing on SRA3 paper. Copy Guaranteed Image Max. Imageable Area Quality Area 297mm x 432mm 297mm x 432mm Print Guaranteed Image Max. Imageable Area Quality Area 323mm x 480mm...
-
Page 15: Copy/Print Speed
IQ. • As a printer / copier, the Color C60/C70 is a document printer; therefore, in reverse order (faceup) printing the print engine will not cycle up until the entire job is ready. This will impact First Copy Out Time (FCOT). The printer may cycle... - Page 16 • Colour to Colour mis-registration may vary outside of the specification when using heavyweight papers. • The Color C60/C70 printer may not output a print for a few seconds to adjust paper feeding timing when running a job with mixed media sizes.
-
Page 17: Paper Tray Capabilities
Paper jam rates may be higher than the rate you will experience for the same throughput material in single-sided mode. Transparencies The specific premium transparency is available for use. Please contact your local Fuji Xerox Representative to order the transparency. Transparencies are supported out of all internal trays, Tray 5 (Bypass), and Trays 6-7 (OHCF) if fed in the correct manner. -
Page 18: Document Handler
Monochrome: up to 80 ipm, Colour: 75 ipm (A4 LEF) Billing Meters An automated meter capture service is available for customers with a Fuji Xerox Australia Support Services Agreement (SSA). This service assists customers with convenient, accurate billing by eliminating the need for manual meter read submission for each device. -
Page 19: Auditron Function
Envelopes The C60/C70 currently supports running the following envelope sizes through Tray 5. Depending on thickness, up to 50 envelopes can be loaded. Envelopes can also be fed from HCF Trays 6 & 7 with the small media bracket (post card kit) installed. Stack heights in these trays may need to be reduced if jams are encountered with various envelope types. - Page 20 Envelope Feeding Guidelines/Limitations: • Envelope should be run using media type “heavyweight 2”, “face-up” selected. • Envelopes should be run open flap to the left (trail edge) which provides the best wrinkle free results. It is not recommended to run closed flap because it is more susceptible to wrinkles, creases, light image, and the flap sealing during the run.
-
Page 21: Accessories/Options
Accessories/Options Finishing Options & Specifications Simple Catch Tray (SCT) • The simple catch tray holds up to 500 sheets of A4 80gsm media. Offset Catch Tray (OCT) • The offset catch tray holds up to 500 sheets of SRA3 80gsm media. C3 Finisher C3 Finisher The C3 Finisher is an output device that can perform up to 50-sheets stapling, hope punching, up to 3,000... - Page 22 C3 Finisher with booklet maker C3 Finisher with Booklet Maker The C3 Finisher with Booklet Maker is a separate configuration that adds basic booklet making capability to all the same features as the C3 Finisher. C3 Finisher with Booklet Maker includes: Hole Punch Stapler Top Tray...
- Page 23 C3 Finisher CD1 folder unit Item Description Paper Size A3, B4, 11 × 17” Z fold half sheet Paper Weight 64 to 90 gsm Paper Size A4, Letter Tri-fold Paper Weight 64 to 90 gsm Paper Capacity*1 30 sheets Power Supply*2 AC 220 –...
- Page 24 Staple Capabilities by weight and paper finish for the Finisher D4 The following refers to the limitations when stapling sheets together. Note: these specifications are not relevant when creating a Booklet. Refer to “Optional Booklet Maker for Light Production Finisher (Finisher D4)” for Booklet stapling specifications. Staple Capabilities by weight and paper finish Paper Size Paper type and weight...
- Page 25 Light Production Finisher C/Z Folder (D4 Folder Unit) Capacity An optional Folder unit that can handle Z-fold, Tri-C, and Tri-Z, can be added to the Finisher D4. • The C/Z folding tray can accommodate 30 sheets of up to 90 gsm uncoated media. •...
- Page 26 ProClick die (ED200564) supports media from 75 to 203 gsm • The GBC AdvancedPunch is able to bypass all coated and uncoated media sizes printed on the Color C60/C70 Digital Press. • Hole punch position from edge of paper is not adjustable.
- Page 27 The GBC AdvancedPunch comes standard with 1 x Die PB-21 Hole A4 punch size (ED200557) Additional Die’s are available for purchase from Fuji Xerox. The approximate life of the Die is 500K punch cycles, replacement Die’s are not covered under the service agreement and these can be purchased from Fuji Xerox Supplies.
-
Page 28: Feeder Options & Specifications
Feeder Options & Specifications A4 High Capacity Feeder (B1) • 2,000 sheet capacity (Fuji Xerox Centerline 90 gsm Colotech+) • Weight range: 64-220 gsm (uncoated) • Powered by print engine – no external power source required • Maximum paper size A4 1 Tray/2 Tray Oversized High Capacity Feeder (1 Tray OHCF - 2 Tray OHCF). -
Page 29: Support
Fuji Xerox will provide on-site training (standard) with the delivery of our equipment. Additional or repeat training is available (charges and conditions apply). The duration of the standard Color C60/C70 Customer Operator course is 1½ days in total. (Standard installation for the Engineer and Analyst is additional/separate to the 1½ days) Fuji Xerox Australia also offers a range of additional industry related courses to assist a customer in better understanding the technology, the industry, and new opportunities. -
Page 30: Supplies
Internet: http://www.xeroxsupplies.com.au Each Colour C60/C70 Printer is delivered with an initial supply of Toner (100% full) as well as the CRUs (Drum Cartridges, Fuser, and Waste Toner Container as well as Staples – included for finishing options with stapling). -
Page 31: Safety Data Sheets
Support Software and hardware support of your print server is provided by Fuji Xerox under the term and conditions within a Full Service and Maintenance Agreement. -
Page 32: Specifications
Space Requirements Space requirements for the full system are listed earlier in this document To enable a Fuji Xerox Service Representative to safely repair the server, the work area must measure at least 91.44 cm square around the server. The work surface of the network controller must not infringe on the space requirements by the print engine and any attached accessories unless the work surface is a table that has wheels and can easily be moved. -
Page 33: Running Antivirus Software
Both the Integrated Fiery Color Server for the Color C60/C70 Printer and the EX Print Server, Powered by Fiery® for the Color C60/C70 Printer contain Secure Erase to ensure the safety of the data on the server hard drive. -
Page 34: Supported File Formats
Supported File Formats The following file formats are supported by both the EXi Integrated and EX Print Servers unless where noted: • PostScript level 1, 2, or 3 per the PostScript language Reference Manual Supplement v3020 and PDFLib9. • Adobe Portable Document Format version up to 1.7 (Acrobat 11). •... -
Page 35: Purchasable Options
United States Department of Defense 5220.22M Purchasable Options The following features are available as purchasable options on the Integrated Fiery Color Server and the EX Print Server unless otherwise noted. Speak to your Fuji Xerox Sales representative for more information. Item Includes Comments •... -
Page 36: Variable Information
Variable Code. It is advisable to test a file prior to gain an understanding of any possible issues in the workflow. A Fuji Xerox Analyst can help in the process and there is always opportunity for a customer to correct and develop an efficient workflow to gain the best throughput. -
Page 37: Client Specifications
Please refer to the link below for Fiery System and Print Server Limitations: http://services.efi.com/support/vfigs/9019710383/ Business Validation Document The Business Validation Document attached to the end of this document will be used to ensure the site requirements are met, prior to product installation. The BVD will be completed by a Fuji Xerox representative. - Page 38 • FUJI XEROX®, XEROX®, The Document Company®, Color C60/C70 Printer and all Xerox product names and product numbers mentioned in this publication are registered trademarks/trademarks. All non-Xerox brands and product names are trademarks or registered trademarks of their respective companies, and are hereby acknowledged.
- Page 39 Customer Name: Proposed Digital Front End (RIP): Order Number: Reference Material: This Document is to be utilised and cross-referenced in conjunction with the Fuji Xerox Color C60/C70 Printer Customer Expectation Document. Version: Customer Expectation Document: Please forward a copy to TSC – Production (ATP) - Email: TSCProduction@aus.fujixerox.com...
- Page 40 1. General Information Company Address Suburb State Post code Contact Phone / Fax System Phone / Fax Administrator Business type: Printer Pre-Press Copy Centre Corporate Other Software (Word / Applications Xpress) 2. General Site Requirements Checklist Yes ...
