DC2851A User Guide
Typical Performance Characteristics
www.analog.com
Arrow.com.
Arrow.com.
Arrow.com.
Arrow.com.
Arrow.com.
Downloaded from
Downloaded from
Downloaded from
Downloaded from
Downloaded from

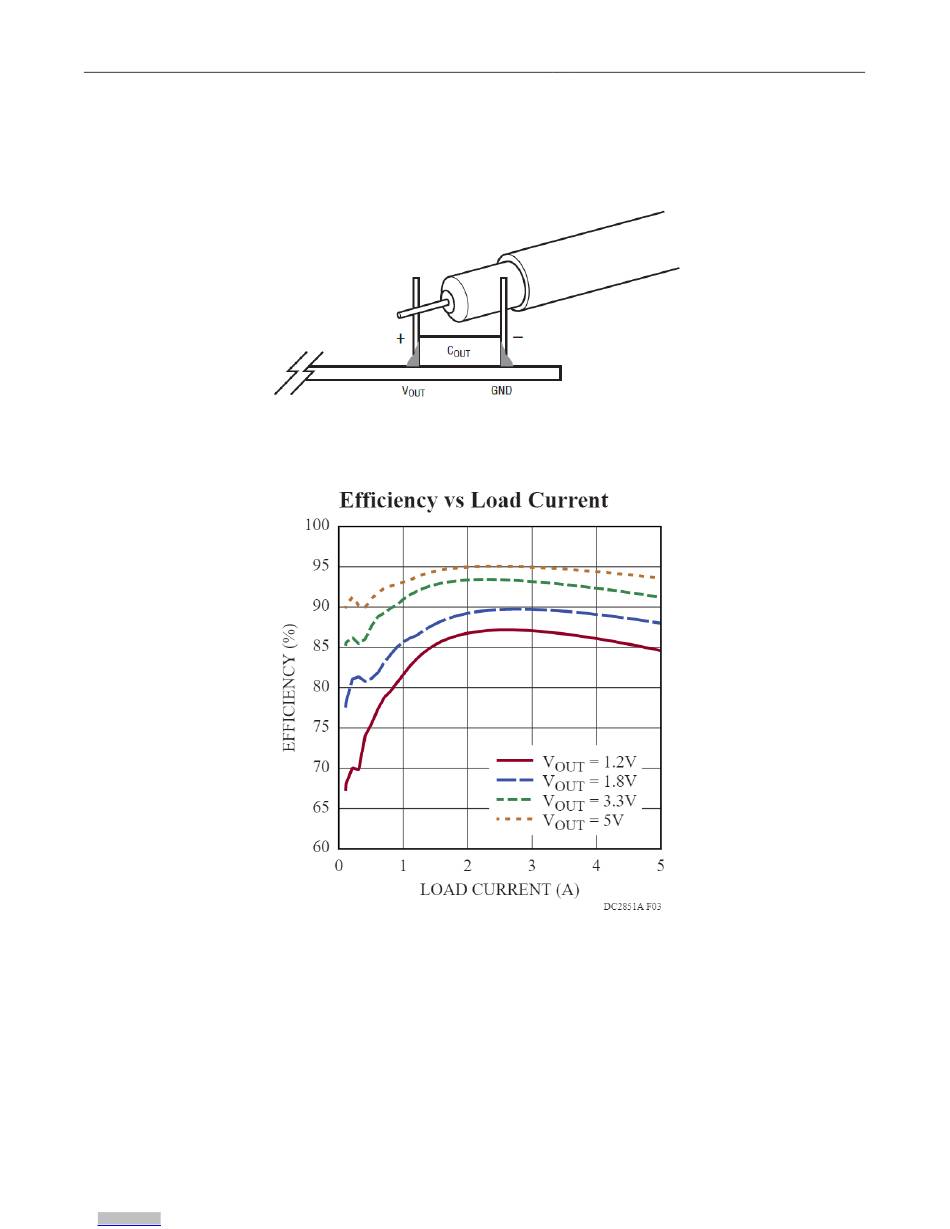

Figure 2. Scope Probe Placement for Measuring Input or Output Voltage Ripple
Figure 3. DC2851A Efficiency vs Load Current
(VIN = 12V, 1MHz Switching Frequency, DCM Mode)
LT7200S
Quad 18V, ±5A
Synchronous Monolithic
Step-Down Regulator
Analog Devices | 5
