INTRODUCTION

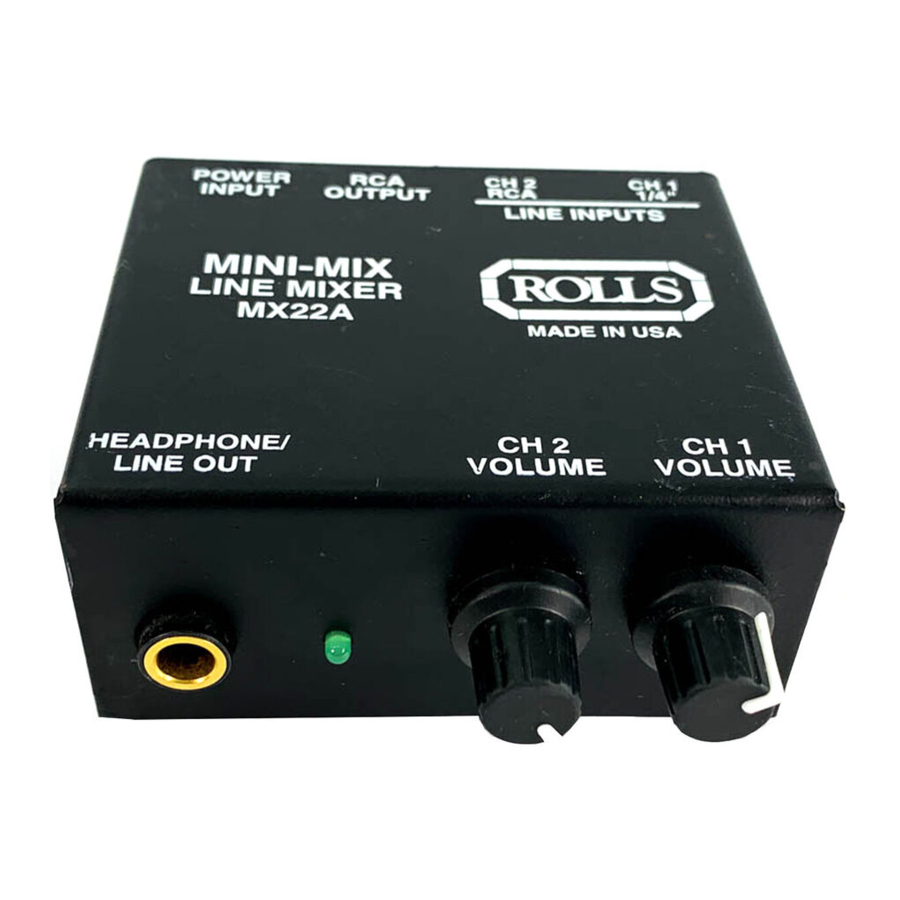

The MX22A is a two-channel mixer for mixing a 1/4" line signal such as a wireless microphone, and a stereo RCA signal such as a CD player. The MX22A has enough output to drive a power amplifier directly and is ideal for audio/video and aerobics instructors.

DESCRIPTION

CH 1 1/4" Input: 1/4" unbalanced jack for receiving line or instrument level signals.
CH 2 RCA Input: Stereo RCA input for receiving line level signals. These signals are mixed to mono.
Line 1 Volume: Controls the level of the signal from Channel 1.
Line 2 Volume: Controls the level of the signal from Channel 2.
Line Outputs: Dual mono RCA and 1/4" jacks for connection to a line input device such as a mixer.
Power Input: For connection to the power supply.

DESCRIPTION

EXAMPLE

EXAMPLE

SCHEMATIC

SCHEMATIC

SPECIFICATIONS

CH1 Max Gain: 32 dB
CH2 Max Gain: 20 dB
CH1 Input Impedance: 10K Ohms
CH2 Input Impedance: 20K Ohms
Output Impedance: 50 Ohms
Power: 12 VDC 100mA (typical)
Size: 2.75" x 2.35" x 1.5" (7 x 6 x 3.8 cm)
Weight: 1lb (.45Kg)
