Rolls MiniMixII MX51s Specifications

INTRODUCTION
Thank you for your purchase of the MX51s Mini-Mix II. The MX51s
is a four channel mixer designed for Audio and Visual applications.
Channels 1 has a microphone XLR input with switchable phantom
power. Channel 2 has 1/8" and RCA inputs. Channels 3 and 4 have
RCA jacks. The unit also features a 1/8" headphone output that
will drive up to 600 Ω headphones with full frequency response.
The MX51s is intended for professional applications. It has an FR4
glass epoxy circuit board, vinyl laminated steel chassis bottom and
a powder coated top. All inputs except CH 1 microphone are stereo.
All outputs are true stereo.

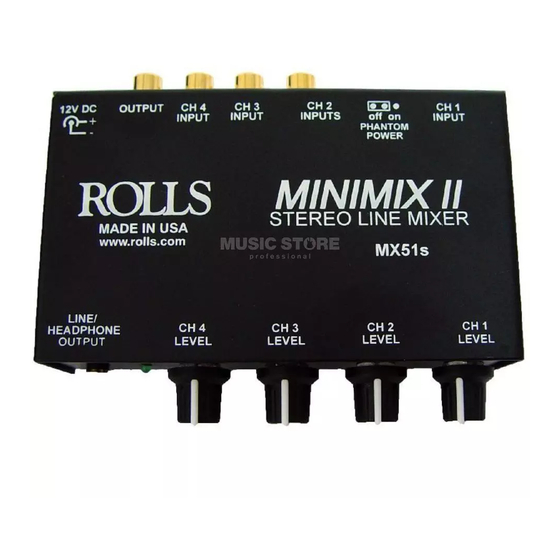

DESCRIPTION
DC PWR: For connection to the ROLLS PS27 power supply.
OUT: Stereo RCA jacks for connection to a mixer or amplifi -
cation device.
CH 4 and CH 3 INPUT: Stereo RCA jacks for connection to a
signal source such as a CD player, cassette deck, tuner, etc.
CH 2 INPUTS: Stereo RCA and one 1/8" jacks (paralleled)
for connection to a signal
source such as that men-
tioned for Channels 3 and
4, or to a source such as
a wireless microphone or
instrument.
CH 1 INPUT: XLR jack
for connection to a micro-
phone. Switchable jumper
phantom power as labeled on unit.
LINE/HEADPHONE OUTPUT: 1/8" Stereo jack for connec-
tion to a mixer, amplifi er or stereo headphones.
CH 1 - 4 LEVEL: Adjusts the volume level of each channel.
OPERATION
To operate the MX51s, properly connect cords from the
sources to be mixed (mics, cassette decks, CD players etc.)
into the channel inputs. Connect the outputs to an ampli-
fi cation device or sound system. Adjust the channel level
controls for the desired volume. For private listening, plug
stereo headphones into the LINE/HEADPHONE OUTPUT
on the MX51s front.
SCHEMATIC
R10 R14 C10 1U
3.3K 3.3K
Q2
H1A
2N3904
HD3
P4
T1 R22
PHANTOM
P100K
100K
R21 C8
CH 4 10K 10U
3 +B
J5
XFMRAUDIO
XLR F PC
R14 C6
R4
1K
10K 1U
J4
P3A
2
3.5STJK
P100K X2
R5
R3
10K
1K
H2A
1
J3B R6
HD3
P3B
5
CH 3 H2B
10K P100K X2
4 2
RCAX4 PC
HD3
6
H2C
3
R8
HD3
10K
P2A
2
RCAX4 PC
R9
P100K X2
J3A
10K
1
C1
CH 2
3 1U
R11
10K
P2B
5
P100K X2
RCAX4 PC
10K
J2B
R10
CH1 4
P1A
2
6
P100K X2
R12
10K
P1B
5
P100K X2
D2
R19
+V +B
1N4001 18K
J1
2
3
R18
IN 9-15 VAC/VDC 1 R15
22K
C7
4.7K
JAPDC 1000 UF D1
LDRR
12V DC OUTPUT CH 4 CH 3 CH 2
+ INPUT INPUT INPUTS
PHANTOM
-
POWER
STEREO LINE MIXER
LINE/
CH 4
HEADPHONE CH 3 CH 2
LEVEL LEVEL LEVEL
OUTPUT
Q1
H1B H1C
2N3904
HD3 HD3
+V
R17
C4
100K
R7 100K
47U
C9
27PF
+V
C3
R20
47U
6 100 J6
7 3.5STJK
U1B
5
LINE/HDPHONE
4560
+B
MONO
RCAX4 PC
J2A
1
STEREO
3
LINE OUTS
R13 100K
C2 27PF
4560
R16
2 100 C5
1
U1A
3
47U
+B
Rolls Corporation
5968 S 350 W
Murray Utah 84107
C12
Title M51S 4CH MIXER PLUS
47U
Size: Document Number:
FXa
Date: 9 NOVEMBER 2007
line
Mixer
II
CH 1
INPUT
MX51s
CH 1
LEVEL
- For mixing a microphone XLR input with up to three
RCA input signals
- Four channels total
- Line / Headphone output level
- ROLLS PS27 AC adapter included
The MX51s Mini Mix 2 is small four-channel mixer with individual
volume controls, and a headphone / line output. The unit has one
XLR input along with an 1/8" input and 3 sets of stereo RCA inputs.
It has enough gain and output level to connect to a power amplifi er,
with either RCA or 1/8" jacks. The MX51 is powered by an included
ROLLS PS27 12 VDC adapter.
SPECIFICATIONS
Input Impedance:
CH 1 Gain:
Phantom Power:
Ch2 Gain:
Ch 3 and 4 Gain:
Output:
S/N Ratio:
THD:
IMD(SMPTE):
Power:
Weight:
Size:
WARRANTY
For information on the Rolls One Year Limited Warranty, and
to register this product, visit our website at www.rolls.com
Rev:
MX51S.SCH
A
Sheet 1 of 1
output.
four to up mix to need
4-Channel
MiniMix
MX51s MINI MIX 2
10K Ω unbalanced each jack
32 dB XLR jack (highest gain)
for CH 1 microphone XLR
26 dB 1/8" and RCA
26 dB each RCA
1/8" stereo and stereo RCA
>90 dB
<.008%
<.008%
ROLLS PS27 12 VDC adapter
1 lbs. (.45 Kg)
3" x 5" x 1.25" (8 x 13 x 3.2 cm)
Rolls Corporation
Salt Lake City, UT
05/2008
mono a to signals
you anywhere ...
Live -
Studio -
Install -
MX51s
MX51s
