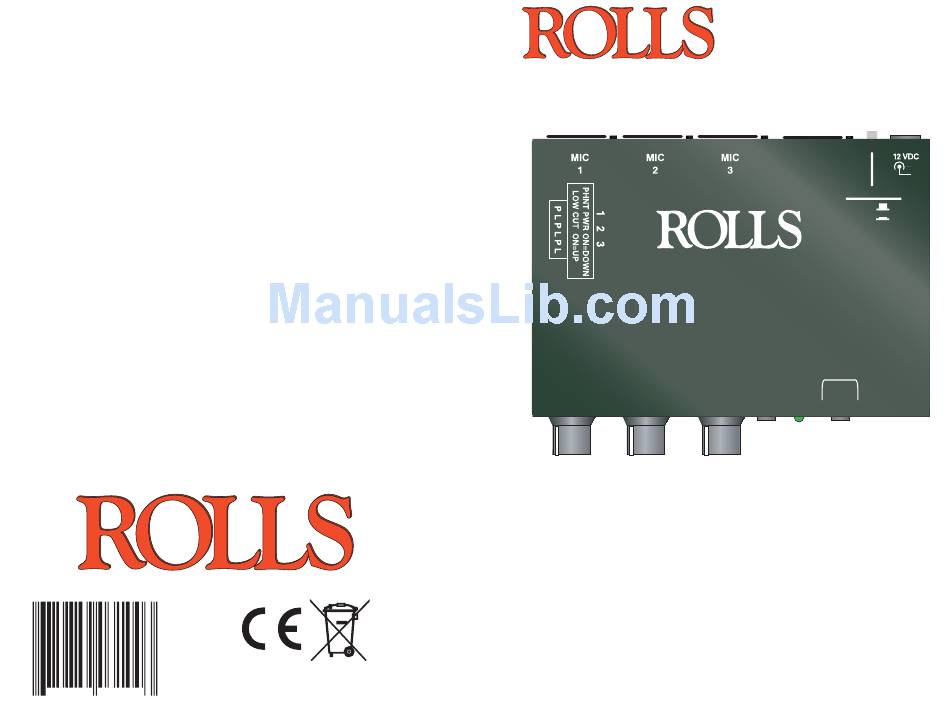

MX310 Mormic
- Mixes three microphones to one XLR output
- Output level controls and a mic/line-level output switch
- Phantom Power and Low-Cut switches for each Mic input
The MX310 is a very useful microphone mixer. It's perfect for sub-mixing
microphones in an installation or recording application. The Phantom
Power and Low-Cut switches add to the versatility and usefulness of the
MX310.
75889 03100
6
3
Rolls Corporation
Salt Lake City, UT
12/12
3-Channel mono Mic Mixer
MADE IN USA
www.rolls.com
MorMics
Three Channel Microphone Mixer
CH 2
CH 1
LEVEL
LEVEL
SPECIFICATIONS
Input Impedance:
600 Ohms
Output Impedance:
600 Ohms Mic - 200 Ohms line
THD + Noise:
.05% Typical
Frequency Response:
20 Hz - 20 kHz (+0 / -3 dB)
Voltage Gain:
50 dB line/10 dB Mic
Low Cut:
-3 dB @ 100 Hz
Current Draw:
20 mA
Phantom Power:
+12 VDC
Connectors:
3 Female XLR, 1 Male XLR, 1 1/8" TRS,
DC Power Jack
Maximum Supply Voltage: 16 VDC
Size:
5.25" x 3.75" x 1.5"
Weight:
1 lbs.
MX310
OUTPUT
OUTPUT LEVEL
MIC
LINE
MX310
clip
CH 3
CH 3
PHONES
1/8"
LEVEL
pwr
AUX
INPUT
Quick Start Guide
+
-
