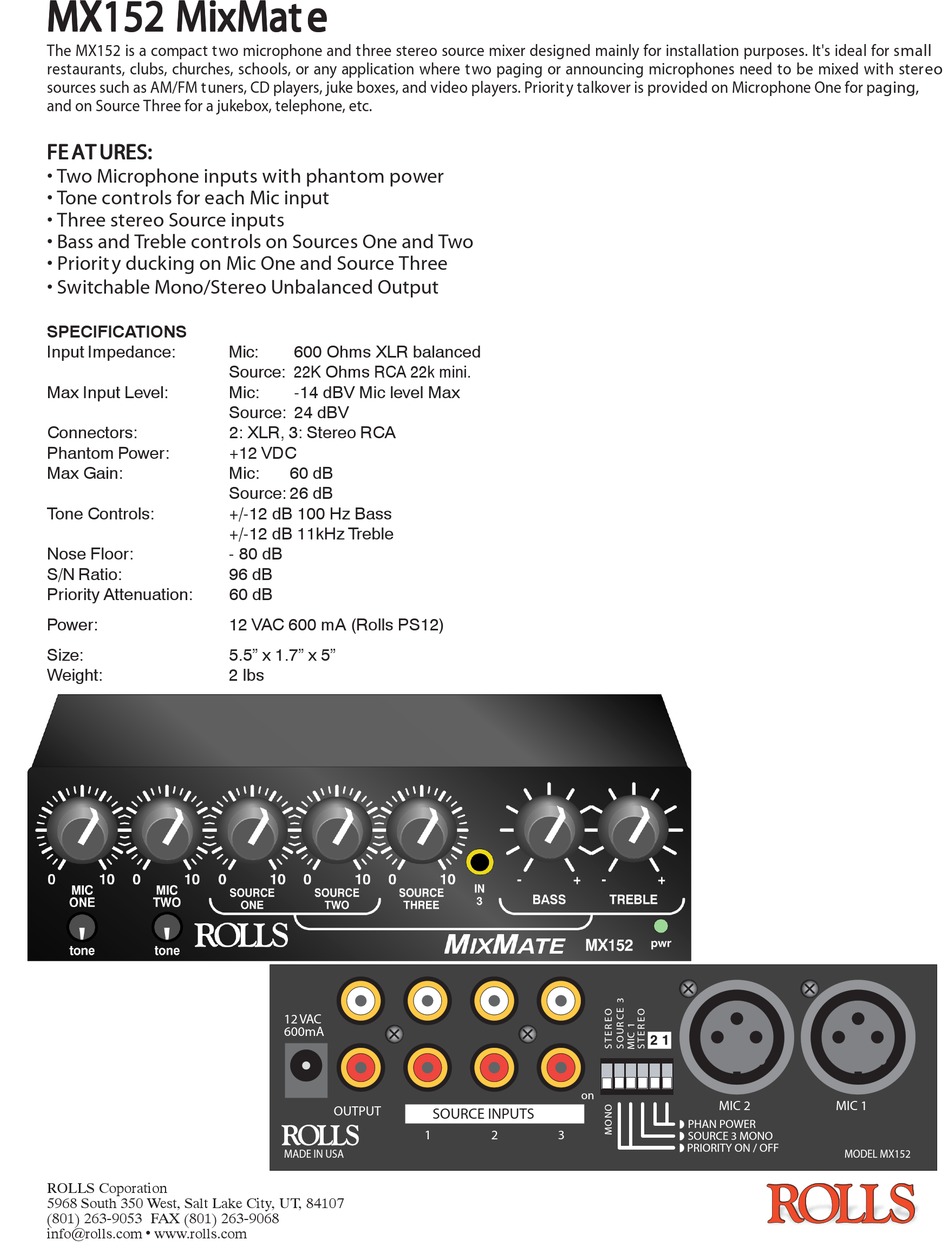

MX152 MixMat
MX152 MixMat e e e e e
MX152 MixMat
MX152 MixMat
MX152 MixMat
The MX152 is a compact two microphone and three stereo source mixer designed mainly for installation purposes. It's ideal for small
restaurants, clubs, churches, schools, or any application where two paging or announcing microphones need to be mixed with stereo
sources such as AM/FM tuners, CD players, juke boxes, and video players. Priorit y talkover is provided on Microphone One for paging,
and on Source Three for a jukebox, telephone, etc.
FE FE FE FE FE A A A A A T T T T T URES:
URES:
URES:
URES:
URES:
• Two Microphone inputs with phantom power
• Tone controls for each Mic input
• Three stereo Source inputs
• Bass and Treble controls on Sources One and Two
• Priorit y ducking on Mic One and Source Three
• Switchable Mono/Stereo Unbalanced Output
SPECIFICATIONS
Input Impedance:
Max Input Level:
Connectors:
Phantom Power:
Max Gain:
Tone Controls:
Nose Floor:
S/N Ratio:
Priority Attenuation:
Power:
Size:
Weight:
ROLLS Coporation
5968 South 350 West, Salt Lake City, UT, 84107
(801) 263-9053 FAX (801) 263-9068
info@rolls.com • www.rolls.com
Mic:
600 Ohms XLR balanced
Source: 22K Ohms RCA 22k mini.
Mic:
-14 dBV Mic level Max
Source: 24 dBV
2: XLR, 3: Stereo RCA
+12 VDC
Mic:
60 dB
Source: 26 dB
+/-12 dB 100 Hz Bass
+/-12 dB 11kHz Treble
- 80 dB
96 dB
60 dB
12 VAC 600 mA (Rolls PS12)
5.5" x 1.7" x 5"
2 lbs
12 VAC
600mA
OUTPUT
MADE IN USA
on
SOURCE INPUTS
1
2
3
MIC 2
MIC 1
PHAN POWER
SOURCE 3 MONO
PRIORITY ON / OFF
MODEL MX152
