MX44 PRO
4-Channel Stereo Mixer
• Four stereo inputs to one stereo output
• Stereo RCA and 1/8" TRS Stereo high-impedance inputs
• Stereo RCA and 1/8" TRS Stereo high-impedance output
• Battery or AC operation (Rolls PS27s power supply is included)
Rolls Corporation
Salt Lake City, UT
75889 44010
6
2
4/17
MX44 PRO
4-CHANNEL STEREO MIXER
3.5mm
RCA
STEREO OUTPUTS

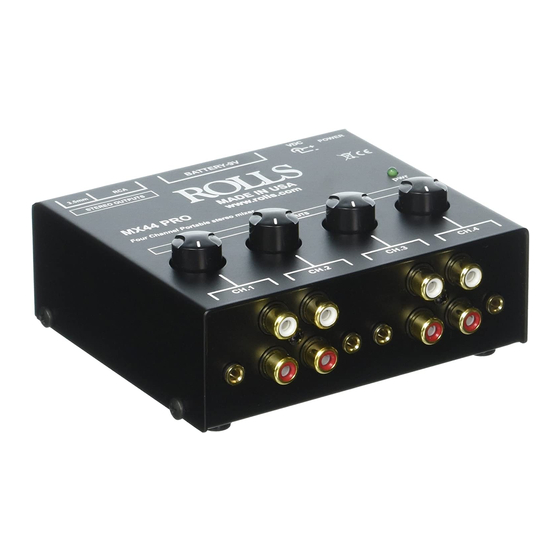

MX44 PRO
Four Channel Portable stereo mixer
CH.1
CH.2
SPECIFICATIONS
Input Impedance:
Output Impedance:
Gain:
Connectors:
Input:
Output:
Power:
Current Draw:
DC Jack:
Signal to noise ratio:
Bandwidth:
Size:
Weight:
BATTERY-9V
POWER
pwr
STEREO INPUTS
CH.4
CH.3
10K Ohm
100 Ohm
30 dB
4 ea.; RCA and 1/8" (3.5mm) unbal.
1 ea.; RCA and 1/8" (3.5mm) unbal.
9V battery, or
Rolls PS27s 15VDC adapter (included)
9-15 VDC - 100mA to 500mA
15mA no load
2.1X5.5 mm Tip Negative
85 dB
20 Hz to 30 Khz
4.5"w x 1.5"h x 4"d
1 lb

Quick Start Guide
