RM75 P
RM75 P
AR
AR T T T T T Y M
AR
RM75 P
RM75 P AR
RM75 P
AR

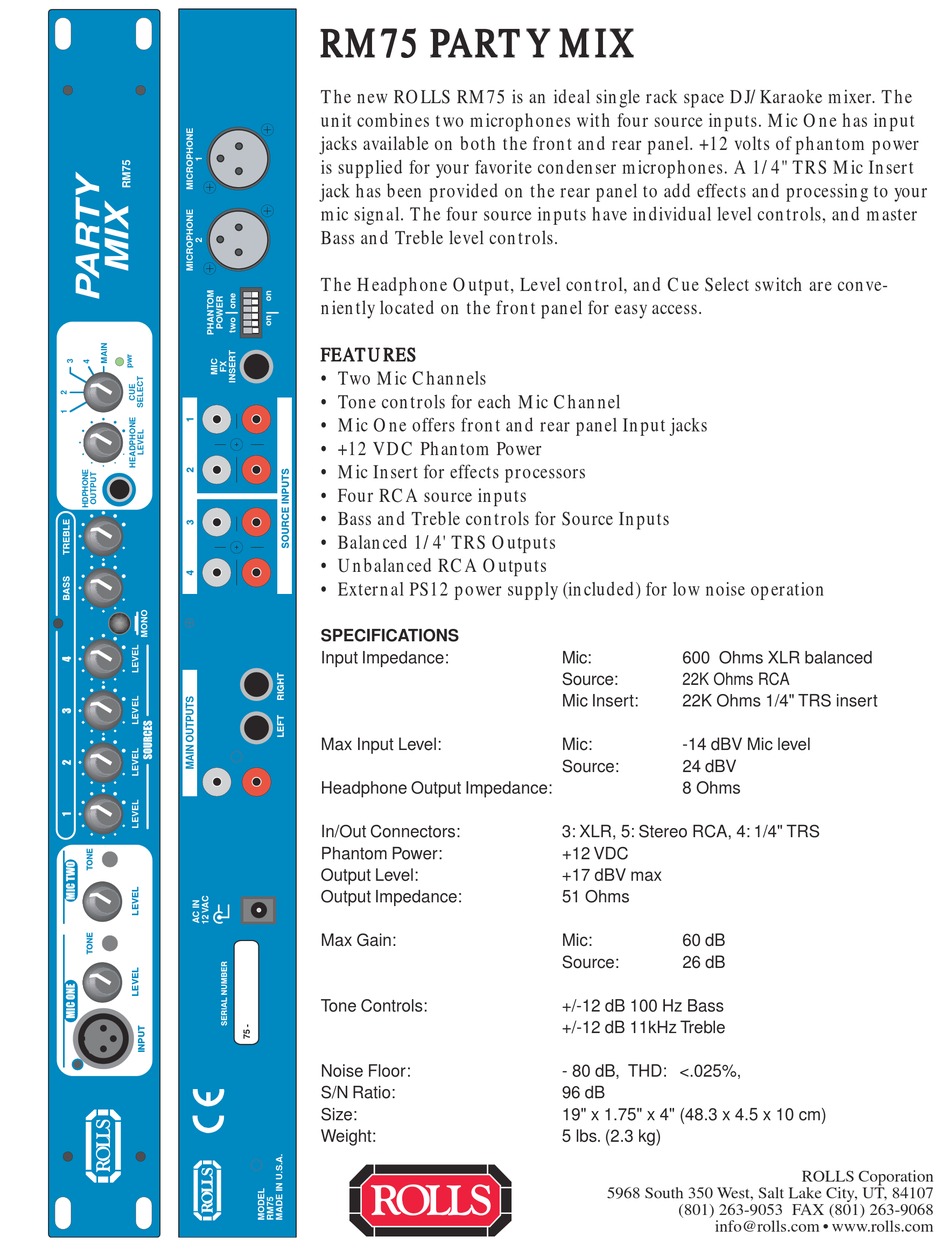

The new ROLLS RM75 is an ideal single rack space DJ/Karaoke mixer. The
unit combines two microphones with four source inputs. Mic One has input
jacks available on both the front and rear panel. +12 volts of phantom power
is supplied for your favorite condenser microphones. A 1/4" TRS Mic Insert
jack has been provided on the rear panel to add effects and processing to your
mic signal. The four source inputs have individual level controls, and master
Bass and Treble level controls.
The Headphone Output, Level control, and Cue Select switch are conve-
niently located on the front panel for easy access.
FE
FE FE
FEA A A A A T T T T T URES
URES
URES
URES
FE
URES
• Two Mic Channels
• Tone controls for each Mic Channel
• Mic One offers front and rear panel Input jacks
• +12 VDC Phantom Power
• Mic Insert for effects processors
• Four RCA source inputs
• Bass and Treble controls for Source Inputs
• Balanced 1/4' TRS Outputs
• Unbalanced RCA Outputs
• External PS12 power supply (included) for low noise operation
SPECIFICATIONS
Input Impedance:
Max Input Level:
Headphone Output Impedance:
In/Out Connectors:
Phantom Power:
Output Level:
Output Impedance:
Max Gain:
Tone Controls:
Noise Floor:
S/N Ratio:
Size:
Weight:
Y M
Y M I I I I I X X X X X
Y M
Y M
Mic:
600 Ohms XLR balanced
Source:
22K Ohms RCA
Mic Insert:
22K Ohms 1/4" TRS insert
Mic:
-14 dBV Mic level
Source:
24 dBV
8 Ohms
3: XLR, 5: Stereo RCA, 4: 1/4" TRS
+12 VDC
+17 dBV max
51 Ohms
Mic:
60 dB
Source:
26 dB
+/-12 dB 100 Hz Bass
+/-12 dB 11kHz Treble
- 80 dB, THD: <.025%,
96 dB
19" x 1.75" x 4" (48.3 x 4.5 x 10 cm)
5 lbs. (2.3 kg)
5968 South 350 West, Salt Lake City, UT, 84107
(801) 263-9053 FAX (801) 263-9068
ROLLS Coporation
info@rolls.com • www.rolls.com
