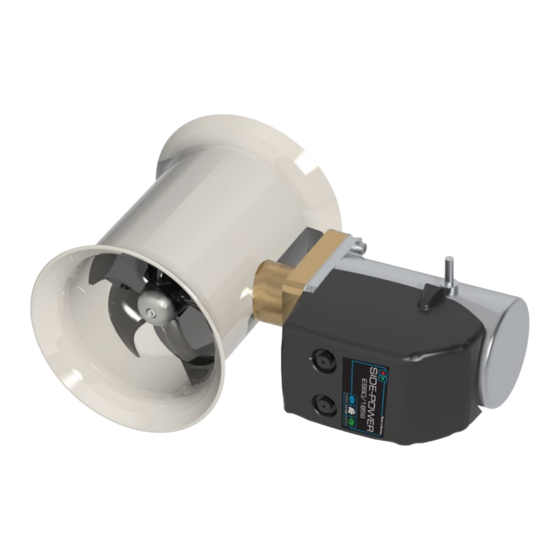

- Page 1 ES 60/185 S SIDE-POWER Thruster Systems Installation and user's manual Installasjons og brukermanual SLEIPNER MOTOR AS P.O. Box 519 N-1612 Fredrikstad Norway www.side-power.com © Sleipner Motor AS 2017...
- Page 2 Visual wiring diagram .............. 16 Technical wiring diagram ............17 Checklist for control of the installation ........18 DECLARATION OF CONFORMITY We, Sleipner Motor AS P.O. Box 519 N-1612 Fredrikstad, Norway declare that this product with accompanying standard remote control systems complies with the essential health and safety requirements according to the Directive 93/68/EEC.
- Page 3 ”heng” på relé, eller stop of thruster in case of accidental solenoid om trøsteren går kontinuerlig i 3 minutter. lock-in or if run signal is continuous for more than 3 minutes. ES 60/185 S 1.0.4 - 2017...
- Page 4 I de tilfeller båter skal godkjennes eller klassifiseres i henhold til internasjonal, eller spesielle standarder, er montør ansvarlig for at de gjeldende lover og regelverk følges. Sleipner Motor AS kan ikke garantere at instruksjonene i denne manualen er i henhold til alle gjeldende regelverk og standarder.
- Page 5 å redusere belastningen på thrusterdeler og tunnel/ • Make sure that it is possible to install a motor support (5.1.1.). Such akterspeil. a device is necessary to reduce stress on the thruster components and tunnel/ transom. ES 60/185 S 1.0.4 - 2017...
- Page 6 Put the oil plug back in place. This is done to speed up the oil flow to the gear housing and also to purge any air that is left in the hose. Refill the oil container (31). ES 60/185 S 1.0.4 - 2017...
- Page 7 (1). Apply a thread glue (Locktite or oden (1). Bruk locktight eller lignende for at skruen ikke skal skrus ut similar) to ensure that the zincanodes holding screw does not un- av propellrotasjonen. screw itself from the propellers rotation. ES 60/185 S 1.0.4 - 2017...
- Page 8 NB! If the boat is still being built when the electromotor is installed, it must be covered up to avoid dust from the building going into the motor and the solenoids. This cover must be removed before the thruster is being used. ES 60/185 S 1.0.4 - 2017...
- Page 9 (A1) terminal on the motor. If you feel unsure on how to perform this check, contact skilled personnel for guidance. ES 60/185 S 1.0.4 - 2017...
- Page 10 Pin1: BLACK Ground Pinne 3: Grå Aktiverer thruster rele Babord Pin2: BLUE Engages thruster SB solenoid Pinne 4: Rød Pluss til kontrolpanel Pin3: GREY Engages thruster Port solenoid Pin4: Positive voltage for control panel ES 60/185 S 1.0.4 - 2017...
- Page 11 (delay box) older than than the 6 1232i (ex. 6 the 6 1232i (ex. 6 122x) 122x) on SP75Ti, SP95Ti, and SP125Ti. SP 75 Ti / SP 95 Ti / SP 125 Ti ES 60/185 S 2.5.1- 2007 1.0.4 - 2017...
- Page 12 (delay box) older than the 6 1232i (ex. 6 122x) the 6 1232i (ex. 6 122x) on SP75Ti, SP95Ti, and SP125Ti. ES 60/185 S SP 75 Ti / SP 95 Ti / SP 125 Ti 1.0.4 - 2017 2.5.1 - 2007...
- Page 13 The compartment where the thruster is fitted is isolated from general bilge Skottet hvor thrusteren er montert er isolert fra kjølvann og har ingen water and has no obvious or suspected risks for flooding. åpenbar risiko for lekkasje. Other comments by installer: Kommentar fra installør: ES 60/185 S 1.0.4 - 2017...
- Page 14 If the thruster stops giving thrust for some reason while maneuvering you must have considered a plan on how to avoid damage to persons or other ob jects. ES 60/185 S 1.0.4 - 2017...
- Page 15 This enables you to move the boat sideways in both directions and to turn the boat around its own axis staying at the same place. • Again, if in doubt, try in open water first! ES 60/185 S 1.0.4 - 2017...
- Page 16 Redusert spenning vil gi redusert effekt på thrusteren. • Make sure that your batteries are in a good condition so that the thruster gets a good voltage. Old or bad batteries will give a reduced performance from the thruster. ES 60/185 S 1.0.4 - 2017...
- Page 17 Solenoid lock-in, auto stop of thruster, auto retry every 10 Shut off thruster main switch, tap slightly on the solenoid to see if it will release. Turn on thruster main switch. If solenoid is still in lock-in mode, replace solenoid. seconds. ES 60/185 S 1.0.4 - 2017...
- Page 18 10 sekund for å se om feilen å se om kontaktflatene slipper. Slå på hovedstrømbryter og se om feilen er fikset. Om er rettet. den vedvarer må relé byttes. ES 60/185 S 1.0.4 - 2017...
- Page 19 Warranty statement 1. The equipment manufactured by Sleipner Motor AS (The “Warrantor”) is warranted to be free from defects in workmanship and materials under normal use and service. 2. This Warranty is in effect for of two years (Leisure Use) or one year (Commercial use) from the date of purchase by the user. Proof of purchase must be included, to establish that it is inside the warranty period.
- Page 20 PARTS LIST - ES 60/185 S ES 60/185 S 1.0.4 - 2017...
- Page 21 Notes ES 60/185 S 1.0.4 - 2017...
- Page 22 Notes ES 60/185 S 1.0.4 - 2017...
- Page 23 Notes ES 60/185 S 1.0.4 - 2017...
- Page 24 SLEIPNER MOTOR AS P.O. Box 519 N-1612 Fredrikstad Norway The information given in the document was correct at the time it was published. However, Sleipner Motor AS can not accept liability for any inaccuracies or omissions it may contain. Continuous product improvement may change the product specifications without notice. Therefore, Sleipner Motor AS can not accept liability for any possi-...
