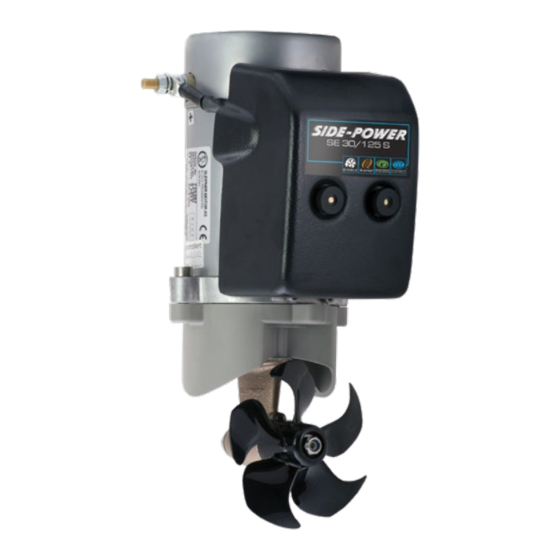

- Page 1 - 20/110 S - 25/110 S - 30/125 S2 - 40/125 S2 Installation Manual SLEIPNER MOTOR AS P.O. Box 519 N-1612 Fredrikstad Norway Document id: 5611 www.side-power.com Revision: Date: 2019 © Sleipner Motor AS 2019...
-
Page 2: Table Of Contents
Spare Parts ................25 Warranty statement .............. 25 DECLARATION OF CONFORMITY MC_0020 Sleipner Motor AS P.O. Box 519, Arne Svendsensgt. 6-8 N-1612 Fredrikstad, Norway Declare that this product with accompanying standard control systems complies with the essential health and safety requirements according to:... -
Page 3: Bow Installation Considerations And Precautions
(NB: These instructions are only general instruction. If you are not skilled to do this work, please contact professional installers for assistance.) All electrical work must be done by a licensed professional. IMPORTANT Faulty installation of the tunnel, thruster or panel will render all warranty given by Sleipner Motor AS void. MC_0038 Bow Installation Considerations and Precautions MC_0031 •... -
Page 4: Thruster Measurements
Propeller position will vary on the model Single Propeller Twin Propeller Propeller or gear leg must never extend out of the tunnel Tunnel centre line Tunnel centre line MG_0075 Thruster Measurements MC_0121 Measurement Measurement description code inch inch inch inch Internal tunnel diameter 4.33 4.33... -
Page 5: Thruster Specifications
Thruster Specifi cations MC_0135 description * 20 * 25 * 30 Available DC System (v) Thrust 12v or 24v (kg * lbs) 25 kg * 55 lbs 30 kg * 66 lbs 40 kg * 88 lbs 48 kg * 105 lbs Thrust 10.5v or 21v (kg * lbs) 20 kg * 44 lbs 25 kg * 55 lbs... -
Page 6: Positioning Of The Tunnel / Thruster
Fig. 1 Pivot point important B = 10,0m A = 11,0m Fig. 2 Ø MG_0001 Positioning of the tunnel / thruster MC_0003 Aim to install the thruster as far forward as possible (Fig. 1) Due to the leverage eff ect around the boats’ pivot point. The relative distance diff erence from the boat pivots’ point to the thruster will determine the amount of real thrust for the boats, rotation. -
Page 7: Tunnel Length
Water flow must have space to "straighten" itself for best Ensure the top and bottom tunnel lengths are respectable performance. lengths from one another. It is important the propeller never extrudes from the tunnel ends. Cavitation STANDARD USE FLAT BOTTOM HULL HIGH-SPEED OPERATION Increase tunnel length to prevent... -
Page 8: Tunnel Installation In Sailboats
Fig. 1 Pos. A Pos. B MG_0004 Tunnel installation in sailboats MC_0003 Some sailboats have a racing hull which means they may have a fl at bottom and shallow draft in the bow section. This can make installing the thruster as far forward from the boats main pivot point diffi... -
Page 9: Water Deflection
Fig. 1 Fig. 2 Fig. 3 Fig. 4 High water force while underway High water force while underway from wave contact MG_0003 Water Defl ection MC_0003 A possible problem in sailboats or fast powerboats is that a non-rounded surface can generate drag from the back face of the tunnel, as it creates a “fl at”... -
Page 10: Tunnel Ends
Fig. 2 Fig. 1 R = 0,1 x D (10%) R = 0,1 x D (10%) Fig. 3 Fig. 4 MG_0002 Tunnel ends MC_0003 Rounded tunnel ends will maximise thrust and minimise noise. For best preformance round the tunnel connection to the hull-side as much as possible. The optimum rounding has a radius of 10% of the diameter of the tunnel. -
Page 11: Tunnel Installation
Fig. 1 Fig. 2 Fig. 3 Fig. 4 MG_0005 Tunnel installation MC_0003 IMPORTANT We recommend that a professional does the fi breglass fi tting of the tunnel. These instructions are only general instructions and do not explain in any way the details of fi breglass work. Problems caused by faulty installation of the tunnel, are the installers full responsibility. Find the position in the boat considering the information earlier in this manual and the applicable measurements for the thruster model you are installing. - Page 12 Fig. 1a Fig. 1c Fig. 1 Fig. 1b Fig. 1d Fig. 3 Fig. 2 R = D x 0,1 R = D x 0,1 MG_0006 Tunnel installation MC_0003 With tunnel installed and cast (Fig. 1) round the edges with a radius of 10% of the tunnel diameter (Fig. 1a) or make a slope with a length of 10-15% of the tunnel diameter (Fig.
-
Page 13: Stern Tunnel Installation
Stern Tunnel Installation MC_0003 Stern thruster installation has extra considerations and precautions and thruster installation procedures. See the attached manual supplied in the stern thruster kit SE20 & SE25 & SE30 & SE40 5611 2019... -
Page 14: Thruster Installation Considerations And Precautions
Thruster Installation Considerations and Precautions MC_0005 Before installation, it is important that the installer reads this guide to ensure necessary acquaintance with this product. • The electromotor must be handled with care. Do not lift it by internal connections/ main terminals or placed down on the driveshaft. •... -
Page 15: Gear Leg & Motor Bracket Installation
BOATS CENTRELINE 2 - 4 BOATS ØC CENTRELINE TUNNEL CENTRELINE TUNNEL CENTRELINE ØA MODEL ØA ØC 29 mm 20 mm 7 mm SE 20 & SE25 1.14” .79” .28” 29 mm 20.5 mm 9 mm SE 30 & SE40 1.14” .81”... -
Page 16: Propeller Installation
SHAFT SPLINE PROPELLER WASHER HOLDING SCREW MG_0050 Propeller Installation MC_0017 ! Please refer to the graphic for special considerations relating to your model ! Insert the propeller onto the shaft and rotate the propeller until shaft spline aligns with the internal spline on the propeller. Insert the washer on the propeller shaft and fasten the propeller lock-nut. -
Page 17: Motor Installation
Drawing nr Designed by Material Type Tolerance NS-ISO 2768-1 rolf 17-11-2017 Copyright All rights reserved Title SE30/125T complete galvanically separated SLEIPNER MOTOR AS Weight Part nr Size Scale Edition Sheet 1 / 1 1 : 1 FASTEN (18 Nm) (13.28 lb/ft) -
Page 18: Thruster Electrical Installation
Fuse Main switch Battery Thuster 12V or Motor Tighten to Lugs 18Nm (13.28lb/ft) Tighten to IMPORTANT 18Nm (13.28lb/ft) Do NOT use washers between lugs and terminals, this can cause overheating. Washers must be placed in the outer position before tightening nut. washers MG_0019 Thruster Electrical Installation... -
Page 19: Electrical Specifications
Electrical Specifi cations MC_0044 SE20 & SE25 & SE30 & SE40 5611 2019... -
Page 20: Control Panel Cable Installation
SIDE-POWER ‘on-off’ control panel (Direction) (ON) Timer Option: Automatic main switch. connects the battery to the thruster. Operated from the control panel(s). Requires 5-lead control cables. Thuster Motor Ext. cable Y cable Ext. cable 4- or 5-lead 4- or 5-lead 4- or 5-lead MG_0024 Control Panel Cable Installation... -
Page 21: Visual Wiring Diagram
Visual Wiring Diagram With Automatic Main Switch: 6 1278-xxM 5-LEAD CONTROL CABLE 6 1278-xxM 5-LEAD CONTROL CABLE STERN 6 1265 5-LEAD Y-CONNECTOR 6 1265 5-LEAD Y-CONNECTOR STERN Switch Switch STERN 5A fuse 5A fuse 6 1278-xxM 5-LEAD 6 1278-xxM 5-LEAD CONTROL CABLE CONTROL CABLE 6 1277-xxM 4-LEAD... -
Page 22: Technical Wiring Diagram
Technical Wiring Diagram NB! Make sure to not use any electro- nic interface box (delay box) older than the 6 1232i (ex. 6 122x) MG_0032 SE20 & SE25 & SE30 & SE40 5611 2019... -
Page 23: Control Panel Installation
CONTROL PANEL TEMPLATES For control panels 8950 / 8960 61,1mm For control panels 8950 / 8960 Cut out area: Ø 51,8 mm / 2" Cut out area: Ø 51,8 mm / 2" Ø52 This way Up! Ø 3,0 mm / 0,12" Ø... -
Page 24: Checklist For Dc And Ip Thrusters
Checklist for DC and IP Thrusters MC_0033 ..Propeller is fastened correctly to the shaft... Propeller turns freely in tunnel... The anode and/or holding screw is tightened well with thread glue... Anti-fouling has been applied to the gearhouse and propeller but NOT on the anode or the gearhouse lid where the propeller is fastened. -
Page 25: Spare Parts
Warranty statement MC_0024 1. The equipment manufactured by Sleipner Motor AS (The “Warrantor”) is warranted to be free from defects in workmanship and materials under normal use and service. 2. This Warranty is in eff ect for of two years (Leisure Use) or one year (Commercial use) from the date of purchase by the user. Proof of purchase must be included, to establish that it is inside the warranty period. - Page 26 Notes MC_0037 ..............................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................SE20 & SE25 & SE30 & SE40 5611 2019...
- Page 27 Notes MC_0037 ..............................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................SE20 & SE25 & SE30 & SE40 5611 2019...
- Page 28 Norway The information given in the document was correct at the time it was published. However, Sleipner Motor AS can not accept liability for any inaccuracies or omissions it may contain. Continuous product improvement may change the product specifi cations without notice. Therefore, Sleipner Motor AS can not accept liability for any possi- ble differences between product and document.
