SENSOR ACTIVATED ETF-600/610 LAVATORY FAUCETS

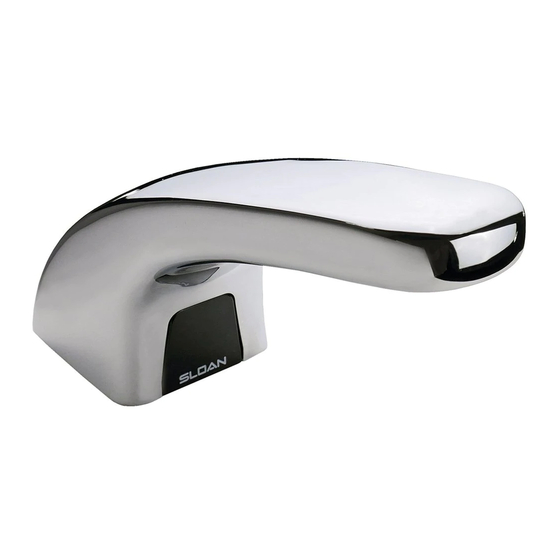

Model ETF-600
24 VAC, Sensor Activated, 4" Centerset
Lavatory Faucet
Sloan Valve Company warrants its ETF-600 and ETF-610 Faucets to be made of first class materials, free from defects of material or workmanship under normal use and to perform
the service for which they are intended in a thoroughly reliable and efficient manner when properly installed and serviced, for a period of three (3) years (one (1) year for special
finishes) from date of purchase. During this period, Sloan Valve Company will, at its option, repair or replace any part or parts which prove to be thus defective if returned to Sloan
Valve Company, at customer's cost, and this shall be the sole remedy available under this warranty. No claims will be allowed for labor, transportation or other incidental costs. This
warranty extends only to persons or organizations who purchase Sloan Valve Company's products directly from Sloan Valve Company for purpose of resale.
THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE HEREOF. IN NO EVENT IS SLOAN VALVE COMPANY RESPONSIBLE FOR ANY CONSEQUENTIAL DAMAGES OF ANY
MEASURE WHATSOEVER.
PRIOR TO INSTALLATION
Prior to installing the Sloan ETF-600 or ETF-610 Faucet, install the items
listed below. Refer to Rough-in illustrations on Page 2.
• When Using Plug-In Transformer — Install electrical receptacle for plug-
in transformer (120 VAC, 2 amp service for each ETF-233 (24 VAC,
35 VA) plug-in transformer used).
• When Using Box Mount Transformer — Install electrical wiring to
transformer location (120 VAC, 2 amp service for each EL-248-40
(24 VAC, 40 VA) transformer used).
• Lavatory/sink
• Drain line
• Hot and cold water supply lines or tempered water supply line
Multiple Faucets
Multiple faucets can be powered by a single transformer, provided that the
transformer has been properly sized. Allow a minimum of 15 VA of current
rating for each solenoid valve used. Refer to "Step 4 — Install Transformer"
for further information.
Mixing Valve
When installing the faucet with a Sloan mixing valve, these Installation
Instructions AND the Installation Instructions packaged with the mixing valve
MUST be followed.
BAK-CHEK
®
TEE USAGE
When connecting the Sloan ETF-600 or ETF-610 Faucet to both hot and cold water supplies, a Bak-Chek
Rough-in drawings on Page 2. Water temperature can be controlled by adjusting the supply stops.
When connecting the faucet to a single line water supply or a pre-tempered water supply, a Bak-Chek
A Bak-Chek
®
Tee is not required or provided when a Temperature Mixing Valve is included with the faucet.
TOOLS REQUIRED FOR INSTALLATION
• Open end wrenches for hex sizes: 1", 5/8",
9/16", 1/2"
• Slotted screwdriver, 3/16"
INSTALLATION INSTRUCTIONS FOR
LIMITED WARRANTY
• Basin wrench
• Slotted screwdriver (supplied)
• Phillips head screwdriver, #2
Model ETF-610
24 VAC, Sensor Activated
Pedestal Lavatory Faucet
Important:
• INSTALL ALL ELECTRICAL WIRING IN ACCORDANCE WITH
NATIONAL/LOCAL CODES AND REGULATIONS.
• INSTALL ALL PLUMBING IN ACCORDANCE WITH APPLICABLE CODES
AND REGULATIONS.
• A 24 VAC STEP-DOWN TRANSFORMER MUST BE USED.
• USE APPROPRIATE PRECAUTIONS WHILE CONNECTING TRANSFORMER
TO 120 VAC POWER SOURCE.
• DO NOT PLUG TRANSFORMER INTO POWER SOURCE (RECEPTACLE)
UNTIL ALL WIRING IS COMPLETED. ALLOWING 24 VAC TRANSFORMER
WIRES TO TOUCH OR SHORT WHILE POWER IS BEING SUPPLIED WILL
CAUSE PERMANENT DAMAGE TO THE TRANSFORMER AND CIRCUIT
CONTROL MODULE.
• KEEP THREAD SEALANT OUT OF YOUR WATERWAY TO PREVENT
COMPONENT PART DAMAGE! DO NOT USE ANY SEALANT ON
COMPRESSION FITTINGS. FOR THREADED PIPE FITTINGS, DO NOT
APPLY SEALANT TO THE FIRST TWO "STARTER" THREADS.
• FLUSH ALL WATER LINES UNTIL WATER IS CLEAR BEFORE CONNECTING
SOLENOID TO SUPPLY STOPS.
DO NOT INSTALL THE SPRAY HEAD UNTIL AFTER THE SUPPLY LINES HAVE
BEEN FLUSHED.
®
Tee is provided and required as illustrated in the
®
Tee is not required.
• Pliers
• Wire stripper/crimping tool
Code No. 0816318
Rev. 2 (08/10)
