STL200H/L, STL200HB/L INSTALLATION
RAB Lighting is committed to creating high-quality, aff ordable, well-designed and energy-effi cient LED lighting and controls that make it easy for electricians to install
and end users to save energy. We'd love to hear your comments. Please call the Marketing Department at 888-RAB-1000 or email: marketing@rablighting.com
IMPORTANT
READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
RAB fi xtures must be wired in accordance with the National Electrical Code and all applicable local codes. Proper grounding is
required for safety. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON
FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.
WARNING: Make certain power is OFF before installing or maintaining fi xture. No user serviceable parts inside.
CAUTION: TURN OFF ALL POWER AT CIRCUIT BREAKER/FUSE PANEL. The total lighting load connected to Stealth must not
exceed 8 amps 120-277V (LED load). To switch more wattage an electrician can install a relay. Line Carrier Remote Control
Systems such as X-10 or Leviton are incompatible with sensors and cause false activations.
DO NOT INSTALL SENSORS ON A CIRCUIT THAT FEEDS MOTOR LOADS LIKE KITCHEN APPLIANCES, HVAC EQUIPMENT,
WASHER/DRYER, OR GARAGE DOOR OPENERS. Sensor must be below and as far as possible away from lights. Sensor
functions best when the direction of expected movement is across its detection pattern, not towards the sensor. Mount
6–12 feet high for optimum range and detection.
MOUNTING

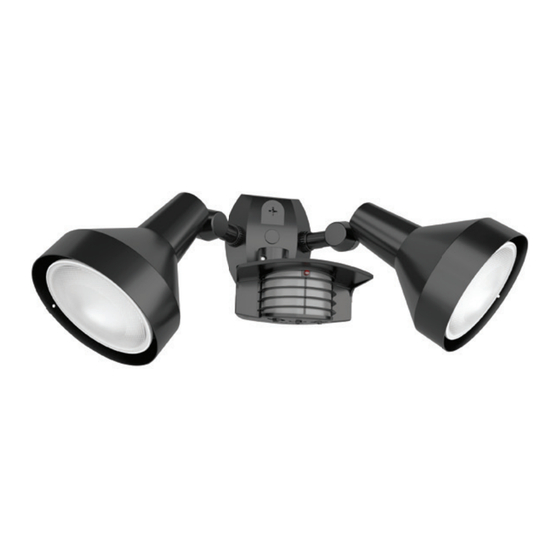

STL200H/L and STL200HB/L come pre-wired and assembled on the
RAB CU4 EZ Plate, allowing for mounting on round, rectangular or
octagonal surface or recessed boxes as shown in Fig. 1.
SETTINGS
Stealth's infrared sensor "sees" small temperature changes caused
by the motion of people or cars within its protection zone and turns
on lights automatically. It welcomes visitors and may deter intruders.
How long do the lights stay on? Lights remain on as long as there
is movement within the protection zone. Once the zone is vacated
lights can be adjusted to remain on approximately 5 seconds up
to 12 minutes. Since the lights are on only when needed and the
sensor uses only one watt the Stealth is extremely energy effi cient.
Can outdoor lights still be turned on with the light switch? Yes.
Stealth can be controlled by a conventional indoor switch or circuit
breaker. Lights can be turned on or off manually at night only.
Manual Override Mode: (to keep lights on) Flip the switch twice
slowly (off -on-off -on) within 2–3 seconds.
To Resume Automatic Mode: Flip the switch once (off -on) within
2 seconds. Sensor will reset to Automatic Mode.
STL200H/L STL200HB/L
Fig: 1
Bar
Screws
Hook
Universal
Mounting Bar
Gasket
O-Ring Gasket
Insert
CU4 EZ
close-up
Plate
plugs in
unused
holes
Finishing
Center
Cap
Screw
