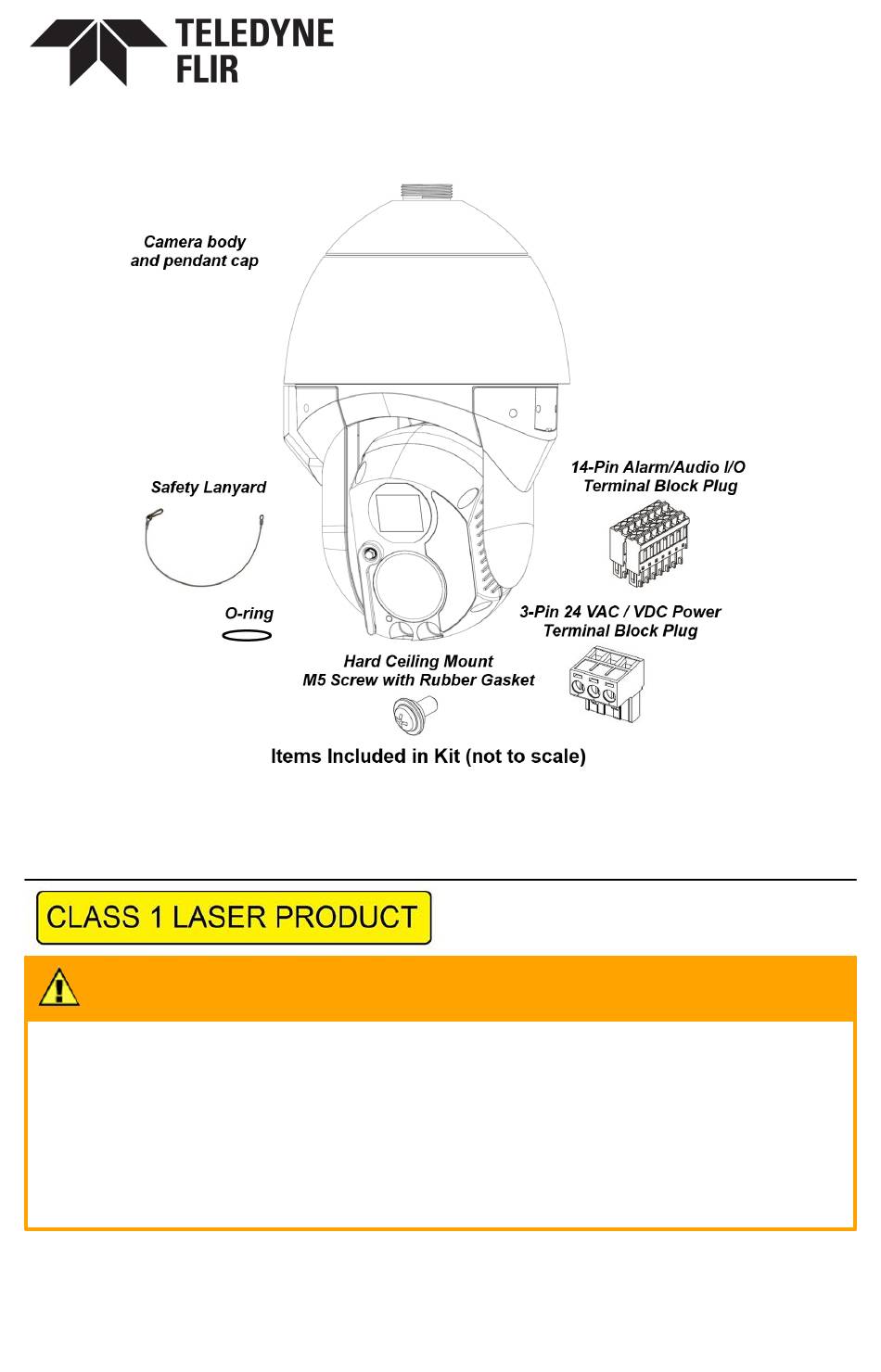

1 Check Contents
Make sure all of the items above are included in the camera kit.
Caution
Use of controls or adjustments or performance of procedures other than those
specified herein may result in hazardous radiation exposure.
Attention
L'utilisation des commandes ou reglages ou l'execution des procedures autres
que celles specifiees dans les presents exigences peuvent etre la cause d'une
exposition a un rayonnement dangereux.
427-0300-01-10 Rev 130
This document does not contain any export-controlled information.

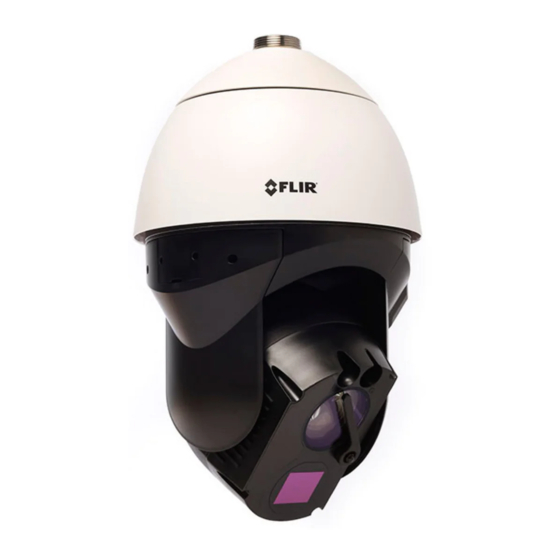

Elara™ DX-Series
Quick Install Guide
This camera is a Class 1 Laser Product
that complies with IEC 60825-1:2014.
June 2021
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Teledyne FLIR Elara DX Series
Summary of Contents for Teledyne FLIR Elara DX Series
- Page 1 Elara™ DX-Series Quick Install Guide 1 Check Contents Make sure all of the items above are included in the camera kit. This camera is a Class 1 Laser Product that complies with IEC 60825-1:2014. Caution Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.
- Page 2 2 Prepare to Install the Camera 2.1 Install FLIR Discovery Network Assistant Download the FLIR Discovery Network Assistant (DNA) tool to a computer on the same VLAN to which you will connect the camera, and then unzip the file. The DNA tool does not require a license to use and is a free download from www.teledyneflir.com >...
- Page 3 PoE 60W 4 pair forced mode. For more information about compatible injectors and recommended switches, contact Teledyne FLIR support. Verify that the LAN connector LEDs are steady green and flashing yellow. If using a 24 VAC or 24 VDC power supply, connect it to...
- Page 4 14-Pin Alarm/Audio I/O Definition Definition Terminal Block Audio-Out Not used Ground (Audio I/O) Alarm-In 4 Alarm-Out A1 Alarm-In 3 Alarm-Out A2 Alarm-In 2 Alarm-Out B1 Alarm-In 1 Alarm-Out B2 Ground (Alarm I/O) Not used Audio-In This product contains a battery that is soldered to the PCB. There is a risk of explosion if the battery is replaced by an incorrect type.
- Page 5 To configure the camera for networking using the DNA tool: a. Make sure the camera and the PC are on the same LAN segment. b. Run the DNA tool (DNA.exe) by double-clicking The Discover List appears, showing compatible devices on the VLAN and their current IP addresses.
- Page 6 To configure the camera for networking using the camera’s web page: a. Open the camera’s web page by double-clicking the camera in the DNA Discover List or by typing the camera’s IP address in a web browser’s address ® bar. The camera's web page supports Google Chrome and other popular web browsers.
- Page 7 e. You can select Static and manually specify the camera's Hostname, IP address, Netmask, and Gateway. You can also specify the DNS Mode, Name Servers, MTU (maximum transmission unit), and Ethernet Speed. f. Click Save. If you have made any changes on the Network page, the camera reboots.
- Page 8 Side View 6 Register the Product Register the product at https://customer.flir.com. For warranty information, see https://www.flir.com/support- center/warranty/security/flir-security-product-warranties/. 7 Contact Information Teledyne FLIR LLC Corporate Headquarters 6769 Hollister Avenue 27700 SW Parkway Ave. Goleta, CA 93117 Wilsonville, OR 97070 Support: https://support.flir.com/...
