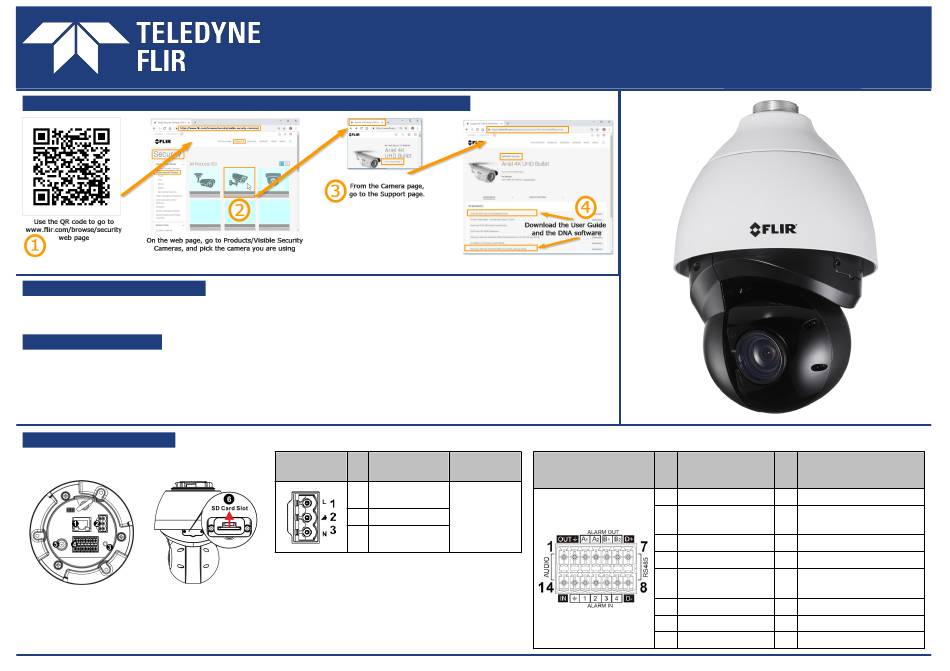

Teledyne FLIR Quasar Gen III Quick Install Manual

Accessing Camera Documentation and Utility Software from the Web

A. (Optional) Insert SD Card

To locally store snapshots or video recordings triggered by events, insert an SD card or a microSDXC card (up to
1TB, Class 10) with adapter (not supplied) in the SD card slot inside the camera housing (see diagram below).

B. Mount the Camera

Verify that the operating temperature range is between -40°C ~ 50°C (-40°F ~ 122°F) up to 55°C (131°F) with IR
LEDs off, 0-90% relative humidity (non-condensing).
Be sure to have the required accessories and tools available.
Refer to the Installation Manual for mounting instructions.

C. Connect the Camera

Quick Install Guide
3-Pin Power Connector
Power
Pin 24 VAC
Connector
L (Live; white;
1
positive)
2
Ground (Earth)
N (Neutral;
3
black; negative)
CAUTION:
This product contains a battery that is soldered to the
PCB. There is a risk of explosion if the battery is
replaced by an incorrect type.
Do not replace the battery.
The battery should be disposed of in accordance with
manufacturer's instructions.
Terminal Connectors
30 VDC 14-pin Terminal
Block
Pins 1 and 3
(polarity N/A)
Quasar Gen IlI
CP-6302-31-I
1080p FHD IR PTZ camera
Pin Definition Pin Definition
1 Audio-Out 9 Alarm-In 4
2 Ground (Audio 10 Alarm-In 3
I/O)
3 Alarm-Out A1 11 Alarm-In 2
4 Alarm-Out A2 12 Alarm-In 1
5 Alarm-Out B1 13 Ground
(Alarm I/O and RS-485)
6 Alarm-Out B2 14 Audio-In
7 RS-485 D+
8 RS-485 D-
