1 Check Contents

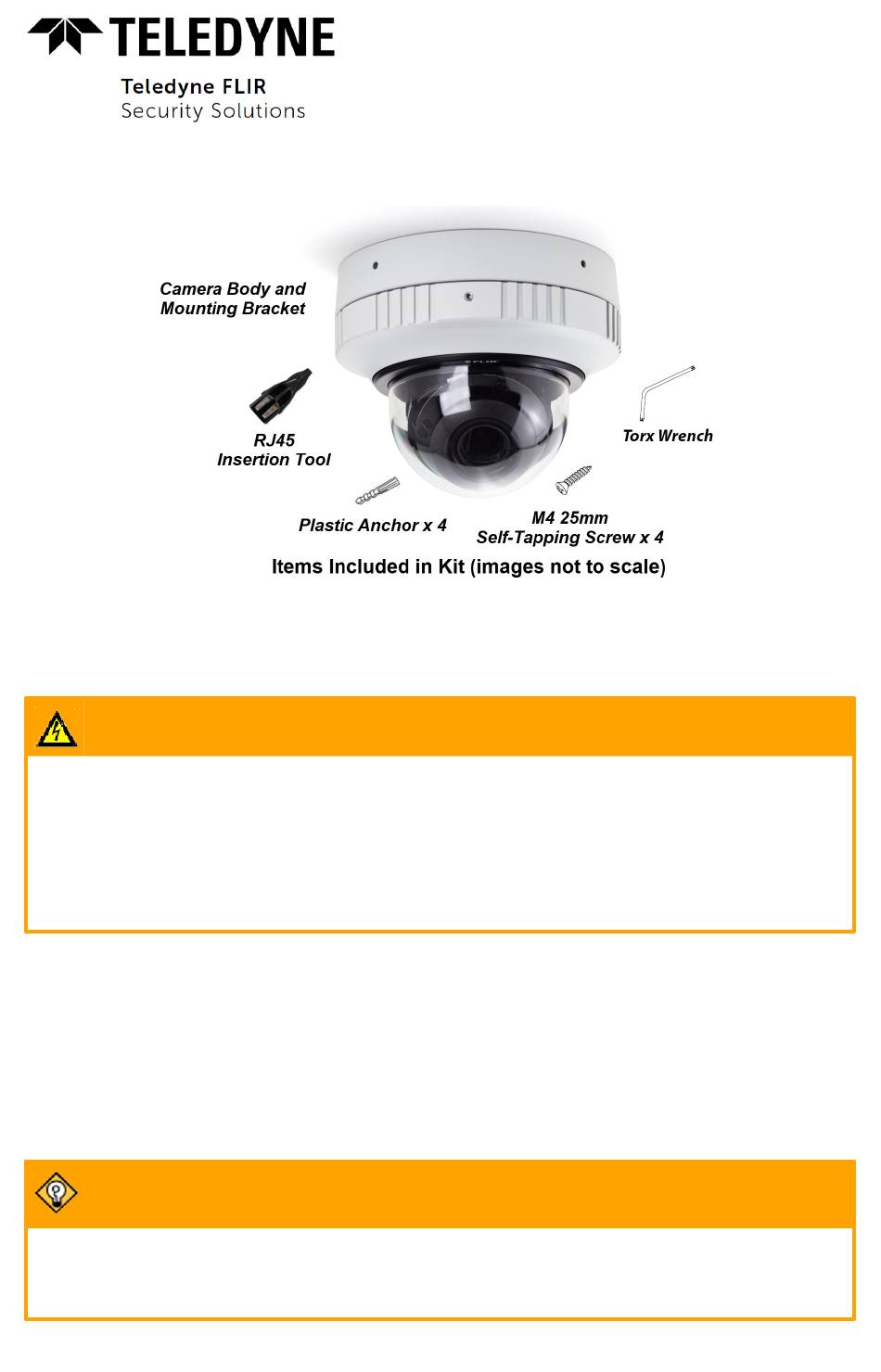

Make sure all of the items above are included in the camera kit.
2 Select a Location
Warnings
·
Placing a camera in an environment subject to extremely high temperature
can result in an explosion or the leakage of flammable liquid or gas.
·
Subjecting the camera to extremely low air pressure can result in an explosion
or the leakage of flammable liquid or gas.
·
The camera must be installed by qualified personnel and the installation
should conform to all local codes.
Verify that the operating temperature falls within the following ranges, with 10-90%
non-condensing humidity:
·
With heater and 100% LED: -55°C~50°C
·
With heater and 25% LED: -55°C~55°C
·
With heater and 0% LED: -55°C~60°C
An onboard sensor detects ambient temperature. If the ambient temperature is
above 50°C, the camera does not allow the LEDs to be at 100%.
Tip
To support video analytics (VA), mount the camera so that it can accurately
detect and classify objects. For VA mounting and scene considerations, see the
camera's installation and user guide.
CM-640x-x1-IA Quick Install Guide Revision 100
This document does not contain any export-controlled information.

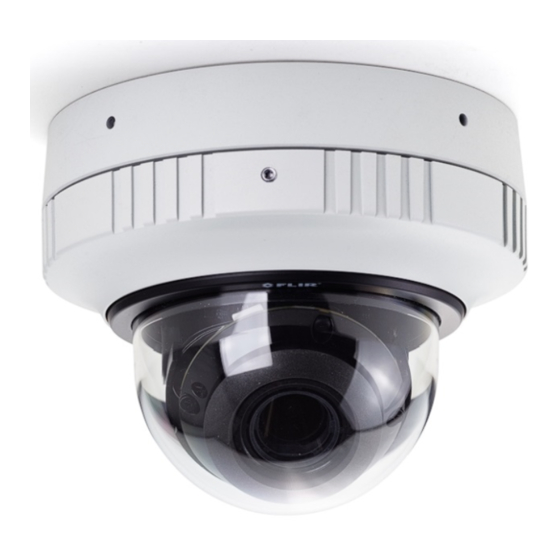

Quasar™ Premium
Mini-Dome Cameras
with Video Analytics
Quick Install Guide
March 2023
Advertisement
Related Manuals for Teledyne FLIR Quasar CM-640 1-IA Series
Summary of Contents for Teledyne FLIR Quasar CM-640 1-IA Series
- Page 1 Quasar™ Premium Mini-Dome Cameras with Video Analytics Quick Install Guide 1 Check Contents Make sure all of the items above are included in the camera kit. 2 Select a Location Warnings · Placing a camera in an environment subject to extremely high temperature can result in an explosion or the leakage of flammable liquid or gas.
- Page 2 IEEE 802.3af, class 0 PoE (Power over Ethernet) 48VDC 12.95 W For assistance with purchasing a power supply, contact Teledyne FLIR. 3 Remove Cover and Separate Base When unpacking the camera, do not remove the plastic sheet protecting the dome.
-
Page 3: Connect The Camera
Separate Base from Bracket 4 Connect the Camera To install the camera, Teledyne FLIR recommends connecting the camera on a bench or in a lab and configuring it for networking before mounting and aiming it. However, circumstances can dictate adjusting the sequence of the steps. For example, you can mount the camera before configuring it for networking, or connect the camera before mounting it. - Page 4 5 Configure for Networking To discover the camera on the network, Teledyne FLIR recommends using the FLIR Discovery Network Assistant (DNA) tool, which does not require a license to use, and is a free download from the product's web page on the Teledyne FLIR website.
- Page 5 DNA tool Camera's web page Discover camera IP address • Configure IP address, mask, and gateway • • Change user credentials • • Configure DNS settings, MTU, and Ethernet speed • Change video format • • Configure more than one camera at the same time •...
- Page 6 2. In the DNA - Login window, type admin or the name of any user assigned Admin privileges; and the password. If necessary, contact the person who configured the camera's users. 3. Click Login, wait for Ok status to appear, and then click Close. d.
- Page 7 Using the hardware included in the camera kit, you can mount the camera onto a standard electrical box or onto a suitable surface. For information about other mounting options, including the list of Teledyne FLIR mounting accessories that support the camera, see the camera's installation and user guide.
- Page 8 11 Route Cables and Connect the Camera Cables can enter the camera from the side or from the rear. To route cables through the side of the camera, use the Torx wrench to loosen the screw securing the side conduit hole cover and remove the hole cover. Then, route cables through the hole.
- Page 9 To access the camera's web page: a. Do one of the following: o In the Teledyne FLIR Discovery Network Assistant (DNA) tool, double-click the camera in the Discover List. o Type the camera’s IP address in a browser’s address bar (when the PC and the camera are on the same network).
- Page 10 When logging in to the camera for the first time or for the first time after resetting the camera to its factory defaults: 1. Log in with user name admin and the default password, admin. 2. Specify a new password for admin: o must be 8-64 characters o can include the following special characters: @#~!$&<>+_-.,*? o cannot include four-digit sequences (for example, 1234)
-
Page 11: Register The Product
Many configuration steps can be performed before or after mounting the camera. However, some of them can or should only be performed after mounting the camera. For example, configure the camera's video analytics after mounting the camera. For more information about configuring the camera, see the camera's installation and user guide.
