Installation
Instructions

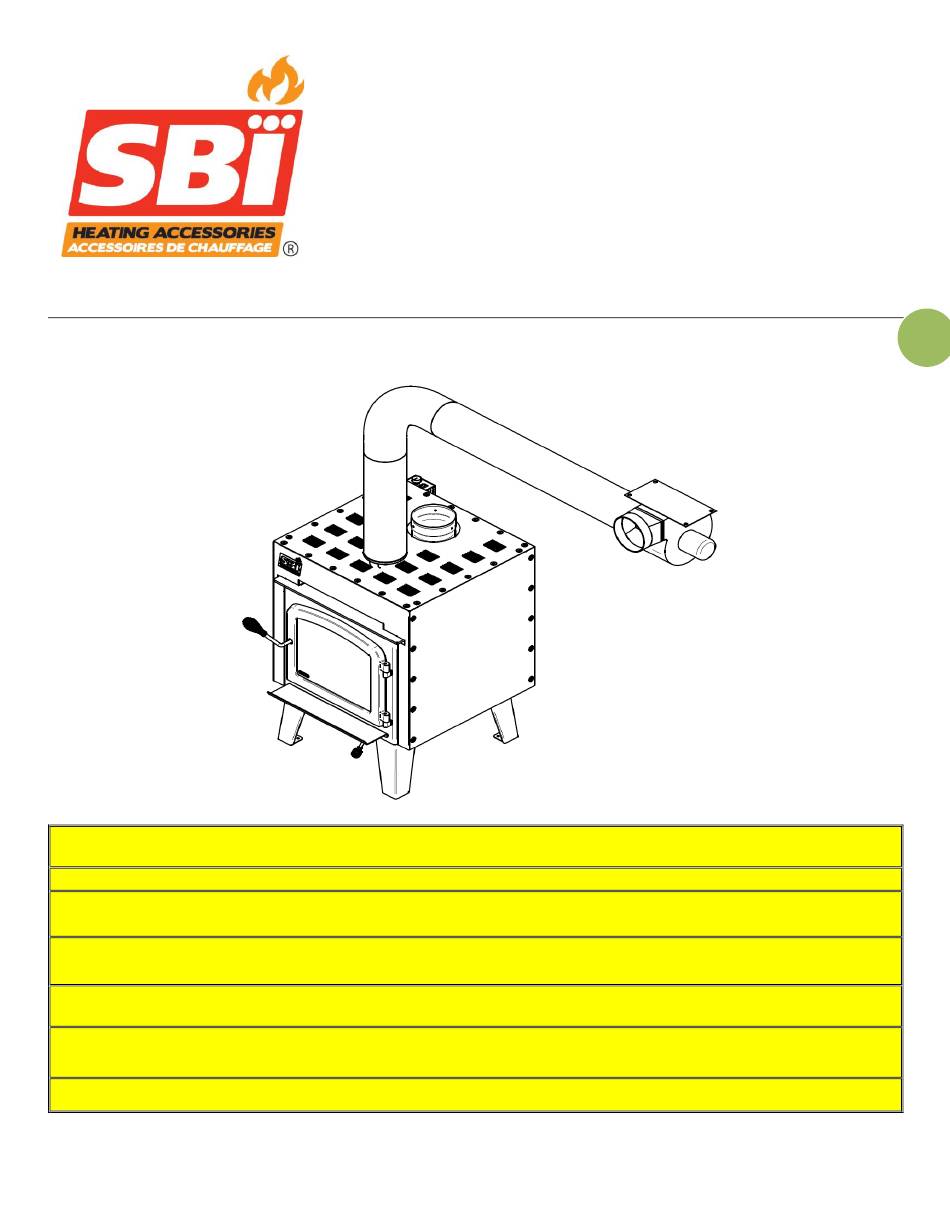

HEATFLOW S5 – Forced air system
AC02110
1
THE HEATFLOW S5 CAN BE PAIRED WITH THESE STOVES: AUSTRAL III, LÉGENDE III, MYRIAD III,
FW3200, OSBURN 3300, SOLUTION 3.3
WARNING: THE HEATFLOW S5 CANNOT BE USED WITH STOVE OPTIONAL BLOWERS.
WARNING: THE CLEARANCE TO COMBUSTIBLE MATERIALS OF THIS ACCESSORY SUPERSEDES
THOSE OF THE STOVE.
WARNING: THIS ACCESSORY CAN ONLY BE INSTALLED WITH SINGLE WALL PIPES AND MAY
REQUIRE MOVING THE STOVE FURTHER AWAY FROM COMBUSTIBLE MATERIALS.
WARNING: THE DECORATIVE PANELS OF THE STOVE MUST BE REMOVED TO USE THIS
ACCESSORY. THIS WILL NOT ALTER THE PRODUCT WARRANTY.
WARNING: THE HEATFLOW S5 CANNOT BE USED WITH A HEATSHIELD (AC02762),
LOWERED CEILING, INSIDE AN ALCOVE OR IN A MOBILE HOME.
WARNING: THE HEATFLOW S5 IS NOT A CENTRAL HEATING SYSTEM
Installation Instruction HEATFLOW S5
English
46310A
2023-05-25
Advertisement
Table of Contents
Related Manuals for SBI HEATFLOW S5
Summary of Contents for SBI HEATFLOW S5
- Page 1 Instructions HEATFLOW S5 – Forced air system AC02110 THE HEATFLOW S5 CAN BE PAIRED WITH THESE STOVES: AUSTRAL III, LÉGENDE III, MYRIAD III, FW3200, OSBURN 3300, SOLUTION 3.3 WARNING: THE HEATFLOW S5 CANNOT BE USED WITH STOVE OPTIONAL BLOWERS. WARNING: THE CLEARANCE TO COMBUSTIBLE MATERIALS OF THIS ACCESSORY SUPERSEDES THOSE OF THE STOVE.
-
Page 2: General Information
1. General information This forced heat distribution system supports heating adjacent and upper rooms located at a maximum distance of 50’ (15,2m) from the stove. Rooms below the HEATFLOW S5 cannot be heated with this system. 2. Content of the accessory... -
Page 3: Tools Required
• Galvinized elbow ducts • Airflow damper or damper blades • Self drilling screws • HVAC foil tape • Electrical wire 14-2 • Electrical wire connectors • Anti-Seize lubricant • Flat black paint Installation Instruction HEATFLOW S5 English 46310A 2023-05-25... - Page 4 5. Dimensions Installation Instruction HEATFLOW S5 English 46310A 2023-05-25...
- Page 5 Installation Instruction HEATFLOW S5 English 46310A 2023-05-25...
- Page 6 Wear protective gloves for the following instructions WARNING The HEATFLOW S5 can only be used with single wall pipe, refer to the Annex B section for shielded single wall pipe. The HEATFLOW S5 cannot be used with Heat shield (AC02762), lowered ceiling, inside an alcove or in a mobile home.
- Page 7 2. Place the flue collar (A) and attach it to stove flue with 3 self-drilling screws. (N) 3. Place the back panel (B) and attach to the back of the stove with 10 metal screws (K) Installation Instruction HEATFLOW S5 English 46310A 2023-05-25...
- Page 8 (H) into 4 parts and stick them to the 4 bent up edges (as per image) of the front panel frame (C) 5. Place the front panel (C) on the top of the stove. Installation Instruction HEATFLOW S5 English 46310A 2023-05-25...
- Page 9 (K) to the front and back panels. 8. Install the 6’’ adaptor (L) to the top panel. (F) IMPORTANT`:The dimples in DETAIL B, of the top panel, must be pointing downward. Installation Instruction HEATFLOW S5 English 46310A 2023-05-25...
- Page 10 10. Install the top panel (F) to the other panels with the help of 22 metal screws. (K) Installation Instruction HEATFLOW S5 English 46310A 2023-05-25...
- Page 11 12. With the help of pliers, remove the spring pin (CC) blocking rotation of the door handle mechanism. 13. With pliers, remove the small spring pin. (DD) This will remove the door latch roller. Installation Instruction HEATFLOW S5 English 46310A 2023-05-25...
- Page 12 If the paper slips out easily anywhere around the door, the door adjustment must be reviewed or the seal gasket must changed. Once this is done put back spring pin (CC) to stop any handle rotation. Installation Instruction HEATFLOW S5 English 46310A 2023-05-25...
- Page 13 7. Clearances to combustible materials using the HEATFLOW S5 WARNING The HEATFLOW S5 can only be used with single wall pipe, refer to the Annex section for shielded single wall pipe. The HEATFLOW S5 cannot be used with Heat shield (AC02762), a lowered ceiling, in an alcove or in a mobile home.
-
Page 14: Blower Installation
Clearance around the blower box 1in MIN Clearance around duct connected to blower 1in MIN Clearance around air register 1in MIN Duct length between the HEATFLOW and blower (min – max) 6.5ft (2m) – 12 ft (3.7m) Installation Instruction HEATFLOW S5 English 46310A 2023-05-25... - Page 15 Install the blower with the rubber gromets provided so as to lower vibration noises. 18. Connect motor connector (T) to the blower. 19. Install blower adaptor (J) to the blower (I) with the help of 4 self- drilling screws. (N) Installation Instruction HEATFLOW S5 English 46310A 2023-05-25...
-
Page 16: Electrical Wiring
9. Electrical wiring WARNING The installation of the Heatflow S5 requires a power outlet (120V). The wiring must be done in accordance to local legislation/norms and national building code. The wiring must only be done by a certified electrician. The Heatflow S5 must be wired to a 120V/15 amp circuit breaker. - Page 17 The configuration of the ductwork system will have a direct effect on the capacity of the blower to distribute the warm air efficiently. The HEATFLOW S5 must never be connected to the existing ductwork system of a furnace. To use an existing ductwork system, the furnace must be completely removed. The HEATFLOW S5 must be the only heating source connected to the ductwork.
- Page 18 7. The damper of the furthest air outlet from the stove should stay fully open. Installation Instruction HEATFLOW S5 English 46310A 2023-05-25...
- Page 19 IMPORTANT : If the stove is new, it is normal to have an odor of smoke when lighting it for the first time. This intitial fire(s) should always be done before connecting the air ductwork system to the HEATFLOW S5 in order to prevent the odor of smoke from being dispersed to all rooms having an air outlet.
-
Page 20: Troubleshooting
6’’ (152mm), 400 CFM Blower (outtake, airflow) Power (electrical) 200 watts Fan delay 110°F (43°C) 6’’ (152mm) Main duct diameter Number of air outlets 4 MAX 50’ (15,2 m) MAX Length of main duct Installation Instruction HEATFLOW S5 English 46310A 2023-05-25... - Page 21 Annex A. Assembly instruction for retrofit of models with decorative panels WARNING : If the HEATFLOW S5 is removed, the decorative panels must be put back on the stove. Unscrew the 3 screws (AA) behind the decorative panel (BB). Gently...
-
Page 22: Clearance To Combustible Materials
6”*** MIN 6” MIN *** note: For products other than SBI Heating Accessories, the clearance is 9” • The retrofit of a double wall pipe to a single one can be done by placing a pipe shield on part of the pipe at places where the clearance from combustible materials is less than 18in (0.46m). - Page 23 G3A 2H3 update this document from time to time and cannot 418-908-8002 be responsible for problems, injuries,or damages www.sbi-international.com arising out of the use of information contained in any document obtained from unauthorized sources. Installation Instruction HEATFLOW S5 English 46310A 2023-05-25...
