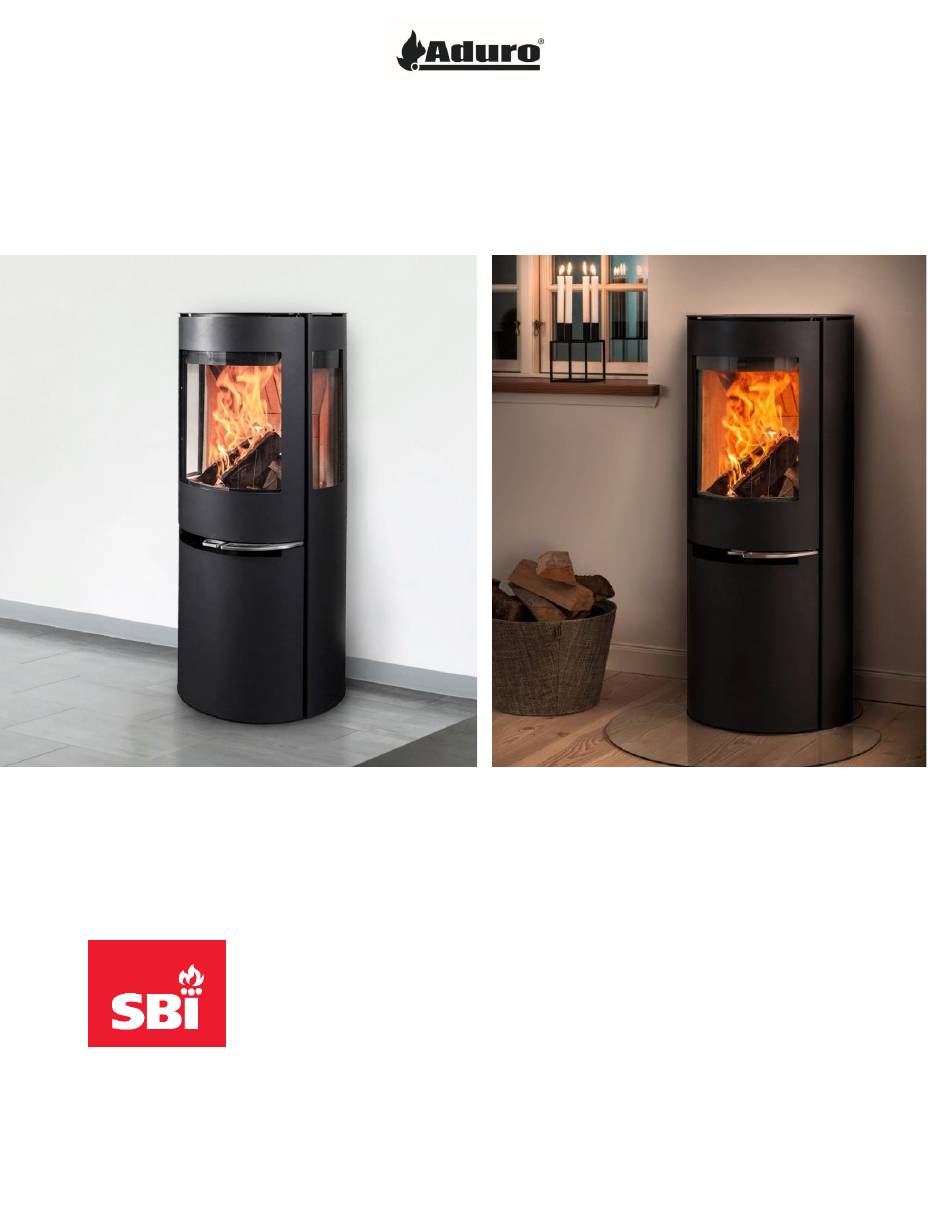

Installation & Operating

Instructions for USA & Canada

Aduro Hybrid Stoves

H1 & H2

Stove Builder International inc.

250, Copenhague street

St-Augustin-de-Desmaures (Québec)

Canada G3A 2H3

After-sale service: 1-877-356-6663

E-mail: tech@sbi-international.com

46406A

2025-02-12

Need help?

Do you have a question about the ADURO H1 and is the answer not in the manual?

Questions and answers

Summary of Contents for SBI ADURO H1

Page 1 Installation & Operating Instructions for USA & Canada Aduro Hybrid Stoves H1 & H2 Stove Builder International inc. 250, Copenhague street St-Augustin-de-Desmaures (Québec) Canada G3A 2H3 After-sale service: 1-877-356-6663 E-mail: tech@sbi-international.com 46406A 2025-02-12...
Page 2 Table of contents Table of contents ............................. 2 Congratulations on your new Aduro Hybrid Stove! ..................5 General ..............................6 Compliance ..............................6 Warnings and safety precautions ........................6 Technical data .............................9 Transportation ..............................9 Installation of the Aduro Hybrid Stove ................... 10 The chimney / flue system ........................
Page 3 4.2.1.1 Primary air (start-up air) ....................... 29 4.2.1.2 Secondary air ..........................29 4.2.2 Aduro-tronic............................29 4.2.2.1 How to operate Aduro-tronic ......................30 4.2.3 The first ignition ..........................30 4.2.3.1 Lighting the fire manually with firewood ..................31 Pellets heating ............................32 4.3.1 How to add pellets? .........................
Page 4 8.6.1 Gaskets ............................47 8.6.2 Cleaning of the surface ........................48 Cleaning of the stove’s inside and flue pipe ..................48 8.6.3 8.6.4 Repairing the surface ........................48 8.6.5 Combustion chamber ........................48 8.6.6 Spare parts and unauthorized alterations ..................48 8.6.7 Replacement of the glass ........................
Page 5 COMPLIANT WITH 2020 CORD WOOD STANDARD 250 Copenhague Street, Saint-Augustin-de-Desmaures (Quebec), Canada, G3A 2H3 After-sale service: 1-877-356-6663 E-mail: tech@sbi-international.com Listed to standards CAN/ULC S627, UL 1482 and ASTM E1509 This document is available for free download on the manufacturer’s website. It is a copyrighted document.
Page 6 1. General 1.1 Compliance Aduro Hybrid Stove meets the U.S. Environmental Protection Agency’s emission limits for hybrid stoves and hybrid stoves sold on or after 2020. The Aduro Hybrid stove series has been tested by Intertek. The test standards are for the United States and for Canada: Testing of solid fuel appliance in accordance with DTI method “ELAB-PP-BR-15”...
Page 7 instructions may result in property damage, bodily injury or even death. Contact local building or fire offi- cials about restrictions and installation inspection requirements in your area. • Never use chemical fire starters or fluid to start your fire. • DO NOT BURN GARBAGE OR FLAMMABLE FLUIDS SUCH AS GASOLINE, NAPHTHA OR ENGINE OIL.
Page 8 • When using wood logs in periods without electrical power you must always look after the stove, as security sensors are not active. • The product and the cladding must be stored in a dry place and must not be exposed to weathering. •...
Page 9 1.3 Technical data Aduro Hybrid Stove Data 27 630 à 53 832 BTU/hr (8.0 à 15.8 kW) Nominal power - Wood 7451 à 21 240 BTU/hr (2.2 à 6.2 kW) Nominal power - Pellets Flue outlet Ø 6 in (15 cm) top/rear Fresh air supply Ø...
Page 10 2. Installation of the Aduro Hybrid Stove We recommend that the installation is carried out by a fully qualified installer. In any case, Aduro Hybrid stoves are very heavy and we recommend that installation is carried out by at least two people. We recommend using a handcart.
Page 11 2.3 Wall thimble installation Wall Thimble must be installed with an appropriate length of chimney pipe for all horizontal through-the-wall instal- lations. To accommodate thicker walls, the telescoping pieces of the Wall Thimble can be separated, and a field- fabricated extension may be installed. Component Component Tee with Tee Cap...
Page 12 • Firestop Radiation Shield must be used when a chimney passes through a floor or ceiling without a support box. The optimum combustion is achieved at a constant chimney draft of 0.04 à 0.05 in. w.c (0.10 to 0.14 mbar) meas- ured in the flue pipe above the stove.
Page 13 Connector pipe should be 24-gauge or thicker steel pipe and eighteen inches (18”) from a combustible wall or ceiling. if you are using double wall or shielded pipe the clearance can be reduced to six inches (6”). Follow the pipe manufacturer’s installation instructions and directions for passing through combustible walls and ceilings.
Page 14 2.8 Clearances to combustible surfaces No part of the stove or flue pipe may be located closer to combustibles than the minimum clearance figures given. Clearances may only be reduced by means approved by the regulatory authority. The clearances shown in this section have been determined by tests according to procedures set out in safety standards CAN/ULC S627 (Canada), UL 1482 (U.S.A.) and UL 737 (U.S.A.).
Page 15 2.8.2 Installation with heat shield AC02762 To reduce the clearances of an appliance with a single wall pipe connector, use instead the heat shield certified with a double wall pipe connector to be as close as 6" from combustible materials. Only in this case, the same clearances as a certified double wall pipe connector can be used.
Page 16 2.8.3 Installation inside a combustible alcove APPLIANCE CLEARANCES WITH DOUBLE WALL PIPE CONNECTOR Canada 6" (152 mm) 6" (152 mm) 29" (737 mm) 29" (737 mm) 12 ½" (318 mm) 12 ½" (318 mm) 35 ½" (902 mm) 35 ½" (902 mm) 48"...
Page 17 24" (610 mm) 24" (610 mm) Minimal floor to ceiling clearances: 84" 2.8.5 Installation in a mobile home with heat shield AC02762 It is strictly forbidden to install a unit with a single wall pipe in a mobile home. DISTANCES FROM PIPE CONNECTOR...
Page 18 E. Under the chimney connector 2” (51 mm) 2” (51 mm) F. Beyond each side of chimney connector The Aduro Hybrid must be installed on a floor with the adequate load-bearing ca- pacity. If the existing construction does not meet this requirement, appropriate ad- aptation measures must be taken (e.g.
Page 19 2.10 Reducing wall and ceiling clearances safely Reducing Wall and Ceiling Clearances Safely It is often desired to use as little space as possible when installing a wood stove. To do this, it is possible to reduce the clearances safely and install the stove closer to the walls by permanently installing a heat shield between the stove and the flammable material.
Page 22 2.11 Supply of combustion air WARNING: It is strongly discouraged to connect the Aduro H1 & H2 to a crawl space (an often damp area) as this can cause rust in the combustion chamber. All wood burning stoves need constant supply of air to ensure a clean and efficient combustion.
Page 23 3.1 Aduro Hybrid app The Aduro Hybrid app is free and can be downloaded from App Store or Google Play. Look for this app icon in your app store: 3.1.1 Configuration of the app 1. Connect the stove to power (see section 2.12). 2.
Page 24 3.1.2 App features The app has several features to choose from: heat level, desired room temperature, and timetable. The timetable makes it possible to plan, how the stove should run during the week. See more here. (https://aduro.microsoftcrm- portals.com/en-us/knowledgebase/article/KA-01139) On the app’s home page, you can see: •...
Page 25 3.3 Register your stove on Aduro Cloud We recommend that you register your hybrid stove on our cloud www.adurocloud.com as soon as the stove is connected to your Wi-Fi router. When you register the stove on Aduro Cloud, you will gain direct access to your stove’s data and settings.
Page 26 4.1 Choosing your fuel Do not store solid fuel within the hybrid stove installation clearances or within the space required for charging and ash removal. DO NOT BURN THE FOLLOWING MATERIALS: • Coal • Garbage • Lawn clipping, organic waste or yard waste •...
Page 27 end. If the wood is dry enough, soap bubbles will appear. The wood should be chopped into logs with a diameter of approx. 4in (10 cm) and a log length of max. 16in (39 cm). We recommend log of 12in length . Good combustion provides optimum heat output and maximum economy.
Page 28 4.2 Wood heating The Aduro Hybrid Stove is intended for intermittent combustion. This means that each stoking should burn down to embers before new logs are added. Always respect the “MAX-load” line which marks the limit for wood. You can regulate the effect/heat output with the fuel. To obtain the best possible combustion, you should regulate the effect/heat output with the fuel.
Page 29 1: Fully open primary, secondary, and tertiary air inlet. This position can be maintained with the Aduro Key, which must be placed in the two holes (see section 4.1.2.1). 2: Closed primary air inlet, fully open second- ary and tertiary air inlet. 3: Closed primary air inlet, halfway closed secondary air inlet, and fully open tertiary air inlet.
Page 30 4.2.2.1 How to operate Aduro-tronic Lighting with wood only When lighting a fire in the Aduro Hybrid Stove for the first time, the maximum amount of primary combustion air will be needed to light the fire. For that reason, the primary damper can be kept “forcibly open”.
Page 31 You should also be aware that the stove may make clicking sounds as it heats up and cools down – rather like pouring boiling water into a sink. These are caused by the great differences in temperature to which the materials are being exposed.
Page 32 4.3 Pellets heating 4.3.1 How to add pellets? Place the enclosed funnel in the opening of the pellet box and add the pellets. The pellets are distributed with a poker in the box to make use of the entire capacity (approx. 28lbs (13 kg) of pellets). By the first use, the augers must be filled with pellets: Open the door to the combustion chamber and lift out the front of the burning pot (the black cast iron cone with the Aduro logo) so you...
Page 33 When the smoke temperature reaches 195°F(90°C), the stove will shift from the “warm up mode” to “normal mode” and continue with the last settings. You can manually change between 3 heat levels without using the app by pushing the logo with an auger, which is placed directly under the ON/OFF button on the display. •...
Page 34 reach about 540°F (280°C), the pellet supply will stop automatically. After this, the stove will change to HYBRID mode. If you use the function "Heat Level" on the app and want the stove to restart automatically on pellets when the wood has burned out, you can set the stove on standby mode with just 1 click on the button (see illustration).
Page 35 an optimum and clean combustion and avoid problems such as pellet accumulation and smoke leakage. There- fore, we recommend that you measure your chimney draft when the chimney is cold and when it is hot after 1 hour in operation. In practice, the chimney draft will differ –...
Page 36 leak out of the stove. Therefore, if you have a cold chimney that has not been used for a while, we recommend that you use some wood sticks to heat the chimney and eliminate the cold plug before turning the pellet function It is normal that a rear vent configuration produces more smoke when you open the stove door.
Page 37 Aduro hybrid stoves come with standard settings regarding e.g., the speed of the augers and the performance of the fan. To achieve the most efficient pellet combustion it may be necessary to adjust these settings to match your specific installation and your chimney draft. You can partly compensate for a poor chimney draft by increasing the fan speed on the hybrid stove’s three heat levels.
Page 38 5.4 Rear vent configuration During operation, a rear vent installation might produce more smoke when opening the stove door. It is posible to install the chimney at the back of the Aduro hybrid Stove. The following instructions show how: Locate the rear panel of the Aduro Hy- brid stove and cut out the round pre-cut shape in section (A) using tin snips.
Page 39 Recycle cutout (A). Unscrew the 2 screws (C) from the pipe cover (B). Remove the pipe cover (B). Keep the removed parts.
Page 40 Unscrew the 2 screws (F) from the chimney flange (D). Remove the washers (E) and the chim- ney flange (D). Keep the removed parts.
Page 41 Swap the positions of the pipe cover and the chimney flange. The cover (B) now goes on top, and the chimney flange (D) now goes at the back. Screw in the respective screws for the cover and the flange. To install a section of chimney, remove the rear part of the Aduro (G) by un- screwing the 4 screws and their wash- ers (H).
Page 42 Insert the adapter (K) into into the flange. Secure it with 3 self tapping screws (J). Insert a section of the pipe (l) in the adapter (K) then secure the pipe section using 3 self-tapping screws (J). Reattach the rear part (G) of the Aduro Hybrid stove with its 4 screws and washers (H).
Page 43 • LIGHTING: smoke temperature not reached after two attempts to light the fire. • CO: CO (carbon monoxide) level is too high. Here the ALARM will light red. When the cause of alarm has been rectified, the stove can be started by pushing ON/OFF twice.
Page 44 8. Maintenance of the stove All cleaning and maintenance of the hybrid stove (except for the quick, daily cleaning) should only be carried out when the stove is cold, and the power is disconnected. 8.1 Daily maintenance – when using pellets When you add pellets, you should brush the burning pot free from of ashes and cinders.
Page 45 8.2.2 Creosote formation and need for removal When wood is burned slowly, it produces tar and other organic vapors, which combine with expelled moisture to form creosote. The creosote vapors condense in the relatively cool chimney flue of a slow-burning fire. As a result, creosote residue accumulates on the flue lining.
Page 46 8.3.1 Glass Burning of wet wood, insufficient chimney draft and wrong use of the hybrid stove can result in soot stains on the glass. They can easily be removed using a damp cloth that you dip in cold ash and rub on the sooty glass. Special cleaning agents are also available to remove soot from the glass, e.g.
Page 47 8.6 Other maintenance 8.6.1 Gaskets Over time, the gaskets around glass and door wear out and should therefore be checked regularly. If they are leaky, they should be replaced, as it is essential that the stove is tight. In addition, check regularly that the gaskets stay in place so that no smoke escapes from the stove.
Page 48 8.6.2 Cleaning of the surface The stove’s surface will stay at its best just by being vacuumed with a small, soft mouthpiece or dusted with a soft, dry cloth. Do not use spirit or other solvents, as they will remove the paint. Do not clean the stove with water.
Page 49 1. Open the door. 2. Remove the Bauart spring using pliers or a special tool. 3. Remove the two pins holding the door and remove it. If the pins are blocked, remove them using flat pliers. 4. Place the door face down on a soft surface to protect the paint. 5.
Page 50 Basic features of the Aduro hybrid stove Part # Description Ashpan Damper for firing with pellets Damper for firing with wood Opening for control board (incl. Wi-Fi board) Cast iron burning pot Door switch Aduro-tronic Pellet container lid Display keyboard Top smoke outlet Back smoke outlet Wi-Fi antenna...
Page 51 Exploded diagram and parts list AC05958...
Page 52 IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement parts for your stove, please provide the model number and serial number. We reserve the right to change parts due to technology upgrade or availability. Contact an authorized dealer to obtain one of these parts. Never use substitute materials. The use of unapproved parts can cause poor performance and risk to your safety.
Page 53 Right of complaint The right to complain applies in accordance with the sales act in the country where the stove was purchased. The dated receipt will be sufficient proof. All pellet stoves may require adjustment of the combustion air and the speed of the augers in order to optimize the function and to reach an effective and clean combustion.
