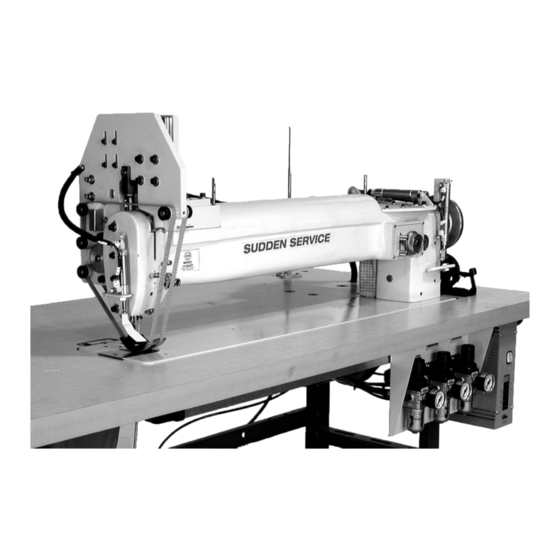

- Page 1 1342A model Revision 1 Updated Mar 22, 2012 Technical Manual & Parts Lists Atlanta Attachment Company 362 Industrial Park Drive Lawrenceville, GA 30046 770-963-7369 • www.atlatt.com...
- Page 2 Technical Manual & Parts Lists...
- Page 3 Attachment Company. In addition to any confidentiality and non-disclosure obligations that currently exist between you and Atlanta Attachment Company, your use of these materials serves as an acknowledgment of the confidential and proprietary nature of these materials and your duty not to make any unauthorized use or disclosure of these materials.
-
Page 4: Table Of Contents
Technical Manual & Parts Lists Contents Important Safety Instruction ........................1 Mandatory Information ..........................1 Scope of the Instruction Material ........................ 1 Intended Use ............................... 1 Exclusion of Misuse ............................ 1 Liability ............................... 2 Choice and Qualification of Personnel ....................... 2 Training ............................... - Page 5 Technical Manual & Parts Lists Repair, Electrical............................8 Ventilation/Hazardous Gases ........................8 Hydraulic and Pneumatic Systems ......................8 General Liability ............................9 Starting Machine Movements ........................9 A Word to the End User..........................9 Safety Precautions ............................. 10 Assembly Drawings & Parts Lists ......................12 11342A Long Arm ............................
-
Page 6: Important Safety Instruction
Mandatory Information All persons operating and/or working on the 1342A Long Arm Label Sewer should read and understand all parts of the Safety Instructions. This applies, in particular, for persons who only operate and/or work on the unit occasionally (e.g. for maintenance and repair). Persons who have difficulty reading must receive particularly thorough instruction. -
Page 7: Liability
Technical Manual & Parts Lists Liability The machine should only be operated when in perfect working order, with due regard for safety and the potential dangers, as well as in accordance with the Instruction Material. Faults and malfunctions capable of impairing safety should be remedied immediately. We cannot accept any liability for personal injury or property damage due to operator errors or non-compliance with the safety instructions contained in this booklet. -
Page 8: A Word To The Operator
Technical Manual & Parts Lists A Word to the Operator The greatest danger inherent in our machines: is that of fingers, hands or loose clothing being drawn into a machine by live, coasting or rotating tools or assemblies or of being cut by sharp tools or burned by hot elements. LWAYS BE CONSCIOUS OF THESE DANGERS Safety Equipment on the Machines All machines are delivered with safety equipment, which shall not be removed or... -
Page 9: Protective Eyewear
Technical Manual & Parts Lists Protective Eyewear Protective eyewear that has been tested by the local authorities should be worn whenever there is a possibility of loose or flying objects or particles such as when cleaning the machine with compressed air. Tools Always count the number of tools in your possession before starting work on the machine. -
Page 10: Important Notices
Technical Manual & Parts Lists Important Notices Reporting and Fighting Fires Read the instructions posted in the factory with regard to reporting fires and the emergency exits. Make sure you know exactly where the fire extinguishers and sprinkler systems are located and how they are operated. -
Page 11: Delivery Of The Machine/Packaging
Technical Manual & Parts Lists - Kinetic energy - Note that some motors or spindles, for example, may continue to run or coast run on after being switched off. - Potential energy - Individual assemblies may need to be secured if necessary for repair work. Delivery of the Machine/Packaging Note any markings on the packaging, such as weights, lifting points and special information. -
Page 12: Workplace Environment
Technical Manual & Parts Lists Workplace Environment Our machines are designed for use in enclosed rooms: Permissible ambient temperature approx. 5 - 40 °C (40 - 104 °F). Malfunctions of the control systems and uncontrolled machine movements may occur at temperatures outside this range. Protect against climatic influences, such as electrostatic charges, lightning strikes, hail, storm damage, high humidity, salinity of the air in coastal regions. -
Page 13: Repair
Technical Manual & Parts Lists When scrapping (disassembling) the machine and its assemblies, ensure that these materials are disposed of safely. Either commission a specialist company familiar with the local regulations or note the local regulations when disposing of these materials yourself. Materials should be sorted properly. Repair Replacement Parts We cannot accept any liability whatsoever for damage due to the use of parts made by other... -
Page 14: General Liability
Technical Manual & Parts Lists General Liability Liability for machine damage and personal injury is extinguished completely if any unauthorized conversions or modifications are undertaken. The machine must not be modified, enlarged or converted in any way capable of affecting safety without the manufacturer's prior approval. Starting Machine Movements Read the Instruction Manual carefully to establish which keys and functions start machine movements. -
Page 15: Safety Precautions
Technical Manual & Parts Lists Safety Precautions Safety should be a constant concern for everyone. Always be careful when working with this equipment. While normal safety precautions were taken in the design and manufacture of this equipment, there are some potential safety hazards. Everyone involved with the operation and maintenance of this equipment should read and follow the instructions in this manual. - Page 16 Technical Manual & Parts Lists...
-
Page 17: Assembly Drawings & Parts Lists
Company. In addition to any confidentiality and non-disclosure obligations that currently exist between you and Atlanta Attachment Company, your use of these materials serves as an acknowledgment of the confidential and proprietary nature of these materials and your duty not to make any unauthorized use or... - Page 18 Technical Manual & Parts Lists...
-
Page 19: 11342A Long Arm
Technical Manual & Parts Lists 11342A Long Arm AAC Drawing Number 192154A Rev 0 PART # DESCRIPTION 7360RB-30 Sewing Head 1340-30-TS Stand FFSM312LVQ Electric Eye 1975-412A Nut Plate 1278-6689B Eye Mount BRKT 0211-702C Cable 1342-PAR1 Parameter Settings SN16X95/20 Needle 4059-DC1500 Motor w/ Controller 4059-FP301D Foot Switch... - Page 20 Atlanta Attachment Company (AAC) Statement of Warranty Manufactured Products Atlanta Attachment Company warrants manufactured products to be free from defects in material and workmanship for a period of eight hundred (800) hours of operation or one hundred (100) days whichever comes first. Atlanta Attachment Company warrants all electrical components of the Serial Bus System to be free from defects in material or workmanship for a period of thirty six (36) months.
- Page 21 Declaración de Garantia Productos Manufacturados Atlanta Attachment Company garantiza que los productos de fabricación son libres de defectos de mate-rial y de mano de obra durante un periodo de ochocientos (800) horas de operación o cien (100) días cual llegue primero.
- Page 22 Atlanta Attachment Company 362 Industrial Park Drive Lawrenceville, GA 30046 770-963-7369 www.atlatt.com Printed in the USA...
