StarTech.com 4UDRAWER Quick Start Manual

4U Storage Drawer for 19" Server Racks
Product ID
4UDRAWER
1
2

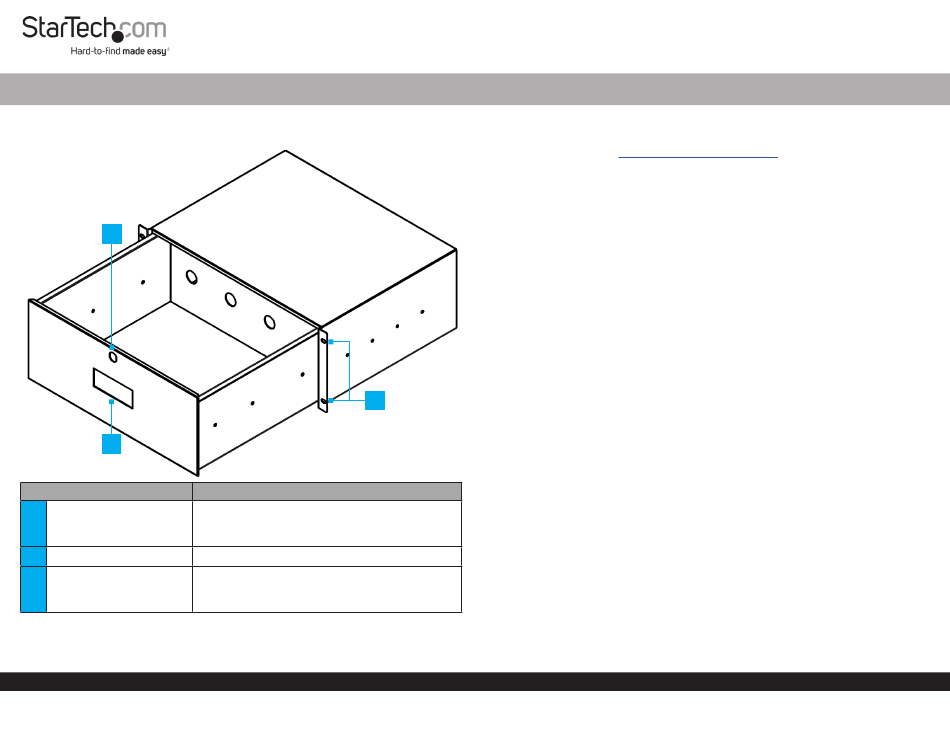

Component
1 Drawer Key Lock
2 Drawer Handle
3
Mounting Brackets
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
3
Function
Use the included Set of Keys to Lock or Unlock
•
the Drawer
Rev 02 and above only
•
Use to Open or Close the Drawer
•
Fasten the Drawer to the Front Posts of the Rack
•
or Cabinet
Two Holes on each side of the Drawer
•
Requirements
For the latest drivers/software, technical specifications, and declarations of
conformance, please visit: www.StarTech.com/4UDRAWER
Package Contents
4U Storage Drawer x 1
•
M5 Screws and Cage Nuts x 4
•
Plastic Washers x 4
•
Set of Keys x 1 (Rev 02 and Above Only)
•
Installation
Warnings! Read the entire Quick-Start Guide and ensure the instructions are fully
understood before assembling and using this product. Before adding equipment
to this product, ensure this product has been properly mounted. Never operate this
product if parts are missing or damaged. Ensure the weight of the equipment does not
exceed the weight capacity of this product. If the weight capacity is exceeded, personal
injury or damage to the equipment is possible. This product can support 55.1 lbs [25
kgs]. The maximum supported weight is only possible when both mounting brackets
are properly mounted to two front posts on a rack. Arrange your equipment in the rack
in descending order of weight. The lightest equipment is installed at the top of the rack,
and the heaviest is on the bottom.
Locate a suitable section in the Rack/Cabinet to mount the 4U Storage Drawer. The
1.
Drawer itself requires 4U of space within the rack/cabinet.
(Optional) If the Rack uses Square Mounting Holes, install the included Cage Nuts
2.
into the Square Mounting Holes on the Front Posts of the Rack.
Place the Drawer into the Rack and align the Mounting Points on the Front
3.
Brackets of the Drawer with the Mounting Points on the Rack (e.g. the cage nuts, if
used).
Use a Phillips Head Screwdriver and the included M5 Screws to secure the Drawer
4.
to the Rack.
Note: If the included Cage Nuts and/or M5 Screws are not used, please use the
recommended Mounting Screws for the Rack.
Make sure the M5 Screws are properly tightened and the Drawer has no movement
5.
before attempting to place anything inside.
Quick-Start Guide
Manual Revision: May 25, 2023 1:19 PM
