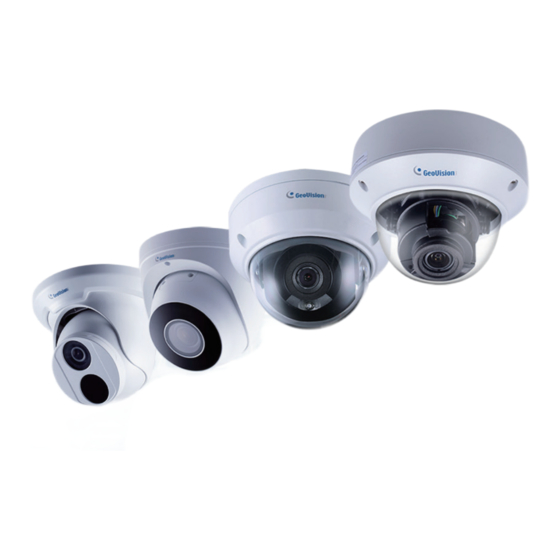

GV-EBD4700 / 4711 IR Eyeball IP Dome
GV-ABL2701 / 4701 / 4712 IR Bullet IP Camera
GV-ADR2701 IR Mini Fixed Rugged IP Dome
GV-AVD4710 IR Vandal Proof IP Dome
Before attempting to connect or operate this product,
please read these instructions carefully and save this manual for future use.
Quick Start Guide
GV-IP Camera
UBN-QG-A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GV-EBD4711 and is the answer not in the manual?

Questions and answers

Related Manuals for GeoVision GV-EBD4711

Summary of Contents for GeoVision GV-EBD4711

  • Page 1 Quick Start Guide GV-IP Camera GV-EBD4700 / 4711 IR Eyeball IP Dome GV-ABL2701 / 4701 / 4712 IR Bullet IP Camera GV-ADR2701 IR Mini Fixed Rugged IP Dome GV-AVD4710 IR Vandal Proof IP Dome Before attempting to connect or operate this product, please read these instructions carefully and save this manual for future use.
  • Page 2 GeoVision. Every effort has been made to ensure that the information in this manual is accurate. GeoVision, Inc. makes no expressed or implied warranty of any kind and assumes no responsibility for errors or omissions. No liability is assumed for incidental or consequential damages arising from the use of the information or products contained herein.

  • Page 3: Table Of Contents

    1.1 Packing List ....................2 1.2 Optional Accessories ..................3 1.3 Overview ....................... 4 1.3.1 GV-EBD2702 / 4700 ....................4 1.3.2 GV-EBD4711......................5 1.4 Installation ..................... 6 2. GV-ABL2701 / GV-ABL4701 ................12 2.1 Packing List ....................13 2.2 Optional Accessories ................... 14 2.3 Overview .....................

  • Page 4: Note For Connecting To Gv-Vms/ Dvr / Nvr

    Note for Connecting to GV-VMS/ DVR / NVR The GV-IPCAM in this Quick Start Guide is designed to work with GV-VMS / DVR / NVR, a video management system. Once the camera is connected to the GV-VMS / DVR / NVR, the resolution set on the GV-VMS / DVR / NVR will override the resolution set on the camera’s Web interface.

  • Page 5: Note For Installing Camera Outdoor

    Note for Installing Camera Outdoor When installing the camera outdoor, be sure that: The camera is set up above the junction box to prevent water from entering the camera along the cables. Any PoE, power, audio and I/O cables are waterproofed using waterproof silicon rubber or the like.

  • Page 6: Gv-Ebd2702 / 4700 / 4711

    GV-EBD2702), it can process scenes with contrasting intensity of lights and produce clear image. For GV-EBD4711, with its motorized lens, the user can zoom and focus the camera from the Web interface. The camera also provides built-in micro SD card slot for local storage.

  • Page 7: Packing List

    1.1 Packing List H.265 Target Eyeball Dome • Screw x 3 Screw Anchor x 3 • • Drill Template Paster Waterproof Rubber Set • • Download Guide Warranty Card • •...

  • Page 8: Optional Accessories

    GV-EBD2702 / 4700 / 4711 1.2 Optional Accessories Optional accessories can expand the capabilities and versatility of your GV-EBD2702 / 4700 / 4711. Contact your dealer for more information. Model Number Name Details GV-Mount211P Wall Mount Bracket Dimensions: 233 x 126 x 126 mm (9.2”...

  • Page 9: Overview

    1.3 Overview 1.3.1 GV-EBD2702 / 4700 Figure 1-1 Description Bottom ring Housing Lens Infrared indicator Power connector (DC 12 V) Ethernet connector / PoE Note: To power the camera using the power connector (No.5), an optional power adapter is required.

  • Page 10: Gv-Ebd4711

    GV-EBD2702 / 4700 / 4711 1.3.2 GV-EBD4711 Figure 1-2 Description Bottom ring Housing Microphone Lens Power connector (DC 12 V) Ethernet connector / PoE Micro SD card slot and default button compartment Default button Micro SD card slot Note: To power the camera using the power connector (No.5), an optional power...

  • Page 11: Installation

    1.4 Installation The Target Eyeball Dome is designed for outdoors. With the standard package, you can install the camera on the ceiling. Or you can purchase optional mounting accessories to mount GV-EBD2702 / 4700 / 4711 on a wall. Below are the instructions for Ceiling Mount. There are two kinds of Ceiling Mount: Concealed Installation and Open Installation.
  • Page 12 GV-EBD2702 / 4700 / 4711 3. Remove the bottom ring by turning it anticlockwise. Bottom Ring Figure 1-5 4. Connect the cables and secure the camera. Connect the cables and protect them with waterproof tape Attach the camera to ceiling with screws Figure 1-6 5.
  • Page 13 6. Mount the bottom ring. Push the bottom ring back up and turn it clockwise to lock into position Figure 1-8 For Open Installation Lead the cables out from the open slot on the bottom ring before screwing the camera to the ceiling as shown in step 4 of Conceal Installation.
  • Page 14 GV-EBD2702 / 4700 / 4711 1.4.2 GV-EBD4711 Installation For Concealed Installation Stick the drill template paster to the ceiling and drill three holes according to the drill template. Drill Template Paster Figure 1-10 Insert the screw anchors. Drill a hole to lead the cables out of the ceiling...
  • Page 15 Secure the bottom ring to the ceiling with 3 supplied screws and connect the cable. Connect cable and protect it with waterproof tape (Optional) insert a Attach bottom ring to micro SD card ceiling with taping screws Figure 1-13 Mount the housing by adjusting to the position as shown and press and turn to anywhere but .
  • Page 16 GV-EBD2702 / 4700 / 4711 For Open Installation Lead the cables out from the open slot on the bottom ring before screwing the camera to the ceiling as shown in step 5 of Concealed Installation. Open slot on the bottom ring Figure 1-16 Note: You can optionally purchase GV-Mount211 or GV-Mount212 for Wall Bracket Mount.

  • Page 17: Gv-Abl2701 / Gv-Abl4701

    2. GV-ABL2701 / GV-ABL4701 The Bullet IP Camera is an outdoor, fixed, network camera equipped with an automatic IR-cut filter and an IR LED for day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality image at reduced network bandwidths.

  • Page 18: Packing List

    GV-ABL2701 / GV-ABL4701 / GV-ABL4712 2.1 Packing List Bullet IP Camera Waterproof Rubber Set • • Screw Kit Drill Template Paster • • Download Guide Warranty Card • •...

  • Page 19: Optional Accessories

    2.2 Optional Accessories Optional accessories can expand the capabilities and versatility of your camera. Contact your dealer for more information. Model Number Name Details GV-Mount502 (for Wall Mount Bracket Dimensions: 93 x 93 x 39 mm (3.66” x 3.66” x 1.53”) GV-ABL2701 / 4701) Weight: 0.235 kg (0.52 lb) GV-Mount503 (for...

  • Page 20: Overview

    GV-ABL2701 / GV-ABL4701 / GV-ABL4712 2.3 Overview 2.3.1 GV-ABL2701 / 4701 Figure 2-1 Description Power connector (DC 12 V) Ethernet connector / PoE Note: To power the camera using the power connector (No.1), an optional power adapter is required.
  • Page 21 2.3.2 GV-ABL4712 Figre2-2 Description Power connector (DC 12 V) Audio input / Audio output / GND Alarm input (IN, GND) / Alarm output (N,P) Ethernet connector / PoE Note: To power the camera using the power connector (No.1), an optional power adapter is required.

  • Page 22: Installation

    GV-ABL2701 / GV-ABL4701 / GV-ABL4712 2.4 Installation The Bullet IP Camera is designed for outdoors. With the standard package, you can install the camera on the wall or ceiling. Or, you can purchase optional mounting accessories to mount your camera on a wall. Below are the instructions for Wall Mount.
  • Page 23 Drill four 30-mm deep holes according to the drill template. Figure 2-5 Insert the screw anchors. Figure 2-6 Screw the locknut and loosen the universal joint before attaching the camera to the wall. Locknut Figure 2-7...
  • Page 24 GV-ABL2701 / GV-ABL4701 / GV-ABL4712 Secure the camera to the wall and connect all cables. Lead tapping screws through the guide holes in the base and fix them on the wall by using a screwdriver. Figure 2-8 Adjust the monitoring direction. Figure 2-9 For Open Installation Lead the cables out from the open slot on the base before screwing the camera to the...
  • Page 25 Note: You can optionally purchase GV-Mount502 for Wall Bracket Mount. For details, see its User’s Manual.

  • Page 26: Gv-Adr2701 / 4701

    3. GV-ADR2701 / 4701 The GV-ADR2701 Mini Fixed Rugged IP Dome is an outdoor, fixed, network camera equipped with an automatic IR-cut filter and an IR LED for day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality image at reduced network bandwidths.

  • Page 27: Packing List

    3.1 Packing List GV-ADR2701 / 4701 IR Mini Fixed Rugged Waterproof Rubber Set • • IP Dome Screw Kit Drill Template Paster • • Download Guide Warranty Card • •...

  • Page 28: Optional Accessories

    GV-ADR2701 / 4701 3.2 Optional Accessories Optional accessories can expand the capabilities and versatility of your camera. Contact your dealer for more information. Model Number Name Details GV-Mount213 Wall Box Mount Dimensions: Ø 109 x 39 mm (4.3” x 1.5”) Weight: 0.2 kg (0.44 lb) GV-PA191 Power over Ethernet (PoE)

  • Page 29: Overview

    3.3 Overview Figure 3-1 Description Ethernet connector / PoE Power connector (DC 12 V) Transparent Dome Cover Note: To power the camera using the power connector (No.2), an optional power adapter is required.

  • Page 30: Installation

    GV-ADR2701 / 4701 3.4 Installation The IR Mini Fixed Rugged IP Dome is designed for outdoors. With the standard package, you can install the camera on the ceiling. Below are the instructions for Ceiling Mount. There are two kinds of Ceiling Mount: Concealed Installation and Open Installation.
  • Page 31 Unscrew the transparent dome cover with the supplied torx wrench. Connect the cables and secure the camera. Figure 3-4 Adjust the monitoring direction and tighten the screws after vertically adjusting the lens. Figure 3-5...
  • Page 32 GV-ADR2701 / 4701 Secure the transparent dome cover with the supplied torx wrench. Figure 3-6 Note: Before securing the transparent dome cover, make sure the waterproof rubber strip is tightly held by the six retainers on the bottom ring. Figure 3-7 For Open Installation Lead the cables out from the open slot on the camera base before screwing the camera to the ceiling as shown in step 4 in For Concealed Installation.

  • Page 33: Gv-Avd4710

    4. GV-AVD4710 The Vandal Proof IP Dome is an outdoor camera designed with IK10 vandal resistance and IP67 ingress protection. The camera is equipped with an automatic IR-cut filter and IR LEDs for day and night surveillance. Adjustable in 3 axis (pan, tilt and rotate), it offers an entry-level surveillance solution with all the essential features and excellent image quality.

  • Page 34: Packing List

    GV-AVD4710 4.1 Packing List GV-AVD4710 IR Vandal Proof IP Dome Waterproof Rubber Set • • Screw Kit Drill Template Paster • • Torx Wrench Download Guide • • Warranty Card •...

  • Page 35: Optional Accessories

    4.2 Optional Accessories Optional accessories can expand the capabilities and versatility of your camera. Contact your dealer for more information. Model Number Name Details GV-Mount211-2 Wall Mount Bracket Dimensions: 253 x125 x 125 mm (10” x 4.9” x 4.9”) Weight: 0.92 kg (2.02lb) Dimensions: Φ145 x 40 mm (5.7”...

  • Page 36: Overview

    GV-AVD4710 4.3 Overview Figure 4-1 Description Power connector (DC 12 V) Ethernet connector / PoE Video Output Audio input / Audio output / GND Alarm input (IN,GND) / Alarm output (N,P) Note: To power the camera using the power connector (No.1), an optional power adapter is required.

  • Page 37: Installation

    4.4 Installation The Target Vandal Proof Dome is designed for outdoors. With the standard package, you can install the camera on the ceiling. Alternatively you can purchase optional mounting accessories to mount the camera on a wall. Below are the instructions for Ceiling Mount. There are two kinds of Ceiling Mount: Concealed Installation and Open Installation.
  • Page 38 GV-AVD4710 4. Connect the camera cables and secure the camera. Figure 4-4 5. Insert a SD card into the slot. 6. Adjust the monitoring direction and tighten the screws after vertically adjusting the lens. Figure 4-5 7. Secure the transparent dome cover with the supplied torx wrench. For Open Installation Lead the cables out from the open slot on the camera base before screwing the camera to the ceiling as shown in Step 4.

  • Page 39: Waterproofing The Cable

    5. Waterproofing the Cable Waterproof the Ethernet cable by using the supplied waterproof rubber set. Attach the seal ring to the RJ-45 plug. Seal ring Figure 5-1 Insert the waterproof components through the Ethernet cable as shown below. Insert in order Figure 5-2 Insert the cylindrical waterproof ring into waterproof bolt.
  • Page 40 Waterproofing the Cable Insert the cable into the RJ-45 plug and screw the waterproof bolt in. Figure 5-4 Screw in the waterproof bolt lid. Bolt lid Figure 5-5 Finish the waterproof installation. Figure 5-6...

  • Page 41: Accessing The Camera

    6. Accessing the Camera 6.1 System Requirements Once installed, your camera is accessible over the network. Make sure your PC has good network connection and meet the following requirements: Intel Core i5-4670, 3.40 GHz Memory DDR3 8 GB RAM On Board Graphics Intel HD Graphics 4600 (Versions of driver from year 2014 or later required) ⚫...

  • Page 42: Looking Up The Dynamic Ip Address

    Note: The computer you use to configure the IP address must be under the same LAN as your camera. 1. Download and install the GV-IP Device Utility program from GeoVision website. 2. On the GV-IP Utility window, click the button to search for the IP devices connected in the same LAN.
  • Page 43 4. The login page appears. Figure 6-3 5. For first-time accessing of the Web interface, download and install the plug-in. 6. Type the default ID and password admin and click Login.

  • Page 44: Configuring The Ip Address

    Accessing the Camera 6.3 Configuring the IP Address If the camera is connected to a LAN without DHCP server, the default IP address will be 192.168.0.10. Follow the steps below to modify the IP address to avoid IP conflict with other GV-IP devices on the same LAN. 1.

  • Page 45: The Web Interface

    Select a live video stream: main stream, sub stream or third Live Stream stream (when enabled). Open the image setting page. – See 3.4.1 Image in the User’s Image Manual. Only for GV-EBD4711 / GV-ABL4712 / GV-AVD4710, increase Zoom +/- the camera’s optical zoom. or decrease...
  • Page 46 Only for GV-EBD4711 / GV-ABL4712 / GV-AVD4710, increase Focus +/- or decrease the camera focus. Play/Stop Play or stop live video. Only for GV-EBD4711 / GV-ABL4712 / GV-AVD4710, adjust the Video Volume audio output volume on the PC. Only for GV-ABL4712 / AVD4710, enable or disable Microphone microphone.

  • Page 47: Upgrading System Firmware

    8. Upgrading System Firmware GeoVision periodically releases updated firmware on the website. To load the new firmware into the camera, follow the instructions below. 1. At the top of the Web interface, click Setup. 2. In the left menu, select System and select Maintenance. This page appears.

  • Page 48: Restoring To Factory Default

    If for any reason the camera is not responding correctly, you can restore the camera back to its factory default settings using the Web interface or the Default Button. Note: Only GV-EBD4711 and GV-AVD4710 support a default button, refer to 1.1.3.2 GV-EBD4711 and 1.4.3 Overview in the User’s Manual.
