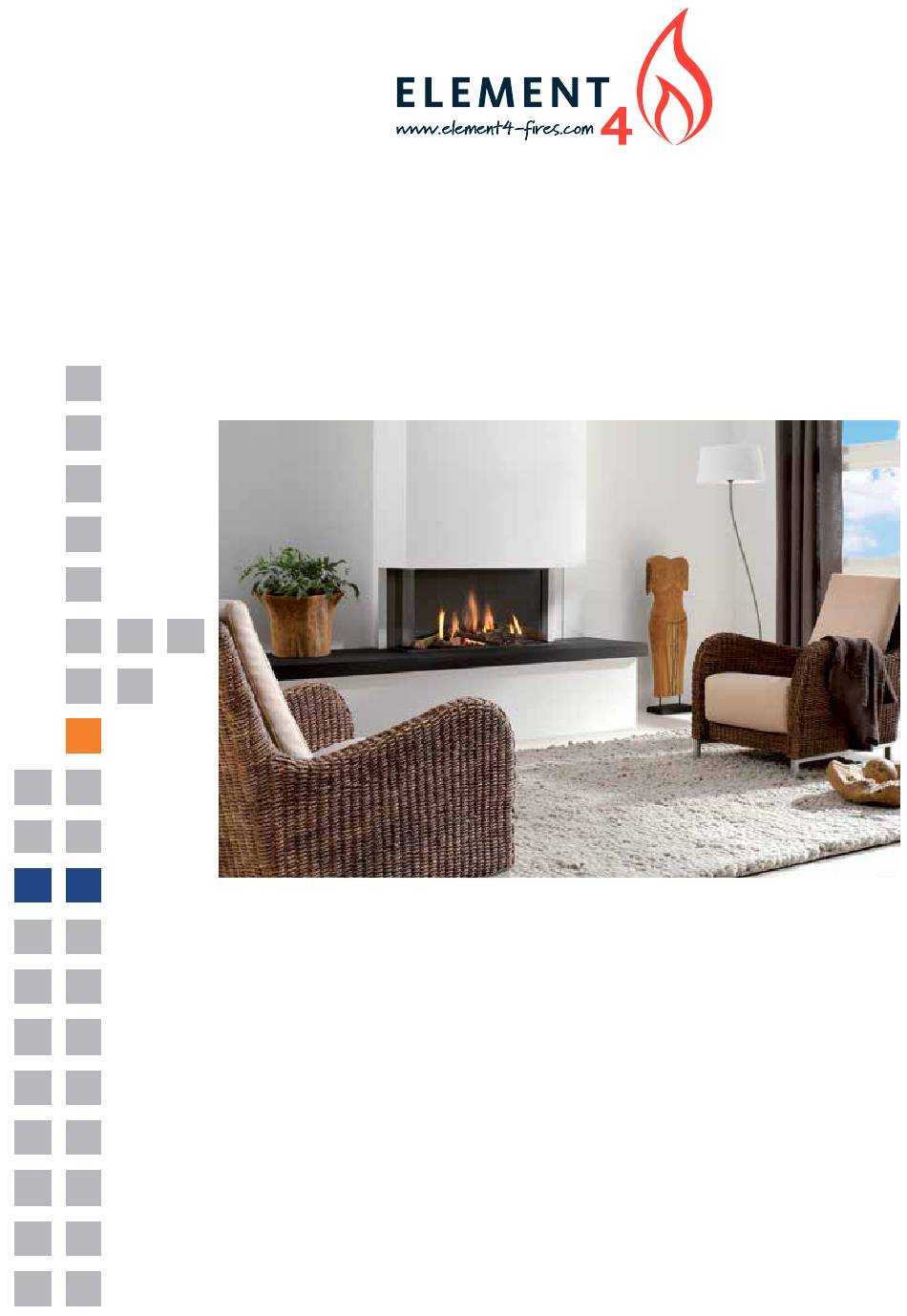

Installation manual (EN/UK)
Trisore 95 MKП/ Bidore 95 MKП/ Modore 100 MKП
Trisore 70 MKП/ Bidore 70 MKП/ Modore 70 MKП
Warning:
The combustion chamber of this stove should only be opened and serviced
by a registered gas installer.
Leave these instructions as manual with the device

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Trisore 95 MKII and is the answer not in the manual?

Questions and answers

Summary of Contents for Element4 Trisore 95 MKII

  • Page 1 Installation manual (EN/UK) Trisore 95 MKП/ Bidore 95 MKП/ Modore 100 MKП Trisore 70 MKП/ Bidore 70 MKП/ Modore 70 MKП Warning: The combustion chamber of this stove should only be opened and serviced by a registered gas installer. Leave these instructions as manual with the device...
  • Page 3: Table Of Contents

    5�4�1 Fireproof setup ����������������������������������������������������������������������������7 5.5 Mounting and finishing ������������������������������������������������������������������7 6 Electric connection �����������������������������������������������������������������������������7 6�1 Automation �������������������������������������������������������������������������������������7 6�2 Element4 ProControl App� �������������������������������������������������������������7 7 Glass removal �������������������������������������������������������������������������������������8 8 Installing the decorative material �������������������������������������������������������9 9 Check installation and first use ����������������������������������������������������������9 10 Important points installation ����������������������������������������������������������10 10.1 Installing flue ������������������������������������������������������������������������������10...
  • Page 4: Ce Declaration �����������������������������������������������������������������������������������4 12 Outlet Location

    Parts, if required, should only be replaced with original parts from the manufacturer� We hereby declare that the design and construction of the gas decorative heating appliance by Element4 complies Do not place additional imitation wood or glowing with the requirements of the Gas appliances directive�...
  • Page 5: Remote Control With Full Electronic Ignition

    InstallatIon manual 3 Remote control with full electronic ignition 3.1.3 Switching off the fireplace The unit is operated using a remote control (fig. 1). The You switch off the fireplace by pressing the on/off button, ignition, regulating the flame height and switching off is this also turns off the pilot light! done using the remote control, operating a receiver (fig.
  • Page 6: Installation Requirements �������������������������������������������������������������������6 17 Dimensional Drawings

    US of Metaloterm/On Top� The use of other concentric stainless steel systems is only permitted if it has the same technical specifications as the aforementioned system US. Only when using these materials can Element4 guarantee a safe and proper working�...
  • Page 7: 5�3 Assembly And Placement Of Discharge Material

    It is possible to operate your appliance via Smartphone To do this, use for instance the ventilation grills CVRE4 or Tablet. Fit the fireplace with a dedicated receiver and and the control hatch (BDLE4) of Element4, see control box� dimensional drawing page 21�...
  • Page 8: Glass Removal

    InstallatIon manual 7 Glass removal Before you start: Prepare a safe place to store the glass plate and use the suction cup to remove the glass� Take the following steps to remove the glass: Remove the edge strips 1, 2 and 3. fig. 7.1, Position the suction cup on the glass sheet.
  • Page 9: Installing The Decorative Material

    InstallatIon manual 8 Installing the decorative material regulator to bleed the gas pipe! fig 9.1 and 9.2. Make sure that the grid is placed firmly at the bottom A= Burner pressure B= Pre-pressure of the burner chamber and that the long groove in the middle of the grid lies in one line parallel with the burner •...
  • Page 10: Important Points Installation

    InstallatIon manual 10 Important points installation 11.2 Main chimney rules. 11.2.1 Determining the chimney diameter To guarantee fire safety around flue material, a casing is necessary� Use heat resistant sheet materials� The main rule is that the chimney must always be Do not insulate a vent shaft, it must be ventilated! so that 200/130 in diameter�...
  • Page 11: 11�2�6 Flue Gas Restrictor

    InstallatIon manual 11.2.6 Flue gas restrictor Take care with curves! Curves give extra resistance in the system and should therefore be included in the TVP and THP. A limiter of 35 mm is mounted as standard in the combustion chamber� This is mounted in addition to the We have two kinds of curves, being: flue gas opening.
  • Page 12: 11�2�7 Calculation Table Horizontal Outlet Pipe Diameter 200/130

    InstallatIon manual 11.2.7 Calculation table horizontal outlet pipe diameter 200/130 11.2.8 Calculation table vertical outlet pipe diameter 200/130...
  • Page 13: 11�2�9 Calculation Table Vertical Outlet Pipe Diameter 150/100

    InstallatIon manual 11.2.9 Calculation table vertical outlet pipe diameter 150/100 Total vertical must be at least 2x total horizontal part!
  • Page 14 InstallatIon manual 12 Outlet location Dimensions Position at end Distance (mm) Directly beneath an opening, ventilation brick, open window etc� Above an opening, ventilation brick, open window etc� Next to an opening, ventilation brick, open window etc� Under gutters or drainage pipes Under roof edges Under balconies or roofs of open garages From a vertical drainage pipe...
  • Page 15 InstallatIon manual 12.1 Location at roof outlet “Distance” = minimum distance required to position the outlet to prevent negative effects involving: A� A ventilation opening of a used room, toilet or bathroom B. Hot air supply, like the supply flowing through a room in use. C�...
  • Page 16 InstallatIon manual 13 Technical data The model tag indicates for which gas type, gas pressure and for which country this unit is intended� The model tag is attached to a chain� It must stay attached to the chain NB: Check to ensure the device is suitable for the local gas type and gas pressure. Natural gas: United Kingdom : 12HG20@20 mbar...
  • Page 17: 14�1 Handover To Customer

    InstallatIon manual 14 Instructions for use 14.3 Anti-reflective glass We advise you to have it checked annually by a qualified Anti-reflective glass is polished ceramic glass to which specialist in order to guarantee safe use and a long service 10 layers of metal oxide coating was applied� The life, thickness of the coating is checked to the nanometre to garanderen,...
  • Page 18 InstallatIon manual 15 Emergency repairs You will find an overview of the possible cause and solutions below. Problem Possible Cause Solution A� No transmission 1� The (new) communication 1� Hold the reset button of the receiver (motor not running) code between receiver and pushed in until you hear 2 beeps�...
  • Page 19 InstallatIon manual Problem Possible Cause Solution F� Electronics continue to spark 1. Damaged receiver. 1. Replace the receiver and confirm the code while pilot light is burning G� Pilot light is burning but 1� Thermocouple is not working� 1�1 Measure the voltage, using a digital multi-meter solenoid valve closes after app�...
  • Page 20: Packaging Materials

    InstallatIon manual 16 Packaging materials The packaging of the appliance is recyclable� The following can be used: • Cardboard • CFC-free foam (soft) • Wood • Plastic • Paper These materials must be disposed of in a responsible manner and in accordance with the official regulations Batteries should be disposed of as chemical waste�...
  • Page 21 InstallatIon manual 17.2.1 Trisore 95 MKП 1000 1036...
  • Page 22: Bidore 95 Mkп

    InstallatIon manual 17.2.2 Bidore 95 MKП...
  • Page 23: Modore 100 Mkп

    InstallatIon manual 17.2.3 Modore 100 MKП 1023...
  • Page 24 InstallatIon manual 17.2.4 Trisore 70 MKП...
  • Page 25: Bidore 70 Mkп

    InstallatIon manual 17.2.5 Bidore 70 MKП...
  • Page 26 InstallatIon manual 17.2.6 Modore 70 MKП...
  • Page 27: Parts Ontop Flue Material

    InstallatIon manual 18 Parts Ontop flue material On the following pages you will find a description of the components that can be used with the installation with the closed combustion system of this unit� The part number in the table refers to the number of the part on the following pages� This number is also the number that is used to designate components in the proposed installation schedules�...
  • Page 28 InstallatIon manual...
  • Page 29 InstallatIon manual...
  • Page 30 InstallatIon manual...
  • Page 31 InstallatIon manual...
  • Page 32 InstallatIon manual...
  • Page 33: Warranty Conditions

    5) If the installer cannot resolve the fault itself, he may request Element4 BV to do so, if this is within the limits of the Benelux� 6) Only after prior consultation can the entire device or parts of it be sent in for inspection or repair�...
  • Page 36 Element4 B.V. Paxtonstraat 23 8013 RP Zwolle The Netherlands January 2016...
