- Page 1 PROFILO LED 80 User’s Manual rel E.13 GB D.T.S. Illuminazione s.r.l. – ITALY http://www.dts-lighting.it/ Made in Italy...
- Page 2 Le informazioni contenute in questo documento sono state attentamente redatte e controllate. Tuttavia non è assunta alcuna responsabilità per eventuali inesattezze. Tutti i diritti sono riservati e questo documento non può essere copiato, fotocopiato, riprodotto per intero o in parte senza previo consenso scritto della D.T.S . D.T.S.
-
Page 3: Table Of Contents
INDEX: 1-SYMBOLS ........................4 2-GENERAL WARNING ....................4 3-GENERAL WARRANTY CONDITIONS ..............4 4-TECHNICAL FEATURES ..................5 5-ACCESSORIES ......................6 6-IMPORTANT SAFETY INFORMATION ..............7 6.1 Fire prevention...................... 7 6.2 Prevention of electric shock .................. 7 6.3 Safety ........................7 6.4 Waste Electrical and Electronic Equipment directive .......... -
Page 4: 1-Symbols
1- SYMBOLS Graphic symbols used on this manual: THIS SYMBOL INDICATES A HOT SURFACE THIS SYMBOL INDICATES ELECTRIC SHOCK RISK THIS SYMBOL INDICATES GENERAL RISK THIS SYMBOL MEANS “DO NOT STARE AT THE OPERATING LIGHT SOURCE” THIS SYMBOL INDICATES THE EUROPEAN COMMUNITY DIRECTIVE 2002/96/EC ON WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE) -
Page 5: 4-Technical Features

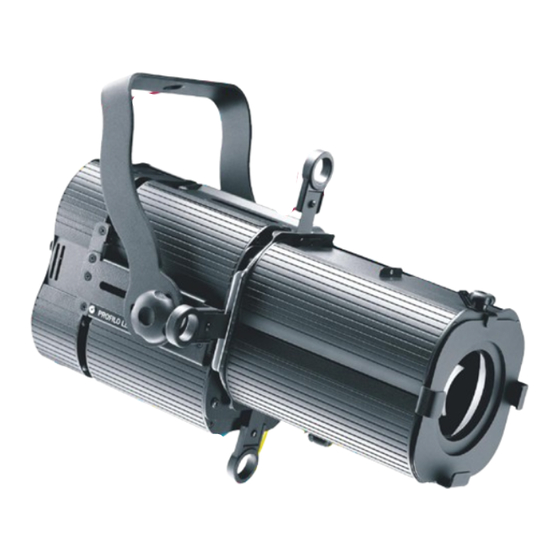

In fact the fixture doesn’t heat up, and the projection is always flicker free. Also, the dimming curves are similar to those of halogen lamps. PROFILO LED 80 is contained in a strong housing with folded edges, designed to resist all the rigors of continuous use. -
Page 6: 5-Accessories
DIMENSIONS 5- ACCESSORIES As standard 1 x User’s Manual 1 x POWERCON male cable connector (D.T.S. Code 0520P014) 1 x XLR 5 pins male cable connector (D.T.S. Code 0508B028) 1 x XLR 5 pins female cable connector (D.T.S. Code 0508B027) 4 x Shutter blades (Single blade D.T.S. -
Page 7: 6-Important Safety Information
The use of a thermal magnetic circuit breaker is recommended for each PROFILO LED 80 unit. Use only AC supplies 100-240V 50-60 Hz. PROFILO LED 80 should never be located in position exposed to rain or in areas of extreme humidity. -
Page 8: 7-Installation
7- INSTALLATION The unit is suitable for dry locations only. PROFILO LED 80 can be installed on a truss or on the ceiling. It is recommend the use of appropriate clamps to fix the unit to the mounting surface. ATTENTION: A safety cable (code 0521A010) must be securely fixed to the unit’s mounting bracket... -
Page 9: 8-Input / Output Connections
8- INPUT / OUTPUT CONNECTIONS... -
Page 10: 9-Dmx Signal Connection
9- DMX SIGNAL CONNECTION: The unit operates using a digital DMX 512 signal. Connection between the controller and the unit or between units must be carried out using a two pair screened ø 0.5 mm. Ensure that the conductors do not touch each other. Do not connect the cable ground to the DMX connector chassis. -
Page 11: Dmx Addresses
9.1 DMX addresses PROFILO LED 80 can be controlled with 2 DMX channels (default), 3 DMX channels or 1 DMX channel. In order to use the unit in 2 DMX channels mode, set the following addresses on the mixer: Projector 1 A001 If you want to select the next projector, just add “2”... -
Page 12: 11-Display Functions
11- DISPLAY FUNCTIONS DISPLAY FUNCTIONS The PROFILO LED 80 display panel shows all the available functions. Using these functions, it is possible to change some of the parameters and add some functions. Changing the D.T.S. setting can vary the functions of the unit so that it does not respond to the DMX 512 used to control it. - Page 13 (D.T.S. Code: 03.LA.016) ENTER INFRARED MODE Infrared remote control. By activating Ir Mode, it will be possible to navigate trought the unit NOT IMPLEMENTED ON PROFILO LED 80 functions by using the D.T.S. infrared remote control (D.T.S. Code: 0514L008)
- Page 14 The transmitter will start flashing rapidly red/green scanning for new free receivers / PROFILO LED 80 units. When a PROFILO LED 80 logs on to the transmitter the LINK green light on transmitter starts to flash rapidly. After approximately 10 seconds the transmitter will jump back to normal mode and continue transmitting data.
- Page 15 Default = OFF MENU Up-Down ENTER Up-Down ENTER ENTER Up-Down EMERGENCY Emergency operating mode. ENTER By setting Emergency mode, it will be possible to select Default = 204 (80%) Dimmer intensity level that will ENTER then ran if DMX signal is missing or not available.
-
Page 16: 12-Dmx Protocol
12- DMX PROTOCOL 2 CHANNELS MODE (Default) SHUTTER / STROBE DIMMER DMX CHANNEL Parameter: SHUTTER / STROBE Function DMX range Mid Point Move Range Mode Option Value (degrees) value 000-009 Black-out 010-019 Open 020-029 Black-out 030-119 Strobe (from 3.27 s to 30 ms) 120-149 Pulse up (from 42.6 s to 120 ms) 150-179... - Page 17 3 CHANNELS MODE SHUTTER / STROBE DIMMER DIMMER FINE DMX CHANNEL Parameter: SHUTTER / STROBE Function DMX range Mid Point Move Range Mode Option Value (degrees) value 000-009 Black-out 010-019 Open 020-029 Black-out 030-119 Strobe (from 3.27 s to 30 ms) 120-149 Pulse up (from 42.6 s to 120 ms) 150-179...
- Page 18 NOTES...
- Page 19 NOTES...
- Page 20 ISO 9001:2008 standard D.T.S. products are designed and manufactured at the D.T.S. plants in italy *0517I224.ETL* 0517I224.ETL D.T.S. Illuminazione s.r.l. – Via Fagnano Selve 10-12-14 47843 Misano Adriatico (RN) Italia Tel.: +39 0541 611131. Fax + 39 0541 611111 info@dts-lighting.it www.dts-lighting.it...
