DTS NICK NRG1200 CT User Manual

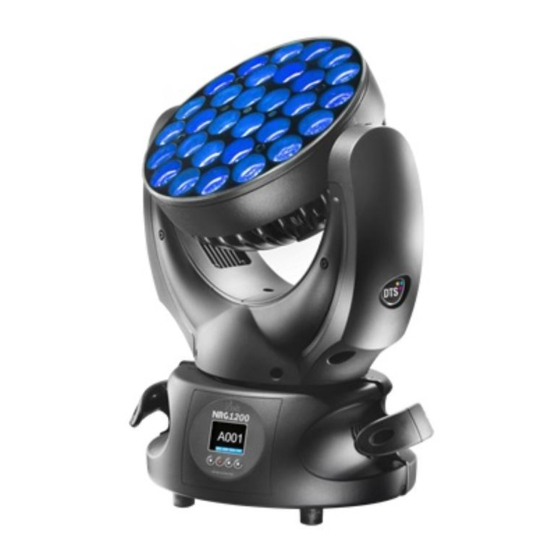

Led moving head wash light
Hide thumbs

Advertisement

Quick Links

Download this manual
CT
Made in Italy
D.T.S. Illuminazione s.r.l.
Via Fagnano Selve 10/12/14
info@dts-lighting.it http://www.dts-lighting.it
47843 Misano Adriatico (RN) ITALIA Tel +39 0541 611131 Fax +39 0541 611111

Advertisement

loading
Need help?

Need help?

Do you have a question about the NICK NRG1200 CT and is the answer not in the manual?

Questions and answers

Related Manuals for DTS NICK NRG1200 CT

Summary of Contents for DTS NICK NRG1200 CT

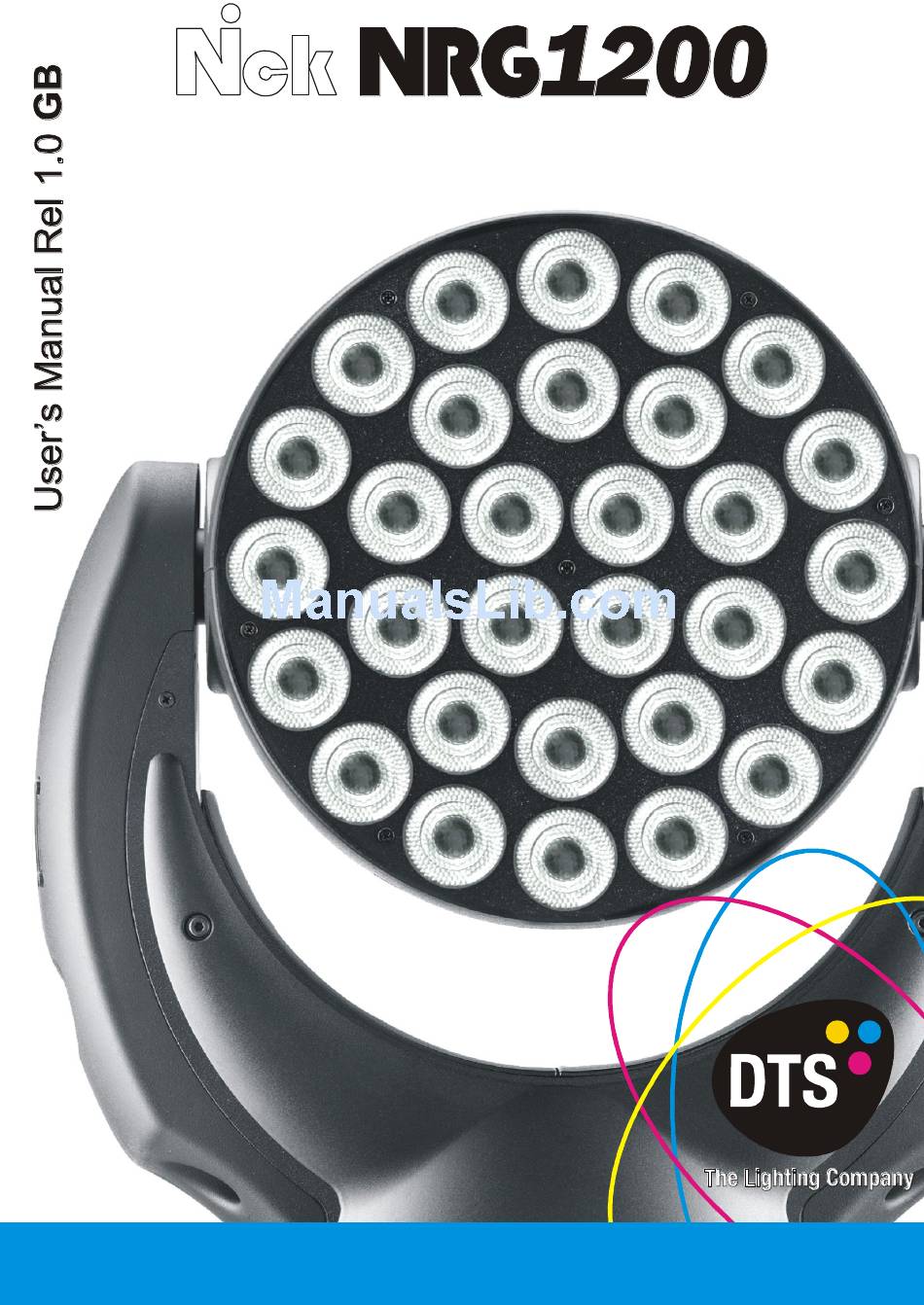

  • Page 1 Made in Italy D.T.S. Illuminazione s.r.l. Via Fagnano Selve 10/12/14 info@dts-lighting.it http://www.dts-lighting.it 47843 Misano Adriatico (RN) ITALIA Tel +39 0541 611131 Fax +39 0541 611111...
  • Page 2 Le informazioni contenute in questo documento sono state attentamente redatte e controllate. Tuttavia non è assunta alcuna responsabilità per eventuali inesattezze. Tutti i diritti sono riservati e questo documento non può essere copiato, fotocopiato, riprodotto per intero o in parte senza previo consenso scritto della D.T.S . D.T.S.

  • Page 3: Table Of Contents

    INDEX: 1-SYMBOLS 2- GENERAL WARNING 3- GENERAL WARRANTY CONDITION 4- TECHNICAL FEATURES 5- TECHNICAL SPECIFICATIONS 6- ACCESSORIES 7- IMPORTANT SAFETY INFORMATION 7.1 Fire prevention 7.2 Prevention of electric shock 7.3 Safety 7.4 Level of protection against the penetration of solid and liquid objects 8- VOLTAGE AND FREQUENCY 9- INSTALLATION 9.1 Safety cable...

  • Page 4: Symbols

    1- SYMBOLS Graphic symbols used on this manual THIS SYMBOL INDICATES A HOT SURFACE THIS SYMBOL INDICATES ELECTRIC SHOCK RISK THIS SYMBOL INDICATES GENERAL RISK THIS SYMBOL MEANS “DO NOT PLACE THE UNIT ON INFLAMMABLE SURFACES” 0,5M THIS SYMBOL INDICATES THE MINIMUM DISTANCE TO BE KEPT BETWEEN THE DEVICE AND THE LIT OBJECT 2- GENERAL WARNING...

  • Page 5: Technical Features

    4- TECHNICAL FEATURES Overview NICK NRG 1200 CT is the most efficient LED moving head wash light ever produced. The exceptional brightness / consumption ratio makes NICK NRG 1200 CT a truly “green” fixture. NICK NRG 1200 CT is equipped with 30 high-power Full White LEDs, 5.600 °K. NICK NRG 1200 CT features three interchangeable lens fittings: Spot, Medium Flood and Wide Flood and ultra-fast silent Pan / Tilt.
  • Page 6 20 DMX channels Pan & Tilt * 16-bit movement resolution * Ultra-fast movement: Pan 540° (2 sec.); Tilt 270° (1,2 sec.) * Selectable speed ranges Power supply * Electronic full-range AC 90-260 V 50 / 60 Hz * Power consumption: 90 V – 3,7 A – 340 W ; 120 V – 2,83 A – 340 W ; 230 V –...

  • Page 7: Technical Specifications

    5- TECHNICAL SPECIFICATIONS Dimensions Packaging Dimensions (LxWxH) 530 x 430 x 414 mm Weight: 12 Kg 369 mm Unit Dimensions (LxWxH) 369x218x497 mm Weight: 9,5 Kg 6- ACCESSORIES 218 mm 306 mm As standard • 1 x POWERCON male cable connector (cod. 0520P014) •...

  • Page 8: Important Safety Information

    7- IMPORTANT SAFETY INFORMATION 7.1 Fire prevention: -Never locate the fixture on any flammable surface. -Minimum distance from flammable materials: 1 MT. 0,5M -Minimum distance from the closest illuminable surface: 0,5 MT. -Replace any blown or damaged fuses only with those of identical value. Refer to the wiring diagram if there is any doubt.

  • Page 9: Installation

    8- VOLTAGE AND FREQUENCY The NICK NRG 1200 CT can operate at 90-260 VOLT 50 or 60 Hz. 9- INSTALLATION NICK NRG 1200 CT may be either floor or ceiling mounted. For floor mounting installations, the NICK NRG 1200 CT is supplied with four rubber mounting feet on the base.
  • Page 10 9.2 Protection against liquids The projector contains electric and electronic components which should under no circumstances come into contact with oil, water or any other liquid. The proper unit functioning would be compromised should this occur. 9.3- Movement Ultra-fast movement: Pan 540° (2,0 sec.); Tilt 270° (1,2 sec.) 270°...
  • Page 11 10- MAINS CONNECTION NICK NRG 1200 CT operate at 90-260 VOLT 50-60 Hz. Prior to connecting the unit to your mains supply, ensure that the model in your possession correctly matches the mains supply available. For connection purposes, ensure that your plug is capable of supporting 2 amps at 230V, or 5 amps at 90 V.
  • Page 12 11- DMX SIGNAL CONNECTION The unit operates using the digital DMX 512 (1990) signal. Connection between the mixer and the projector or between projectors must be carried out using a two pair screened ø 0.5 mm cable and a XLR 5 or 3 pins connector. Ensure that the conductors do not touch each other.
  • Page 13 USB-DMX Driver for the D.T.S. RED BOX interface. D.T.S. Firmware upgrade utility program. (The driver and the installation procedure are available in our web site www.dts-lighting.it) Updating the software version. Please follow the procedure below to perform the update: 1. Install the D.T.S. RED BOX USB-DMX driver on the PC you will use to update the unit software.

  • Page 14: Display Functions

    13- DISPLAY FUNCTIONS 2dBi IP20 omnid. DISPLAY antenna WIRELESS DMX RECEIVER RETROFIT 03.LA.126 Cod. 03.LDR008.FW12WS Cod. 03.LDR008.FW25WS MENU Cod. 03.LDR008.FW45WS ENTER DOWN DMX OUT MAINS AC OUTPUT 90-260V 50 / 60 Hz DMX IN (16A Max) 03.LDR008.FW12 Cod. 03.LDR008.FW12 03.LDR008.FW25 Cod.
  • Page 15 13- DISPLAY FUNCTIONS Software version 1.10 DISPLAY Display Display Position Menu Up-Down ENTER Up-Down ENTER ON THE GROUND (Default) POSITION DISPLAY POSITION / STAND BY SUSPENDED Display Position: Reverses display's reading depending on the mounting position MENU ENTER DOWN (on the ground or suspended). DISPLAY ENTER Display Standby...
  • Page 16 13- DISPLAY FUNCTIONS DMX SET NICK NRG 1200 Menu Up-Down ENTER Up-Down ENTER FULLCOLOUR / CT: DMX MODE RED MIN RED / WHITE 1 NICK NRG 1200 FULLCOLOUR: 20 ch Min default = 0 RGBA MINIMUM VALUES RED / WHITE 1 This menu allow to select the Max default = 100 minimum levels for Red, Green,...
  • Page 17 13- DISPLAY FUNCTIONS DMX SET GAMMA CORRECTION GAMMA CORRECTION ENTER Linear = Linear current output This menu allow to select GAMMA CORR. DMX MODE Quadratic = Linear light output between Linear current output QUAD 20 ch (default) or Quadratic current output for LEDs Default = Quadratic MENU ENTER DOWN MENU ENTER DOWN...
  • Page 18 13- DISPLAY FUNCTIONS AUTO-FIXED COL. DMX SET By setting all the units connected FIXED COLOURS ENTER to the MASTER to DMX address 1, Sixteen Colour Macros as DMX MODE COLOR them will be synchronized with the on “MACRO” channel. 20 ch Master unit following the chase Dimmer, Shutter, Pan and Tilt selected on it including TIME, WAIT,...
  • Page 19 13- DISPLAY FUNCTIONS WIRELESS DMX SET WIRELESS WIRELESS DMX SYSTEM Menu Up-Down ENTER Up-Down ENTER DISABLED (Default) SELECTION DMX MODE 20 ch WIRELESS DMX Wieless DMX enabled / disabled. By activating WDMX MODE, it will be possible to control NICK NRG MENU ENTER DOWN MENU ENTER DOWN 1200 CT via D.T.S.
  • Page 20 13- DISPLAY FUNCTIONS EMERGENCY DMX SET EMERGENCY EMERGENCY Menu Up-Down ENTER Up-Down ENTER Disabled = Default SELECTION DMX MODE 20 ch EMERGENCY Emergency operating mode. By setting Emergency mode, it will MENU ENTER DOWN MENU ENTER DOWN be possible to select one of the 16 pre-programmed WHITE cues (active only on NICK NRG 1200 EMERGENCY...
  • Page 21 13- DISPLAY FUNCTIONS DEFAULT SET DMX SET DEFAULT SET Menu Up-Down ENTER Up-Down ENTER DMX MODE DEFAULT SETTINGS 20 ch To restore default settings MENU ENTER DOWN MENU ENTER DOWN DEFAULT SET DMX SET DMX MODE SURE? 20 ch Menu - NO Enter - YES MENU ENTER DOWN MENU ENTER DOWN...
  • Page 22 13- DISPLAY FUNCTIONS DMX SET SYSTEM SYSTEM PAN INVERSION Menu Up-Down ENTER Up-Down ENTER PAN INVERSION DMX MODE Default = NORM 20 ch PAN INVERSION / TILT INVERSION / PAN SPEED / TILT SPEED / NORM FAN MAX SPEED / RESET BY DMX / MOTORS FIRMWARE UPGRADE.

  • Page 23: Periodic Cleaning

    13- DISPLAY FUNCTIONS SOFTWARE DMX SET SOFTWARE LEDs CIRCUIT BOARD Menu Up-Down ENTER Up-Down ENTER SOFTWARE DMX MODE SOFTWARE 20 ch LEDs circuit board software, Id 0D1307C1 MOTORS circuit boards software v1.10 Jun 13 2012 (Pan&Tilt) MENU ENTER DOWN MENU ENTER DOWN SOFTWARE DMX SET MOTORS CIRCUIT BOARDS...

  • Page 24: Dmx Protocol

    16- DMX PROTOCOL 20 CHANNELS MODE PAN msb 540° PAN Isb TILT msb 270° TILT Isb SPEED MOVEMENT NO FUNCTION NO FUNCTION SHUTTER DIMMER RED = WHITE 1 GREEN = WHITE 2 BLUE = WHITE 3 WHITE = WHITE 4 WHITE PRE-PROGRAMMED (Not Active) MACRO (Not Active) FUNCTION...
  • Page 25 DMX CHANNEL Parameter: NO FUNCTION Function DMX range Mid Point Move Range Mode Option Value (degrees) value 000-255 NO FUNCTION DMX CHANNEL Parameter: NO FUNCTION DMX range Mid Point Move Range Mode Option Function Value (degrees) value 000-255 NO FUNCTION DMX CHANNEL Parameter: SHUTTER Function...
  • Page 26 Mode Option Value value (degrees) 000-055 No Function Full (Red-Green- 056-105 Blue at Full) 106-155 White DTS Custom White 156-205 Create (RGB levels selectable by DMX) White CTC 206-255 (Channel 15 CTC enabled) DMX CHANNEL Parameter: CTC (Colour Temperature Correction)
  • Page 27 DMX CHANNEL Parameter : MACRO (NICK NRG 1200 CT WILL SHOW ONLY DIFFERENT WHITE LIGHT INTENSITY DMX SET MACRO (Please refer to page 15 for details) Menu Up-Down ENTER Up-Down ENTER Up-Down ENTER 000-014 No Function 015-029 Macro 1 030-044 Macro 2 045-059 Macro 3...
  • Page 28 DMX CHANNEL Parameter: FUNCTIONS (Recall, Create and Store the Custom white) Function DMX range Mid Point DMX Move Range Mode Option Value value (degrees) IF CHANNEL 14 WHITE PREPROGRAMMED = DMX range value 156 – 205) 000-079 Custom White Recall Custom White 080-160 Create (Enable...
  • Page 29 NOTES...
  • Page 30 NOTES...
  • Page 31 NOTES...
  • Page 32 ISO 9001:2008 standard D.T.S. products are designed and manufactured at the D.T.S. plants in italy *0517I195.CT* 0517I195.CT D.T.S. Illuminazione s.r.l. – Via Fagnano Selve 10-12-14 47843 Misano Adriatico (RN) Italia Tel.: +39 0541 611131. Fax + 39 0541 611111 info@dts-lighting.it www.dts-lighting.it...
