  • Page 1 Made in Italy D.T.S. Illuminazione srl Via Fagnano Selve 10/12/14 info@dts-lighting.it http://www.dts-lighting.it 47843 Misano Adriatico (RN) ITALIA Tel +39 0541 611131 Fax +39 0541 611111...
  • Page 2 Le informazioni contenute in questo documento sono state attentamente redatte e controllate. Tuttavia non è assunta alcuna responsabilità per eventuali inesattezze. Tutti i diritti sono riservati e questo documento non può essere copiato, fotocopiato, riprodotto per intero o in parte senza previo consenso scritto della D.T.S . D.T.S.

  • Page 3: Table Of Contents

    INDEX: 1- SYMBOLS 2- GENERAL WARNING 3- GENERAL WARRANTY CONDITION 4- TECHNICAL FEATURES 5- ACCESSORIES 6- IMPORTANT SAFETY INFORMATION 6.1 Fire prevention 6.2 Prevention of electric shock 6.3 Protection against ultraviolet radiation 6.4 Safety 6.5 Level of protection against the penetration of solid and liquid objects 7- MOUNTING / REPLACING THE LAMP AND LAMP ALIGNMENT 8- VOLTAGE AND FREQUENCY 9- INSTALLATION...

  • Page 4: Symbols

    1- SYMBOLS Graphic symbols used on this manual THIS SYMBOL INDICATES A HOT SURFACE THIS SYMBOL INDICATES ELECTRIC SHOCK RISK THIS SYMBOL INDICATES GENERAL RISK THIS SYMBOL MEANS “DO NOT PLACE THE UNIT ON INFLAMMABLE SURFACES” THIS SYMBOL MEANS “RADIATION FROM THIS LAMP CAN CAUSE DAMAGE TO EYES AND SKIN”...

  • Page 5: Technical Features

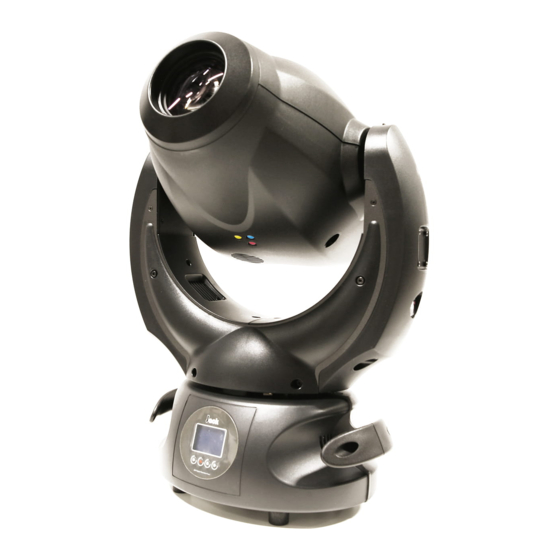

    (Cod. 03.MS012.EBLFP). JACK is the perfect moving head for rental companies – who want a quick and easy to install unit – thanks to its compactness and light weight (only 11,9 Kg).
  • Page 6 PC 25 DMX channels (default) or 17 DMX channels Pan & Tilt Jack FPR (Cod. 03.MS012.EBLFP) * 'FPR': limitless pan rotation, in either direction, never having to reverse motion Tilt 270° (1,5 sec.) Jack (Cod. 03.MS012.EB.L) * Pan 540°...

  • Page 7: Accessories

    4- TECHNICAL FEATURES Dimensions Packaging Dimensions (LxWxH) Unit Dimensions (LxWxH) 532 x 430 x 414 mm 350x370x560mm Weight: 14,4 Kg Weight: 11,9 Kg 350 mm 370 mm 270° 300 mm 217 mm 5- ACCESSORIES As standard * 1 x MSD Platinum 5R (cod. 0505S034) * 1 x POWERCON male cable connector (cod.

  • Page 8: Important Safety Information

    Unplug the unit prior to performing any function which involves touching the inside of the moving head, including lamp replacement. -The level of technology inherent in the JACK requires the assistance of specialised personnel for all servicing. Please refer to an authorised D.T.S. service centre.
  • Page 9 7- MOUNTING / REPLACING THE LAMP AND LAMP ALIGNMENT Warning: Switch off the unit before replacing the lamp. MSD Platinum 5R Power 189W Luminous flux 7950 lm Colour temperature 8.000°K Type of connection: PINS 2,8 x 0,8 mm Rated life 2000 hours 1) Loosen the 2 “¼...
  • Page 10 Photo 6 4) Loose the four screws which fix the lamp (photo 7), unplug the two fast-on cable connectors (photo 8) and remove the old lamp. 5) Put in place the new lamp and push it toward the three mechanical ends D, E, F (photo 9) on the lamp support;...

  • Page 11: Voltage And Frequency

    JACK by using the Fast Lock “C” clamps provided in the box. 9.1- Safety cable We recommend the use of a safety cable or chain connected to the JACK and to the suspension truss in order to avoid the fixture accidentally falling should the main fixing point fail.
  • Page 12 The proper unit functioning would be compromised should this occur. 9.3- Movement JACK FPR (Cod. 03.MS012.EBLFP) Unlimited Pan rotation; Tilt 270° (1,5 sec.) JACK (Cod. 03.MS012.EB.L) Pan 540° (2,5 sec.), Tilt 270° (1,5 sec.) DO NOT place any obstructions in the path of the projector's movement.
  • Page 13 MAINS AC OUTPUT 90-260V 50/60 Hz (16A Max) (Cod. 03.MS012.EBLFP) (Cod. 03.MS012.EB.L) MAINS AC INPUT 90-260V 50/60 Hz 10.1- Protection The use of a thermal magnetic circuit breaker is recommended for each JACK. A good earth connection is essential for the correct operation of the projector.
  • Page 14 11- DMX SIGNAL CONNECTION The unit operates using the digital DMX 512 (1990) signal. Connection between the mixer and the projector or between projectors must be carried out using a two pair screened ø 0.5 mm cable and a XLR 5 or 3 pins connector. Ensure that the conductors do not touch each other.
  • Page 15 11.1-DMX Addresses JACK can be used in 2 different DMX modes: 25 DMX control channels (Default) or 17 DMX control channels. Here below is described the DMX channels addressing for the controller when JACK is set to 25 and 17 DMX control channels:...

  • Page 16: Display Functions

    90-260V 50 / 60Hz DISPLAY FUNCTIONS The JACK display panel shows all the available functions . Using these functions, it is possible to change some of the parameters and add some functions. Changing the D.T.S. setting can vary the functions of the unit so that it does not respond to the DMX 512 used to control it.
  • Page 17 13- DISPLAY FUNCTIONS PAN DIRECTION Pan Direction Pan movement Menu Up-Down ENTER ENTER Up-Down Normal or Reversed NORMAL PAN DIRECTION Default = Normal This menu allows to set the Pan movement. Normal or Reversed MENU ENTER DOWN TILT DIRECTION Tilt Direction Tilt movement Menu Up-Down...
  • Page 18 13- DISPLAY FUNCTIONS Display Display Flip DISPLAY ENTER Menu Up-Down ENTER Up-Down ON THE GROUND DISPLAY FLIP / STAND BY / CONTRAST (Default) FLIP FLIP SUSPENDED Display Flip: ON THE GROUND Reverses display's reading depending on the mounting position MENU ENTER DOWN (On the ground or suspended).

  • Page 19: Display Functions

    Lamp life time, lamp strikes, unit life time, 8 motors card 9M R.34 PT R.23 unit life time, 8 motors card software version, Pan&Tilt MODEL: JACK software version, Pan&Tilt card card software version and MENU ENTER DOWN software version and unit model unit model...

  • Page 20: Error Messages

    13- DISPLAY FUNCTIONS DEFAULT Default Default Menu Up-Down ENTER Up-Down ENTER To restore main settings RESTORE MAIN SETTINGS DEFAULT To restore main settings MENU ENTER DOWN DEFAULT RESTORE MAIN SETTINGS 13- DISPLAY FUNCTIONS SURE? PRESS ENTER TO CONFORM PRESS MENU TO CANCEL MENU ENTER DOWN 14- ERROR MESSAGES ERROR...

  • Page 21: Hidden Menu

    -Connect the projector to the DMX controller (DMX SIGNAL MUST BE CORRECTLY RECEIVED) -Reset the JACK (reset from the MENU, not from the DMX controller!). -While reset is running, press the MENU and ENTER keys at the same time. DEFAULT CAL.
  • Page 22 To align ZOOM 16- PAN SPEED & TILT SPEED You can set the PAN and TILT motors at high speed on your JACK. Press menu until you see PAN SPEED/TILT SPEED. Press ENTER and select a speed with UP-DOWN (there are 8 speeds).

  • Page 23: Opening The Projector Housing

    Photo 2 Photo 3 19- REPLACING GOBOS JACK uses a mechanical system which allows the fixture's gobos to be removed without the use of special tools. Replacement gobos should be made of either heat resistant glass or metal. An ever-increasing range of gobos is available from your D.T.S. sales network.

  • Page 24: Periodic Cleaning

    Coated side Coated When an object is held up the coated side of the glass gobo side there is no space between the object and its reflection. Uncoated side Uncoated When an object is held up the uncoated side of the glass gobo side there is a space between the object and its reflection.
  • Page 25 Fuse replacement Locate the fuse, which protects the lamp and electronics, in the base of the JACK. Using a multimeter, test the condition of the fuse, replacing it with one of equivalent type if necessary.

  • Page 26: Dmx Protocol

    22- DMX PROTOCOL 25 CHANNELS MODE (DEFAULT) PAN msb PAN lsb TILT msb TILT lsb SPEED MOVEMENT PAN FAR (Active only on Jack FPR Cod. 03.MS012.EBLFP) DIMMER SHUTTER COLOUR COLOUR MODE GOBO GOBO MODE GOBO ROTATION / INDEX – PRISM ROTATION...
  • Page 27 DMX CHANNEL Parameter: PAN FAR (Active only on Jack FPR Cod. 03.MS012.EBLFP) DMX value Function 000-010 Position mode 540° (standard path) 011-020 Position mode 360° (1 turn) 021-030 Position mode 720° (2 turns) 031-040 Position mode 1080° (3 turns) 041-050 Position mode 1440°...
  • Page 28 DMX CHANNEL Parameter: COLOUR IF CHANNEL 10 = FULL COLOUR (DMX range value 0-63) DMX value Function 000-013 Colour 1 014-027 Colour 2 028-041 Colour 3 042-055 Colour 4 056-069 Colour 5 070-083 Colour 6 084-097 Colour 7 098-111 Colour 8 112-125 Colour 9 126-139...
  • Page 29 DMX CHANNEL Parameter: GOBO DMX value Function 000-020 Open 021-041 Gobo 1 042-062 Gobo 2 063-083 Gobo 3 084-104 Gobo 4 105-125 Gobo 5 126-146 Gobo 6 147-167 Gobo 7 168-188 Gobo 8 189-207 Gobo 9 208-213 Speed rotation 1 min 214-219 Speed rotation 2 220-225...
  • Page 30 DMX CHANNEL Parameter: GOBO SHAKE DMX value Function 000-009 Stop 010-022 Gobo shake R-L speed 1 023-035 Gobo shake R-L speed 2 036-048 Gobo shake R-L speed 3 049-061 Gobo shake R-L speed 4 062-074 Gobo shake R-L speed 5 075-087 Gobo shake R-L speed 6 088-100...
  • Page 31 DMX CHANNEL Parameter: FIXED GOBO SHAKE DMX value Function 000-009 Stop 010-022 Gobo shake R-L speed 1 023-035 Gobo shake R-L speed 2 036-048 Gobo shake R-L speed 3 049-061 Gobo shake R-L speed 4 062-074 Gobo shake R-L speed 5 075-087 Gobo shake R-L speed 6 088-100...
  • Page 32 IF CHANNEL 20 = SPOT MACROS (DMX range value 192-255) SPOT Macros not yet implemented DMX value Function 000-009 No effect 010-063 SPOT macros 1 064-117 SPOT macros 2 118-171 SPOT macros 3 172-213 SPOT macros 4 214-255 SPOT macros 5 DMX CHANNEL Parameter: MACROS MODE DMX value...
  • Page 33 22- DMX PROTOCOL 17 CHANNELS MODE PAN msb PAN lsb TILT msb TILT lsb SPEED MOVEMENT PAN FAR (Active only on Jack FPR Cod. 03.MS012.EBLFP) DIMMER SHUTTER COLOUR GOBO GOBO ROTATION / INDEX – PRISM ROTATION FIXED GOBO IRIS PRISM...
  • Page 34 DMX CHANNEL Parameter: PAN FAR (Active only on Jack FPR Cod. 03.MS012.EBLFP) DMX value Function 000-010 Position mode 540° (standard path) 011-020 Position mode 360° (1 turn) 021-030 Position mode 720° (2 turns) 031-040 Position mode 1080° (3 turns) 041-050 Position mode 1440°...
  • Page 35 DMX CHANNEL Parameter: COLOUR DMX value Function 000-004 Colour 1 005-009 Colour 1-2 010-014 Colour 2 015-019 Colour 2-3 020-024 Colour 3 025-029 Colour 3-4 030-034 Colour 4 035-039 Colour 4-5 040-044 Colour 5 045-049 Colour 5-6 050-054 Colour 6 055-059 Colour 6-7 060-064...
  • Page 36 DMX CHANNEL Parameter: GOBO DMX value Function 000-020 Open 021-041 Gobo 1 042-062 Gobo 2 063-083 Gobo 3 084-104 Gobo 4 105-125 Gobo 5 126-146 Gobo 6 147-167 Gobo 7 168-188 Gobo 8 189-207 Gobo 9 208-213 Speed rotation 1 min 214-219 Speed rotation 2 220-225...
  • Page 37 DMX CHANNEL Parameter: IRIS DMX value Function 000-009 Open 010-124 Linear Iris from open to closed 125-132 Closed 133-159 Iris pulse at different speed from min to max 160-186 Iris pulse with flash closing from min to max 187-213 Iris pulse with flash opening from min to max 214-234 Iris pulse with flash closing combined with zoom from min to max 235-255...

  • Page 38: Motors Control Card

    23- 9 MOTORS CONTROL CARD ROTATING GOBO FOCUS ZOOM GOBO / PRISM ROT. IRIS PRISM FIXED GOBO COLOUR SHUTTER...
  • Page 39 24- PAN & TILT CARD...

  • Page 40: Display Card

    25- DISPLAY CARD 26- LAMP ON-OFF CONTROL CARD To Electronic From Pan&Tilt Ballast Board Card J13/J12...

  • Page 41: Rotating Gobo Wheel

    27- ROTATING GOBO WHEEL GOBO 1 DICRO GOBO 2 DICRO GOBO 3 DICRO GOBO 4 DICRO GOBO 5 DICRO RAYS VERTIGO VERBENA PINWHEEL DAISY D.T.S. Code: D.T.S. Code: D.T.S. Code: D.T.S. Code: D.T.S. Code: 0516G054 0516G055 0516G056 0516G057 0516G058 GOBO 6 DICRO GOBO 7 DICRO GOBO 8 DICRO GOBO 9 DICRO...

  • Page 42: Fixed Gobo Wheel

    29- FIXED GOBO WHEEL GOBO 2 DICRO GOBO 1 DICRO GOBO 3 DICRO GOBO 4 DICRO GOBO 5 DICRO DISTORTION SCRATCHES STONES LEAVES SPHERE D.T.S. Code: D.T.S. Code: D.T.S. Code: D.T.S. Code: D.T.S. Code: 0516G064 0516G065 0516G066 0516G067 0516G068 GOBO 6 GLASS GOBO 7 DICRO GOBO 8 DICRO GOBO 9 DICRO...

  • Page 43: Colour Wheel

    30- COLOUR WHEEL COLOUR 2 COLOUR 3 COLOUR 5 COLOUR 6 COLOUR 1 COLOUR 4 FULL CTO FILTER FULL CTB FILTER LIGHT RED ORANGE AMBER D.T.S. Code: D.T.S. Code: D.T.S. Code: D.T.S. Code: D.T.S. Code: D.T.S. Code: (0507C061.D14) (0507C060.D14) (0507C059.D14) (0507C062.D14) (0507C063.D14) (0507C064.D14)
  • Page 44 The information contained in this publication has been carefully prepared and checked. However, no responsibility will be taken for any errors. All rights are reserved and this document cannot be copied, photocopied or reproduced, in part or completely, without prior written consent from D.T.S. D.T.S.
