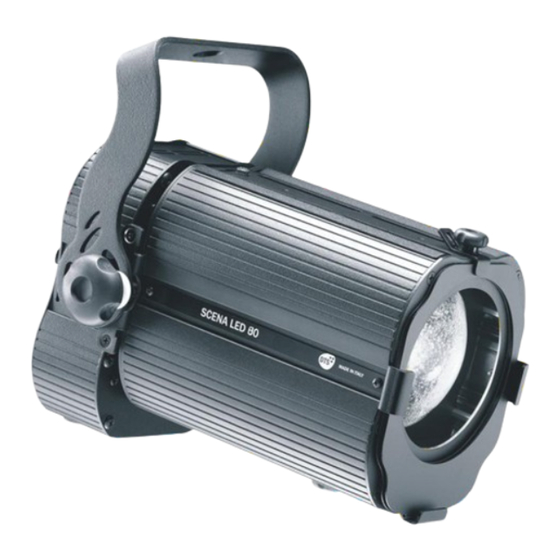

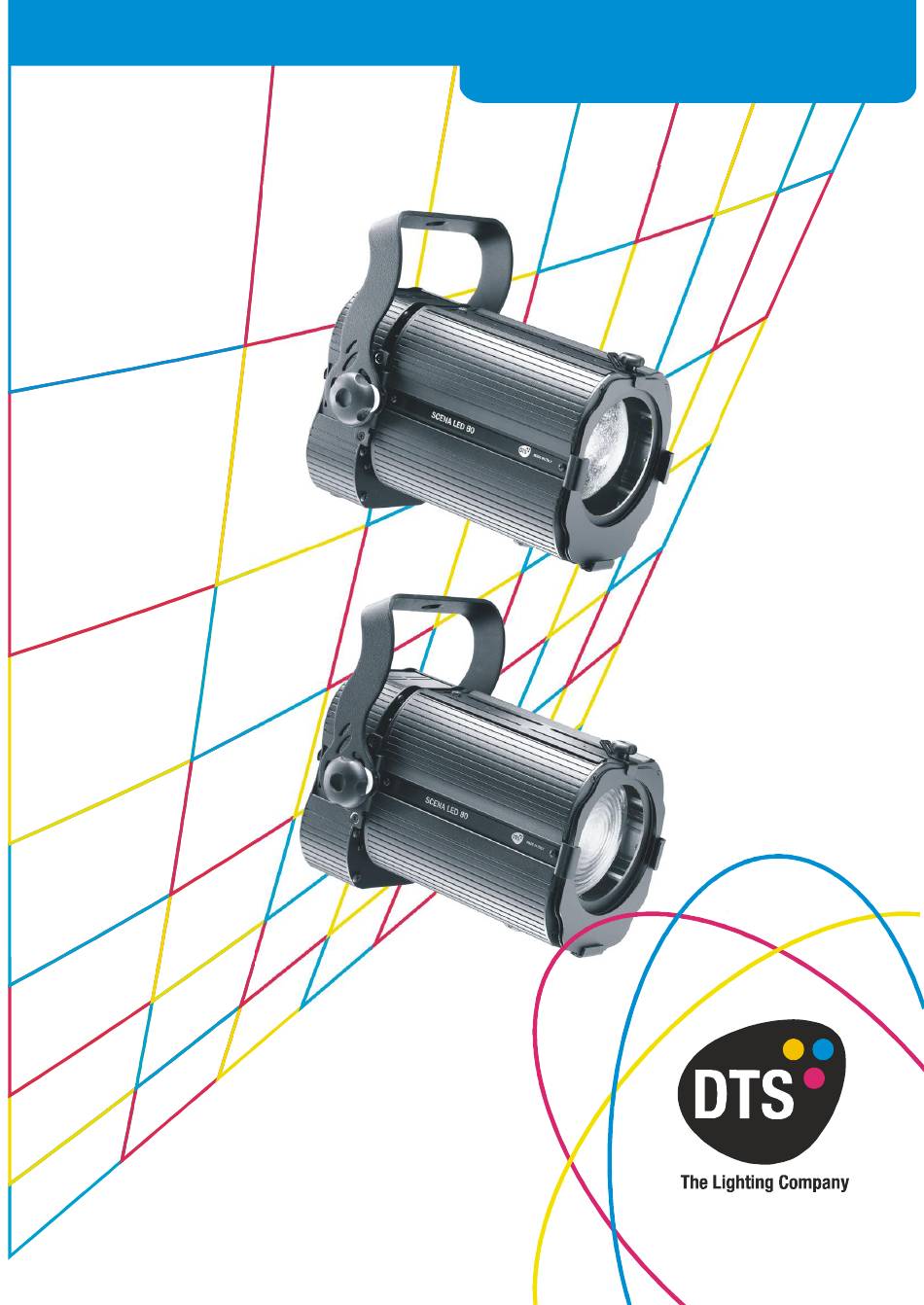

- Page 1 SCENA LED 80 WHITE SCENA LED 80 PC SCENA LED 80 FR User’s Manual rel E.13 GB D.T.S. Illuminazione s.r.l. – ITALY http://www.dts-lighting.it/ Made in Italy...
- Page 2 Le informazioni contenute in questo documento sono state attentamente redatte e controllate. Tuttavia non è assunta alcuna responsabilità per eventuali inesattezze. Tutti i diritti sono riservati e questo documento non può essere copiato, fotocopiato, riprodotto per intero o in parte senza previo consenso scritto della D.T.S . D.T.S.
-
Page 3: Table Of Contents
INDEX: 1-SYMBOLS ........................4 2-GENERAL WARNING ....................4 3-GENERAL WARRANTY CONDITIONS ..............4 4-TECHNICAL FEATURES ..................5 5-ACCESSORIES ......................6 6-IMPORTANT SAFETY INFORMATION ..............7 6.1 Fire prevention...................... 7 6.2 Prevention of electric shock .................. 7 6.3 Safety ........................7 6.4 Waste Electrical and Electronic Equipment directive .......... -
Page 4: 1-Symbols
1- SYMBOLS Graphic symbols used on this manual: THIS SYMBOL INDICATES A HOT SURFACE THIS SYMBOL INDICATES ELECTRIC SHOCK RISK THIS SYMBOL INDICATES GENERAL RISK THIS SYMBOL MEANS “DO NOT STARE AT THE OPERATING LIGHT SOURCE” THIS SYMBOL INDICATES THE EUROPEAN COMMUNITY DIRECTIVE 2002/96/EC ON WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE) -
Page 5: 4-Technical Features
LED, and a wide excursion zoom, enabling it to be used as a PC Beam or a very wide Wash. SCENA LED 80 WHITE is a modern alternative to conventional lights, improving light quality, flexibility of use and installation, energy savings and component duration. -
Page 6: 5-Accessories
DIMENSIONS 5- ACCESSORIES As standard 1 x User’s Manual 1 x POWERCON male cable connector (D.T.S. Code 0520P014) 1 x XLR 5 pins male cable connector (D.T.S. Code 0508B028) 1 x XLR 5 pins female cable connector (D.T.S. Code 0508B027) 1 x Filterframe for SCENA COMPACT *Black finish (D.T.S. -
Page 7: 6-Important Safety Information
6- IMPORTANT SAFETY INFORMATION 6.1 Fire prevention: Replace any blown or damaged fuses only with those of identical value (2AT). 6.2 Prevention from electric shock: High voltage is present inside the unit. Unplug the unit prior to performing any operation which involves touching the inside of the unit. This equipment must be grounded, do not connect to non-grounded supplies. -
Page 8: 7-Installation
7- INSTALLATION The unit is suitable for dry locations only. SCENA LED 80 can be installed on a truss or on the ceiling. It is recommend the use of appropriate clamps to fix the unit to the mounting surface. ATTENTION: A safety cable (code 0521A010) must be securely fixed to the unit’s mounting bracket and to the support structure of the projector as showed in the picture below. -
Page 9: 8-Input / Output Connections
8- INPUT / OUTPUT CONNECTIONS... -
Page 10: 9-Dmx Signal Connection
9- DMX SIGNAL CONNECTION: The unit operates using a digital DMX 512 signal. Connection between the controller and the unit or between units must be carried out using a two pair screened ø 0.5 mm. Ensure that the conductors do not touch each other. Do not connect the cable ground to the DMX connector chassis. -
Page 11: Dmx Addresses
9.1 DMX addresses SCENA LED 80 FR can be controlled with 2 DMX channels (default), 3 DMX channels or 1 DMX channel. In order to use the unit in 2 DMX channels mode, set the following addresses on the mixer: Projector 1 A001 If you want to select the next projector, just add “2”... -
Page 12: 11-Display Functions
11- DISPLAY FUNCTIONS DISPLAY FUNCTIONS The SCENA LED 80 display panel shows all the available functions. Using these functions, it is possible to change some of the parameters and add some functions. Changing the D.T.S. setting can vary the functions of the unit so that it does not respond to the DMX 512 used to control it. - Page 13 Default = 0 ENTER ENTER Up-Down MENU Up-Down Default = 100 ENTER Up-Down Led Min/Max, Smooth, Compression, Sync and Boost level values settings Range = Off-20 ENTER Up-Down ENTER Default = 4 Up-Down LED MINIMUM VALUE Quadratic = This menu allows to select the Linear light ENTER Up-Down...
- Page 14 Wireless MENU Up-Down ENTER Up-Down Enabled ENTER ENTER Up-Down Wireless WIRELESS DMX ENTER Disabled Wireless DMX enabled / disabled. UNLINK = LOG OUT By activating WDMX MODE, it will be ENTER possible to control SCENA LED 80 via D.T.S. ANTENNA Wireless DMX Transmitter (cod.
- Page 15 Default = OFF MENU Up-Down ENTER Up-Down ENTER ENTER Up-Down EMERGENCY Emergency operating mode. ENTER By setting Emergency mode, it will be possible to select Default = 204 (80%) Dimmer intensity level that will ENTER then ran if DMX signal is missing or not available.
-
Page 16: 12-Dmx Protocol
12- DMX PROTOCOL 2 CHANNELS MODE (Default) SHUTTER / STROBE DIMMER DMX CHANNEL Parameter: SHUTTER / STROBE Function DMX range Mid Point Move Range Mode Option Value (degrees) value 000-009 Black-out 010-019 Open 020-029 Black-out 030-119 Strobe (from 3.27 s to 30 ms) 120-149 Pulse up (from 42.6 s to 120 ms) 150-179... - Page 17 3 CHANNELS MODE SHUTTER / STROBE DIMMER DIMMER FINE DMX CHANNEL Parameter: SHUTTER / STROBE Function DMX range Mid Point Move Range Mode Option Value (degrees) value 000-009 Black-out 010-019 Open 020-029 Black-out 030-119 Strobe (from 3.27 s to 30 ms) 120-149 Pulse up (from 42.6 s to 120 ms) 150-179...
- Page 18 NOTES...
- Page 19 NOTES...
- Page 20 ISO 9001:2008 standard D.T.S. products are designed and manufactured at the D.T.S. plants in italy *0517I243.ETL* 0517I243.ETL D.T.S. Illuminazione s.r.l. – Via Fagnano Selve 10-12-14 47843 Misano Adriatico (RN) Italia Tel.: +39 0541 611131. Fax + 39 0541 611111 info@dts-lighting.it www.dts-lighting.it...
