Made in Italy
D.T.S. Illuminazione srl
Via Fagnano Selve 10/12/14
info@dts-lighting.it http://www.dts-lighting.it
47843 Misano Adriatico (RN) ITALIA Tel +39 0541 611131 Fax +39 0541 611111

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NICK NRG1201 and is the answer not in the manual?

Questions and answers

Related Manuals for DTS NICK NRG1201

Summary of Contents for DTS NICK NRG1201

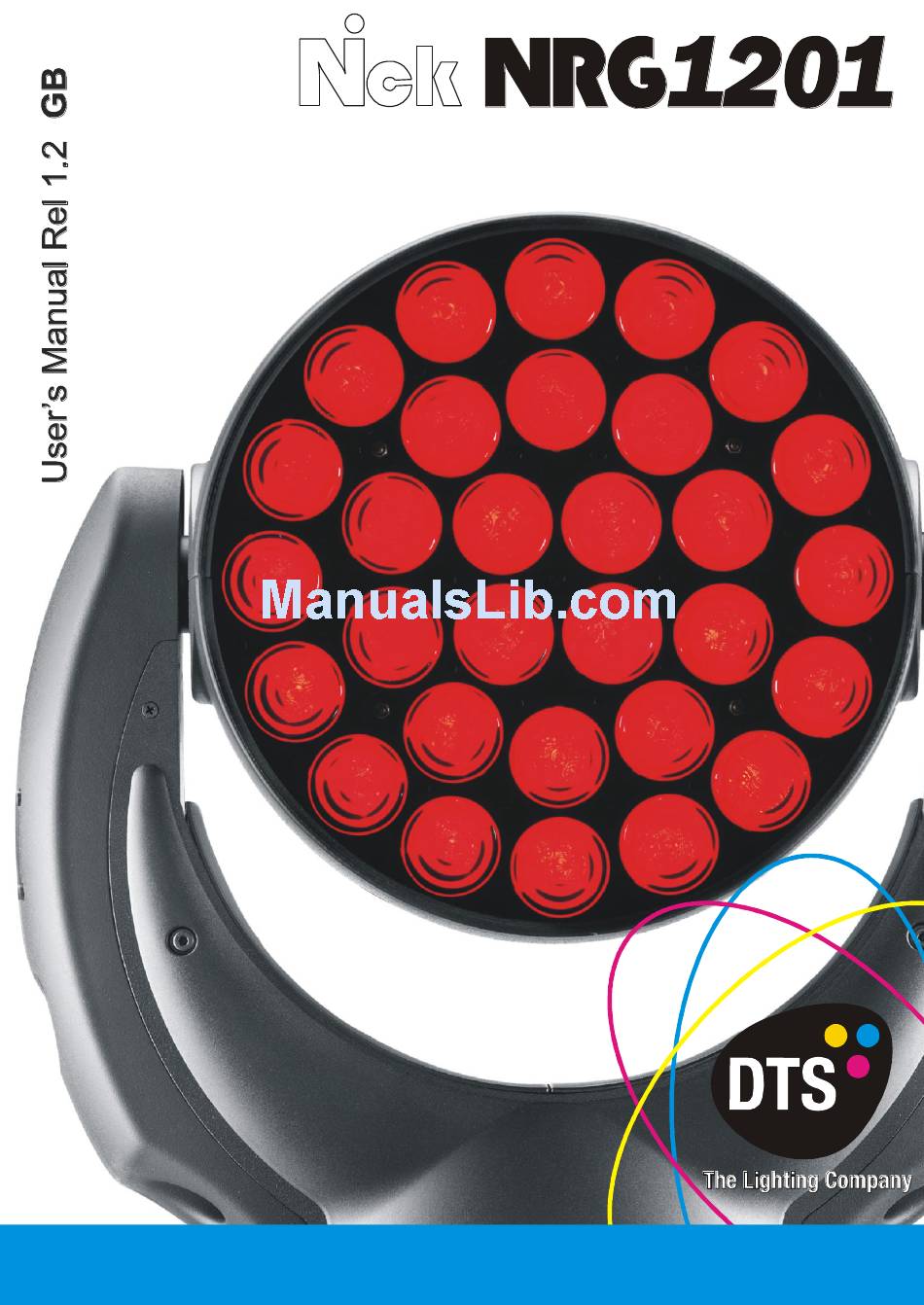

  • Page 1 Made in Italy D.T.S. Illuminazione srl Via Fagnano Selve 10/12/14 info@dts-lighting.it http://www.dts-lighting.it 47843 Misano Adriatico (RN) ITALIA Tel +39 0541 611131 Fax +39 0541 611111...
  • Page 2 Le informazioni contenute in questo documento sono state attentamente redatte e controllate. Tuttavia non è assunta alcuna responsabilità per eventuali inesattezze. Tutti i diritti sono riservati e questo documento non può essere copiato, fotocopiato, riprodotto per intero o in parte senza previo consenso scritto della D.T.S . D.T.S.

  • Page 3: Table Of Contents

    INDEX: 1-SYMBOLS ........................4 2-GENERAL WARNING ....................4 3-GENERAL WARRANTY CONDITIONS ..............4 4-TECHNICAL FEATURES ..................5 5-TECHNICAL SPECIFICATIONS ................7 6-ACCESSORIES ......................7 7-IMPORTANT SAFETY INFORMATION ..............8 7.1 Fire prevention...................... 8 7.2 Prevention of electric shock .................. 8 7.3 Safety ........................

  • Page 4: 1-Symbols

    1- SYMBOLS Graphic symbols used on this manual: THIS SYMBOL INDICATES A HOT SURFACE THIS SYMBOL INDICATES ELECTRIC SHOCK RISK THIS SYMBOL INDICATES GENERAL RISK THIS SYMBOL MEANS “YOU CAN PLACE THE UNIT ON NORMALLY FLAMMABLE SURFACES” THIS SYMBOL INDICATES THE MINIMUM DISTANCE FROM THE ILLUMINATED OBJECTS THIS SYMBOL INDICATES THE EUROPEAN COMMUNITY DIRECTIVE 2002/96/EC ON...

  • Page 5: 4-Technical Features

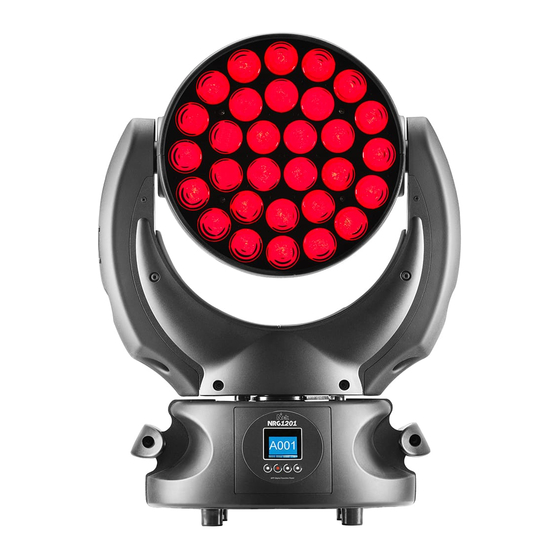

    4- TECHNICAL FEATURES Overview NICK NRG 1201 is the most efficient LED moving head wash light ever produced and, thanks to its specifically developed optical group, fears no competition. The exceptional brightness/consumption ratio makes NICK NRG 1201 a truly “green” fixture.
  • Page 6 20 DMX channels Pan & Tilt NICK NRG 1201 FPR (Cod. 03.LDR006.FFP; Cod. 03.LDR006.FWFP) * ‘FPR’: limitless pan rotation, in either direction, never having to reverse motion Tilt 270° (1,2 sec.) NICK NRG 1201 (Cod. 03.LDR006.F; Cod. 03.LDR006.FW) * Ultra-fast movement: Pan 540° (2 sec.); Tilt 270° (1,2 sec.) * 16-bit movement resolution * Selectable speed ranges Power supply...

  • Page 7: 5-Technical Specifications

    5- TECHNICAL SPECIFICATIONS Dimensions Packaging Dimensions (LxWxH) 530 x 430 x 414 mm Weight: 13 Kg 6- ACCESSORIES As standard • 1 x POWERCON male cable connector (cod. 0520P014) • 1 x XLR 5 Pins male cable connector (cod. 0508B028) •...

  • Page 8: 7-Important Safety Information

    7- IMPORTANT SAFETY INFORMATION 7.1 Fire prevention: -It is permissible to place the unit on normally flammable surfaces. Suitable for mounting on normally flammable materials surfaces greater than 200°C with some combustion time lag. -Minimum distance from the closest illuminable surface: 0,5 m. -Replace any blown or damaged fuses only with those of identical value (5AT).

  • Page 9: 8-Voltage And Frequency

    8- VOLTAGE AND FREQUENCY The NICK NRG 1201 can operates at 90-260V 50-60 Hz. 9- INSTALLATION NICK NRG 1201 may be either floor or ceiling mounted. For floor mounting installations, the NICK NRG 1201 is supplied with four rubber mounting feet on the base. For ceiling mounted installations, we reccomend the use of appropriate clamps to fix the unit to the mounting surface.

  • Page 10: Protection Against Liquids

    9.2 Protection against liquids The projector contains electric and electronic components which should under no circumstances come into contact with oil, water or any other liquid. The proper unit functioning would be compromised should this occur. 9.3- Movement NICK NRG 1201 FPR (Cod. 03.LDR006.FFP; Cod. 03.LDR006.FWFP) Unlimited Pan rotation;...

  • Page 11: 10-Mains Connection

    10- MAINS CONNECTION NICK NRG 1201 operate at 90-260V 50-60 Hz. Prior to connecting the unit to your mains supply, ensure that the model in your possession correctly matches the mains supply available. For connection purposes, ensure that your plug is capable of supporting 2 amps at 230V, or 5 amps at 90 V.

  • Page 12: 11-Dmx Signal Connection

    11- DMX SIGNAL CONNECTION The unit operates using the digital DMX 512 (1990) signal. Connection between the mixer and the projector or between projectors must be carried out using a two pair screened ø 0.5 mm cable and a XLR 5 or 3 pins connector. Ensure that the conductors do not touch each other.

  • Page 13: Dmx Addresses

    USB-DMX Driver for the D.T.S. RED BOX interface. D.T.S. Firmware upgrade utility program. (The driver and the installation procedure are available in our web site www.dts-lighting.it) Updating the software version. Please follow the procedure below to perform the update: 1. Install the D.T.S. RED BOX USB-DMX driver on the PC you will use to update the unit software.

  • Page 14: 13-Display Functions

    13- DISPLAY FUNCTIONS DISPLAY 2dBi IP20 omnid. antenna WIRELESS DMX RECEIVER RETROFIT 03.LA.126 MENU ENTER DOWN DMX OUT MAINS AC OUTPUT 90-260V 50 / 60 Hz DMX IN (16A Max) 03.LDR006.F 03.LDR006.FW DMX IN 03.LDR006.FFP 03.LDR006.FWFP DMX OUT MAINS AC INPUT 90-260V 50 / 60Hz DISPLAY FUNCTIONS The NICK NRG 1201 display panel shows all the available functions .
  • Page 15 13- DISPLAY FUNCTIONS Software version 1.29 DISPLAY Display Display Position Menu ENTER Up-Down ENTER Up-Down ON THE GROUND (Default) POSITION DISPLAY POSITION / STAND BY SUSPENDED Display Position: Reverses display's reading depending on the mounting position MENU ENTER DOWN (on the ground or suspended). DISPLAY Display Standby ENTER...
  • Page 16 DMX channel “CTC” between 20 ch 500 mA (30% more gain) NICK NRG 1201 and the other Default = Enabled DTS range LED units (NICK NRG 501, NICK NRG 801 and WONDER). MENU ENTER DOWN MENU ENTER DOWN DMX SET...
  • Page 17 13- DISPLAY FUNCTIONS By setting all the units DMX SET AUTO AUTO Menu Up-Down ENTER Up-Down ENTER connected to the MASTER DMX MODE SURE? to DMX address 1, them will AUTOMATIC MODE Menu - NO be synchronized with the 20 ch Automatic demo game Master unit following the Enter - YES...
  • Page 18 13- DISPLAY FUNCTIONS DMX SET SLAVE SLAVE The SLAVE unit receive DMX ENTER Menu Up-Down ENTER Up-Down signal from the MASTER unit. DMX MODE SURE? By setting all the SLAVE units Menu - NO SLAVE MODE SETTING 20 ch connected to the MASTER, to Enter - YES This menu allow to set the DMX address 1, them will be...
  • Page 19 13- DISPLAY FUNCTIONS WIRELESS DMX SET WIRELESS DMX SYSTEM WIRELESS Menu Up-Down ENTER Up-Down ENTER DISABLED (Default) SELECTION DMX MODE 20 ch WIRELESS DMX Wieless DMX enabled / disabled. By activating WDMX MODE, it will be possible to control NICK NRG MENU ENTER DOWN MENU ENTER DOWN 1201 via D.T.S.
  • Page 20 13- DISPLAY FUNCTIONS EMERGENCY DMX SET EMERGENCY EMERGENCY Menu Up-Down ENTER Up-Down ENTER Disabled = Default DMX MODE SELECTION 20 ch EMERGENCY Emergency operating mode. By setting Emergency mode, it will MENU ENTER DOWN MENU ENTER DOWN be possible to select one of the 16 preprogrammed WHITE cues that will then ran if DMX signal is EMERGENCY...
  • Page 21 13- DISPLAY FUNCTIONS DEFAULT SET DMX SET DEFAULT SET Menu Up-Down ENTER Up-Down ENTER DMX MODE 20 ch DEFAULT SETTINGS To restore default settings MENU ENTER DOWN MENU ENTER DOWN DEFAULT SET DMX SET DMX MODE SURE? 20 ch Menu - NO Enter - YES MENU ENTER DOWN MENU ENTER DOWN...
  • Page 22 13- DISPLAY FUNCTIONS DMX SET SYSTEM PAN INVERSION DMX MODE PAN INVERSION ENTER SYSTEM Default = NORMAL Menu Up-Down ENTER Up-Down 20 ch NORM PAN INVERSION / TILT INVERSION / PAN SPEED / TILT SPEED / MENU ENTER DOWN MENU ENTER DOWN ZOOM SPEED / FANS SETTING / FAN MAX SPEED / RESET BY DMX / DMX SET...

  • Page 23: 14-Periodic Cleaning

    13- DISPLAY FUNCTIONS SOFTWARE DMX SET SOFTWARE LEDs CIRCUIT BOARD Menu Up-Down ENTER Up-Down ENTER SOFTWARE VERSION DMX MODE SOFTWARE 20 ch LEDs circuit board and motors Id 0D1307C1 Circuit boards (Pan&Tilt-Zoom) v1.04 Jan 23 2012 software version MENU ENTER DOWN MENU ENTER DOWN SOFTWARE DMX SET...

  • Page 24: 16-Dmx Protocol

    16- DMX PROTOCOL 20 CHANNELS MODE PAN msb 540° PAN Isb TILT msb 270° TILT Isb SPEED MOVEMENT PAN FPR (Active only on units with FPR: 03.LDR006.FFP; 03.LDR006.FWFP) NO FUNCTION SHUTTER DIMMER GREEN BLUE WHITE WHITE PRE-PROGRAMMED MACRO FUNCTION (Recall, Create and Store the Custom white) ZOOM NO FUNCTION RESET...
  • Page 25 DMX CHANNEL Parameter: PAN FPR (Active only on units with FPR: 03.LDR006.FFP; 03.LDR006.FWFP) Function DMX range Mid Point Move Range Mode Option Value (degrees) value 000-010 Position mode 540° (standard path) 011-020 Position mode 360° (1 turn) 021-030 Position mode 720° (2 turns) 031-040 Position mode 1080°...
  • Page 26 Mode Option Value value (degrees) 000-055 No Function Full (Red-Green- 056-105 Blue at Full) 106-155 White DTS Custom White 156-205 Create (RGB levels selectable by DMX) White CTC 206-255 (Channel 15 CTC enabled) DMX CHANNEL Parameter: CTC (Colour Temperature Correction)
  • Page 27 DMX CHANNEL Parameter: COLOUR MACROS DMX SET MACRO (Please refer to page 15 for details) Menu Up-Down ENTER Up-Down ENTER Up-Down ENTER 000-014 No Function 015-029 Macro 1 030-044 Macro 2 045-059 Macro 3 060-074 Macro 4 075-089 Macro 5 090-104 Macro 6 105-119...
  • Page 28 DMX CHANNEL Parameter: FUNCTIONS (Recall, Create and Store the Custom white) Function DMX range Mid Point DMX Move Range Mode Option Value value (degrees) IF CHANNEL 14 WHITE PREPROGRAMMED = DMX range value 156 – 205) 000-079 Custom White Recall Custom White 080-160 Create (Enable...
  • Page 29 NOTES...
  • Page 30 NOTES...
  • Page 31 NOTES...
  • Page 32 ISO 9001:2008 standard D.T.S. products are designed and manufactured at the D.T.S. plants in italy *0517I196* 0517I196 D.T.S. Illuminazione s.r.l. – Via Fagnano Selve 10-12-14 47843 Misano Adriatico (RN) Italia Tel.: +39 0541 611131. Fax + 39 0541 611111 info@dts-lighting.it www.dts-lighting.it...
