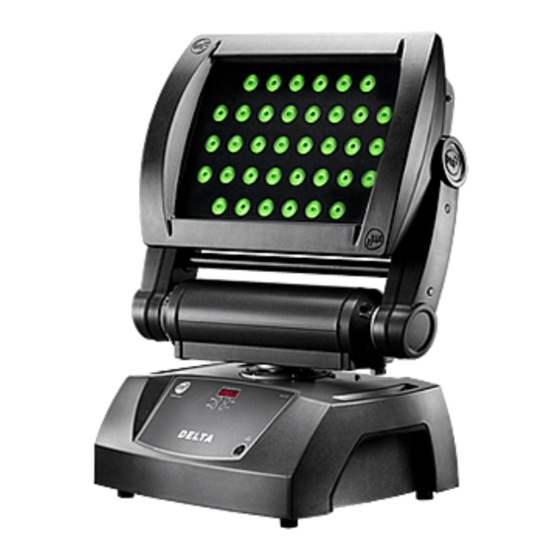

Delta 8 r series moving head projector
Hide thumbs Also See for Delta 8 White + Amber R:
Table of Contents

Advertisement

Quick Links

Datasheet
Datasheet
DELTA 8 WHITE + AMBER R
DELTA 8 RGB R
User's Manual rel 1.1
D.T.S. Illuminazione srl - ITALY
http://www.dts-lighting.it
DELTA 8 R
DELTA 8 FULL COLOUR R
GB
Made in Italy

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Delta 8 White + Amber R and is the answer not in the manual?

Questions and answers

Related Manuals for DTS Delta 8 White + Amber R

Summary of Contents for DTS Delta 8 White + Amber R

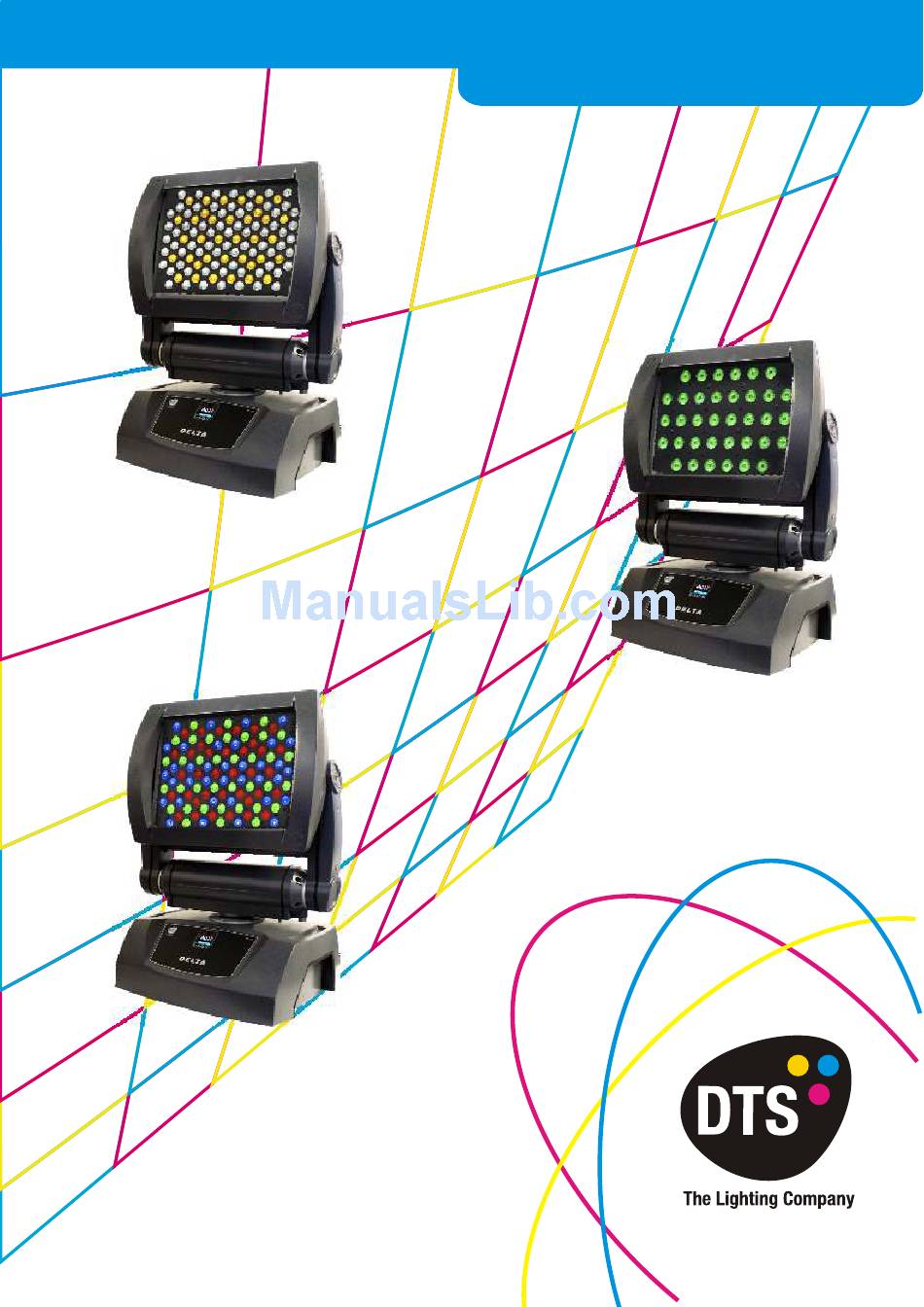

  • Page 1 DELTA 8 R Datasheet Datasheet DELTA 8 WHITE + AMBER R DELTA 8 FULL COLOUR R DELTA 8 RGB R User’s Manual rel 1.1 D.T.S. Illuminazione srl - ITALY Made in Italy http://www.dts-lighting.it...
  • Page 2 D.T.S . DTS si riserva il diritto di apportare senza preavviso cambiamenti e modifiche estetiche , funzionali o di design a ciascun proprio prodotto. D.T.S non assume alcuna responsabilità sull’uso o sull’applicazione dei prodotti o dei circuiti descritti.

  • Page 3: Table Of Contents

    DELTA 8 R INDEX 1- SYMBOLS 2- GENERAL WARNING 3- GENERAL WARRANTY CONDITION 4- TECHNICAL FEATURES 5- TECHNICAL SPECIFICATIONS 6- ACCESSORIES 7- IMPORTANT SAFETY INFORMATION 7.1 Fire prevention 7.2 Prevention of electric shock 7.3 Safety 7.4 Level of protection against the penetration of solid and liquid objects 8- VOLTAGE AND FREQUENCY 9- INSTALLATION 9.1 Safety cable...

  • Page 4: Symbols

    DELTA 8 R 1- SYMBOLS Graphic symbols used on this manual THIS SYMBOL INDICATES A HOT SURFACE THIS SYMBOL INDICATES ELECTRIC SHOCK RISK THIS SYMBOL INDICATES GENERAL RISK THIS SYMBOL MEANS “DO NOT PLACE THE UNIT ON INFLAMMABLE SURFACES” THIS SYMBOL INDICATES THE MINIMUM DISTANCE TO 0,5M BE KEPT BETWEEN THE DEVICE AND THE LIT OBJECT 2- GENERAL WARNING...

  • Page 5: Technical Features

    Delta 8 RGB R:108 x 1W P4 type RGB LEDs (36 Red, 36 Green, 36 Blue) Delta 8 White + Amber R:108 x 1W P4 type White + Amber LEDs. (72 White, 36 Amber). Delta 8 FULL COLOUR R: 36 x 3W P5 II Full colour LEDs LEDs average lifespan: 100.000 hours...
  • Page 6 DELTA 8 R Power consumption Delta 8 FULL COLOUR R: * 90 V - 3 A - 270 W * 120 V - 2,5 A - 270 W * 230 V - 1,17 A - 270 W * 260 V - 1 A - 270 W Movements (horizontal/pan –...

  • Page 7: Accessories

    DELTA 8 R 6- ACCESSORIES As standard • 2 x “C” Clamp GQUICK with “Fast Lock” connection 1/4 turn (max. load. 80Kg) (cod. 0521A014) • ABS cover protection for Main AC and DMX cables on the base (cod. 0511C083) • User’s manual Optional (on request) Lenses sets (black colour assembly) Delta 8 RGB R / White + Amber R:...

  • Page 8: Important Safety Information

    -The level of technology inherent in the DELTA 8 R requires the assistance of specialised personnel for all servicing. Please refer to an authorised DTS service centre. -A good earth connection is essential for proper functioning of the projector.

  • Page 9: Installation

    DELTA 8 R 8- VOLTAGE AND FREQUENCY The DELTA 8 R can operate at 90-260 VOLT 50 or 60 Hz. 9- INSTALLATION DELTA 8 R may be either floor or ceiling mounted. For floor mounting installations, the DELTA 8 R is supplied with four rubber mounting feet on the base. For ceiling mounted installations, we reccomend the use of appropriate clamps to fix the unit to the mounting surface.

  • Page 10: Mains Connection

    DELTA 8 R 9.3- Movement The projector has a maximum movement of 280° for Pan,180° for Tilt 1 and 135° for tilt 2 (7 mechanical steps 22,5° each). DO NOT place any obstructions in the path of the projector's movement. WARNING PAN 280°...

  • Page 11: Dmx Signal Connection

    DELTA 8 R 11- DMX SIGNAL CONNECTION The unit operates using the digital DMX 512 (1990) signal. Connection between the mixer and the projector or between projectors must be carried out using a two pair screened ø 0.5 mm cable and a XLR 5 pins connector.
  • Page 12 USB-DMX Driver for the D.T.S. RED BOX interface . D.T.S. Firmware upgrade utility program. (The driver and the installation procedure are available in our web site www.dts-lighting.it) Updating the software version. Please follow the procedure below to perform the update: 1.

  • Page 13: Display Functions

    The DELTA 8 R display panel shows all the available functions . Using these functions, it is possible to change some of the parameters and add some functions. Changing the DTS setting can vary the functions of the unit so that it does not respond to the DMX 512 used to control it. Carefully follow the instructions below before carrying out any variations or selections.
  • Page 14 DELTA 8 R 13- DISPLAY FUNCTIONS DMX mode DMX Set DMX SET DMX SET Menu Up-Down ENTER Up-Down ENTER RGB 15 channels (Default) DMX MODE / MACRO DMX MODE DMX MODE RGBW 16 channels (Reserved for DMX Mode future use) To select DMX mode : RGB 15 channels 20 ch...
  • Page 15 DELTA 8 R 13- DISPLAY FUNCTIONS GAMMA CORRECTION DMX SET Menu Up-Down ENTER Up-Down ENTER Linear = Linear courrent output GAMMA CORRECTION GAMMA CORR. DMX MODE Quadratic = Linear light output This menu allow to select between (Default) Linear current output or Quadratic QUAD 20 ch current output for LEDs...
  • Page 16 DELTA 8 R 13- DISPLAY FUNCTIONS AUTO AUTO-FIXED COL. DMX SET Menu Up-Down ENTER Up-Down ENTER AUTOMATIC MODE DMX MODE COLOR Automatic demo game without 20 ch DMX controller FIXED COLOURS By setting all the units connected to Sixteen Colour Macros as on MENU ENTER DOWN MENU ENTER DOWN the MASTER, to DMX address 1,...
  • Page 17 DELTA 8 R 13- DISPLAY FUNCTIONS WIRELESS WIRELESS DMX SYSTEM DMX SET WIRELESS Menu Up-Down ENTER Up-Down ENTER DISABLED WIRELESS DMX SELECTION DMX MODE Wieless DMX enabled / disabled. By activating WDMX MODE, it will 20 ch be possible to control DELTA 8 R via D.T.S.
  • Page 18 DELTA 8 R 13- DISPLAY FUNCTIONS EMERGENCY EMERGECY EMERGENCY DMX SET Menu Up-Down ENTER Up-Down ENTER ON = Enabled EMERGENCY SELECTION DMX MODE OFF = Disabled (Default) Emergency operating mode. By setting Emergency mode, it 20 ch will be possible to select one of the 16 preprogrammed WHITE cues that will then ran if DMX MENU ENTER DOWN...
  • Page 19 DELTA 8 R 13- DISPLAY FUNCTIONS DEFAULT SET DEFAULT SET DMX SET Menu Up-Down ENTER Up-Down ENTER DEFAULT SETTINGS DMX MODE To restore default settings 20 ch MENU ENTER DOWN MENU ENTER DOWN DEFAULT SET DMX SET DMX MODE SURE? Menu - NO 20 ch Enter - YES...
  • Page 20 DELTA 8 R 13- DISPLAY FUNCTIONS PAN INVERTION SYSTEM DMX SET SYTEM Menu Up-Down ENTER Up-Down ENTER Default = NORM PAN INVERSION DMX MODE PAN INVERTION / TILT INVERTION / PAN-TILT SPEED / FAN MAX SPEED / 20 ch RESET BY DMX / MOTORS FIRMWARE NORM UPGRADE.

  • Page 21: Automatic Operation (Auto)

    DELTA 8 R 14- AUTOMATIC OPERATION (AUTO) DELTA 8 R can work in automatic mode without a DMX controller. First of all connect the projectors with a DMX cable (picture below). A maximum quantity of 32 slave units can be connected to the same Master unit.

  • Page 22: Periodic Cleaning

    DELTA 8 R 15- PERIODIC CLEANING Front head Glass The dust can reduce the luminous output substantially. Regularly clean the front head glass using a soft cotton cloth, dampened with a specialist glasses cleaning solution. Air passages Air passages on head thermal dissipator must be cleaned approximately every 6 weeks. This periodic cleaning will depend of course, on the conditions in which the projector is operating.

  • Page 23: Dmx Protocol

    DELTA 8 R 17- DMX PROTOCOL 15 CHANNELS MODE (DEFAULT) PAN msb 540° PAN lsb TILT msb 270° TILT lsb SPEED MOVEMENT SHUTTER DIMMER GREEN BLUE WHITE PREPROGRAMMED MACRO FUNCTION RESET DMX CHANNEL PAN msb Parameter: DMX CHANNEL PAN lsb Parameter: DMX CHANNEL TILT msb...
  • Page 24 DELTA 8 R DMX CHANNEL SHUTTER Parameter: Move DMX range Mid point range Mode Option Function Value DMX value (degrees) Black - out Open 10-19 20-29 Black-out Strobe( from 3.27 s to 30 ms) 30-119 Pulse up (from 42.6s to120ms) 120-149 Pulse down(from 42.6s to120ms) 150-179...
  • Page 25 DMX value (degrees) 0-55 No Function Full: Red-Green-Blue at Full (dimmer channel active) 56-105 106-155 White DTS 156-205 Custom White Create (RGB levels selectable by DMX) White CTC (Channel 12 CTC enabled) 206-255 CTC (Color temperature correction) DMX CHANNEL Parameter:...
  • Page 26 DELTA 8 R COLOUR MACROS DMX CHANNEL Parameter: (Please refer to page 14 for details) DMX SET MACRO MENU Up-Down Up-Down ENTER ENTER Up-Down ENTER Move DMX range Mid point range Mode Option Function Value DMX value (degrees) No Function 0-14 15-24 Macro 1...

  • Page 27: Wiring Diagrams

    DELTA 8 R 18- WIRING DIAGRAMS 1 x DMX IN 50 cm cable with Neutrik XLR 5 pins Male cable connector on board 1 x DMX OUT 50 cm cable with Neutrik XLR 5 pins Female cable connector on board Main AC IN power cord 3 x 1,5 sq millimeters 2 meters length...
  • Page 28 ISO 9001:2008 standard D.T.S. products are designed and manufactured at the D.T.S. plants in italy *0517I187* 0517I187 D.T.S. Illuminazione s.r.l - Via Fagnano Selve 10-12-14 47843 - Misano Adriatico (RN) Italy Tel. +39 0541 611131 Fax +39 0541 611111 info@dts-lighting.it www.dts-lighting.it...
