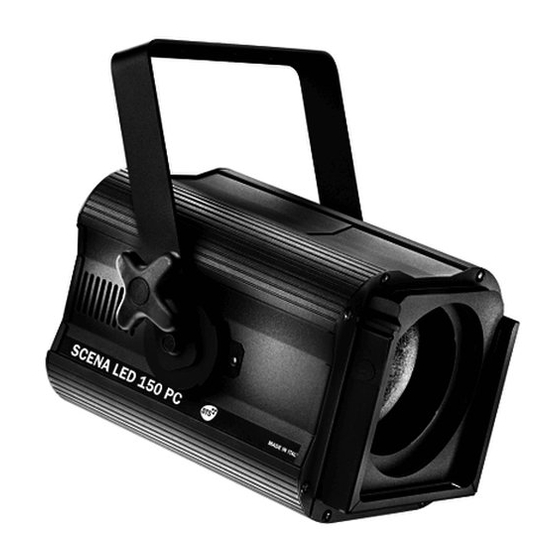

- Page 1 SCENA LED 150 User’s Manual rel. 1.0 GB D.T.S. Illuminazione s.r.l. – ITALY http://www.dts-lighting.it/ Made in Italy...
- Page 2 Le informazioni contenute in questo documento sono state attentamente redatte e controllate. Tuttavia non è assunta alcuna responsabilità per eventuali inesattezze. Tutti i diritti sono riservati e questo documento non può essere copiato, fotocopiato, riprodotto per intero o in parte senza previo consenso scritto della D.T.S . D.T.S.
-
Page 3: Table Of Contents
INDEX: 1- SYMBOLS 2- GENERAL WARNING 3- GENERAL WARRANTY CONDITION 4- TECHNICAL FEATURES 5- MAIN ELECTRICAL CHARACTERISTICS 6- ACCESSORIES 7- IMPORTANT SAFETY INFORMATION 7.1 Fire prevention 7.2 Prevention of electric shock 7.3 Safety 8- INPUT / OUTPUT CONNECTIONS 9- DMX SIGNAL CONNECTION 9.1 DMX Addresses 9.2 Selecting the DMX address 10- FIRMWARE UPDATING... -
Page 4: 1- Symbols
1- SYMBOLS Graphic symbols used on this manual THIS SYMBOL INDICATES A HOT SURFACE THIS SYMBOL INDICATES ELECTRIC SHOCK RISK THIS SYMBOL INDICATES GENERAL RISK THIS SYMBOL MEANS “DO NOT PLACE THE UNIT ON INFLAMMABLE SURFACES” 30cm THIS SYMBOL INDICATES THE MINIMUM DISTANCE TO BE KEPT BETWEEN THE DEVICE AND THE LIT OBJECT 2- GENERAL WARNING... -
Page 5: 4- Technical Features
Also, the dimming curves are similar to those of halogen lamps. The connectors are Powercon In & Out and 5 poles DMX In & Out. SCENA LED 150 is contained in a strong housing with folded edges, designed to resist all the rigours of continuous use. -
Page 6: 5- Main Electrical Characteristics
LED Technology 1 x White LED 3.000 °K, CRI>90, 7.000 Lumens Also available as 4.000 °K and 5.600 °K LEDs LED Max power: 150W Optical group Linear motorized zoom: PC Version (Ø 120 mm PC lens) from min 8,2° (1.600 Lux at 5 mt) to max 70°... -
Page 7: 6- Accessories
* “C” Clamp G60 (Max. Load. 50 Kg) *Chrome finish (D.T.S. Code: 0521A004.20) * Barndoor for SCENA LED 150 *Black finish (D.T.S. Code: 03.TBD01) * Ø 120 mm PC lens for SCENA LED 150 (D.T.S. Code: 0506P003) * Ø 120 mm Fresnel lens for SCENA LED 150 (D.T.S. Code: 0506P004) * Filterframe for SCENA LED 150 *Black finish (D.T.S. -
Page 8: 7- Important Safety Information
The use of a thermal magnetic circuit breaker is recommended for each SCENA LED 150 unit. Use only AC supplies 90-260V, 50 / 60 Hz. SCENA LED 150 should never be located in position exposed to rain or in areas of extreme humidity. A good air ventilation is essential for proper equipment work. -
Page 9: 9- Dmx Signal Connection
9- DMX SIGNAL CONNECTION: The unit operates using a digital DMX 512 signal. Connection between the controller and the unit or between units must be carried out using a two pair screened ø 0.5 mm. Ensure that the conductors do not touch each other. Do not connect the cable ground to the DMX connector chassis. -
Page 10: Dmx Addresses
This procedure require a base knowledge of Windows computer applications. Please refer to an authorised D.T.S. service centre. To update the software version of the SCENA LED 150 you need: D.T.S. RED BOX interface (D.T.S. Code: 03.LA.008). USB-DMX Driver for the D.T.S. RED BOX interface. -
Page 11: 11- Display Functions
11- DISPLAY FUNCTIONS DISPLAY FUNCTIONS The SCENA LED 150 display panel shows all the available functions . Using these functions, it is possible to change some of the parameters and add some functions. Changing the D.T.S. setting can vary the functions of the unit so that it does not respond to the DMX 512 used to control it. - Page 12 (D.T.S. Code: 03.LA.016) ENTER INFRARED MODE Infrared remote control. By activating Ir Mode, it will be possible to navigate trought the unit NOT IMPLEMENTED ON SCENA LED 150 functions by using the D.T.S. infrared remote control (D.T.S. Code: 0514L008)
- Page 13 The transmitter will start flashing rapidly red/green scanning for new free receivers / SCENA LED 150 units. When a SCENA LED 150 logs on to the transmitter the LINK green light on transmitter starts to flash rapidly. After approximately 10 seconds the transmitter will jump back to normal mode and continue transmitting data.
- Page 14 Default = OFF MENU Up-Down ENTER Up-Down ENTER ENTER Up-Down EMERGENCY ENTER Emergency operating mode. By setting Emergency mode, it will be possible to select Default = 255 ENTER Dimmer intensity level that will then ran if DMX signal is missing or not available.
-
Page 15: 12- Service Menu
12- SERVICE MENU For technical personnel only To operate this menu: -Connect the unit to the main -While reset is running, press the MENU and ENTER keys at the same time. ENTER ENTER Up-Down LENS PC or Fresnel ENTER lens selection ENTER ENTER Up-Down... -
Page 16: 13- Dmx Protocol
13- DMX PROTOCOL 4 CHANNELS MODE SHUTTER / STROBE DIMMER ZOOM RESET DMX CHANNEL Parameter: SHUTTER / STROBE Function DMX range Mid Point Move Range Mode Option Value (degrees) value 000-009 Black-out 010-019 Open 020-029 Black-out 030-119 Strobe (from 3.27 s to 30 ms) 120-149 Pulse up (from 42.6 s to 120 ms) 150-179... - Page 17 NOTES...
- Page 18 NOTES...
- Page 19 NOTES...
- Page 20 ISO 9001:2008 standard D.T.S. products are designed and manufactured at the D.T.S. plants in italy 0517I197 0517I197 D.T.S. Illuminazione s.r.l. – Via Fagnano Selve 10-12-14 47843 Misano Adriatico (RN) Italia Tel.: +39 0541 611131. Fax + 39 0541 611111 info@dts-lighting.it www.dts-lighting.it...
