DTS FOS 100 SOLO FULL RGBW User Manual

Fos 100 full rgbw fos 100 full white ct
Hide thumbs
Table of Contents

Advertisement

Quick Links

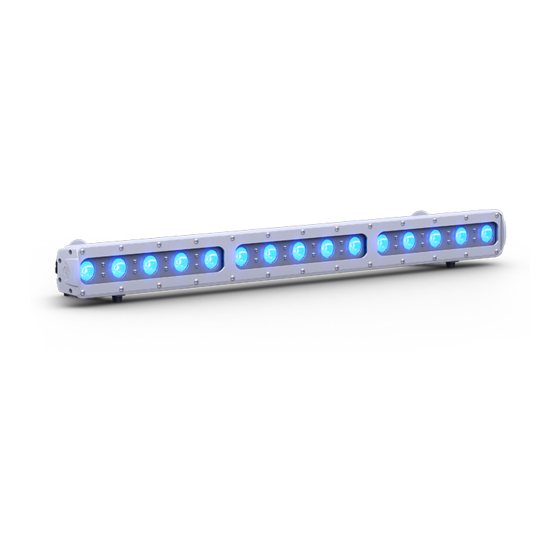

FOS 100 SOLO FULL RGBW
FOS 100 SOLO FULL WHITE CT
User's Manual rel 4.1 FC-CT
D.T.S. Illuminazione s.r.l. - ITALY
http://www.dts-lighting.it
FOS 100 FULL RGBW
FOS 100 FULL WHITE CT
FOS 100 FULL RGBW
FOS 100 FULL WHITE CT
GB
Made in Italy

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FOS 100 SOLO FULL RGBW and is the answer not in the manual?

Questions and answers

Related Manuals for DTS FOS 100 SOLO FULL RGBW

Summary of Contents for DTS FOS 100 SOLO FULL RGBW

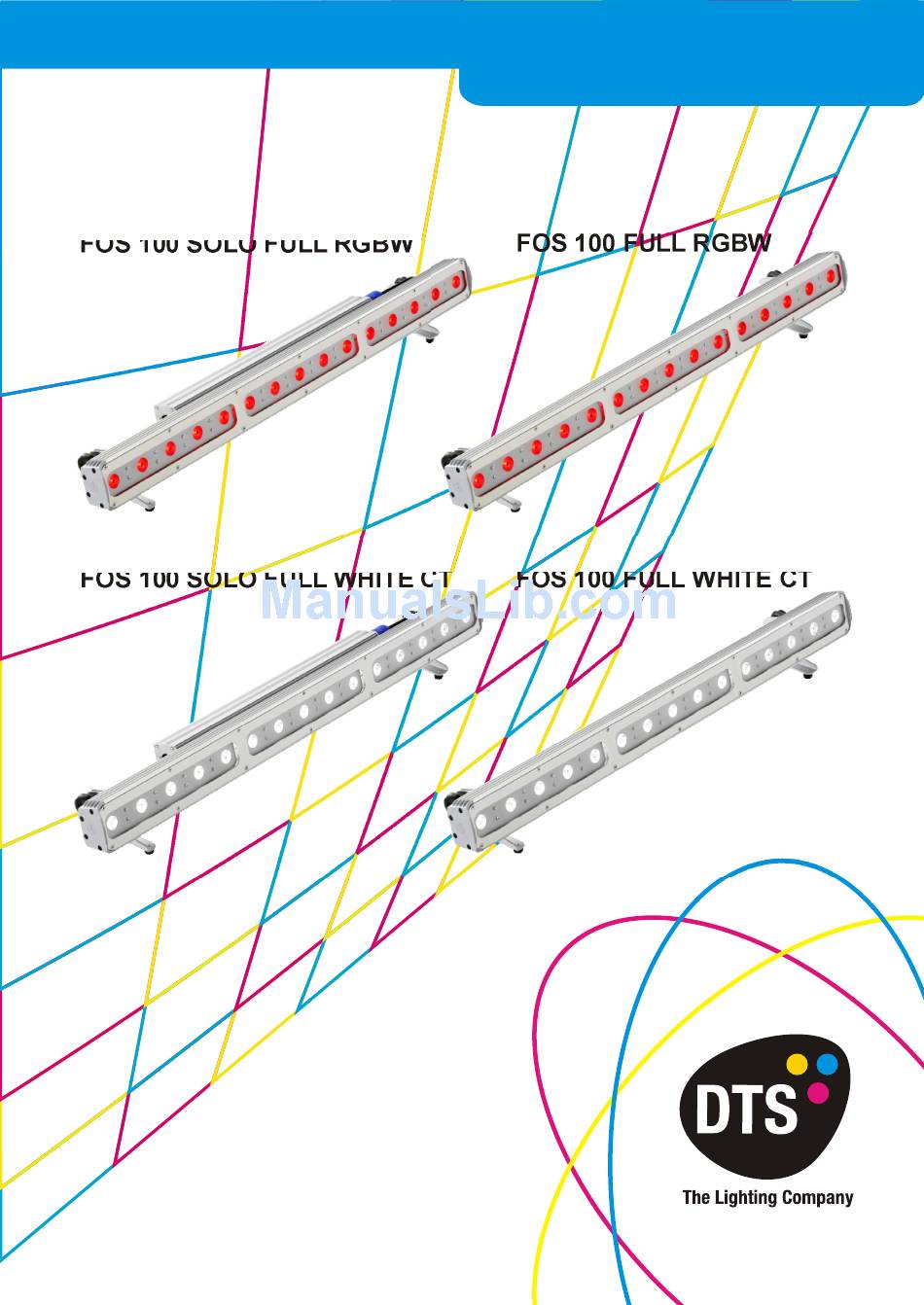

  • Page 1 FOS 100 FULL RGBW FOS 100 FULL WHITE CT FOS 100 SOLO FULL RGBW FOS 100 FULL RGBW FOS 100 SOLO FULL WHITE CT FOS 100 FULL WHITE CT User’s Manual rel 4.1 FC-CT D.T.S. Illuminazione s.r.l. - ITALY http://www.dts-lighting.it...
  • Page 2 D.T.S . DTS si riserva il diritto di apportare senza preavviso cambiamenti e modifiche estetiche , funzionali o di design a ciascun proprio prodotto. D.T.S non assume alcuna responsabilità sull’uso o sull’applicazione dei prodotti o dei circuiti descritti.
  • Page 3 FOS 100 FULL WHITE CT FOS 100 FULL RGBW and FOS 100 SOLO FULL RGBW 15 x Ostar FULL RGBW LEDs • Integrated power supply (FOS 100 SOLO FULL RGBW) FOS 100 FULL WHITE CT and FOS 100 SOLO FULL WHITE CT 15 x Ostar FULL WHITE LEDs •...

  • Page 4: Important Safety Information

    FOS 100 MAIN ELECTRICAL CHARACTERISTICS (FOS 100 SOLO FULL RGBW / FULL WHITE CT) Input Voltage Range : Vin 90 - 260 VAC Frequency : 50 - 60 Hz Power Factor (Pf) : 0.95 electronic PFC controller Efficiency : 90% typical...

  • Page 5: Unit Dimensions

    FOS 100 UNIT DIMENSIONS: FOS 100 SOLO FULL RGBW FOS 100 SOLO FULL WHITE CT 990 mm 100 mm Unit Dimensions 140 mm (LxWxH) 990 x 100 x 78 mm Weight 7 Kg Packing Dimensions (LxWxH) 1060 x 160 x 200 mm...
  • Page 6 FOS 100 UNIT DIMENSIONS: FOS 100 FULL RGBW FOS 100 FULL WHITE CT 990 mm 56 mm Unit Dimensions (LxWxH) 990 x 56 x 78 mm 140 mm Weight 5,5 Kg Packing Dimensions (LxWxH) 1060 x 160 x 200 mm Weight 7 Kg...

  • Page 7: Input/Output Connections

    FOS 100 INPUT/OUTPUT CONNECTIONS FOS 100 SOLO IP20 FULL RGBW FOS 100 SOLO IP20 FULL WHITE CT M12 LED output DMX IN/OUT XLR 5 pins Male / Female Female panel connector Panel Connectors Mains 90-260 V AC Mains 90-260 V AC 50-60 Hz output Powercon 50-60 Hz input Powercon Female panel connector...
  • Page 8 FOS 100 INPUT/OUTPUT CONNECTIONS FOS 100 SOLO IP65 FULL RGBW FOS 100 SOLO IP65 FULL WHITE CT Mains 90-260 V Ac Mains 90-260 V Ac 50-60 Hz input cable 50-60 Hz output ILME 5 pins Female panel connector DMX IN/OUT MAX load: ILME 4 pins Female 230 V AC = 20 FOS 100 SOLO...
  • Page 9 FOS 100 INPUT/OUTPUT CONNECTIONS FOS 100 FULL RGBW FOS 100 FULL WHITE CT M12 LED input LEDs Connector PinOut Male cable connector 1-RED + / WHITE 1 + 2-RED - WHITE 1 - 3-GREEN + / WHITE 2 + 4-GREEN - / WHITE 2 - 5-BLUE + / WHITE 3 + Pin1 6-BLUE - / WHITE 3 -...

  • Page 10: Dmx Signal Connection

    FOS 100 DMX SIGNAL CONNECTION: FOS 100 SOLO IP20 FULL RGBW FOS 100 SOLO IP20 FULL WHITE CT The unit operates using a digital DMX 512 signal. Connection between the controller and the unit or between units must be carried out using a two pair screened ø 0.5 mm. Ensure that the conductors do not touch each other.
  • Page 11 FOS 100 DMX SIGNAL CONNECTION: FOS 100 SOLO IP65 FULL RGBW FOS 100 SOLO IP65 FULL WHITE CT The unit operates using a digital DMX 512 signal. Connection between the controller and the unit or between units must be carried out using a two pair screened ø 0.5 mm. Ensure that the conductors do not touch each other.

  • Page 12: Dmx Address

    CUSTOM DMX mode (not yet implemented). If you want to use the FOS 100 SOLO FULL RGBW or FULL WHITE CT in “WALL” mode, select the “WALL” mode from the MODE menu and set the following addresses on the mixer: (To be...

  • Page 13: Display Functions

    FOS 100 DISPLAY FUNCTIONS FOS 100 SOLO FULL RGBW FOS 100 SOLO FULL WHITE CT MENU ENTER DOWN DISPLAY FUNCTIONS The FOS 100 SOLO display panel shows all the available functions . Using these functions, it is possible to change some of the parameters and add some functions. Changing the D.T.S. setting can vary the functions of the unit so that it does not respond to the DMX 512 signal used to control it.
  • Page 14 FOS 100 External ON - OFF control on IR AUX MODE connector (not implemented on ENTER Up-Down MENU Up-Down ENTER FOS 100 SOLO) Standard mode enabled: MACRO (Default). ENTER MACRO Function, enable channel ENTER Up-Down Up-Down Extended mode enabled: mapping macro rainbow effects Rainbow effects on MACRO STD (default) ENTER...
  • Page 15 FOS 100 MENU Up-Down ENTER ENTER Up-Down ENTER ENTER Up-Down AUTOMATIC MODE Automatic demo game without DMX controller ChPr Chase with 16 steps previously ENTER ENTER Up-Down created in REC MODE Speed and Wait time selectable by user CUPr RGB values selectable by user Rainbow (rAIn) Rainbow colours effect.
  • Page 16 FOS 100 DMX Recorder Mode For the programming of ChPr by using a DMX controller, besides the 10 channels necessary to control the unit a further 3 DMX channels are needed. So that in RECORDER mode (via DMX) the unit will need 13 channels to be correctly programmed. The three new DMX channels are: DMX channel 11 = SCENES channel From 0-10 = no function (r001)
  • Page 17 FOS 100 ENTER ENTER MENU Up-Down DEFAULT To restore default settings Internal Unit temperature. ENTER ENTER MENU Up-Down (° Celsius) TEMPERATURE Internal Unit temperature visualisation ENTER MENU Up-Down ENTER Up-Down LIFE TIME This menu show the total life time UNIT and the RGBA life time Up-Down MENU...

  • Page 18: Service Menu

    FOS 100 SERVICE MENU For technical personnel only To operate this menu: -Connect the unit to the main -While reset is running, press the MENU and ENTER keys at the same time. CHANNELS This menu allow to set 3 channels or 4 channels LEDs output mode 3 CH = RGB mode 4 CH = RGBA mode (Default) PRODUCT MODEL SELECTION:...

  • Page 19: Automatic Operation (Auto)

    FOS 100 AUTOMATIC OPERATION (AUTO): FOS 100 SOLO can work in automatic mode without a DMX controller. First of all connect the projectors with a DMX cable (picture below). A maximum quantity of 32 slave units can be connected to the same Master unit.
  • Page 20 FOS 100 Rec mode It is possible to program your own game on the FOS 100 SOLO FULL RGBW / FOS 100 SOLO FULL WHITE CT that will then run it in AUTO mode (ChPr). Each unit can have its own programmed game.

  • Page 21: Dmx Protocol

    FOS 100 DMX PROTOCOL FOS 100 SOLO FULL RGBW 10 CHANNELS MODE (Default) SHUTTER DIMMER GREEN BLUE AMBER WHITE (Pre-programmed whites at different colour temperatures) COLOURS MACRO FUNCTIONS DMX CHANNEL SHUTTER Parameter: Move DMX range Mid point Mode Option Function...
  • Page 22 (degrees) 0-55 No Function Full (Red-Green-Blue-Amber at Full) 56-105 106-155 White DTS IF CHANNEL 10 (FUNCTIONS) = CUSTOM WHITE RECALL (Dmx range value 0 - 79) 156-205 Custom White Recall White CTC (Channel 8 CTC enabled 206-255 256 color temp. Correction Macros: 2000°K - 7200°K)
  • Page 23 FOS 100 CTC (Color temperature correction) DMX CHANNEL Parameter: Move DMX range Mid point Mode Option Function range Value DMX value (degrees) IF CHANNEL 7 (White) = WHITE CTC (Dmx range value 206 - 255) 0-255 256 color temp. Correction Macros: 0 = 2000°K / 128 = 4500°K / 255 = 7200°K IF CHANNEL 7 (White) = NO FUNCTION (Dmx range value 0 - 43) No Function 0-255...
  • Page 24 FOS 100 COLOUR MACROS DMX CHANNEL Parameter: PLEASE CHECK PAGE 13 ENTER MENU Up-Down Up-Down ENTER Up-Down ENTER Move DMX range Mid point range Mode Option Function Value DMX value (degrees) No Function 0-14 15-22 Macro 1 23-30 Macro 2 Macro 3 31-38 39-46...
  • Page 25 FOS 100 DMX PROTOCOL FOS 100 SOLO FULL RGBW (Shutter + Dimmer + RGBA) 6 CHANNELS MODE SHUTTER DIMMER GREEN BLUE AMBER DMX CHANNEL SHUTTER Parameter: Move DMX range Mid point Mode Option Function range Value DMX value (degrees) Black-out...
  • Page 26 FOS 100 GREEN Parameter: DMX CHANNEL Move DMX range Mid point Mode Option Function range Value DMX value (degrees) 0-255 Proportional colour BLUE Parameter: DMX CHANNEL Move DMX range Mid point Mode Option Function range Value DMX value (degrees) 0-255 Proportional colour AMBER Parameter:...
  • Page 27 FOS 100 “WALL” 6 CHANNELS MODE (For use with DTS Wall mounted DMX controller 0514L007) 6 CHANNELS GREEN ENTER MENU Up-Down ENTER Up-Down BLUE DIMMER NOT USED SHUTTER GREEN DMX CHANNEL Parameter: Move DMX range Mid point range Mode Option...
  • Page 28 FOS 100 DMX PROTOCOL FOS 100 SOLO FULL RGBW M4CH mode (5 DMX channels; Dimmer + RGBA) DIMMER GREEN BLUE AMBER DMX CHANNEL DIMMER Parameter: Move DMX range Mid point Mode Option Function range Value DMX value (degrees) 0-255 Proportional dimmer...

  • Page 29: Channel Mode

    FOS 100 DMX PROTOCOL FOS 100 SOLO FULL RGBW RGBA mode (4 DMX channels) GREEN BLUE AMBER Parameter: DMX CHANNEL Move DMX range Mid point range Mode Option Function Value DMX value (degrees) 0-255 Proportional colour GREEN Parameter: DMX CHANNEL...
  • Page 30 FOS 100 DMX PROTOCOL FOS 100 SOLO FULL WHITE CT 10 CHANNELS MODE (Default) SHUTTER DIMMER RED = WHITE 1 GREEN = WHITE 2 BLUE = WHITE 3 AMBER = WHITE 4 WHITE (Pre-programmed whites at different colour temperatures) COLOURS MACRO FUNCTIONS DMX CHANNEL SHUTTER...
  • Page 31 (degrees) 0-55 No Function Full (Red-Green-Blue-Amber at Full) 56-105 106-155 White DTS IF CHANNEL 10 (FUNCTIONS) = CUSTOM WHITE RECALL (Dmx range value 0 - 79) 156-205 Custom White Recall White CTC (Channel 8 CTC enabled 206-255 256 color temp. Correction Macros: 2000°K - 7200°K)
  • Page 32 FOS 100 CTC (Color temperature correction) DMX CHANNEL Parameter: Move DMX range Mid point Mode Option Function range Value DMX value (degrees) IF CHANNEL 7 (White) = WHITE CTC (Dmx range value 206 - 255) 0-255 256 color temp. Correction Macros: 0 = 2000°K / 128 = 4500°K / 255 = 7200°K IF CHANNEL 7 (White) = NO FUNCTION (Dmx range value 0 - 43) No Function 0-255...
  • Page 33 FOS 100 COLOUR MACROS DMX CHANNEL Parameter: PLEASE CHECK PAGE 13 ENTER MENU Up-Down Up-Down ENTER Up-Down ENTER Move DMX range Mid point range Mode Option Function Value DMX value (degrees) No Function 0-14 15-22 Macro 1 23-30 Macro 2 Macro 3 31-38 39-46...
  • Page 34 FOS 100 DMX PROTOCOL FOS 100 SOLO FULL WHITE CT (Shutter + Dimmer + RGBA) 6 CHANNELS MODE SHUTTER DIMMER RED = WHITE 1 GREEN = WHITE 2 BLUE = WHITE 3 AMBER = WHITE 4 DMX CHANNEL SHUTTER Parameter: Move DMX range Mid point...
  • Page 35 FOS 100 GREEN = WHITE 2 Parameter: DMX CHANNEL Move DMX range Mid point Mode Option Function range Value DMX value (degrees) 0-255 Proportional colour BLUE = WHITE 3 Parameter: DMX CHANNEL Move DMX range Mid point Mode Option Function range Value DMX value...
  • Page 36 FOS 100 “WALL” 6 CHANNELS MODE (For use with DTS Wall mounted DMX controller 0514L007) 6 CHANNELS GREEN ENTER MENU Up-Down ENTER Up-Down BLUE DIMMER NOT USED SHUTTER GREEN DMX CHANNEL Parameter: Move DMX range Mid point range Mode Option...
  • Page 37 FOS 100 DMX PROTOCOL FOS 100 SOLO FULL WHITE CT M4CH mode (5 DMX channels; Dimmer + RGBA) DIMMER RED = WHITE 1 GREEN = WHITE 2 BLUE = WHITE 3 AMBER = WHITE 4 DMX CHANNEL DIMMER Parameter: Move DMX range Mid point Mode...
  • Page 38 FOS 100 DMX PROTOCOL FOS 100 SOLO FULL WHITE CT RGBA mode (4 DMX channels) RED = WHITE 1 GREEN = WHITE 2 BLUE = WHITE 3 AMBER = WHITE 4 RED = WHITE 1 Parameter: DMX CHANNEL Move DMX range Mid point range Mode...

  • Page 39: Wiring Diagram

    FOS 100 WIRING DIAGRAM FOS 100 FULL RGBW and FOS 100 FULL WHITE CT are provided with an M12 male connector (30 cm cable length). M12 LED input M12 LED output LEDs Connector PinOut Male cable connector Female panel connector 1-RED + / WHITE 1 + on board:...

  • Page 40: Wiring Connections

    FOS 100 WIRING CONNECTIONS FOS 100 FULL RGBW M12 LED input Pin 1 = RED + Pin 2 = RED - Male cable connector Pin 3 = GREEN + on board: Pin 4 = GREEN - FOS 100 Pin 5 = BLUE + Pin 6 = BLUE - Pin 7 = AMBER + Pin 8 = AMBER -...
  • Page 41 FOS 100 WIRING CONNECTIONS FOS 100 FULL RGBW Pin1 FOS 100 FULL WHITE CT PIN CONNECTOR MALE ON BOARD FOS 100 Z8 IP20 (M12 OUTPUT) LED Controller (Code 03.LA.080.V2) LEDs OUT 8 LEDs OUT 7 LEDs OUT 6 LEDs OUT 5 FOS 100 FULL RGBW LEDS CONNECTOR PINOUT (M12)
  • Page 42 FOS 100 NOTES...
  • Page 43 FOS 100 NOTES...

  • Page 44: Made In Italy

    ISO 9001:2008 standard D.T.S. products are designed and manufactured at the D.T.S. plants in italy *0517I075* 0517I075 D.T.S. Illuminazione s.r.l - Via Fagnano Selve 10-12-14 47843 - Misano Adriatico (RN) Italy Tel. +39 0541 611131 Fax +39 0541 611111 info@dts-lighting.it www.dts-lighting.it...
