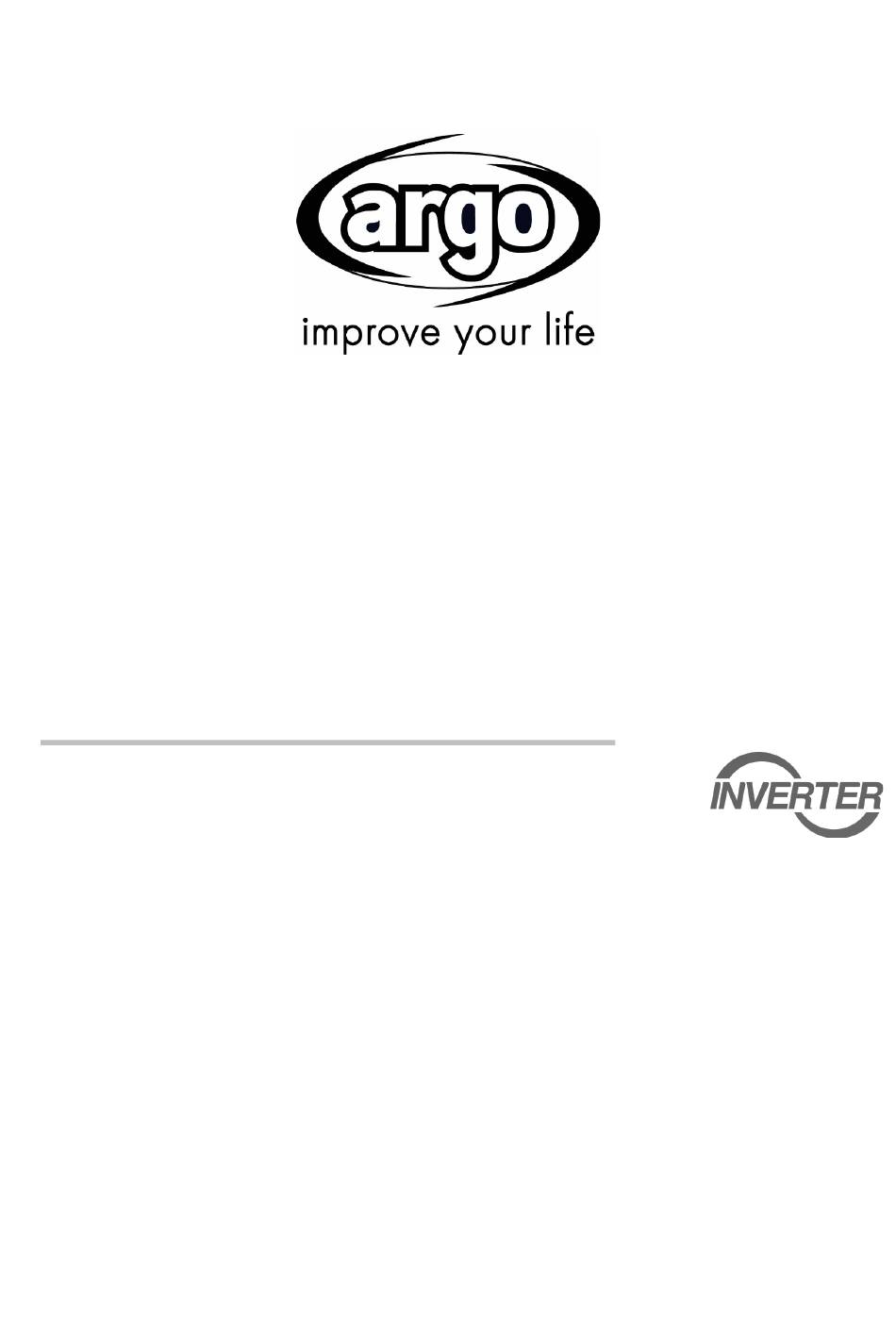

USER MANUAL and INSTALLATION GUIDE
INDOOR UNIT
GREENSTYLE PLUS 9000 UI
GREENSTYLE PLUS 12000 UI
GREENSTYLE PLUS 18000 UI
GREENSTYLE PLUS 24000 UI
Please read this manual carefully before installing and using the air conditioner, and retain for future reference.
V 11/21
GREENSTYLE PLUS
SINGLE SPLIT AIR
CONDITIONERS – R32
OUTDOOR UNIT
GREENSTYLE PLUS 9000 UE
GREENSTYLE PLUS 12000 UE
GREENSTYLE PLUS 18000 UE
GREENSTYLE PLUS 24000 UE
V 11/21
42
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Argo GREENSTYLE PLUS 9000 UI
Summary of Contents for Argo GREENSTYLE PLUS 9000 UI
- Page 1 GREENSTYLE PLUS SINGLE SPLIT AIR CONDITIONERS – R32 USER MANUAL and INSTALLATION GUIDE INDOOR UNIT OUTDOOR UNIT GREENSTYLE PLUS 9000 UI GREENSTYLE PLUS 9000 UE GREENSTYLE PLUS 12000 UI GREENSTYLE PLUS 12000 UE GREENSTYLE PLUS 18000 UI GREENSTYLE PLUS 18000 UE...
-
Page 2: Table Of Contents
INDEX General warnings………………………………………………………….……..…..44 Safety precautions……………………………………………………..………..…...45 Notices for usage…………………………………………………………………..…47 Description of parts………………………………………………….………..…..49 Remote controller Guide…………………..……………………………………...…50 Wifi Guide…………………………………………………………………………..55 Clean and care…………………………………………………………….………….59 Troubleshooting……………………………………………………..………..….……61 Notices for installation..………………………………………………………...…..63 Indoor unit installation……………………………………………………………..68 Outdoor unit installation………………………………………………..…..……..71 Maintenance notes………………………………………………...……………...….74 Warnings for the refrigeration system specialist…………………………………..77 REQUIREMENTS FOR INSTALLATION AND MAINTENANCE PERSONNEL All personnel who carry out installation and / or maintenance operations on the units must be equipped with PEF (European Refrigerators License) as required by the D.P.R. -
Page 3: General Warnings
General warnings Appliance filled with flammable gas R32. Before using the appliance, read the owner’s manual. Before installing the appliance, read the installation manual. Before repairing the appliance, read the service manual. The Refrigerant • To realize the function of the air conditioner unit, a special refrigerant circulates in the system. The refrigerant is the fluoride R32 = GWP (Global warming potential). -
Page 4: Safety Precautions
SAFETY PRECAUTIONS This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. - Page 5 Don't use air conditioner in Don't put hands or any objects into Please note whether the installed lightning storm weather. the air inlets or outlets. stand is firm enough or not. Power supply should be cut in time to This may cause personal injury or If it is damaged, it may lead to the fall prevent the occurrence of danger.
-
Page 6: Notices For Usage
Don’t open the windows and doors for long time when the air conditioner is running. Don’t stand on the top of the outdoor unit or place heavy things Don’t use the air conditioner for on it. This cloud cause personal other purposes, such as drying injuries or damage the unit. - Page 7 NOTES FOR HEATING FUNCTION • When the heating function is started, the indoor unit fan will not work immediately to avoid the introduction of insufficiently hot air into the environment. • When the outdoor temperature is very low and the humidity is high, ice may form on the heat exchanger of the outdoor unit.
-
Page 8: Description Of Parts
DESCRIPTION OF PARTS INDOOR UNIT Emergency button OUTDOOR UNIT Note: All the illustrations in this manual are for explanation purpose only. Your air conditioner may be slightly different. The actual shape shall prevail. V 11/21... -
Page 9: Remote Controller Guide
REMOTE CONTROL USER GUIDE 1. At first time use of the remote controller, install the batteries and ensure that the "+"and "-" poles are correctly positioned. To insert the batteries, follow the instructions below: Fig.1 Fig.2 Fig.3 • Slide to open the cover according to the direction indicated by the arrowhead (Fig.1) •... - Page 10 BUTTONS DESCRIPTION 1. ON/OFF button With this button you can turn the unit on or off. This button can also be used to reset the timer and the SLEEP function. 2. °C/ °F button Press this button to select the temperature unit of measurement, the selectable units are Fahrenheit (° F) or Celsius (° C) which is the default unit.
- Page 11 5. iFEEL button Pressing this button activates the IFeel function. The LCD screen shows the room temperature and when the function is canceled it shows the set temperature. This function is not active in AUTO and FAN mode. 6. TIMER button When the air conditioner is on, press this button to deactivate the TIMER function, or when it is off to activate it.
- Page 12 11. SLEEP button By pressing the SLEEP button, the indoor unit light flashes. After setting the Sleep mode, in the cooling function, the temperature will increase by 1 ° C in one hour, then it will automatically increase by 1 ° C again after another hour. After setting the Sleep mode, in the heating function, the temperature will decrease by 2 °...
- Page 13 Automatic mode (AUTO) 1. Press the "MODE" button, select the automatic operation mode. 2. By pressing the "SPEED" button, you can select the fan speed from LOW, MID, HIGH, AUTO. 3. Press the "ON/OFF" button, the air-conditioner starts to operate. 4.
-
Page 14: Wifi Guide
WIFI GUIDE INTRODUCTION The AC system is equipped with remote control technology, with the WI-FI module inside the machine connected to the display panel and the command to run the AC transmitted. The AC system is in constant connection with a wireless router or access point attached to the Internet. - Page 15 1. SCAN Function: By clicking “scan” and scanning the QR code on the right (See Fig.3) Fig.3 After scanning the QR code, enter the activation code 6364d (image 1) and click on activate (image 2) RESET AC WI-FI MODULE For first time configuration or after changing the connected wireless router is, the WI-FI module inside the air conditioner needs to be reset, following the indications here below: When AC is running, press “HEALTH”...
- Page 16 Fig.4 Note: If the device is not connected successfully, please reset the air conditioner Wi-Fi in the same way. SMARTPHONE, PAD OR OTHER MOBILES TERMINALS CONNECT TO WIFI OR HOTSPOT Activate the WI-FI function of the mobile device and connect it to a wireless router or an access point Note: A wireless router is required for the WI-FI function to work.
- Page 17 Note: 1. For first time configuration or after the connected wireless router or access point is changed, make sure the mobile device is already connected to the wireless router or access point to be paired with the WI-FI module. 2. If the configuration is failed, press “Config faild check items” to check them notes about the failure before reconfigure the AC.
-
Page 18: Clean And Care
§ Besides, as the operation interface and the function of the software is under constant improvement, we will keep you informed about the subsequent upgrades for your updating. § As the operation interface may change due to the constant version upgrading, the figures in this manual are for reference only, so please rely on the actual operation interface. - Page 19 2. Release the air filter from the slot and remove it. Clean the air filter Use a vacuum cleaner or water to rinse the filter, and if the filter is very dirty (for example, with greasy dirt), clean it with warm water (below 45°C) with mild detergent, and then put the filter in the shade to dry in the air.
-
Page 20: Troubleshooting
TROUBLESHOOTING Do not repair the air conditioner by yourself as wrong maintenance may cause electric shock or fire or explode, please contact the authorized service center and let the professionals conduct the maintenance, and checking the following items prior to contacting for maintenance can save your time and money. PHENOMENON TROUBLESHOOTING •... - Page 21 A slight "click" sound • Due to temperature changes, panel and other parts will swell, causing the sound of friction. → This is normal, not a fault. is heard at the of start-up or shut-down • The sound of fan or compressor relay switched on or off. When the defrosting is started or stop running, it will create sound.→...
-
Page 22: Notices For Installation
NOTICES FOR INSTALLATION Safety operation of flammable refrigerant Qualification requirement for installation and maintenance • All workers who engage with the refrigeration system should bear the valid certification awarded by the authoritative organization, and the qualification recognized by the industry for dealing with the refrigeration system. - Page 23 Filling the refrigerator circuit • Use refrigerant filling appliances specialized for R32. Make sure that different kinds of refrigerant don’t contaminate one another. • The refrigerant tank should be kept upright when filling with the refrigerant. • Stick the label on the system after filling is finished. •...
- Page 24 REQUIREMENTS FOR INSTALLATION • Avoid places of inflammable or explosive gas leakage or where there are strongly aggressive gases. • Avoid places subject to strong artificial electric/magnetic fields. • Avoid places subject to noise and resonance. • Avoid severe natural conditions (e.g. heavy lampblack, strong sandy wind, direct sunshine or high temperature heat sources).
- Page 25 • The size of the interconnection cord, power cable, fuse, and switch needed is determined by the maximum current of the unit. The maximum current is indicated on the nameplate located on the side panel of the unit. Refer to this nameplate to choose the right cable, fuse, or switch.
- Page 26 Do not use the appliance if the power cable or plug are damaged. If the power cable is damaged it must be replaced by the manufacturer, retailer or other qualified person to avoid a hazard. Since the temperature of the cooling circuit is high, keep the interconnecting cable away from the copper pipe. The unit must be installed in accordance with national wiring regulations.
-
Page 27: Indoor Unit Installation
OTHERS • The connection method of the air conditioner and the power cable and the interconnection method of each independent element shall be subject to the wiring diagram affixed to the machine. • The model and rating value of the fuse shall be subject to the silkscreen on corresponding controller or fuse sleeve. INSTALLATION OF INDOOR UNIT DIMENSION DRAWING OF INDOOR UNIT INSTALLATION MOUNTING PLATE... - Page 28 ROUTE OF PIPELINE Depending on the position of the unit, the piping may be routed sideway from the left or the right (Fig 1), or vertically from the back (Fig 2) (depending on the pipe length of the indoor unit). DRAIN PIPE CONNECTION 1.
- Page 29 FIXING THE INDOOR UNIT 1. Hang the indoor unit on the peg board, and move the unit from left to right to ensure that the hook is properly positioned in the peg board. 2. Push toward the lower left side and the upper right side of the unit toward the peg board, until the hook is embedded in the slot and makes a "click"...
-
Page 30: Outdoor Unit Installation
INSTALLATION OF OUTDOOR UNIT DIMENSION DRAWING OF OUTDOOR UNIT INSTALLATION V 11/21... - Page 31 REFRIGERATING CONNECTIONS Use equipment and connecting pipes suitable for R32 refrigerator. MODELS 9000 12000 18000 24000 Standard refrigerant charge piping length Maximum length of pipes with additional charge Additional charge g/m Always write the additional refrigerant charge on the data label affixed to the unit outside. INSTALL THE CONNECTION PIPE Connect the Outdoor Unit with Connecting Pipe: Aim the counter-bore of the connecting pipe at the stop valve, and tighten the Taper nut with fingers.
- Page 32 WIRING DIAGRAM Variable speed If there is a connector, connect it directly NOTE: The diagram are for reference only. Please refer to the detailed wiring diagram adhered on the unit which you purchased. VACUUMING ★Exclusive R32 refrigerant pump must be used in making R32 refrigerant vacuum. Before working on the air conditioner, remove the cover of the stop valve (gas and liquid valves) and be sure to retighten it afterward (to prevent the potential air leakage)
-
Page 33: Maintenance Notes
CHECK AFTER INSTALLATION ★ Electrical Safety Check 1. If the supply voltage is as required. 2. If there is any faulty or miss connection in each of the power, signal and grounding wires. 3. If the grounding wire of the air conditioner is securely grounded. ★... - Page 34 APPENDICES Piping configuration Connecting pipe diameter Additional refrigerant Liquid pipe (mm) Gas pipe (mm) (g/m) 6.35 9.52 Procedure for extending the piping N.B.: Improper extension of piping is the main cause of refrigerant leaks. Proceed as shown below: 1. Cut the pipe 5.
- Page 35 tubo pipe limatrice file verso il basso downwards 3. Secure an insulating tube 4. Install a union nut • Remove the union nut on the indoor connecting pipe and outdoor valve. Install the union nut on the pipe. superficie liscia smooth surface allargamento imperfetto defective expansion...
-
Page 36: Warnings For The Refrigeration System Specialist
Warnings for the refrigeration system specialist Here are warnings and safety instructions for the maintenance of systems containing flammable refrigerant (repairs should only be carried out by specialists). a) Any person involved in the work or in the interruption of a refrigeration circuit must be equipped with PEF (European Refrigerators License) as required by the D.P.R. - Page 37 If hot work is to be performed on the refrigeration equipment or any associated part, adequate fire fighting equipment must be available. It is necessary to have a dry powder or CO2 extinguisher adjacent to the charging area. g) Ventilated area Make sure the area is outdoors or is adequately ventilated before breaking into the system or performing any hot work.
- Page 38 • the recovery process is supervised at all times by a competent person; • Recovery equipment and cylinders comply with appropriate standards. D. If possible, drain the refrigerant system. E. If vacuum is not possible, make a manifold so that the refrigerant can be removed from the various parts of the system.
- Page 39 For appliances containing flammable refrigerants, the system must be flushed with OFN to make the unit safe. You may need to repeat this process several times. Compressed air or oxygen must not be used for purging refrigerant systems. For appliances containing flammable refrigerants, flushing must be achieved by breaking the vacuum in the system with OFN and continuing to fill until the operating pressure is reached, then discharging to the atmosphere and finally lowering the vacuum.
