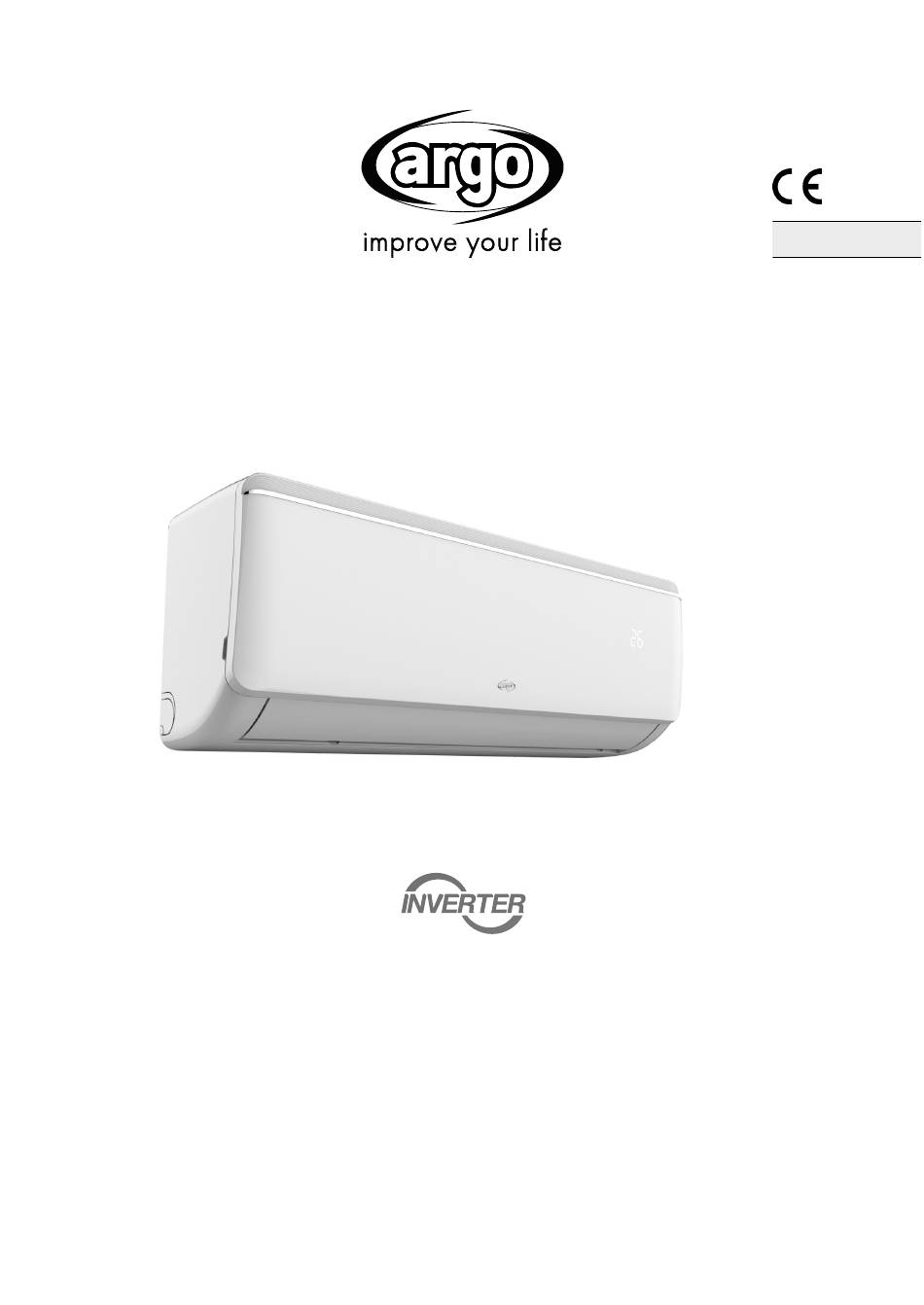

G R E E N S T YL E T O P D U AL
MU LTI SPL I T AIR CO ND ITIO NE R S- R 32
U SER MANU AL an d INS TA L L ATIO N GU IDE
INDOOR UNIT
GREENSTYLE TOP DUAL 9000 UI
GREENSTYLE TOP DUAL 12000 UI
Please read this manual carefully before installing and using the air conditioner, and retain for future
reference.
OUTDOOR UNIT
GREENSTYLE TOP DUAL 14000 UE
V 12/23
E N

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GREENSTYLE TOP DUAL Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Argo GREENSTYLE TOP DUAL Series

  • Page 1 G R E E N S T YL E T O P D U AL MU LTI SPL I T AIR CO ND ITIO NE R S- R 32 U SER MANU AL an d INS TA L L ATIO N GU IDE INDOOR UNIT OUTDOOR UNIT GREENSTYLE TOP DUAL 9000 UI...
  • Page 2: Table Of Contents

    INDEX General warnings Safety precautions Notices for usage Description of parts Remote control guide WiFi guide Cleaning and care Troubleshooting Notices for the installation Indoor unit installation Outdoor unit installation Maintenance notes Warnings for the refrigeration system specialist REQUIREMENTS FOR INSTALLATION AND MAINTENANCE PERSONNEL All personnel who carry out installation and/or maintenance operations on the units must be equipped with PEF (European Refrigerators License) as required by the D.P.R.
  • Page 3: General Warnings

    GENERAL WARNINGS Appliance filled with flammable Before using the appliance, read the owner’s manual. gas R32. Before installing the appliance, Before repairing the appliance, read the read the installation manual. service manual. THE REFRIGERANT R32 • To realize the function of the air conditioner unit, a special refrigerant circulates in the system. The refrigerant is the fluoride R32 = GWP (Global warming potential).
  • Page 4: Safety Precautions

    SAFETY PRECAUTIONS WARNING • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Page 5 be cut in time to prevent the occurrence of danger. • Don’t put hands or any objects into the air inlets or outlets. This may cause personal injury or damage to the unit. • Please note whether the installed stand is firm enough or not. If it is damaged, it may lead to the fall of the unit and cause the injury.
  • Page 6: Notices For Usage

    INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH THE EUROPEAN DIRECTIVE 2012/19/EU At the end of its working life this equipment must not be disposed of as an household waste. It must be taken to special local community waste collection centres or to a dealer providing this service. Disposing of electrical and electronic equipment separately avoids possible negative effects on the environment and human health deriving from an inappropriate disposal and enables its components to be recovered and recycled to obtain significant savings in energy and resources.
  • Page 7: Description Of Parts

    DESCRIPTION OF PARTS INDOOR UNIT Air inlet Emergency button Air inlet grille Panel Air filter Pipe protection ring Air louver Air vent Air outlet Air inlet OUTDOOR UNIT Air outlet grille Connecting pipe Drain hose Air outlet Note: all the illustrations in this manual are for explanation purpose only. Your air conditioner may be slightly different.
  • Page 8: Remote Control Guide

    REMOTE CONTROL USER GUIDE When using the remote control for the first time, install the batteries making sure to correctly position the two polarities “+” and “-”. To insert the batteries, follow the instructions below: • Open the battery compartment by sliding the door outwards (see the direction of the arrow in fig.1). •...
  • Page 9 BUTTONS DESCRIPTION 1. ON/OFF button Press this button to turn the unit on or off. This button can also be used to reset the timer and the SLEEP function. 2. MODE button Press this button to select the operating mode: AUTO (automatic) - COOL (cooling) - DRY (dehumidification) - HEAT (heating) - FAN (ventilation), according to the sequence below: 3.
  • Page 10 In FAN (ventilation) mode it is possible to select the ventilation speed between Low - Mid - High, but it is not possible to set the Turbo speed. In AUTO mode (automatic) it’s possible to select the fan speed and set the Turbo speed. In DRY (dehumidification) mode it is not possible to select the ventilation speed.
  • Page 11 ELE.H function (NOT AVAILABLE) With the unit turned on, press the Menu button and using the + - and U/D SWING or L/R SWING buttons select the ELE.H function, pressing OK on the corresponding indication shown on the display. To deactivate this function, again using the Menu button and the selection buttons, press OK on the ELE.H indication, which will turn off.
  • Page 12 8°C heating function With the unit turned on, press the MODE and + buttons for 3 seconds to activate this function. Compressor and fans operate at very low speed to maintain a minimum temperature of 8°C in the room with very low consumption. OPERATION MODE Automatic mode (AUTO) •...
  • Page 13: Wifi Guide

    WIFI GUIDE INTRODUCTION The air conditioner is equipped with remote control technology, with a Wi-Fi module inside the appliance connected to the display and the air conditioner control. The air conditioner must be in constant connection with a wireless router or access point connected to the internet.
  • Page 14: Cleaning And Care

    CLEAN AND CARE WARNING • Before the cleaning of the air conditioner, it must be shut down and the electricity must be cut off for more than 5 minutes, otherwise there might be the risk of electric shocks. • Do not wet the air conditioner, which can cause an electric shock. Make sure not to rinse the air conditioner with water under any circumstances.
  • Page 15: Troubleshooting

    TROUBLESHOOTING WARNING Do not repair the air conditioner by yourself as wrong maintenance may cause electric shock or fire or explode, please contact the authorized service center and let the professionals conduct the maintenance, and checking the following items prior to contacting for maintenance can save your time and money. Phenomenon Causes Troubleshooting...
  • Page 16: Notices For The Installation

    WARNING Immediately stop operation of the appliance, disconnect the electricity and contact the nearest Technical Assistance Centre in the following cases: • Hear any harsh sound or smell any awful odor during running. • Abnormal heating of power cable and plug occurs. •...
  • Page 17 Filling the refrigerator circuit • Use refrigerant filling appliances specialized for R32. Make sure that different kinds of refrigerant don’t contaminate one another. • The refrigerant tank should be kept upright when filling with the refrigerant. • Stick the label on the system after filling is finished. •...
  • Page 18 outdoor unit shall be installed at a well-ventilated place. • Check the surrounding environment of installation site: R32 shall not be installed in the enclosed reserved space of a building. • When using electric drill to make holes in the wall, check first whether there is pre-buried pipeline for water, electricity and gas.
  • Page 19 • Make sure that the power supply matches the requirements of the air conditioner. An unstable power supply or incorrect wiring may result in a fault. Install suitable power cables before switching on the air conditioner. • Correctly connect the live, neutral and earth wires to the power outlet. •...
  • Page 20 INSTALLATION OF INDOOR UNIT DIMENSION DRAWING OF INDOOR UNIT INSTALLATION Space to the ceiling 15 cm above Space to the Space to wall the wall 20 cm above 20 cm above 200 cm above Space to the floor MOUNTING PLATE 1.
  • Page 21 Note: carefully check if there is any damage of joints before installation. The joints shall not be reused, unless after re-flaring the pipe. Tightening torque table The size of pipe (mm) Torque (N • m) Ф6/Ф6.35 15~25 Ф9/Ф9.52 35~40 Ф12/Ф12/Ф7 45~60 Ф15.88 73~78...
  • Page 22 INSTALLATION OF OUTDOOR UNIT DIMENSION DRAWING OF OUTDOOR UNIT INSTALLATION Space to the obstruction Air in side Space to the obstruction Space to the obstruction Air out side Installation outdoor unit bolt Outdoor unit size oh shape A (mm) B (mm) W1(W2)*H*D (mm) 785x300x555 800x315x545...
  • Page 23: Indoor Unit Installation

    operation and performance of the air conditioner will not be compromised Note: 1. This table is for reference only. 2. The joints shall not be reused, unless after re-flaring the pipe. 3. After installation, check the stop valve cover whether be fixed effectively. WIRING CONNECTION E-parts cover 1.
  • Page 24: Outdoor Unit Installation

    Outdoor unit Connection between outdoor unit and indoor unit. Notes: Dotted line part in the Electronic Expansion Valve Temperature Sensor 4-Way frame may not be used Valve (T1) (T2) (T3) (T4) (T5) (T11) (T12) (T13) (T14) (T31) (T32) T151 T201 T202 T203 T501 T201 T202 T203 T204...
  • Page 25 CHECK AFTER INSTALLATION • Electrical Safety Check 1. If the supply voltage is as required. 2. If there is any faulty or miss connection in each of the power, signal and grounding wires. 3. If the grounding wire of the air conditioner is securely grounded. •...
  • Page 26: Maintenance Notes

    MAINTENANCE NOTES ATTENTION: for maintenance or scrap, please contact authorized service centers. Maintenance by unqualified person may cause dangers. APPENDICES Connecting pipe diameter Piping configuration: Liquid pipe (mm) Gas pipe (mm) 2x6,35 (1/4”) 2x9,52 (3/8”) PROCEDURE FOR EXTENDING THE PIPING Note: improper extension of piping is the main cause of refrigerant leaks.
  • Page 27: Warnings For The Refrigeration System Specialist

    WARNINGS FOR THE REFRIGERATION SYSTEM SPECIALIST Here are warnings and safety instructions for the maintenance of systems containing flammable refrigerant (repairs should only be carried out by specialists). 1. Any person involved in the work or in the interruption of a refrigeration circuit must be equipped with PEF (European Refrigerators License) as required by the D.P.R.
  • Page 28 1. the correct specifications. The manufacturer’s maintenance and service guidelines should always be followed. If in doubt, consult the manufacturer’s technical department for assistance. 2. Repairs on sealed components. During repairs to sealed components, all electrical supplies must be disconnected from the equipment being worked on before removing the sealed covers, etc.
  • Page 29 If compressors or compressor oils need to be removed, make sure they have been evacuated to an acceptable level to ensure that flammable refrigerant does not remain within the lubricant. The evacuation process must be carried out before returning the compressor to suppliers. To speed up this process, only electrical heating of the compressor body must be used.
  • Page 30 REGULATION (EU) No. 517/2014 - F-GAS The unit contains R32, a fluorinated greenhouse gas with global warming potential (GWP) = 675. Do not release R32 into the atmosphere. GREENSTYLE TOP DUAL 14000 UE - Kg. 1,0 = 0,675 Tonn CO equiv.
