EN

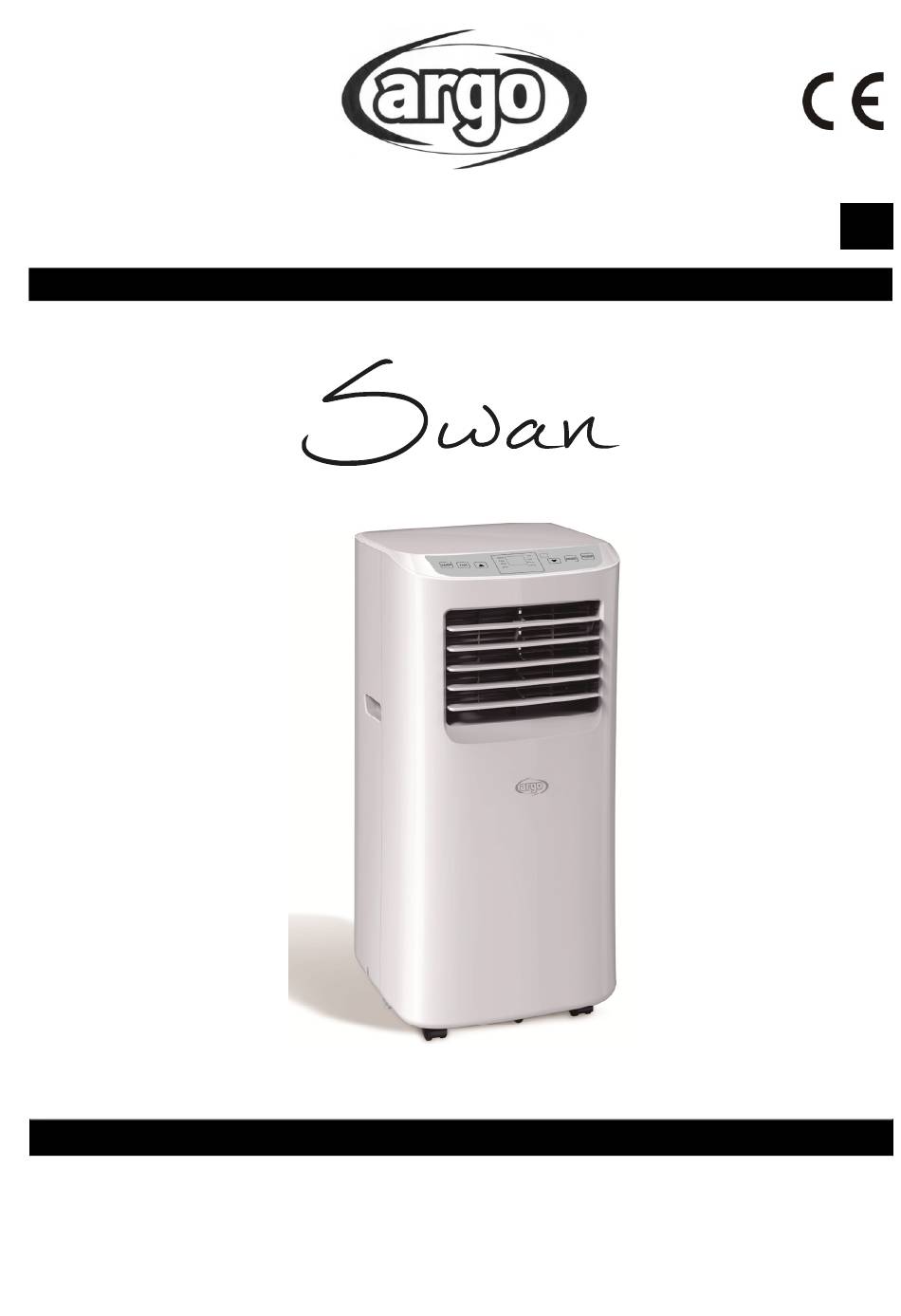

PORTABLE AIR CONDITIONER (LOCAL)
OPERATING INSTRUCTIONS
Read the instructions carefully before operating the appliance or carrying out maintenance work.
Observe all the safety instructions; failure to do so may lead to accidents and/or damage. Store these
instructions in a safe place for future reference.
V 12/16
14

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SWAN and is the answer not in the manual?

Questions and answers

Related Manuals for Argo SWAN

Summary of Contents for Argo SWAN

  • Page 1 PORTABLE AIR CONDITIONER (LOCAL) OPERATING INSTRUCTIONS Read the instructions carefully before operating the appliance or carrying out maintenance work. Observe all the safety instructions; failure to do so may lead to accidents and/or damage. Store these instructions in a safe place for future reference. V 12/16...
  • Page 2 GENERAL OPERATING AND SAFETY INSTRUCTIONS  This appliance is a portable air conditioner designed for domestic use.  Only use this air conditioner as described in this manual.  Ensure that the required voltage and frequency (220-240 V / 50 Hz) match the available power source.
  • Page 3  This air conditioner can be used by children of 8 years or older and by persons with reduced physical, sensory and mental abilities, or lacking the necessary experience and knowledge, provided they are supervised or instructed on its use by a person responsible for their safety, so that they are fully aware of the attendant risks.
  • Page 4 WARNING! In the event of an anomaly, switch the appliance off and unplug it from the socket. Do not dismantle or attempt to repair or modify the product. In the event of a malfunction, contact the service centre directly. WARNING! ...

  • Page 5: Description Of The Appliance

    DESCRIPTION OF THE APPLIANCE FRONT VIEW UPPER PANEL HANDLE REAR STRUCTURE SWIVEL CASTERS CONTROL PANEL – BUTTONS FOR OPERATION WITHOUT REMOTE CONTROL REAR VIEW FINS AND AIR FLOW OUTLET FRONT STRUCTURE AIR INTAKE DRAINAGE HOLE FOR DEHUMIDIFICATION FUNCTION 10) AIR OUTLET AND FITTING 11) AIR INTAKE 12) DRAINAGE HOLE FOR COOLING FUNCTION 13) FRONT STRUCTURE...

  • Page 6: Appliance Start-Up

    APPLIANCE START-UP Open the packaging and pull out the box. Remove the product and the other elements supplied (illustrated in the box below). Infrared remote control Type-AAA – LR03 – 1.5 V batteries for remote control. Round fitting for window unit, to be positioned between the end Flexible pipe inclusive of fitting for unit and end of the tube and the window unit...
  • Page 7 5. Avoid tight bends or folds in the flexible pipe. USE WITH WINDOW UNIT KIT 1. Make a hole having a diameter of roughly 133 2. Insert the window unit into the window. mm on the glass window. 3. Insert the round fitting into the retractable flexible 4.

  • Page 8: How To Use The Appliance

    HOW TO USE THE APPLIANCE This appliance can be used for cooling, dehumidifying and ventilation purposes. Before using the appliance, leave it standing erect for at least two hours. When switching between modes, the fan continues to turn but the compressor stops: the compressor will re-start after 3 minutes.
  • Page 9 If used during summer, it is best to leave the flexible pipe attached so that the hot air is discharged towards the outside rather than into the room. During dehumidification, continuous drainage should be implemented (see the next chapter, “HOW TO ELIMINATE CONDENSATE”).

  • Page 10: Remote Control Operation

    REMOTE CONTROL OPERATION Slide the cover open in the direction indicated by the arrow. Insert the batteries (LR03/1.5 V) into the remote control and make sure the poles match. Put the cover back on. Point the remote control towards the receiver on the air conditioner.
  • Page 11 FOR OPTIMAL REMOTE CONTROL OPERATION, POINT THE TRANSMITTER HEAD TOWARDS THE RECEIVER ON THE AIR CONDITIONER. ON/OFF BUTTON TIMER BUTTON DOWN BUTTON MODE BUTTON UP BUTTON FAN BUTTON SLEEP BUTTON (1) ON/OFF BUTTON Press this button to switch the unit on or off. (2) TIMER BUTTON a.

  • Page 12: Care And Maintenance

    (7) SLEEP BUTTON In cooling mode, press the UP and FAN buttons to activate the Sleep mode, after which the unit will return to the silent mode and save energy. N.B.: The Sleep function is not available in the dehumidifying or fan modes. CARE AND MAINTENANCE WARNING! Before carrying out any cleaning or maintenance operations, unplug the appliance.
  • Page 13 TIPS FOR MAXIMISING COMFORT AND MINIMISING CONSUMPTION CHECK that:  the unit intake and delivery grilles are always free;  the air filters are always clean; a dirty filter will decrease the passage of air and reduce the unit's performance; ...
