Installing the Wall Brackets

1. Determine if your floor slopes down to the left, down to the right, or is flat (Figure 2). If it slopes down
to the left, start with the far-left stud. If it slopes down to the right, start with the far-right stud.
2. Locate two studs spaced 48" apart, and all studs in between, using a stud finder (Figure 2).
3. Mark the first hole 21" from the floor and a second hole 72" from the floor centered on the far-left stud
(or right depending on your floor slope).
4. Measure down 4" from each mark from step 3 to mark the third and fourth holes.
5. Use the cordless drill and the 7/32" drill bit to drill the four marked holes at least 2-1/2" deep.
6. Align the wall bracket over the drilled holes so the ear of the wall bracket is facing down and out.
Using an impact driver and 1/2" socket, fasten the first upper wall bracket to the wall with two 5/16"
lag screws (3) and washers (4) (Figure 3).
7. Center the lag screws in the slots of the wall bracket and use the level to check the wall bracket is
straight as you tighten the lag screws. Do not over tighten the lag screws.
8. On the same stud, repeat step 6 with the first lower wall bracket, but do not fully tighten the lag
screws.

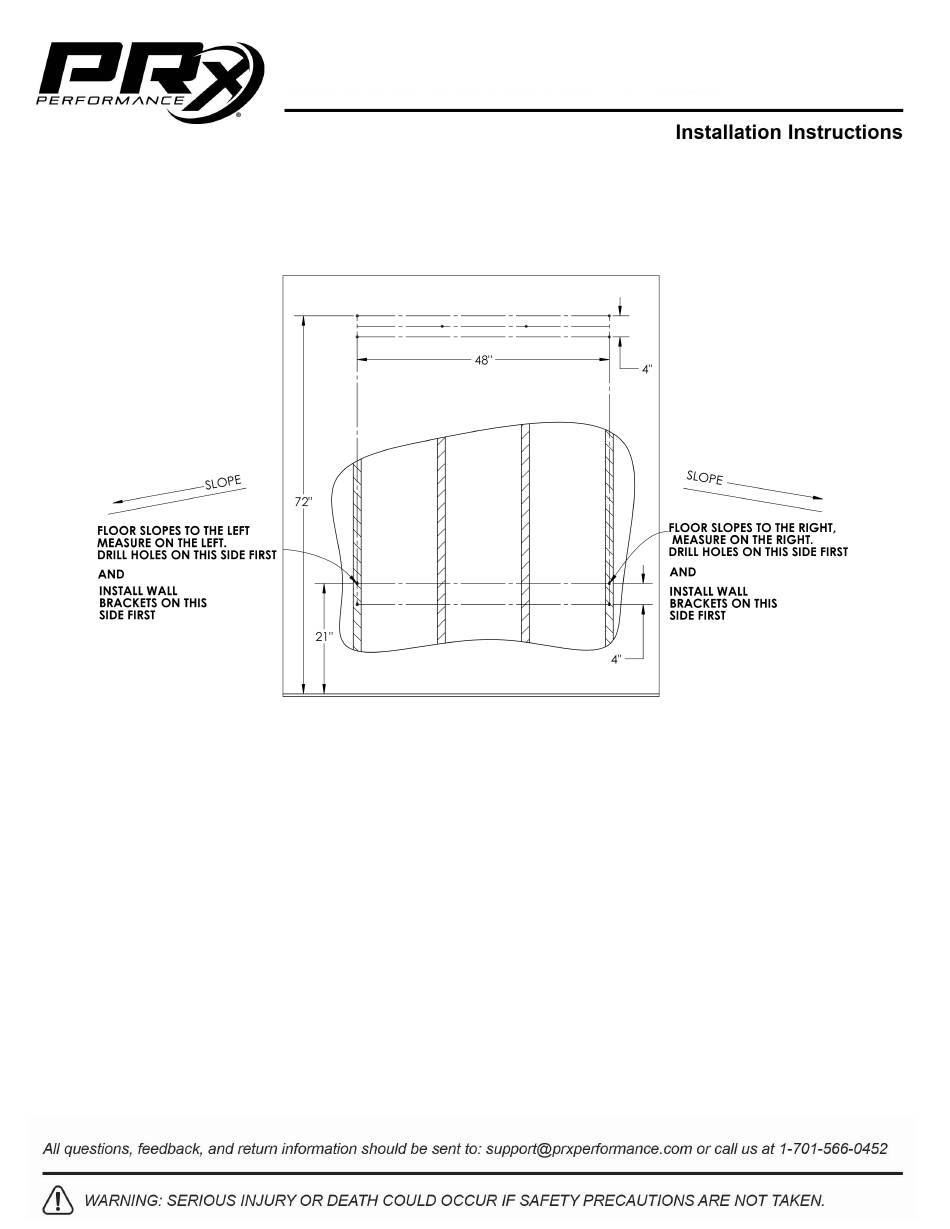

Figure 2: Hole Drill Locations
4
