Attaching the Gas Shocks
1. Lift each upright to fold the rack into the stored position.
2. Use the included bent pins (12) to lock the rack in the stored position (Figure 10).
3. Insert the stud of the gas shock through the hole in the wall bracket as shown below.
4. Using a 1/2" open-ended wrench to keep the stud from spinning, use the 1/2" wrench to install the
flange nut (16) and tighten (Figure 10).
5. Repeat for all shocks.
6. For further assistance, email support@prxperformance.com

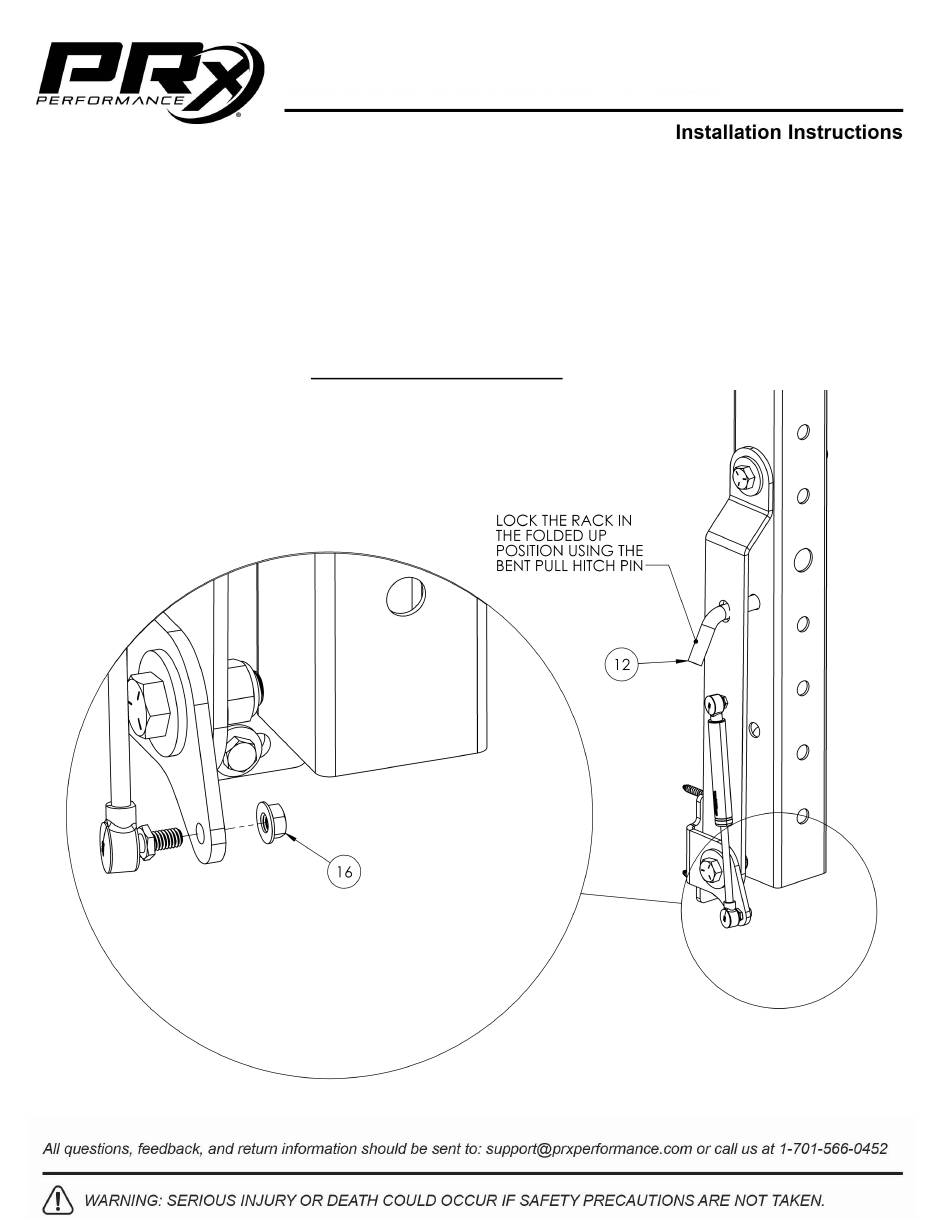

Figure 10: Attaching the Gas Shocks
