Attaching The Rack to the Linkage Arms
1. Lift one upright into place between a linkage arm and a stabilizer arm.
2. Use one 5/8" x 5" hex bolt (10) and bolt the linkage arm to the upright through the stabilizer arm using
the 5/8" x 5" hex bolt (10), two 5/8" flat washers (5), two plastic spacers (13) and one 5/8" locknut (6)
(Figure 8). Repeat this with the other side.
3. Bolt the lower linkage arm on the upright using the 5/8" x 4 1/2" hex bolt (7), two 5/8" flat washers (5),
one plastic spacer (13) and one 5/8" locknut (6) (Figure 9). Repeat this on the other side.

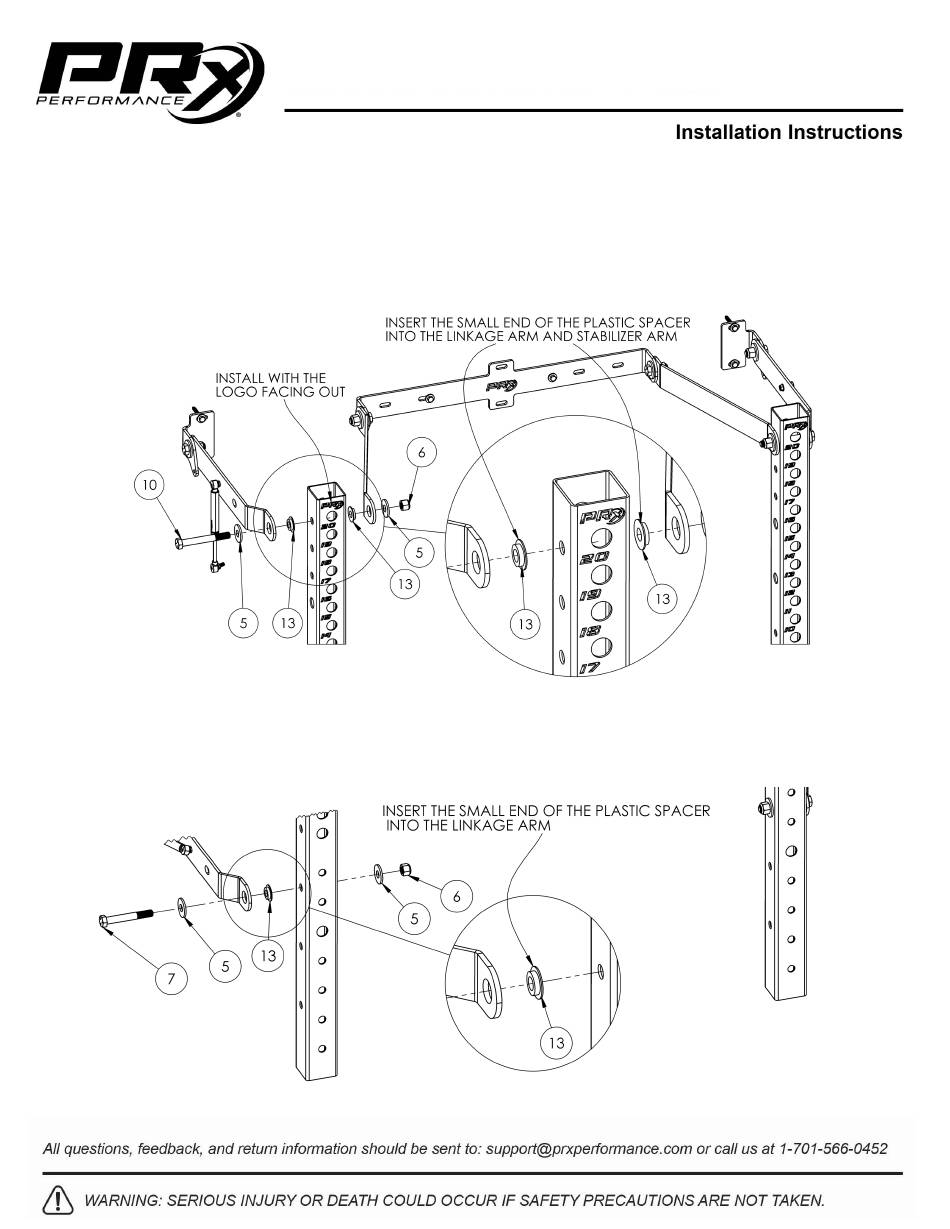

Figure 8: Bolting the Rack to the Upper Linkage Arms
Figure 9: Bolting the Rack to the Lower Linkage Arms
