PRx Performance Profile PRO Installation Instructions Manual

73” squat rack
Hide thumbs Also See for Profile PRO:

Advertisement

Quick Links

Download this manual
Tool List
•
15/16" Open End Wrench
•
7/16" Open End Wrench
•
1/2" Open End Wrench
•
15/16" Socket
•
1/2" Socket
•
Ratchet
•
4' Level
•
Plumb Bob
•
7/32" Drill Bit
•
Cordless Drill
•
Impact Driver
•
Stud Finder
•
Tape Measure
•
Pencil
Item # Description
1
Left Wall Bracket
2
Right Wall Bracket
3
5/16" x 2-1/2" Lag Screw 10
4
5/16" Flat Washer
5
5/8" Flat Washer
6
5/8" Lock Nut
7
5/8" x 4-1/2" Hex Bolt
8
5/8" x 1-3/4" Hex Bolt
9
Stabilizer Arm
10
5/8" x 5" Hex Bolt
11
73" Upright
12
Bent Hitch Pin
13
Plastic Spacer
14
Linkage Arm
15
Gas Shocks
16
Flange Nuts
17
Stabilizer Bracket
• This installation requires two people.
• Standard installation is designed for ceilings 91" or taller. If your ceilings are
shorter than 91" please refer to the table on page 3 and use the bracket height
measurements that correspond to your ceiling height.

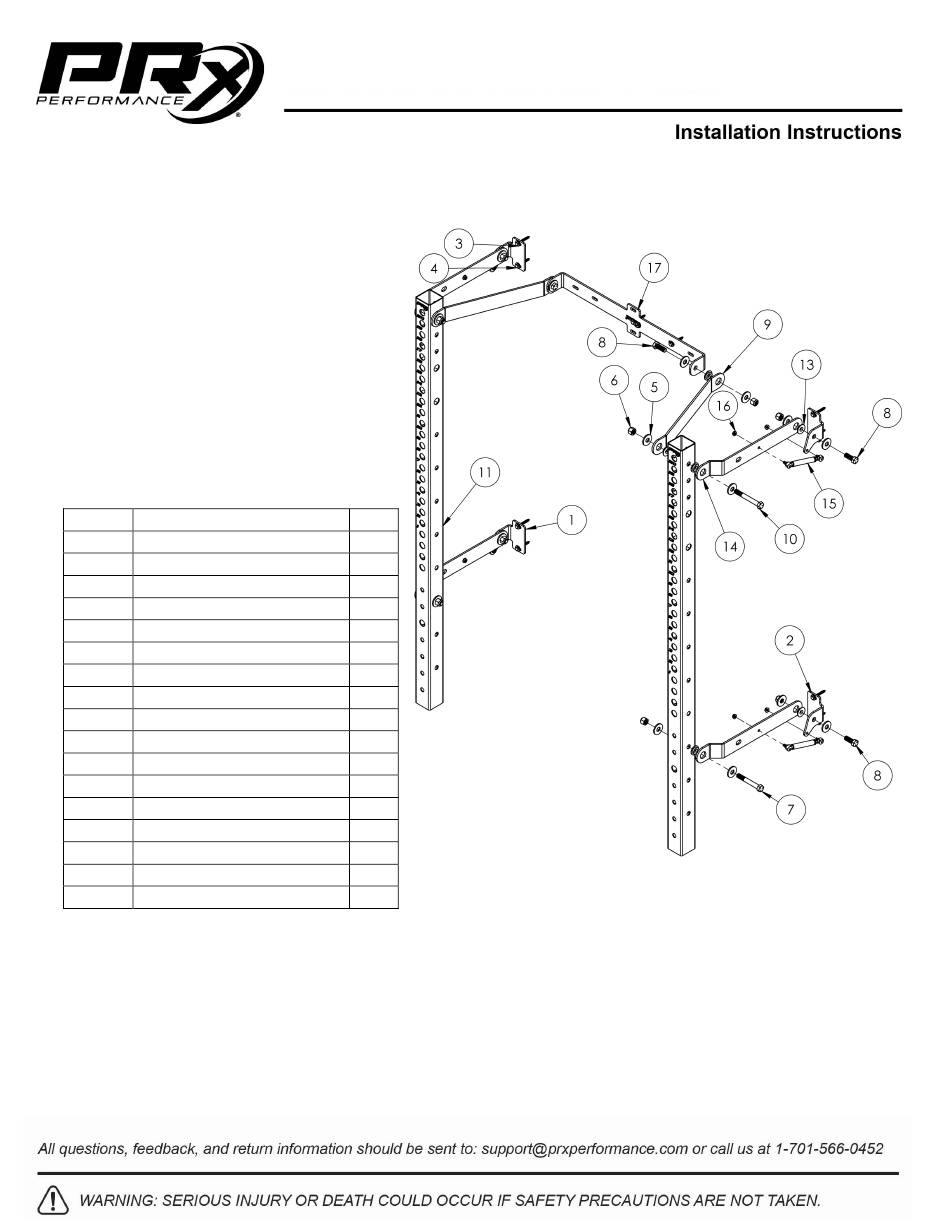

73" Profile® PRO Squat Rack
Qty.
2
2
10
20
10
2
6
2
2
2
2
(not shown)
12
4
4
8
1
060223_Rev. 1
