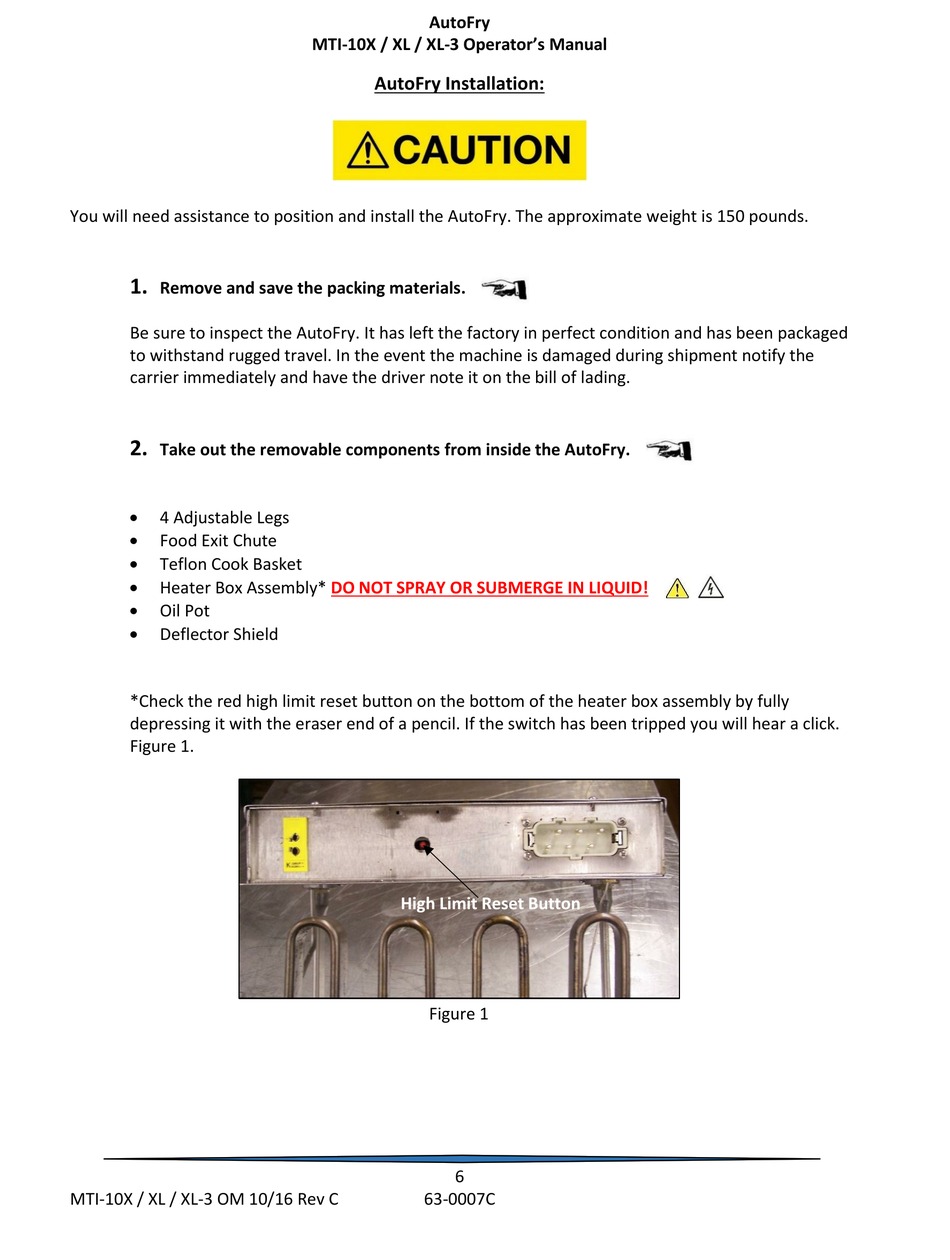

Autofry Installation - MTI AUTOFRY -10X Operator's Manual

You will need assistance to position and install the AutoFry. The approximate weight is 150 pounds.
1.
Remove and save the packing materials.
Be sure to inspect the AutoFry. It has left the factory in perfect condition and has been packaged
to withstand rugged travel. In the event the machine is damaged during shipment notify the
carrier immediately and have the driver note it on the bill of lading.
2.
Take out the removable components from inside the AutoFry.

4 Adjustable Legs

Food Exit Chute

Teflon Cook Basket

Heater Box Assembly*

Oil Pot

Deflector Shield
*Check the red high limit reset button on the bottom of the heater box assembly by fully
depressing it with the eraser end of a pencil. If the switch has been tripped you will hear a click.
Figure 1.
MTI-10X / XL / XL-3 OM 10/16 Rev C
AutoFry
MTI-10X / XL / XL-3 Operator's Manual

AutoFry Installation:

DO NOT SPRAY OR SUBMERGE IN LIQUID!
High Limit Reset Button
Figure 1
6
63-0007C
