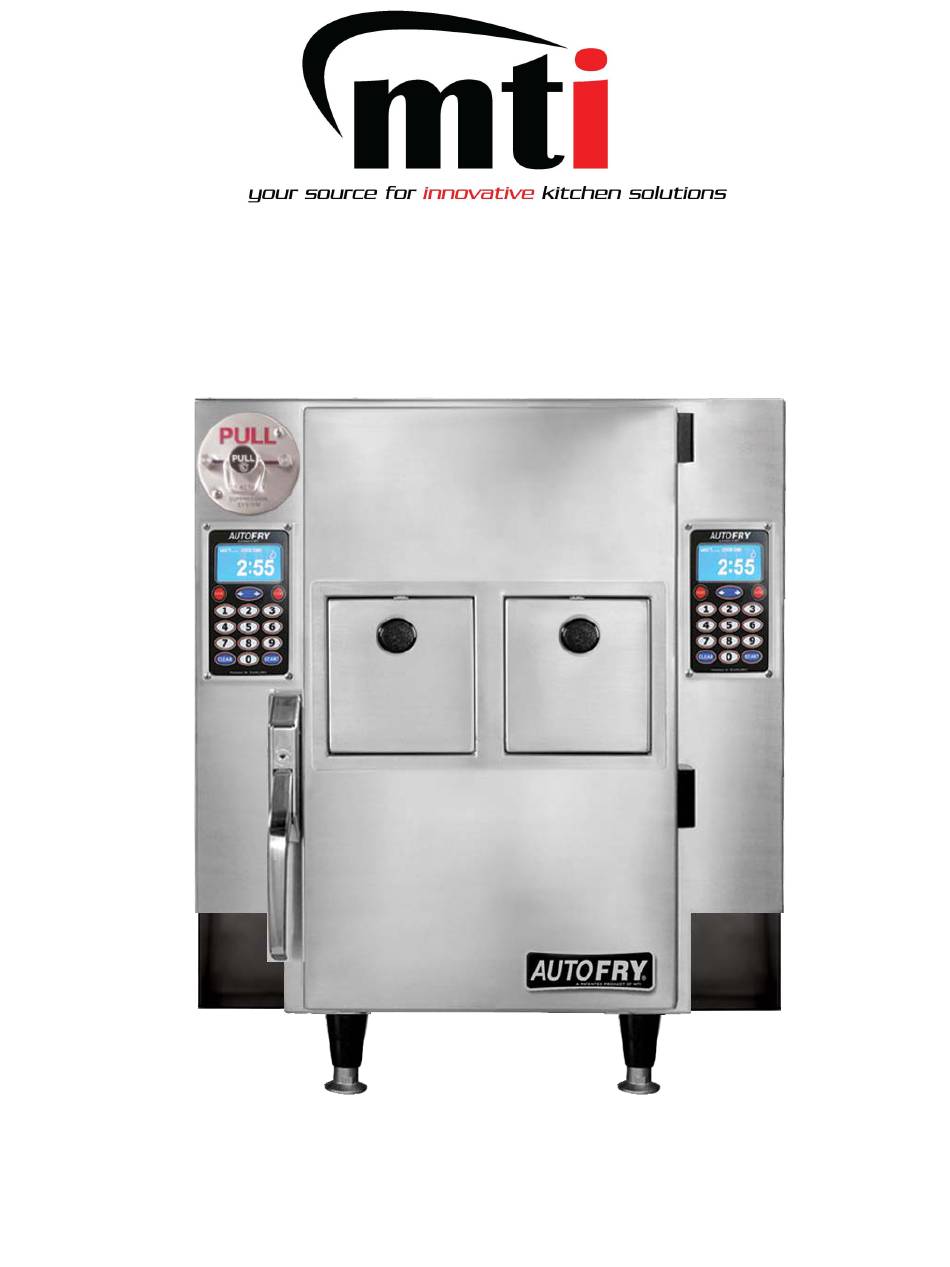

- Page 1 AUTOFRY Operator’s Manual Model Mini-C E167654...
- Page 2 AUTOFRY A Patented Product of Motion Technology, Inc. 10 Forbes Road Northborough, MA. 01532 Tel.: 800-348-2976 508-460-9800 Fax: 508-393-5750 E167654...
-
Page 3: Table Of Contents
AutoFry Mini-C Operator’s Manual TABLE OF CONTENTS TABLE OF FIGURES .........................2 SPECIFICATIONS ........................2 WARRANTY INFORMATION ....................3 GENERAL INFORMATION ......................4 SAFETY SYMBOLS ........................4 PREPARE ELECTRICAL SERVICE ....................5 PREPARE COUNTERTOP ......................5 AUTOFRY INSTALLATION ......................6 LEG INSTALLATION .........................7 INITIAL CLEANING ........................7 INSTALL CHARCOAL FILTER .....................8 INSTALL OIL POTS ........................8 INSTALL HEATER BOX ASSEMBLY ....................9 INSTALL EXIT CHUTES / TEFLON COOK BASKETS .............. -
Page 4: Table Of Figures
AutoFry Mini-C Operator’s Manual TABLE OF FIGURES FIGURE 1 – RESET HIGH LIMIT ....................6 FIGURE 2 – INSTALL LEGS ......................7 FIGURE 3A – REMOVE FOOD ENTRY CHUTE ................7 FIGURE 3B – SEPARATE FOOD ENTRY CHUTE ................7 FIGURE 4 – FILTER COVER PLATE .....................8 FIGURE 5 –... -
Page 5: Warranty Information
These warranties are in lieu of all other warranties, by MTI to sell its equipment and it is not expressed or implied, including, but not limited to transferable. -
Page 6: General Information
AutoFry Mini-C Operator’s Manual General Notes: These operating instructions contain important information about the handling of the AutoFry. Read this information carefully before using. Keep this manual available for more information. Safety Symbols: Caution – Important Risk of Electric Shock Danger of Slipping Danger of Burning Risk of Fire... -
Page 7: Prepare Electrical Service
AutoFry Mini-C Operator’s Manual Set-up & Installation: The AutoFry comes from the factory complete with everything you need to start cooking except food and oil. Following these simple instructions will have your AutoFry installed and ready to earn profits for you in as little as 30 minutes. -
Page 8: Autofry Installation
AutoFry Mini-C Operator’s Manual AutoFry Installation: You will need assistance to position and install the AutoFry. The approximate weight is 250 pounds. Remove and save the packing materials Be sure to inspect the AutoFry. It has left the factory in perfect condition and has been packaged to withstand rugged travel. -
Page 9: Leg Installation
AutoFry Mini-C Operator’s Manual Leg Installation • The AutoFry is shipped with (4) ½-13 bolts installed in leg plates. Remove the bolts before installing the legs. To remove the shipping bolts, tilt the unit back while still on its pallet and loosen by turning the bolt counterclockwise. •... -
Page 10: Install Charcoal Filter
AutoFry Mini-C Operator’s Manual Install the Charcoal Filter • Remove the filter cover plate from the back interior wall of the cooking chamber by removing the two black plastic knobs securing the cover plate. Figure 4. • Remove the charcoal filter from the plastic bag. -
Page 11: Install Heater Box Assembly
AutoFry Mini-C Operator’s Manual Install the Heater Box Assemblies • Place the heater boxes onto the electrical and thermocouple receptacles located behind each oil pot. Figures 8 & 9. • The heater plug and thermocouple plug will connect to their respective sockets on the underside of the heater box and deck of the cabinet. -
Page 12: Install Exit Chutes / Teflon Cook Baskets
AutoFry Mini-C Operator’s Manual Install the Food Exit Chutes • Slide the food exit chutes, flange side up, through the cutout on the side of the AutoFry and slip the flange over the edge of the interior wall. Figure 11. •... -
Page 13: Starting The Autofry
AutoFry Mini-C Operator’s Manual Let’s Get Cooking! Starting the AutoFry • With the main door closed and locked, press the POWER button. • The exhaust fan will start and the oil will begin heating. WAIT…HEATING, the flame icon and the current oil temperature will be displayed. -
Page 14: Begin Cooking
AutoFry Mini-C Operator’s Manual Cooking with AutoFry is as simple as Begin Cooking 1-2-3 Enter a cook time by pressing buttons 0-9 on the keypad. To cook for 2 minutes and 30 seconds: press 2, 3 and 0. The display will read 02:30. If you enter the wrong time, press CLEAR and re-enter your cook time. -
Page 15: Autofry Shut Off
AutoFry Mini-C Operator’s Manual AutoFry Shut Off Procedure: Press POWER • The display will dim, OFF at 192°F will be displayed and the oil will begin to cool. The oil will remain hot for a long period. To assure continuous air cleaning, the exhaust fan will run for 2 hours or until the oil temperature falls below 192°F. -
Page 16: The Standby Button
AutoFry Mini-C Operator’s Manual Standby STANDBY is used during off peak hours to conserve energy and maximize oil life. To Use: • Press STANDBY. STANDBY will appear on the display. The heating element will shut off and the oil will cool to, and maintain at, 300°F. To Exit: •... -
Page 17: Programming Cook Times
AutoFry Mini-C Operator’s Manual Programming Entering the programming mode: 1. Press POWER to turn the AutoFry off. 2. Press the 2 and 0 together. PASSWORD FOR ALL PROGRAMMING: The following parameters can now be accessed: Presets: The presets let you program up to 18 preset cook cycles. It is a good idea to write down your most commonly used cook times prior to programming the AutoFry. -
Page 18: Temp Compensation / Shake Feature / Counters
AutoFry Mini-C Operator’s Manual Temperature Compensation (Comp): This feature compensates for the drop in oil temperature when food is cooking. It automatically adjusts the cook time so your product comes out perfect every time. Shake Feature: This feature shakes the basket every :15 or :30 seconds during a cook cycle for less sticking and a higher quality cooked product. -
Page 19: Melt / Boil Out Parameters
AutoFry Mini-C Operator’s Manual Melt: If using a solid shortening this feature will cycle the heating element on and off until it reaches a set temperature and is completely melted. This eliminates air pockets around the element which could cause excessive temperatures at exposed sections of the heating element. -
Page 20: Recommended Cleaning Schedule
AutoFry Mini-C Operator’s Manual Recommended Cleaning Schedule IMPORTANT To ensure compliance with state, local and national health and safety standards, regular maintenance must be performed. Proper maintenance is important for your AutoFry to continue to operate without the need for a hood and duct system and is important for the health and safety of your customers. -
Page 21: Weekly Cleaning
AutoFry Mini-C Operator’s Manual Weekly Cleaning Repeat Daily Cleaning. Remove the heater box assemblies. DO NOT SPRAY OR SUBMERGE THE HEATER BOX IN LIQUID! USE CAUTION WHEN CLEANING AROUND THE TEMPERATURE PROBES! Remove the oil pots. • Discard the oil in an environmentally safe manner. •... -
Page 22: Charcoal Filter
AutoFry Mini-C Operator’s Manual IMPORTANT Charcoal Filter In order for the AutoFry to continue to perform as a ventless cooking appliance the activated charcoal MUST be changed at least every three months. This maintenance is required by your equipment warranty and requirements for ventless recirculating cooking appliances. While replacing the activated charcoal filter is easy, there will be some charcoal dust present. -
Page 23: Safety System Test
AutoFry Mini-C Operator’s Manual Safety System Test The safety system must be tested at least every six months. A qualified equipment repair technician following these instructions should perform this inspection. These tests must be started with a full oil pot of clean, cool oil. Open the main door of the AutoFry and press POWER. -
Page 24: Questions & Answers
AutoFry Mini-C Operator’s Manual Frequently Asked Questions Can I cook more than French fries in my AutoFry? Yes. The AutoFry can prepare a wide variety of products. For best results, we recommend pre- cooked, frozen products. How often should I change my oil? That depends on what and how much product you are cooking, along with the type of oil you are using. - Page 25 AutoFry Mini-C Operator’s Manual Why does my food come out oily and under cooked? First, check that you have entered the correct cook time. It may be the temperature sensing plug has become damaged or has a poor connection with grease. This will cause the temperature to misread.
-
Page 26: Error Codes & Troubleshooting Guide
AutoFry Mini-C Operator’s Manual Mini-C OM 11/18 63-0114... - Page 27 AutoFry Mini-C Operator’s Manual Mini-C OM 11/18 63-0114...
- Page 28 AutoFry Mini-C Operator’s Manual Mini-C OM 11/18 63-0114...
- Page 29 AutoFry Mini-C Operator’s Manual Mini-C OM 11/18 63-0114...
-
Page 30: Maintenance Log
AutoFry Mini-C Operator’s Manual Mini-C OM 11/18 63-0114... - Page 31 AutoFry Mini-C Operator’s Manual Mini-C OM 11/18 63-0114...
- Page 32 AutoFry Mini-C Operator’s Manual Maintenance Record Mini-C OM 11/18 63-0114...
