Specifications - MTI AUTOFRY -10X Operator's Manual

FIGURE 1 – RESET HIGH LIMIT .................................................................................................6
FIGURE 2 – INSTALL LEGS ........................................................................................................7
FIGURE 3A – REMOVE FOOD ENTRY CHUTE .............................................................................7
FIGURE 3B – SEPARATE FOOD ENTRY CHUTE ...........................................................................7
FIGURE 4 – FILTER COVER PLATE .............................................................................................8
FIGURE 5 – FILTERS ................................................................................................................8
FIGURE 6 – THERMOCOUPLE PLUG .........................................................................................9
FIGURE 7 – INSTALL HEATER BOX ............................................................................................9
FIGURE 8 – OIL POT & DEFLECTOR INSTALLED .........................................................................9
FIGURE 9 – INSTALL FOOD EXIT CHUTE ....................................................................................9
FIGURE 10A – BASKET ROD & CAM ....................................................................................... 10
FIGURE 10B – BASKET ROD & RECEIVER CLIP ......................................................................... 10
FIGURE 11 – COMPLETED BASKET INSTALLATION .................................................................. 10
FIGURE 12 – FUSIBLE LINK & CABLE ...................................................................................... 17
FIGURE 13A – REMOVABLE STACK COVER & FIRE DAMPER .................................................... 18
FIGURE 13B – FAN SECTION .................................................................................................. 18

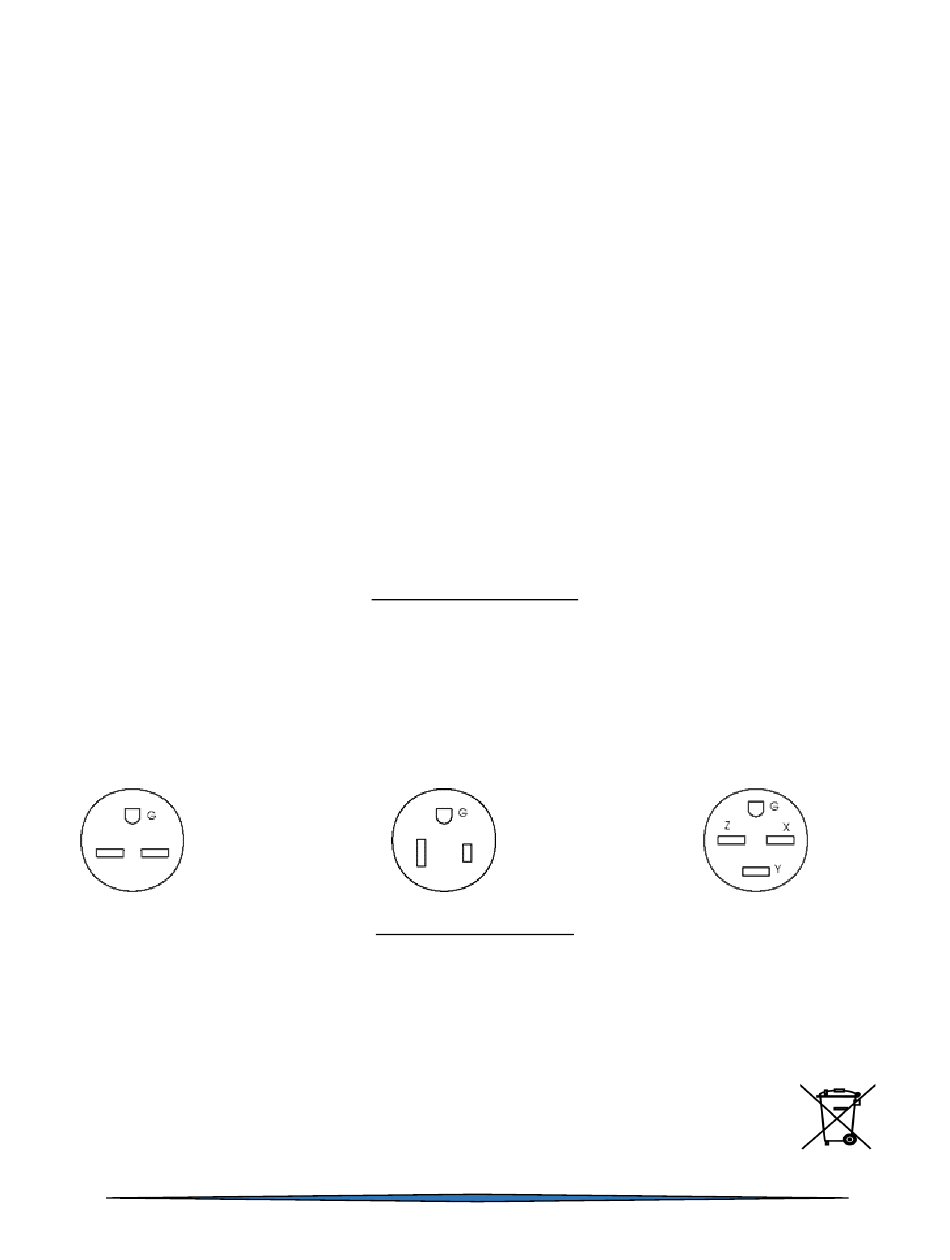

MTI-10X
5700 Watts, 1 Phase
23.75 Amps
NEMA 6-30 Plug
w/ 6FT Cord
UL, cUL, CE & NSF
Dimensions: Length = 25" x Width = 21" x Height = 28"
Shipping Dimensions: 32" x 32" x 32" - Shipping Weight: 210 lbs.
Motion Technology, Inc. supports the European Parliament Directive 2002/96/EC for recycling of waste electrical
and electronic equipment (WEEE).
When your AUTOFRY has reached the end of its life DO NOT DISPOSE OF IT IN THE MUNICIPAL WASTE.
Most of the materials used in its construction can be recycled. Return to your distributor for preparation and recycling.
MTI-10X / XL / XL-3 OM 10/16 Rev C
MTI-10X / XL / XL-3 Operator's Manual
TABLE OF FIGURES
Electrical Specifications:
240 ACV Dedicated Grounded Circuit
MTI-10XL
7200 Watts, 1 Phase
30 Amps
NEMA 6-50 Plug
w/ 6FT Cord
UL, cUL, CE & NSF
Physical Specifications:
Clearances: Sides & Back = 0" – Top = 24" Minimum
Weight: 150 lbs.
Materials: 304 Stainless Steel
AutoFry
2
63-0007C
MTI-10XL-3
8500 Watts, 3 Phase
20.44 Amps
NEMA 15-30 Plug
w/ 6FT Cord
UL, cUL, CE & NSF
