10.

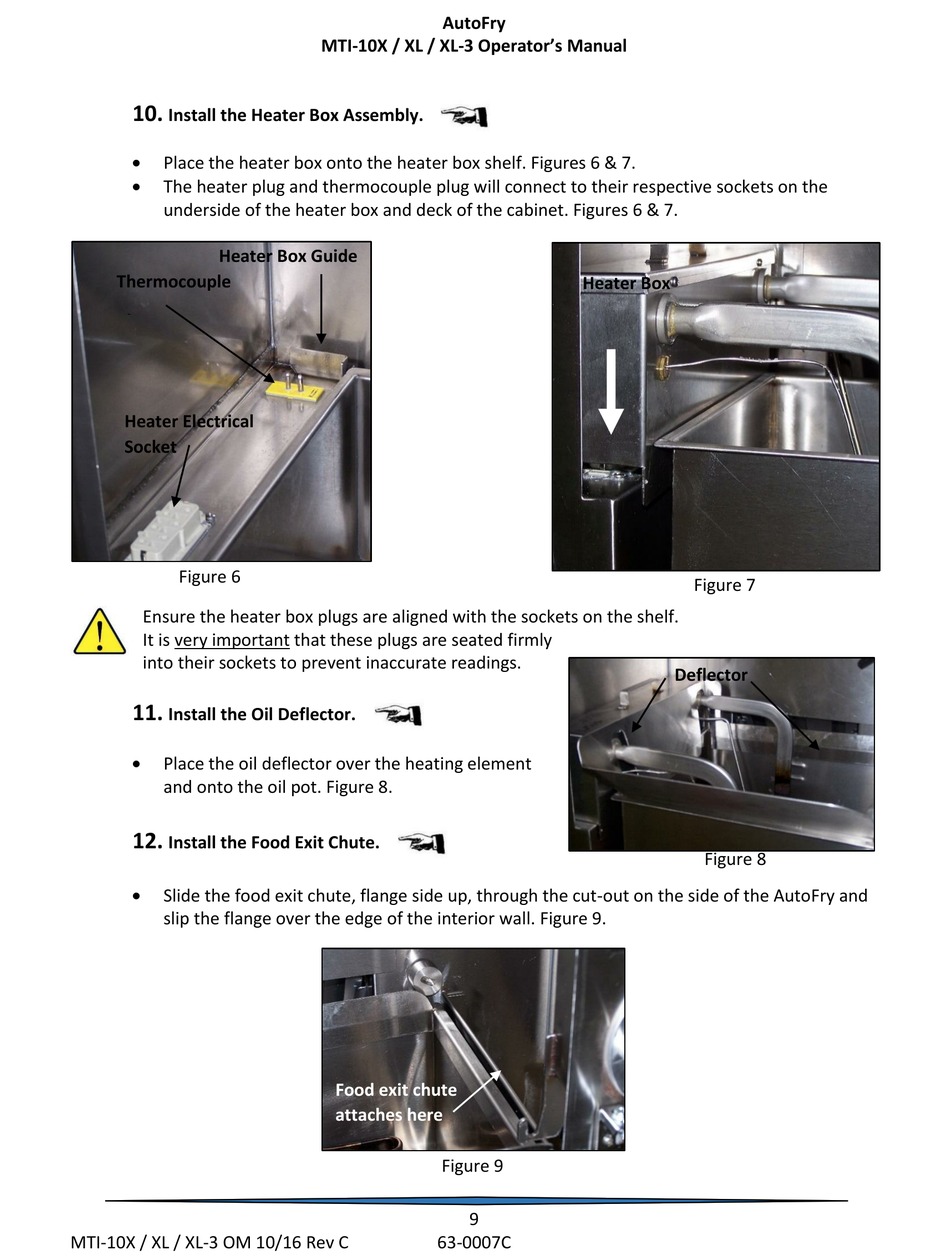

Install the Heater Box Assembly.

Place the heater box onto the heater box shelf. Figures 6 & 7.

The heater plug and thermocouple plug will connect to their respective sockets on the
underside of the heater box and deck of the cabinet. Figures 6 & 7.
Heater Box Guide
Thermocouple
Plug
Heater Electrical
Socket
Figure 6
Ensure the heater box plugs are aligned with the sockets on the shelf.
It is very important that these plugs are seated firmly
into their sockets to prevent inaccurate readings.
11.
Install the Oil Deflector.

Place the oil deflector over the heating element
and onto the oil pot. Figure 8.
12.
Install the Food Exit Chute.

Slide the food exit chute, flange side up, through the cut-out on the side of the AutoFry and
slip the flange over the edge of the interior wall. Figure 9.
MTI-10X / XL / XL-3 OM 10/16 Rev C
AutoFry
MTI-10X / XL / XL-3 Operator's Manual
Food exit chute
attaches here
Figure 9
9
63-0007C
Heater Box
Figure 7
Deflector
Figure 8
