Aux Power Board And Ac Inlet; Figure 6 17: Power Supply Module Removal - Tektronix AWG2005 Service Manual

Arbitrary waveform generator
Hide thumbs Also See for AWG2005:
Table of Contents

Advertisement

AWG2005 Service Manual
J1
Power Supply Module

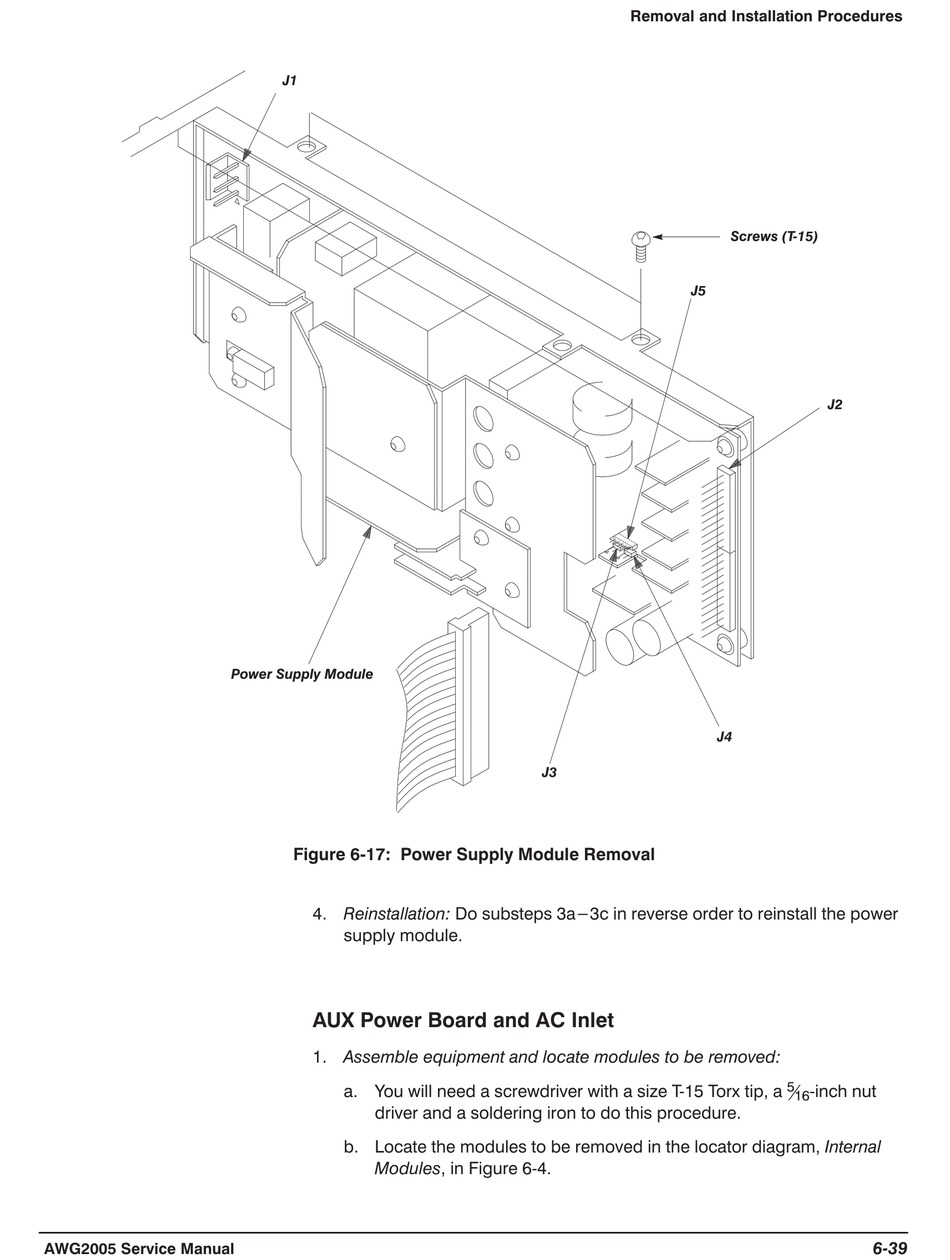

Figure 6 17: Power Supply Module Removal

4. Reinstallation: Do substeps 3a-3c in reverse order to reinstall the power
supply module.

AUX Power Board and AC Inlet

1. Assemble equipment and locate modules to be removed:
a. You will need a screwdriver with a size T 15 Torx tip, a
driver and a soldering iron to do this procedure.
b. Locate the modules to be removed in the locator diagram, Internal
Modules, in Figure 6 4.
Removal and Installation Procedures
J5
J4
J3
Screws (T 15)
J2
5
@
inch nut
16
6 39
