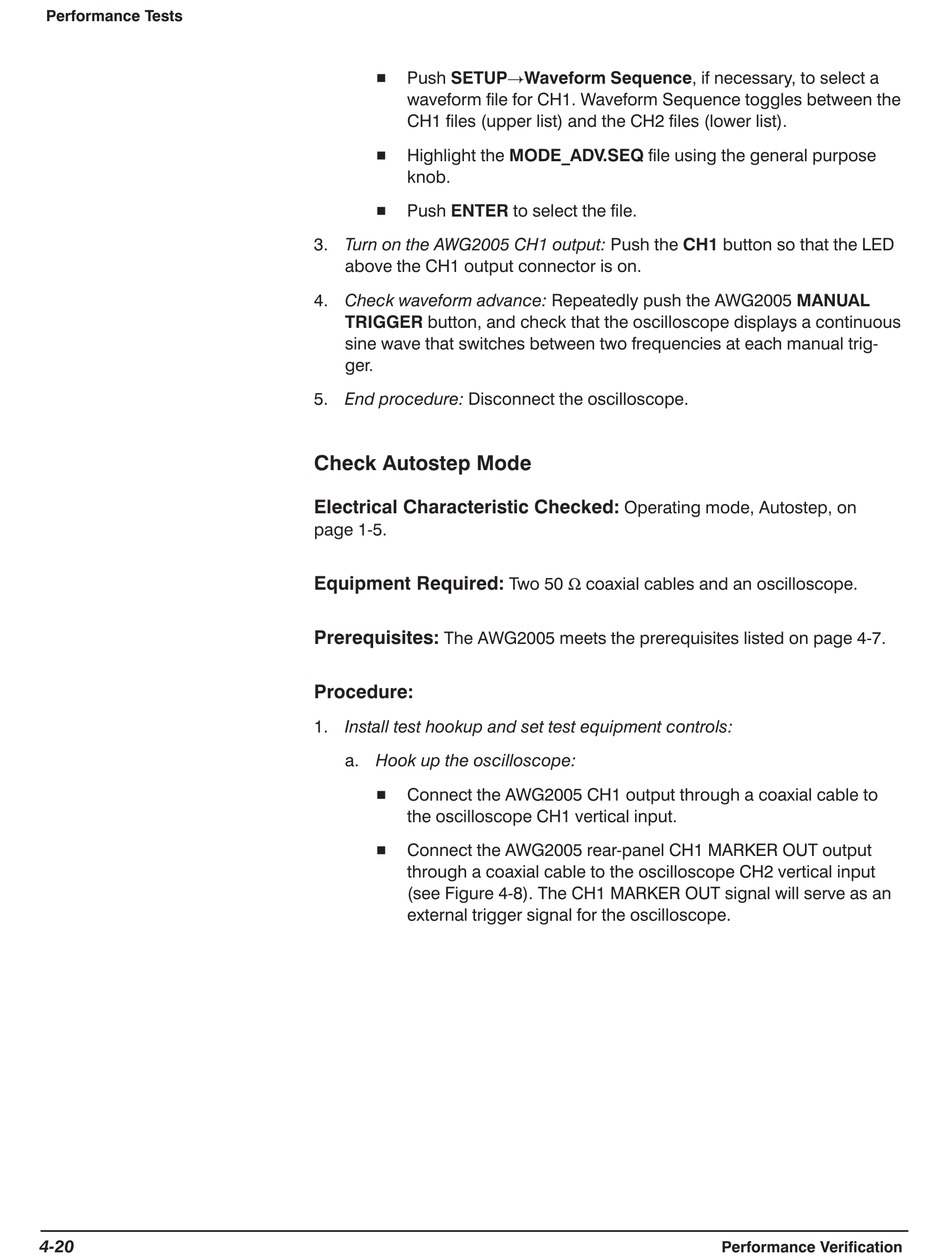

Performance Tests
4 20
H Push SETUP!Waveform Sequence, if necessary, to select a
waveform file for CH1. Waveform Sequence toggles between the
CH1 files (upper list) and the CH2 files (lower list).
H Highlight the MODE_ADV.SEQ file using the general purpose
knob.
H Push ENTER to select the file.
3. Turn on the AWG2005 CH1 output: Push the CH1 button so that the LED
above the CH1 output connector is on.
4. Check waveform advance: Repeatedly push the AWG2005 MANUAL
TRIGGER button, and check that the oscilloscope displays a continuous
sine wave that switches between two frequencies at each manual trig
ger.
5. End procedure: Disconnect the oscilloscope.

Check Autostep Mode

Electrical Characteristic Checked:
page 1 5.
Equipment Required:
Prerequisites:
The AWG2005 meets the prerequisites listed on page 4 7.
Procedure:
1. Install test hookup and set test equipment controls:
a. Hook up the oscilloscope:
H Connect the AWG2005 CH1 output through a coaxial cable to
the oscilloscope CH1 vertical input.
H Connect the AWG2005 rear panel CH1 MARKER OUT output
through a coaxial cable to the oscilloscope CH2 vertical input
(see Figure 4 8). The CH1 MARKER OUT signal will serve as an
external trigger signal for the oscilloscope.
Operating mode, Autostep, on
Two 50 Ω coaxial cables and an oscilloscope.
Performance Verification
