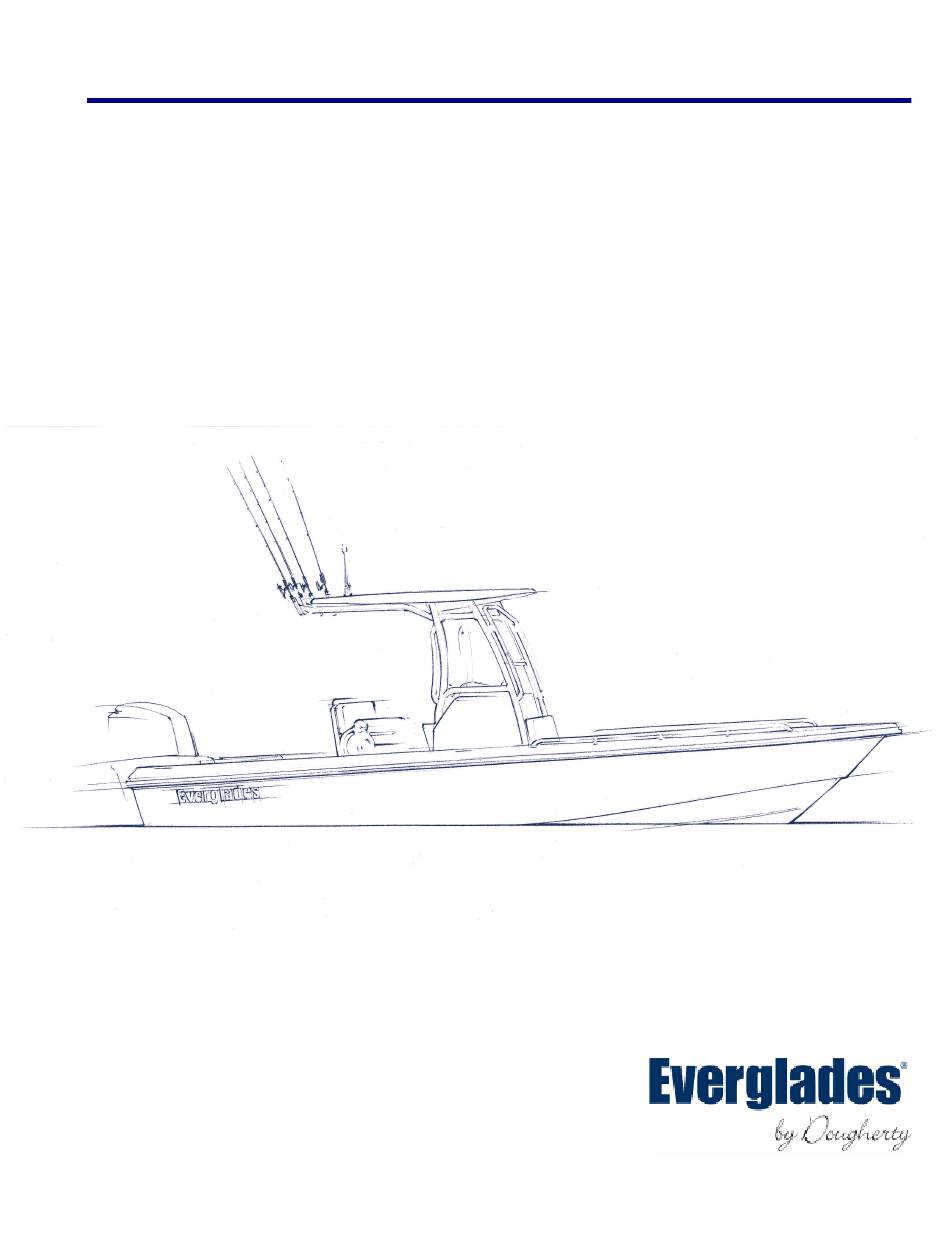

  • Page 1 2012 OWNER’S MANUAL 223 CC 243 CC https://www.boat-manuals.com/...
  • Page 2 Revision 1 10/25/2011 https://www.boat-manuals.com/...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS TABLE OF CONTENTS ......................3 SAFETY INFORMATION ......................7 BOAT INFORMATION ......................8 SPECIFICATIONS ........................ 9 CERTIFICATIONS & SPECIFICATIONS ...................11 INTRODUCTION & IMPORTANT INFORMATION ...............13 OWNER / OPERATOR INFORMATION ..................15 Chapter 1: SAFETY EQUIPMENT 1.1 General ........................17 1.2 Engine Alarms ......................17 1.3 Neutral Safety Switch ....................17 1.4 Engine Stop Switch .....................17...
  • Page 4 TABLE OF CONTENTS Chapter 4: HELM CONTROL SYSTEMS 4.1 General ........................43 4.2 Engine Throttle and Shift Controls .................43 4.3 Neutral Safety Switch ....................44 4.4 Engine Power Tilt and Trim ...................44 4.5 Engine Stop Switch .....................46 4.6 Hydraulic Jack Plate (Optional) ..................46 4.7 Steering System ......................46 4.8 Trim Tabs ........................47 4.9 Control Systems Maintenance ..................48...
  • Page 5 TABLE OF CONTENTS Chapter 9: DRAINAGE SYSTEMS 9.1 General ........................69 9.2 Cockpit Sole Drains ....................69 9.3 Hardtop Drains ......................69 9.4 Bilge Drainage ......................69 9.5 Fishbox, Baitwell and Storage Compartment Drains ............70 9.6 Cockpit and Anchor Locker Drains .................71 9.7 Drainage System Maintenance ..................71 Chapter 10: VENTILATION SYSTEM 10.1 243 Center Console Head Compartment Ventilation ............73...
  • Page 6 TABLE OF CONTENTS Appendix A: SCHEMATICS ........................105 Appendix B: GLOSSARY OF TERMS ......................107 Appendix C: MAINTENANCE LOG ......................111 Appendix D: BOATING ACCIDENT REPORT ....................117 Appendix E: FLOAT PLAN ........................121 Appendix F: TROUBLESHOOTING GUIDE ....................123 https://www.boat-manuals.com/...

  • Page 7: Safety Information

    SAFETY INFORMATION Your Everglades owner’s manual has been written to include a number of safety instructions to assure the safe operation and maintenance of your boat. These instructions are in the form of DANGER, WARNING and CAUTION statements. The following definitions apply:...

  • Page 8: Boat Information

    BOAT INFORMATION Please fill out the following information section and leave it in your Everglades owner’s manual. This information will be important for you, your dealer and/or Everglades service personnel to know, if you may need to call them for technical assistance or service.

  • Page 9: Specifications

    SPECIFICATIONS 223 Center Console Specifications HULL LENGTH OVERALL W/ ENGINE ____________________________________________________ 24’ 11” BEAM ________________________________________________________________________________ 8’ 2” WEIGHT DRY - NO ENGINE (Approx.) ___________________________________________________ 3,200 lbs DEAD RISE _____________________________________________________________________________ 19 DRAFT WITH ENGINE UP ________________________________________________________________ 16” DRAFT WITH ENGINE DOWN ______________________________________________________________ 33” TRANSOM HEIGHT ______________________________________________________________________ 30”...
  • Page 10 SPECIFICATIONS 243 Center Console Specifications HULL LENGTH OVERALL W/ ENGINE ____________________________________________________ 26’ 11” BEAM ________________________________________________________________________________ 8’ 2” WEIGHT DRY - NO ENGINE (Approx.) ___________________________________________________ 3,500 lbs DEAD RISE _____________________________________________________________________________ 19 DRAFT WITH ENGINE UP ________________________________________________________________ 16” DRAFT WITH ENGINE DOWN ______________________________________________________________ 33” TRANSOM HEIGHT ______________________________________________________________________ 30”...

  • Page 11: Certifications & Specifications

    To be in compliance with European directives for recreational boats as published by the International Organization for Standardization (ISO) in effect at the time this boat was manufactured, we are providing the following information. Manufacturer: Name Everglades Boats 544 Air Park Road Edgewater, FL Zip Code: 32132...
  • Page 12 To be in compliance with European directives for recreational boats as published by the International Organization for Standardization (ISO) in effect at the time this boat was manufactured, we are providing the following information. Manufacturer: Name Everglades Boats 544 Air Park Road Edgewater, FL Zip Code: 32132...

  • Page 13: Introduction & Important Information

    It has been written to be clearly stated and easily understood. If you have any The terms and conditions of the Everglades Boats questions after reading the warranty, please contact Limited Warranty are outlined in the warranty the Everglades Boats Customer Service Department statement included in this manual.
  • Page 14 INTRODUCTION & IMPORTANT INFORMATION Transferring the Limited Structural Warranty Service For a transfer fee, Everglades Boats will offer to All warranty repairs must be performed by an extend a Transferable Limited Structural Hull War- authorized Everglades Dealer. Should a problem ranty to subsequent owners of Everglades Boats.

  • Page 15: Owner / Operator Information

    OWNER / OPERATOR INFORMATION Registration and Numbering an accident. If you need additional information regarding accident reporting, please call the Boat- Federal law requires that all undocumented ves- ing Safety Hotline, 800-368-5647. sels equipped with propulsion machinery be regis- tered in the State of principal use. A certificate of Education number will be issued upon registering the boat.
  • Page 16 THIS PAGE WAS LEFT BLANK INTENTIONALLY https://www.boat-manuals.com/...

  • Page 17: Safety Equipment

    Chapter 1: SAFETY EQUIPMENT 1.1 General Your boat and outboard engine have been equipped with safety equipment designed to en- hance the safe operation of the boat and to meet U.S. Coast Guard safety standards. The Coast Guard or state, county and municipal law enforce- ment agencies require certain additional accessory safety equipment on each boat.

  • Page 18: Required Safety Equipment

    Throwable devices must be immediately available for use. All Non-Pyrotechnic Devices Everglades boats must be equipped with at least Non-Pyrotechnic visual distress signals must be one Type I, II or III PFD for each person on board, in serviceable condition, readily accessible and plus one throwable device (Type IV).

  • Page 19: Bilge And Fuel Fires

    Fire Extinguishers your only option. At least one fire extinguisher is required on all Everglades If you find yourself in this situation, make sure all boats. Coast Guard approved passengers have a life preserver on, go over the fire extinguishers are hand- side and swim well upwind of the boat.

  • Page 20: First Aid

    Safety Equipment 1.7 First Aid EPIRB should be mounted and registered accord- ing to the instructions provided with the beacon, It is the operator’s re- so that the beacon’s unique distress code can be sponsibility to be familiar used to quickly identify the boat and owner. with the proper first-aid procedures and be able Marine Radio...

  • Page 21: Caution And Warning Labels

    Safety Equipment 1.9 Caution and Warning Labels The caution and warning labels shown are examples of the labels that could be on your boat. The actual labels and their location could vary on your boat. https://www.boat-manuals.com/...
  • Page 22 THIS PAGE WAS LEFT BLANK INTENTIONALLY https://www.boat-manuals.com/...

  • Page 23: Operation

    2.1 General in accordance with the sea conditions, boat traffic and weather conditions. Before you start the engine on your Everglades, you should have become familiar with the vari- Remember, it is the operator’s responsibility to ous component systems and their operation and use good common sense and sound judgement have performed a “Pre-Cruise System Check.”...
  • Page 24 Operation Overtaking Situations When one motor boat is overtaking another mo- tor boat, the boat that is being passed has the right-of-way. The overtaking boat must make the adjustments necessary to provide clearance for a safe passage of the other vessel. The boats should sound the appropriate signals.
  • Page 25 Operation https://www.boat-manuals.com/...

  • Page 26: Pre-Cruise Check

    Operation 2.3 Pre-Cruise Check • Have a tool kit aboard. The kit should include the following basic tools: Before Starting the Engine: Hammer Electrician’s tape • Check the weather forecast and sea conditions before leaving the dock. Decide if the planned Screwdrivers Offset screwdrivers cruise can be made safely.

  • Page 27: Operating Your Boat

    • Alcohol makes it difficult to correctly judge • Your Everglades is a heavy boat that will speed and distance or track moving objects. produce a large wake at certain speeds. You are responsible for damage and injury caused •...

  • Page 28: Docking, Anchoring And Mooring

    Operation Notice: • If you are going to leave the boat for a long For more instructions on safety, equipment period of time, put the battery main switch in and boat handling, enroll in one of the the “Off” position and close all seacocks. several free boating courses offered.
  • Page 29 Operation Maneuvering to the Dock Approach the dock slowly at a 30 to 40 degree angle. Whenever possible, approach against the wind or current. Turn the engine straight & shift to neutral when you feel you have enough momen- After Bow Spring Cleat tum to reach the dock.

  • Page 30: Controls, Steering Or Propulsion System Failure

    Operation Leaving a Mooring WARNING Start the engine and let it up for several minutes before releasing the mooring line. The boat will NEVER ANCHOR THE BOAT BY THE STERN. THE STERN already be headed into the wind, so move it for- OF THE BOAT IS VULNERABLE TO SWAMPING FROM WAVE ward enough to loosen the line and untie it.

  • Page 31: Flooding Or Capsizing

    EPIRBs will send distress code homing beacons DANGER that allow Coast Guard aircraft to identify your boat and find you quickly. THE MOORING CLEATS ON EVERGLADES BOATS ARE NOT DESIGNED OR INTENDED TO BE USED FOR TOWING PURPOSES. THESE CLEATS ARE SPECIFICALLY DESIGNED 2.10 Fishing AS MOORING CLEATS FOR SECURING THE BOAT TO A DOCK, PIER, ETC.

  • Page 32: Man Overboard

    Operation 2.12 Man Overboard WARNING If someone falls overboard, you must be pre- pared to react quickly, particularly when you are OPERATING THE BOAT AT HIGH SPEEDS WITH SOMEONE IN offshore. The following procedures will help you THE CROW’S NEST CAN CAUSE SEVERE INJURY OR DEATH. in recovering a person that has fallen overboard.

  • Page 33: Water Skiing And Wakeboarding

    Operation 2.13 Water Skiing and Wakeboarding • Never spray swimmers, boats, rafts or other skiers. The risk for a collision makes this Your boat could be equipped for water skiing and dangerous for the skier and people being wakeboarding. If you have never driven skiers sprayed.

  • Page 34: Teak Surfing

    Operation • Make sure the observer watches for the skier’s signal to indicate he or she is OK. If the signal is not seen immediately, assume the skier is injured and in need of immediate assistance. Be prepared to respond quickly. •...

  • Page 35: Trailering Your Boat

    Important Note: Your Everglades is a heavy boat and care • Make sure the trailer bunks and/or rollers must be taken when selecting the trailer. We properly support the hull and do not put recommend that you use a bunk style trailer pressure on the lifting strakes.
  • Page 36 STRAKES AND ARE PROVIDING ENOUGH SUPPORT FOR THE or chain is also installed to the tow vehicle HULL. HULL DAMAGE RESULTING FROM IMPROPER TRAILER frame. SUPPORT IS NOT COVERED BY THE EVERGLADES WARRANTY. • Make sure the LIGHTS on the trailer function properly.

  • Page 37: Propulsion System

    Chapter 3: PROPULSION SYSTEM 3.1 General Your Everglades is designed to be powered with a 4-cycle outboard motor. 4-cycle outboard en- gines do not use an oil injection system and are not equipped with remote oil tanks. They have an oil sump in the crankcase that must be kept full of the type of oil recommended by the engine manufacturer.

  • Page 38: Engine Lubrication

    All boats powered by Yamaha engines CAN CAUSE SEVERE DAMAGE TO THE ENGINE. CONTACT are equipped with Yamaha propellers. The one YOUR EVERGLADES DEALER OR ENGINE MANUFACTURER that will best suit the needs of your boat will de- FOR INFORMATION ON THE PROPER PAINTING PROCEDURES.
  • Page 39 Propulsion System Some are as follows: • You should be sure the load conditions are those normally experienced. If the boat ran in the required RPM range when it was new and you have not added any additional gear or heavy equipment and have not damaged the propeller, there is a good chance the propeller is not the problem.

  • Page 40: Engine Instrumentation

    (RPM). This speed is motors installed on your Everglades. not the boat speed or necessarily the speed of the propeller. Most Everglades boats are equipped with Yamaha engines with Command Link multifunction instru- ® With Command Link instruments the tachometer...
  • Page 41 Propulsion System Command Link Plus Typical Command Link ® Typical Tachometer and Speed Instruments Tachometer and Engine Monitoring Display CAUTION CAUTION CONTINUED OPERATION OF AN OVERHEATED ENGINE NEVER EXCEED THE MAXIMUM RECOMMENDED OPERATION CAN RESULT IN ENGINE SEIZURE. IF AN UNUSUALLY HIGH RPM OF THE ENGINE.
  • Page 42 Propulsion System Hour Meters If you have a fuel management system installed on your boat, please refer to the engine or instrument The hour meters keep a record of the operating manuals for detailed information on that system. time for the engine. Depth Gauge (Optional) Engine Tilt/Trim Gauges The depth gauge indicates the depth of the water...

  • Page 43: Helm Control Systems

    Electronic Engine Control Electronic engine controls are optional on some The helm on your Everglades is designed for a bin- outboard engines. The following control descrip- nacle style control with a single lever that operates tion is typical of most electronic control installa- as a gear shift and a throttle.

  • Page 44: Neutral Safety Switch

    See your than idle RPM while in neutral for cold starting and Everglades dealer for necessary control and/or warm-up purposes. The control lever is equipped cable adjustments.
  • Page 45 Helm Control Systems Moving the outboard closer to the boat transom is called trimming “in” or “down.” Moving the out- board further away from the boat transom is called trimming “out” or “up.” In most cases, the boat will run best with the outboard adjusted so the hull will run at a 3 to 5 degree angle to the water.

  • Page 46: Engine Stop Switch

    Helm Control Systems 4.5 Engine Stop Switch Your boat is equipped with an engine stop switch and lanyard. When the lanyard is pulled it will engage the switch and shut off the engine. We strongly recommend that the lanyard be attached to the driver whenever the engine is running.

  • Page 47: Trim Tabs

    Helm Control Systems lever is released, it automatically locks the steer- ing wheel at or close to that angle. Refer to the steering manufacturer owner’s manual for specific information on the steering system. Steering Cylinder Single outboard engines are equipped with one hydraulic steering cylinder mounted on the engine that is connected directly to the engine tiller arm.

  • Page 48: Control Systems Maintenance

    Control system adjustments may become neces- located on the helm above the steering wheel, should be maintained at no less than 1/2” below sary. If adjustments become necessary, see your Everglades dealer. the bottom of the filler cap threads. https://www.boat-manuals.com/...
  • Page 49 Helm Control Systems When new or after repairs, hydraulic steering systems may need to have all air purged from the system. Only use hydraulic steering fluid recom- mended by the steering system manufacturer. Difficult steering and premature seal failure can result if the wrong fluid is used in the steering system.
  • Page 50 THIS PAGE WAS LEFT BLANK INTENTIONALLY https://www.boat-manuals.com/...

  • Page 51: Fuel System

    Chapter 5: FUEL SYSTEM 5.1 General The gasoline fuel system used in Everglades boats is designed to meet or exceed the requirements of the U.S. Coast Guard, the Boating Industry As- sociation and the American Boat and Yacht Council in effect at the time of manufacture.

  • Page 52: Outboard Fuel System

    5.2 Outboard Fuel System The fuel system on the Everglades has one fuel tank. The Fuel withdrawal line is equipped with Fuel Filter Below Splashwell an anti-siphon valve where the line attaches to the fuel tank.

  • Page 53: Fueling Instructions

    THAT RECOMMENDED BY THE ENGINE MANUFACTURER. ANY DAMAGE DONE TO THE FUEL SYSTEM THAT IS THE RESULT OF USE OF AN ALCOHOL BLEND, IS NOT COVERED BY THE EVERGLADES WARRANTY. REFER TO THE ENGINE MANUFACTURER OWNER’S MANUAL FOR THE FUEL WARNING REQUIREMENTS FOR YOUR ENGINES.

  • Page 54: Fuel System Maintenance

    Fuel System the quality of the fuel. Please refer to the engine WARNING or fuel filter manufacturer’s instructions for infor- mation on servicing and replacing the fuel filter. MAKE SURE ALL GASOLINE ODORS ARE INVESTIGATED IMMEDIATELY. The age of gasoline can effect engine performance. Chemical changes occur as the gasoline ages that can cause deposits and varnish in the fuel system as well as reduce the octane rating of the fuel.

  • Page 55: Electrical System

    Refer to the engine owner’s manual for more 6.1 General information on the fuses, fuse panels or circuit Your Everglades is equipped with a 12-volt DC breakers on your engines. electrical system and could be equipped with an optional trolling battery charging system.

  • Page 56: Switch And Circuit Breaker Panels

    Ignition ® in port, trolling or at anchor, the battery selector Most Everglades boats are equipped with Yamaha switch should be set on either the battery 1 or engines and the Command Link or Command Link the battery 2 position. This will keep one battery...
  • Page 57 Electrical System 243 Helm Switch Panel The ignition switch is a key activated switch, lo- cated near the helm below the steering wheel, which starts and stops the engine. The switch has OFF - ON and momentary START positions. Starting procedure Make sure the engine is down with the shift lever in the neutral position and your hand on the control lever.
  • Page 58 Electrical System When the switch is in the OFF position the pump is controlled by an automatic float switch that is activated whenever the batteries are connected. The pump will run as needed whenever the water in the bilge accumulates high enough to raise the float switch to the ON position and turn off when the water is removed.

  • Page 59: 36-Volt Trolling Motor System

    You should also not mix the size or brand of the motor, it will also be equipped with a 36-volt DC wet cell batteries. Always consult your Everglades electrical system that provides power to the troll- dealer before changing the type of batteries in ing motor.

  • Page 60: Electrical System Maintenance

    Your boat is equipped with batteries that were IN SHORTS OR POOR GROUND CONNECTIONS. ELECTRICAL CONNECTORS SHOULD BE CHECKED AT LEAST ANNUALLY supplied by your Everglades dealer. Some bat- AND CLEANED AS REQUIRED. DO NOT ALLOW CORROSION teries are sealed, maintenance free batteries that TO BUILD ON CONNECTIONS.

  • Page 61: Fresh Water System

    Chapter 7: FRESH WATER SYSTEM (OPTIONAL) 7.1 General The optional fresh water system consists of a potable water tank, distribution lines and a dis- tribution pump. The pump is equipped with an automatic pressure switch and is located near the water tank in the stern bilge.

  • Page 62: Fresh Water System Maintenance

    Fresh Water System 7.3 Fresh Water System Maintenance Information supplied with water system compo- nents by the equipment manufacturers is included with this manual. Refer to this information for additional operation and service data. Routine Maintenance The following items should be done routinely to maintain your fresh water system: •...
  • Page 63 Fresh Water System Sanitizing the Fresh water Tank The fresh water system should be sanitized if it has not been used for a long period or you are unsure of the quality of the water in the system. The following steps can be used to sanitize the system: •...
  • Page 64 THIS PAGE WAS LEFT BLANK INTENTIONALLY https://www.boat-manuals.com/...

  • Page 65: Raw Water System

    When activated, the pump and allow it to prime. If this procedure the pressure switch will automatically control the doesn’t work, contact your Everglades dealer. pump that supplies the raw water hose connector. Closing the thru-hull valve before the boat is...

  • Page 66: Baitwell

    Raw Water System Washdown Hose Connector The raw water washdown hose connection is lo- cated on the port side of the cockpit below the gunnel and uses a standard garden hose connec- tor. It is equipped with a valve that allows the flow of water to be turned on or off.

  • Page 67: Raw Water System Maintenance

    Raw Water System CAUTION A RUPTURED RAW WATER INTAKE OR PRESSURE LINE COULD CAUSE THE BOAT TO TAKE ON WATER. ALWAYS TURN THE RAW WATER SYSTEMS OFF AND CLOSE THE THRU-VALVES WHEN LEAVING THE BOAT UNATTENDED. 8.4 Raw Water System Maintenance The following items should be done routinely to help maintain your raw water system: •...
  • Page 68 THIS PAGE WAS LEFT BLANK INTENTIONALLY https://www.boat-manuals.com/...

  • Page 69: Drainage Systems

    9.2 Cockpit Sole Drains Your Everglades has two scupper drains located in the rear of the cockpit. External check valves reduce the surge of seawater through the scup- pers and into the cockpit while maneuvering or in rough water.

  • Page 70: Fishbox, Baitwell And Storage Compartment Drains

    Drainage Systems When the boat is out of the water the bilge can be drained by a garboard drain located in the transom near the bottom of the hull. The plug should be removed whenever the boat is hauled out of the water and installed just prior to launching.

  • Page 71: Cockpit And Anchor Locker Drains

    Drainage Systems drain plug in the bottom of the fishbox when the boat is underway. A reverse scoop located below the drain plug creates a vacuum at the drain fitting whenever the boat is operating at speeds above 15 mph that will quickly drain the fishbox. Always set the boat speed to at least 15 mph before re- moving the drain plug and reinstall and tighten the plug immediately when draining is complete.
  • Page 72 THIS PAGE WAS LEFT BLANK INTENTIONALLY https://www.boat-manuals.com/...

  • Page 73: Chapter 10: Ventilation System

    Chapter 10: VENTILATION SYSTEM 10.1 243 Center Console Head Compartment Ventilation The console door and vents in the door provide ventilation to the head compartment in the center console. Before using the portable head in hot weather, it is best to open the door for several minutes to provide maximum ventilation and cool the head compartment as much as possible.

  • Page 74: Maintenance

    Ventilation System 10.3 Maintenance • Periodically lubricate friction knobs, hinges and latch assemblies with a light oil. • Keep the windshield slide tracks clean. Periodically coating the tracks with silicone spray will reduce friction and keep the windshield sliding smoothly. •...

  • Page 75: Exterior Equipment

    Any problems should be corrected immediately. WARNING Anchor Rope Locker and Latch EVERGLADES BOATS ARE NOT EQUIPPED WITH HARDWARE DESIGNED FOR TOWING PURPOSES. THE MOORING CLEATS Anchor/Rope Locker ARE NOT TO BE USED FOR TOWING ANOTHER VESSEL OR The anchor/rope locker is in the bow of the boat HAVING THIS BOAT TOWED.

  • Page 76: Hull

    You should monitor the engine DAMAGE RESULTING FROM THE ANCHOR BOUNCING IN THE as it tilts to determine best full tilt engine position ANCHOR LOCKER IS NOT COVERED BY THE EVERGLADES for your boat. WARRANTY. Hydraulic Jack Plate (Optional)

  • Page 77: Cockpit Features

    Exterior Equipment Swim Platform and Boarding Ladder A fiberglass swim platform is mounted to the port side of the transom. A platform mounted on the starboard side is an available option. A grab rail on the platform provides a hand hold while boarding. A telescopic boarding ladder is recessed into the port swim platform.
  • Page 78 Exterior Equipment There is a large red dot in the handle that indicates that the latch is in the open position and the hatch is not secure. Always make sure that all hatches are closed with the latches in the secured position before operating the boat above idle speed.
  • Page 79 Exterior Equipment equipment installed in the compartments below the stern seats. Notice: Periodically inspect the backrest latches and supports for wear, damage or loose fit. Any problems should be corrected immediately. WARNING PASSENGERS SITTING OR STANDING ON THE REAR DECK WHILE THE BOAT IS CRUISING COULD LOOSE THEIR BALANCE AND FALL OVERBOARD INTO THE BOAT PROPELLER OR BE LOST IN OPEN WATER.

  • Page 80: Center Console Leaning Post And Console

    Exterior Equipment the bow just aft of the anchor locker. The hatch is equipped with a gas charged spring that holds the hatch in the open position. The compartment drains by gravity to the bilge. Flush, twist lock latches secure the hatches in the closed position.
  • Page 81 Exterior Equipment to a leaning post style seat with a backrest, al- lowing the operator and passenger to sit or stand at the helm. A powder coated footrest folds out when the bolster is folded to the seat position. To convert the seat to a leaning post, lift the front of the seat cushion to raise the bolster and push it back above the seat cushion.
  • Page 82 Exterior Equipment WARNING NEVER LEAVE THE STORAGE COMPARTMENT DOORS UNLATCHED. THE DOORS ARE HEAVY AND SWING EASILY. IF A DOOR IS LEFT UNLATCHED, IT COULD SLAM UNEXPECTEDLY AS THE BOAT ROCKS, DAMAGING THE DOOR OR CAUSING AN INJURY TO A PASSENGER. ALWAYS MAKE SURE THE DOORS ARE PROPERLY SECURED IN THE CLOSED POSITION.

  • Page 83: Center Console Leaning Post And Console

    Exterior Equipment Forward Console Cooler/Seat There is a removable cooler with a seat cushion just forward of the console. It is secured to the cockpit sole by special brackets and stretch cords. The removable seat cushion is secured to the cooler lid with snaps and a bolster on the hardtop frame just above the cooler provides a backrest for the cooler seat.
  • Page 84 Exterior Equipment it back above the seat cushion. The leaning post footrest automatically folds to the leaning post frame as the bolster is raised. Another molded in footrest on the rear of the console can be used when the bolsters are set to either position. The fire extinguisher mount is located below the footrest on the rear of the console.
  • Page 85 Exterior Equipment chapter for more information on the proper care and maintenance of acrylic plastic glass. The windshield slides in a track and can be lowered to provide ventilation at the helm and improved visibility. The windshield is raised and lowered manually by two handles on the forward side of the windshield.

  • Page 86: Bimini Top (Optional)

    Exterior Equipment 11.6 Bimini Top (Optional) The canvas for Everglades boats is custom fit to each boat. The Bimini top is designed with a relatively flat profile and a snug fit. To install the top, attach the main legs to the deck hinges using the quick release pins and leave the rear stanchions loose.

  • Page 87: Center Console Crow's Nest (Optional)

    Everglades Customer Service to make sure the equipment you would like to add or the intended modification will not void the war- ranty.
  • Page 88 THIS PAGE WAS LEFT BLANK INTENTIONALLY https://www.boat-manuals.com/...

  • Page 89: Interior Equipment

    Chapter 12: INTERIOR EQUIPMENT 12.1 223 Center Console Storage Compartment The console storage compartment is accessed through doors on each side of the console. vent in each door provides ventilation for the compartment. A hinged hatch next in the rear bulkhead provides access to the back of the upper section of the helm station to service helm components or install electronics.

  • Page 90: Portable Marine Head

    Interior Equipment 12.3 Portable Marine Head The system is made up of two major components, an upper tank and a lower tank. The upper tank contains the fresh water supply, a bellows pump, a seat and the lid. The bottom tank contains the flush valve, a waste holding tank, a chemical storage compartment and the drain nozzle.

  • Page 91: Routine Maintenance

    Chapter 13: ROUTINE MAINTENANCE 13.1 Exterior Hull and Deck CAUTION Hull Cleaning-Below The Water Line When the boat is removed from the water, clean BARRIER COATINGS AND BOTTOM PAINT SHOULD BE the outer bottom surface immediately. Algae, APPLIED ONLY BY QUALIFIED MARINE PROFESSIONALS grass, dirt and other marine growth is easier to IN A BOAT YARD OR DEALERSHIP THAT SPECIALIZES IN THEIR APPLICATION.
  • Page 92 Do not use abrasives, bleaches, ammonia, low quality anodes could be the problem. Contact acids or harsh detergents. See your dealer for your dealer or Everglades Customer Service for special marine formulations. Harsh abrasive the proper size and type of anodes to be used and and chemical cleaners are not recommended the specific installation procedure.
  • Page 93 Routine Maintenance • Stainless Steel can normally be cleaned and CAUTION protected by using a high quality boat or au- tomotive wax or a commercial metal cleaner ONE DRAWBACK TO METAL PROTECTORS IS THAT THEY CAN and protectant. MAKE THE METAL SLIPPERY. THEREFORE, THEY SHOULD BE NOT BE USED ON TOWER LADDERS, STEERING WHEELS AND Never do the following on Stainless Steel.

  • Page 94: Upholstery, Canvas And Enclosures

    Your dealer or the engine manufacturer can provide additional information on fuel degradation Notice: and fuel stabilizers recommended for your engine. You should contact Everglades Customer Service before making any modifications to In many states, most gasoline is blended with aluminum fabrications. Unauthorized modi- ethanol alcohol.
  • Page 95 Routine Maintenance and water. Any stain, spill or soiling should be will deteriorate the waterproofing in the fabric. cleaned up promptly to prevent the possibility of The underside can be brushed with a soft brush permanent staining. When cleaning, always rub and sprayed with a disinfectant to prevent the gently.

  • Page 96: Interior

    If you have any questions about the clear curtains used on your boat, please con- Vinyl curtains should be stored either rolled or tact the Everglades Customer Service Department. flat, without folds or creases. Folding the curtains will make permanent creases that could cause the Hardtop enclosures must be removed when vinyl to crack.

  • Page 97: Bilge, Pumps And Components

    Routine Maintenance 13.4 Bilge, Pumps and Components If you leave the boat for a long period of time, put all cushions on their sides, open all interior To keep the bilge clean and fresh, it is recom- cabin and locker doors and hang a commercially mended that you use a commercial bilge cleaner available mildew protector in the cabin.
  • Page 98 THIS PAGE WAS LEFT BLANK INTENTIONALLY https://www.boat-manuals.com/...

  • Page 99: Seasonal Maintenance

    For more recommendations for your specific area, check with your local • Make sure the engine is in the down position. Everglades dealer. • The trailer must properly support the hull. The • Drain water from the fresh water system.
  • Page 100 FOR THE HULL. HULL DAMAGE RESULTING FROM IMPROPER CRADLE OR TRAILER SUPPORT IS NOT COVERED BY THE • Thoroughly clean the interior of the boat. EVERGLADES WARRANTY. Vacuum all carpets and dry clean drapes and upholstery. • Remove cushions and open as many locker When supporting the boat with blocking: doors as possible.

  • Page 101: Winterizing

    Seasonal Maintenance 14.2 Winterizing fish box and activate the pumps until antifreeze is visible at the discharge thru-hull fittings. To avoid Fresh Water System damage to the pump, be careful not to run the The entire fresh water system must be completely pump dry for more than a few seconds.
  • Page 102 Seasonal Maintenance Hardtop Whenever possible, do not use the bimini top or convertible top canvas in place of the winter stor- It is imperative that all drain holes in the legs age cover. The life of these canvases may be sig- are open and that the legs are completely free of nificantly shortened if exposed to harsh weather water.

  • Page 103: Recommissioning

    Seasonal Maintenance 14.3 Recommissioning After Launching: • Carefully check all water systems and the engine bolts for leaks. Operate each system WARNING one at a time checking for leaks and proper DO NOT OPERATE THE BOAT UNLESS IT IS COMPLETELY operation.
  • Page 104 THIS PAGE WAS LEFT BLANK INTENTIONALLY https://www.boat-manuals.com/...

  • Page 105: Schematics

    Appendix A: SCHEMATICS https://www.boat-manuals.com/...
  • Page 106 https://www.boat-manuals.com/...

  • Page 107: Appendix B: Glossary Of Terms

    Appendix B: GLOSSARY OF TERMS ft: In, near or toward the stern of a boat. Bow Rail: Knee high rails of solid tubing to aid in preventing people from falling overboard. Aground: A boat stuck on the bottom. Bridge: The area from which a boat is steered Amidships: In or toward the part of a boat midway and controlled.
  • Page 108 Glossary of Terms Grab Rail: Hand-hold fittings mounted on cabin eck: The floor-like platform of a boat that tops or sides for personal safety when moving covers the hull. around the boat, both on deck and below. Displacement: The volume of water displaced by Ground Tackle: A general term including anchors, the hull.
  • Page 109 Glossary of Terms Length On The Waterline (l.w.l.): A length mea- Pile or Piling: A long column driven into the bot- surement of a boat at the waterline from the stern tom to which a boat can be tied. to where the hull breaks the water near the bow. Pitching: The fore and aft rocking motion of a Limber Hole: A passage cut into the lower edges boat as the bow rises and falls.
  • Page 110 Glossary of Terms Scupper: An opening in the hull side or transom affrail: Rail around the rear of the cockpit. of the boat through which water on deck or in the cockpit is drained overboard. Thru-hull: A fitting used to pass fluids (usually Seacock: Safety valves installed just inside the water) through the hull surface, either above or thru-hull fittings and ahead of the piping or hose...

  • Page 111: Appendix C: Maintenance Log

    Appendix C: MAINTENANCE LOG Date Dealer Service/Repairs Hours https://www.boat-manuals.com/...
  • Page 112 Maintenance Schedule and Log MAINTENANCE LOG Service/Repairs Date Hours Dealer https://www.boat-manuals.com/...
  • Page 113 Maintenance Schedule and Log MAINTENANCE LOG Service/Repairs Date Hours Dealer https://www.boat-manuals.com/...
  • Page 114 Maintenance Schedule and Log MAINTENANCE LOG Service/Repairs Date Hours Dealer https://www.boat-manuals.com/...
  • Page 115 Maintenance Schedule and Log MAINTENANCE LOG Service/Repairs Date Hours Dealer https://www.boat-manuals.com/...
  • Page 116 Maintenance Schedule and Log MAINTENANCE LOG Service/Repairs Date Hours Dealer https://www.boat-manuals.com/...

  • Page 117: Boating Accident Report

    BOATING ACCIDENT REPORT Appendix D:                                       ...
  • Page 118 Boating Accident Report                                      ...
  • Page 119 Boating Accident Report                                                  ...
  • Page 120 THIS PAGE WAS LEFT BLANK INTENTIONALLY https://www.boat-manuals.com/...

  • Page 121: Appendix E: Float Plan

    Appendix E: FLOAT PLAN Everglades recommends filling out a float plan each time you use your boat for an off- shore day trip or a long cruise. Leave this information with a responsible person ashore, like a close friend or relative that you know well.
  • Page 122 THIS PAGE WAS LEFT BLANK INTENTIONALLY https://www.boat-manuals.com/...

  • Page 123: Troubleshooting Guide

    Appendix F: TROUBLESHOOTING GUIDE PROBLEM CAUSE AND SOLUTION CONTROL SYSTEMS • Steering system is low on fluid. Fill and bleed system. Hydraulic Steering is slow to respond & erratic. • Steering system has air in it. Fill and bleed system. • A component in the steering system is binding. Check and adjust or repair binding component.
  • Page 124 Trouble Shooting Guide PROBLEM CAUSE AND SOLUTION ENGINE PROBLEMS • The engine raw water pick up strainer is clogged with marine The engine is running too hot. growth. Clean pick up. • The engine raw water pump impeller is worn or damaged. Repair the pump.
  • Page 125 Trouble Shooting Guide PROBLEM CAUSE AND SOLUTION ACCESSORY PROBLEMS • The strainer on the intake scoop is clogged preventing the The baitwell pump runs, but does not pump water. water from getting to the pump. Put the boat in reverse to clean the strainer.
  • Page 126 Trouble Shooting Guide PROBLEM CAUSE AND SOLUTION ACCESSORY PROBLEMS The automatic float switch on the bilge pump raises but • The circuit breaker or fuse for the automatic switch has does not activate the pump . tripped or blown. Reset the circuit breaker or replace the fuse.
  • Page 127 CAUSE AND SOLUTION https://www.boat-manuals.com/...
  • Page 128 Everglades Boats 544 Air Park Road Edgewater, Florida 32132 https://www.boat-manuals.com/...

This manual is also suitable for:

223 cc 2012

Table of Contents

Save PDF
