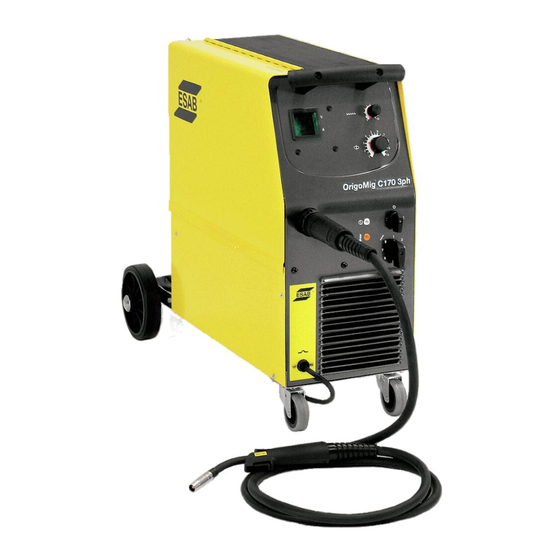

Origo™
Mig C170 3ph, Mig C200 3ph,
Mig C250 3ph
Instruction manual
Valid for: serial no. 626-xxx-xxxx
0463 344 101 GB 20220103

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Origo Mig C170 3ph and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ESAB Origo Mig C170 3ph

Summary of Contents for ESAB Origo Mig C170 3ph

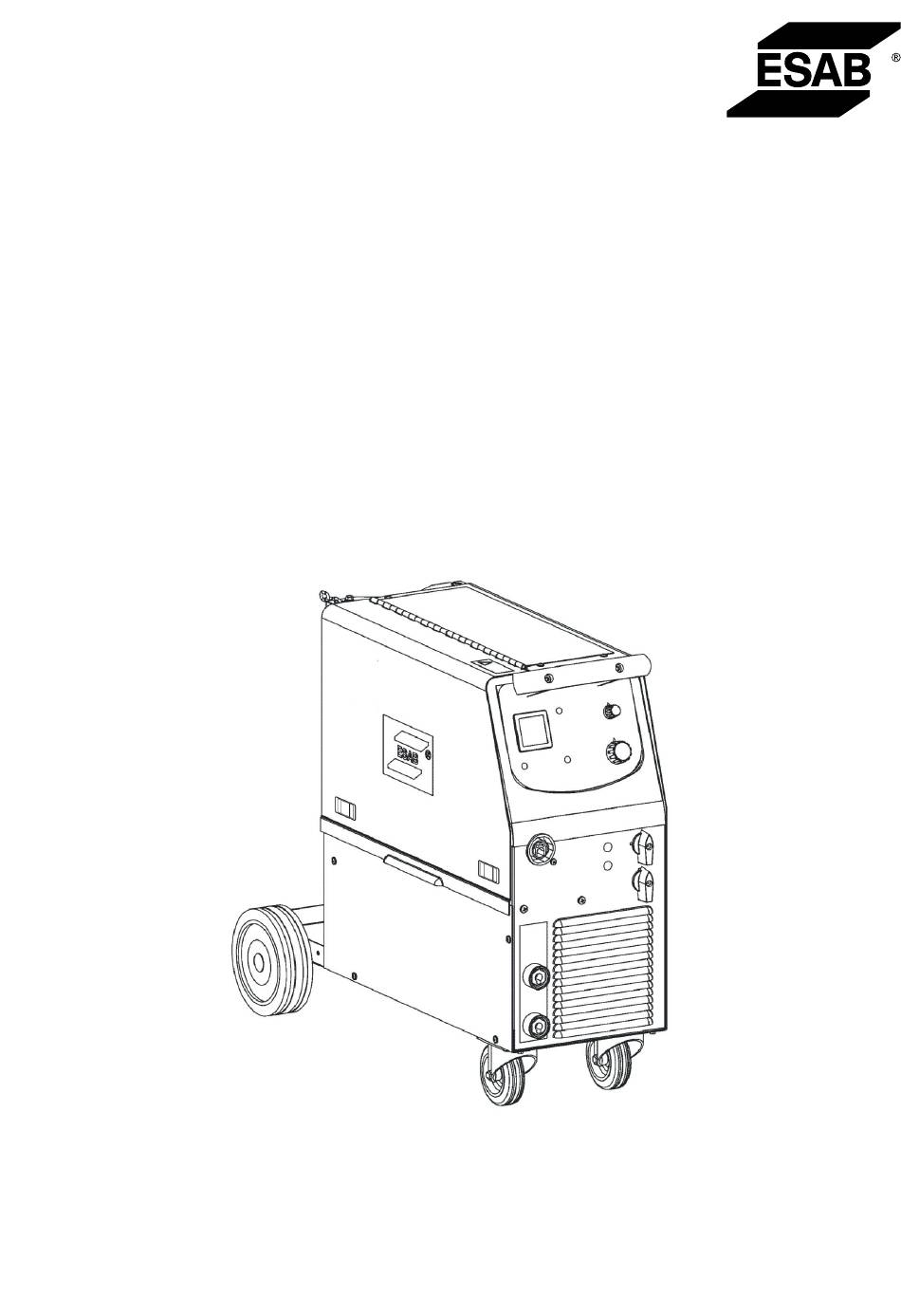

  • Page 1 Origo™ Mig C170 3ph, Mig C200 3ph, Mig C250 3ph Instruction manual Valid for: serial no. 626-xxx-xxxx 0463 344 101 GB 20220103...

  • Page 3: Table Of Contents

    Overheating protection ................MAINTENANCE ................... Inspection and cleaning ................. TROUBLESHOOTING ................. ORDERING SPARE PARTS ................ DIAGRAM ......................ORDERING NUMBERS ..................22 WEAR PARTS ...................... ACCESSORIES ....................24 Rights reserved to alter specifications without notice. 0463 344 101 © ESAB AB 2022...

  • Page 4: Safety

    Safety Data Sheets (SDSs). Safety precautions Users of ESAB equipment have the ultimate responsibility for ensuring that anyone who works on or near the equipment observes all the relevant safety precautions. Safety precautions must meet the requirements that apply to this type of equipment. The following recommendations should be observed in addition to the standard regulations that apply to the workplace.
  • Page 5 Protect your eyes and body. Use the correct welding screen and filter lens and wear protective clothing. • Protect bystanders with suitable screens or curtains. NOISE - Excessive noise can damage hearing Protect your ears. Use earmuffs or other hearing protection. 0463 344 101 - 5 - © ESAB AB 2022...
  • Page 6 For further information contact the nearest ESAB dealer. ESAB has an assortment of welding accessories and personal protection equipment for purchase. For ordering information contact your local ESAB dealer or visit us on our website. 0463 344 101 - 6 - ©...

  • Page 7: Introduction

    + and - connections on the switching terminal by the wire feed unit. ESAB accessories for the product can be found in the "ACCESSORIES" chapter of this manual. Equipment The power source is supplied with: •...

  • Page 8: Technical Data

    Equipment marked IP21 is intended for indoor use. Application class The symbol indicates that the power source is designed for use in areas with increased electrical hazard. 0463 344 101 - 8 - © ESAB AB 2022...

  • Page 9: Installation

    Position the welding power source in such way that its cooling air inlets and outlets are not obstructed. Assembly of components WARNING! For packing and shipment of the power source the wheels are detached from the unit. Before use attach the wheels according to instruction. 0463 344 101 - 9 - © ESAB AB 2022...

  • Page 10: Electrical Installation

    400-415 V, 230/ 400-415 V, 3~ 50/60 Hz 3~ 50/60 Hz 3~ 50/60 Hz Current A at 100% duty cycle 4.83 12.1/6.06 at 60% duty cycle 17.6/9.99 at 35% duty cycle 10.87 25.3/15.21 0463 344 101 - 10 - © ESAB AB 2022...
  • Page 11 The mains cable areas and fuse sizes as shown above are in accordance with Swedish regulations. For other regions, supply cables must be suitable for the application and meet local and national regulations. 0463 344 101 - 11 - © ESAB AB 2022...

  • Page 12: Operation

    Lock the reel in place by turning the red knob as shown on the warning label attached next to the hub. WARNING! Secure the equipment - particularly if the ground is uneven or sloping. 0463 344 101 - 12 - © ESAB AB 2022...

  • Page 13: Connection And Control Devices

    Digital instrument - V/A (option,see in "ACCESSORIES" chapter) EURO-connector for welding torch Return cable with return clamp Connection for return cable (-), high Knob for burn-back time setting inductance (located on control board) Welding without gas 0463 344 101 - 13 - © ESAB AB 2022...

  • Page 14: Wire Feed Pressure

    This state is indicated by lighting of the orange indicator lamp [3] on the front of the power source. It resets automatically when the temperature has fallen. 0463 344 101 - 14 - © ESAB AB 2022...

  • Page 15: Maintenance

    Cleaning and replacement of the welding torch's wear parts should take place at regular intervals in order to achieve trouble-free wire feed. Blow the wire guide clean regularly and clean the contact tip. 0463 344 101 - 15 - © ESAB AB 2022...

  • Page 16: Troubleshooting

    • Check the main power supply fuses. • Check the wire feed unit - if proper rolls are applied and properly set the pressure of the wire feeder's pressure rollers. 0463 344 101 - 16 - © ESAB AB 2022...

  • Page 17: Ordering Spare Parts

    Spare parts and wear parts can be ordered through your nearest ESAB dealer, see esab.com. When ordering, please state product type, serial number, designation and spare part number in accordance with the spare parts list.

  • Page 18: Diagram

    DIAGRAM DIAGRAM Mig C170 3ph, 400-415 V 0463 344 101 - 18 - © ESAB AB 2022...
  • Page 19 DIAGRAM Mig C200 3ph, 400-415 V 0463 344 101 - 19 - © ESAB AB 2022...
  • Page 20 DIAGRAM Mig C250 3ph, 400-415 V 0463 344 101 - 20 - © ESAB AB 2022...
  • Page 21 DIAGRAM Mig C250 3ph, 230/400-415 V 0463 344 101 - 21 - © ESAB AB 2022...

  • Page 22: Ordering Numbers

    0349 309 410 Power source 230/400-415 V Origo Mig C250 3ph 3~50/60Hz 0349 300 524 Spare parts list Mig C170 3ph, Mig C200 3ph, Mig C250 3ph Technical documentation is available on the Internet at: www.esab.com 0463 344 101 - 22 - © ESAB AB 2022...

  • Page 23: Wear Parts

    In order to weld with aluminium wires, proper rollers, nozzles and liners for aluminium wires MUST be used. It is recommended to use 3 m long welding torch for aluminium wires, equipped with appropriate wear parts. 0463 344 101 - 23 - © ESAB AB 2022...

  • Page 24: Accessories

    ACCESSORIES ACCESSORIES 0349 302 598 Digital meter 0349 302 250 Transformer kit for CO heater 0349 309 310 Polarity change KIT 0463 344 101 - 24 - © ESAB AB 2022...
  • Page 25 ACCESSORIES 0463 344 101 - 25 - © ESAB AB 2022...
  • Page 26 ACCESSORIES 0463 344 101 - 26 - © ESAB AB 2022...
  • Page 27 ACCESSORIES 0463 344 101 - 27 - © ESAB AB 2022...
