DMP Electronics 1127W-WINT Installation Sheet

Description

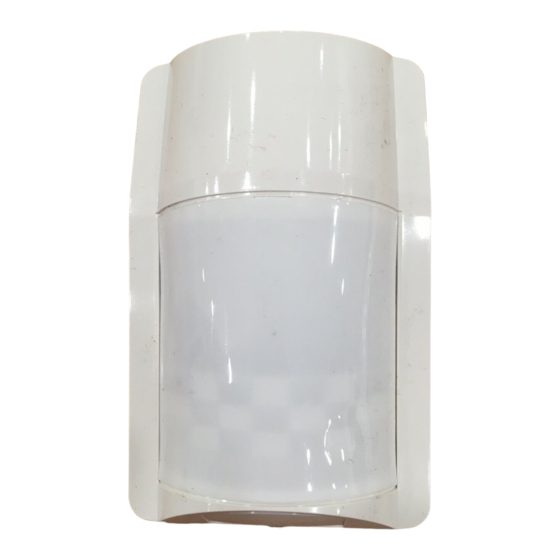

The 1127W-WINT is an 1100INT Series Wireless Wall Mount Wide Angle PIR Motion Detector. The 1127W-WINT provides
Pet Immunity up to 18.1kg (40lbs) . The detection area is 11m (36') with an 84° angle using a fresnel lens. See Figure
1. The 1127W-WINT includes a case tamper and functionality to allow sensor configuration from the panel. DMP
exclusive features include Sensitivity, Pulse Count, Walk Test, and Disarm/Disable programming.

Included Components

• One 1127W-WINT PIR Motion Detector
• Two CR123 batteries

Program the PIR in the Panel

In Zone Information, enter a ZONE NO:, ZONE NAME, the device SERIAL NO:, and the
SUPRVSN TIME. Continue to program the zone as directed in the panel programming
guide.
Note: When a receiver is installed, powered up, or the panel is reset, the Supervision
Time for transmitters is reset. If the receiver has been powered down for more
than one hour, wireless transmitters may take up to an additional hour to send
a Supervision message unless tripped, tampered, or powered up. This operation
extends battery life for transmitters. A missing message may display on the keypad
until the transmitter sends a Supervision message.

Additional Programming

Disarm/Disable: The Disarm/Disable options disables Night and Exit type zones
when the system is disarmed to extend battery life. Default is YES.
Pulse Count: Pulse Count is the number of pulse inputs (trips) the PIR needs to sense before going into alarm.
This option allows you to pick the number if trips before an alarm is initiated. The pulse count in a high-security
installation may be programed to 2, ensuring that the detector sends an alarm more quickly. Default is 40.
Adjustable Sensitivity: Program the PIR with a sensitivity of HIGH to operate the PIR at maximum sensitivity.
Program the PIR with a sensitivity of LOW to operate the PIR at 75% of maximum sensitivity. Use LOW sensitivity
for installations in harsh environments to reduce the chance for false alarms. Default is LOW.

Install the PIR

Remove the Cover
1. Remove the cover lock screw from the PIR. See Figure 2.
2. Lift the cover off of the base and set it aside.
3. Insert the included batteries into the PCB battery holders.
Select a Location (LED Survey Operation)
The PIR transmitter provides a Survey LED operation to allow one person
to confirm transmitter communication with the wireless receiver while
the cover is removed. The transmitter should be programmed into the
panel for the LED Survey to operate properly.
Trip the 1127W-WINT tamper to send data to the receiver. The red LED
turns on when data is sent to the receiver, then immediately turns off
when the receiver acknowledgement is received. If the transmitter does
not receive an acknowledgement from the receiver, the transmitter LED
remains on for about 8 seconds or flashes in a quick succession to let
you know communication is not established. Relocate the transmitter
or receiver until the Survey LED immediately turns off indicating the
transmitter and receiver are communicating properly.
INSTALLATION SHEET
1127W-WINT PIR Motion Detector
Top view
Side view
8.0' (2.4m)
0
10' 20'
(5m)

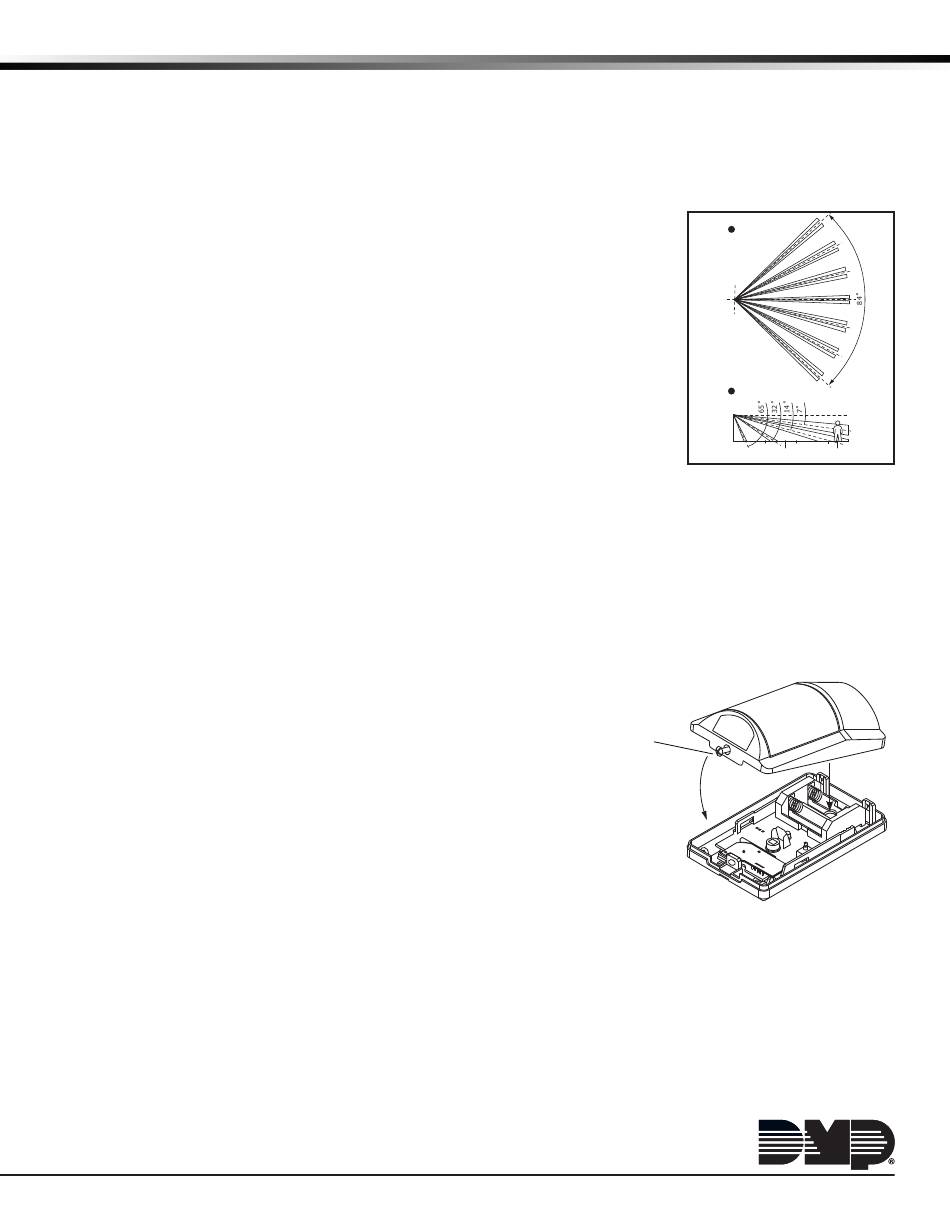

Figure 1: Detection Pattern
Cover Lock Screw
Figure 2: Remove the Cover
30' 36'
(10m)(11m)
Battery Holders
