DMP Electronics 1124 Installation Manual

Description
The 1124 PIR (Passive Infrared) Motion Detector is a wireless, four-element pyro intrusion detector for use with
DMP Wireless Receivers. The special hard lens offers wide coverage patterns even at low mounting heights, and is
especially immune to sunlight, halogen lights and fluorescent lights.
The 1124 ceiling-mount PIR offers 360°/65.6 ft. diameter coverage when mounted on a 10 ft. high ceiling and
provides protection from intruders using a fully sealed sensor chamber. With a built-in tamper switch and selectable
high/low sensitivity the 1124 is very flexible. For added convenience, the 1124 provides bidirectional temperature
compensation.
The 1124 PIR operates with the XR500 Series Command Processor™ panels using the 1100X Receiver or with the
XRSuper6, XR20, and XR40 Command Processor™ panels using the 1100D Receiver.
Features
• Wireless sensor with 360°/65.6 ft. coverage
pattern when installed at 10 ft. mounting
height
• Fully sealed sensor chamber with hard
spherical Lens
• Four-element Pyro sensor and sophisticated
signal processing
• Bidirectional temperature compensation
• Sensitivity adjustment and fluorescent light
stability
What is Included
• One PIR detector with DMP wireless
transmitter
• One CR123A battery
• Zone name and number label
• Serial number label
Transmitter Serial Number
For your convenience, an additional pre-printed
serial number label is included. Prior to installing
the device, record the serial number or place the
pre-printed serial number label on the panel programming sheet. This number is required during programming. As
needed, use the zone name and number label to identify a specific transmitter.
Test
Magnet
Sensor Body
Alignment
Arrow
Sensor Base
Alignment
Arrow
Sensor Base Sensor
Alignment Dot Body
Figure 2: Remove Cover
1124 360° PIR Motion Detector
Sensor
Phillips Head
Cover
Screwdriver
Lock
Screw
Sensor
Mounting Base
INST ALLA TION GUIDE
Sensor Cover
Alarm Test Button
Battery
Compartment
Lock Screw
Sensor Body
Tamper
Pulse Width
Sensitivity Adjustment
Silicon Gasket
Sensor Mounting Base

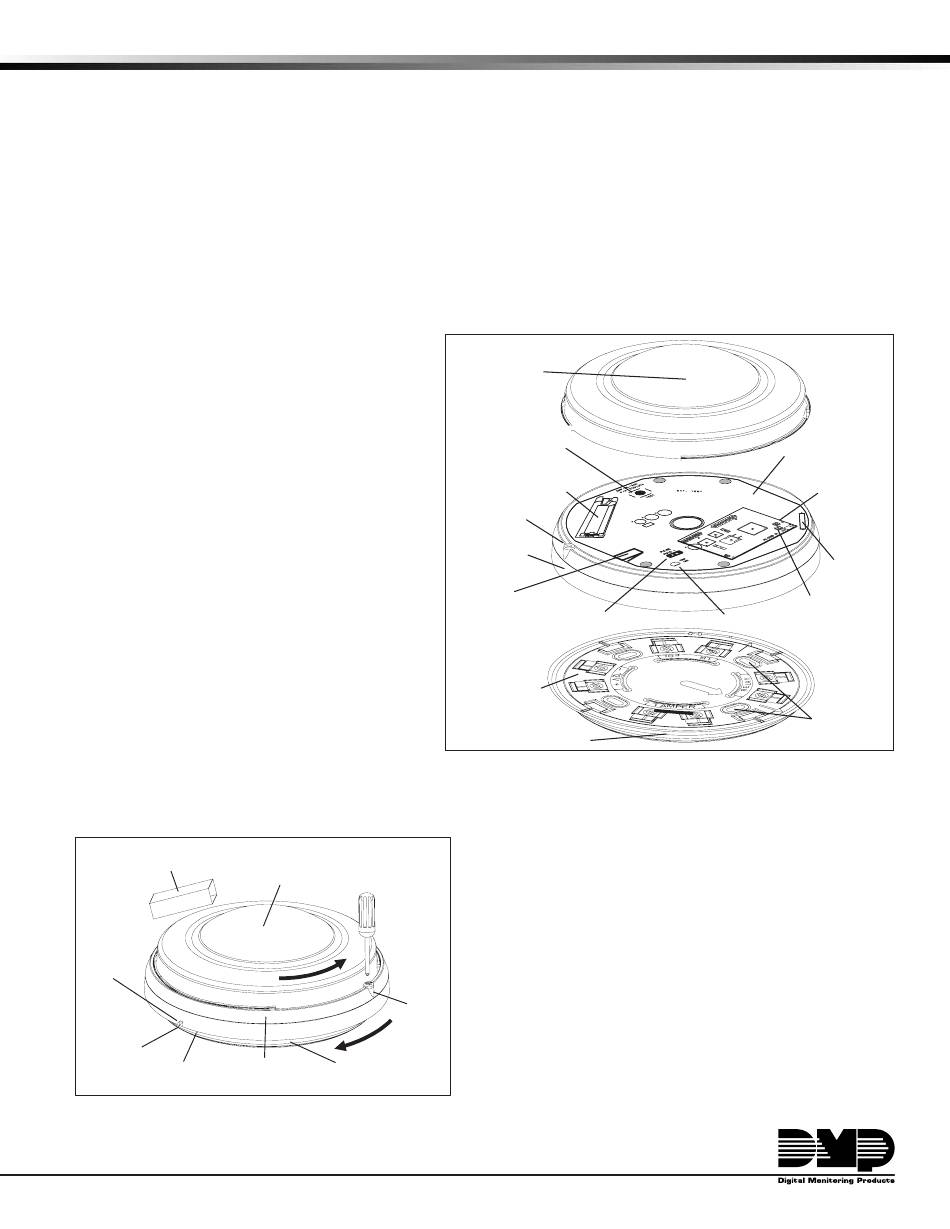

Figure 1: 1124 PIR Exploded View
Programming the PIR in the Panel
Refer to the XR500 Series Programming Guide (LT-0679) or
the XRSuper6/XR20/XR40 Programming Guide (LT-0305) as
needed. Program the device as a zone in Zone Information
during panel programming. At the Serial Number: prompt,
enter the eight-digit serial number, including leading zeros.
Continue to program the zone as directed in the panel
programming guide.
Note: When a receiver is installed, powered up, or the
panel is reset, the supervision time for transmitters is reset.
If the receiver has been powered down for more than one
hour, wireless transmitters may take up to an additional hour
to send a supervision message unless tripped, tampered,
or powered up. This operation extends battery life for
transmitters. A missing message may display on the keypad
until the transmitter sends a supervision
message.
Serial Number
Label Location
Transmitter
Board
Magnetic
Reed
Switch
Transmitter LED
Alarm Test LED
Mounting
Holes (4)
