Summary of Contents for BodyCraft F434

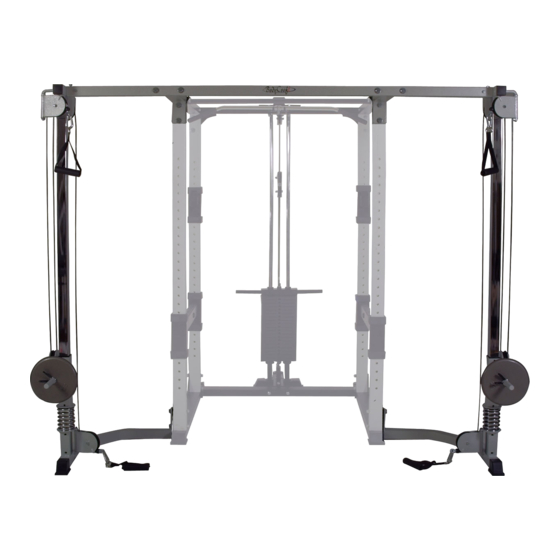

- Page 1 Assembly and Operating Instructions ~ 90 Min. 52 kg L 200 | W 224 | H 206 BC434.01.01 Art. No. BC-F434 BodyCraft Cable Crossover F434...
- Page 2 F434...
-
Page 3: Table Of Contents
Content GENERAL INFORMATION Technical Data Personal Safety Set-Up Place ASSEMBLY General Instructions Scope of Delivery Assembly STORAGE AND TRANSPORT General Instructions TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions Faults and Fault Diagnosis Maintenance and Inspection Calendar DISPOSAL RECOMMENDED ACCESSORIES ORDERING SPARE PARTS Serial Number and Model Name Parts List Exploded Drawing... - Page 4 F434...
- Page 5 In terms of innovation and technology, it is one of the highest quality fitness equipment for home use. Bodycraft multi gyms, for example, offer a very wide range of exercise possibilities. This ranges from traditional strength training such as bench presses and rehabilitation exercises to workout for complex sports like golf, tennis or badminton.
- Page 6 This notice indicates potentially hazardous situations which, if not avoided, will result in death or serious injuries! NOTICE This notice indicates further useful information. Retain these instructions in a safe place for future reference, maintenance or when ordering replacement parts. F434...
-
Page 7: General Information
GENERAL INFORMATION Technical Data Weight and Dimensions Packaging dimensions (L x W x H) and article weight (gross, incl. packaging) approx.: Box 1: 224 cm x 17 cm x 6 cm 17.1 kg Box 2: 78 cm x 70 cm x 20 cm 38.8 kg Set-up dimensions with power rack (L x W x H) approx.: 200 cm x 224 cm x 206 cm... -
Page 8: Personal Safety
Make sure that nobody is within the range of motion of the equipment during training so as not to endanger you or other persons. ࣑ ATTENTION Do not insert any objects of any kind into the openings of the device. F434... -
Page 9: Set-Up Place
Set-Up Place WARNING ⚠ Do not place the equipment in main corridors or escape routes. ⚠ CAUTION Choose a location in which to place the equipment such that there is enough free space/ clearance to the front, the rear and to the sides of the equipment. The training room should be well ventilated during training and not be exposed to any draughts. -
Page 10: Assembly
In the event of complaints, the contractual partner must be contacted directly. CAUTION ⚠ If parts of the scope of delivery are missing or damaged, the assembly must not be carried out. F434... - Page 11 (101 & 102) (103) Right & left base frame Chromed upright 2x (105 & 106) (107) (104) Left & right top pulley Top frame Weight holder 2x assembly (109) (111) Swivel pulley bracket Ankle strap (112) Link chain 2x (110) (108) Hand grip 2x Top frame connector 2x...
-
Page 12: Assembly
(101) to the power rack with two bolts (121), four washers (127) and two nylon nuts (130) [Fig. B-2]. Repeat the steps 1 and 2 with the left base (102). Remove bolts and washers Fig. A Fig. B-1 Fig. B-2 F434... - Page 13 Step 2: Assembly of the Chromed Uprights and Weight Holders Insert one chromed upright (103) into the right base (101) and secure with two bolts (123), four washers (129) and two nylon nuts (131). Slide one spring coil (132) and one weight holder (104) onto the chromed upright (103). Slide two rubber doughnuts (19) and two spring clips (120) onto the weight holder (104).
- Page 14 Repeat the steps 1 to 2 with the left top pulley assembly (105). Attach the top frame (107) to the left and right top pulley assemblies (105 & 106) with a total of six bolts (126) and six washers (129) [Fig. B]. Fig. A Fig. B F434...
- Page 15 Step 4: Assembly of the Top Frame and Top Frame Connectors to the Power Rack Remove the bolts (18), washers (21) and nuts (23) from the front of the front uprights (4) of the power rack [Fig. A]. Fig. A Attach the top frame connectors (108) to the top frame (107) with a total of four bolts (122), eight larger washers (127) and four nylon nuts (130)
- Page 16 [H1]: Run the cable (114) up and over one pulley (115) and attach the pulley to the swivel pulley bracket (109) with one bolt (124) and one nylon nut (131). Repeat the steps 2 to 5 on the right side. Fig. A Left side F434...
- Page 17 Fig. B NOTICE Please note that, for a better overview of the cable routing, the below view of the machine has been reversed. Right side Left side...
-
Page 18: Storage And Transport
࣑ ATTENTION Make sure that the equipment is protected from moisture, dust and dirt in the selected storage location. The storage location should be dry and well ventilated and have a constant ambient temperature between 10°C and 35°C. F434... -
Page 19: Troubleshooting, Care And Maintenance
TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions ⚠ WARNING Do not make any improper changes to the equipment. CAUTION ⚠ Damaged or worn components may affect your safety and the life of the equipment. Therefore, immediately replace damaged or worn components. In such a case, contact the contract partner. -
Page 20: Maintenance And Inspection Calendar
The materials can be recycled as per their symbols. Through the reuse, recycling of materials or other forms of recovery of old equipment, you make an important contribution to the protection of the environment. F434... -
Page 21: Recommended Accessories
RECOMMENDED ACCESSORIES To make your training experience even more efficient and pleasant, we recommend that you add suiting accessories to your fitness equipment. For training equipment like smith machines, weight benches or racks this could for example be a floor mat, which makes your fitness equipment stand more securely and also protects the floor from sweat but it could be also additional weights, handles, foot straps for leg exercises or triceps ropes. -
Page 22: Ordering Spare Parts
NOTICE The serial number of your equipment is unique. It's located on a white sticker. Enter the serial number in the appropriate field. Serial number: Brand / Category: BodyCraft / multi gym Model Name: Cable Crossover F434 Article Number: BC-F434... -
Page 23: Parts List
Parts List Name Qty. Right base frame Left base frame Chromed upright Weight holder Left top pulley assembly Right top pulley assembly Top frame Top frame connector Swivel pulley bracket Hand grip Ankle strap 21 link chain Hook Hi-low cable Pulley 50 sq. -
Page 24: Exploded Drawing
Exploded Drawing F434... -
Page 25: Warranty
WARRANTY Training equipment from BodyCraft® is subject to strict quality control. However, if a fitness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline. - Page 26 For that reason, we also want to resolve your queries quickly and in a straightforward manner. Thus, please always keep your customer number and the serial number of the faulty equipment handy. F434...
-
Page 27: Contact
CONTACT TECHNIK TEKNIK OG SERVICE TECHNIQUE & SERVICE �� �� �� +49 4621 4210-900 80 90 16 50 +33 (0) 172 770033 +49 4621 4210-945 +49 4621 4210-933 �� +49 4621 4210-698 �� �� info@fitshop.dk service-france@fitshop.fr �� technik@sport-tiedje.de �� �� Åbningstider kan findes på... - Page 28 The company employs numerous sports scientists, fitness trainers and competitive athletes. Visit us also on our social media platforms or our blog! F434...
- Page 29 Notes...
- Page 30 Notes F434...
- Page 32 Cable Crossover F434...
